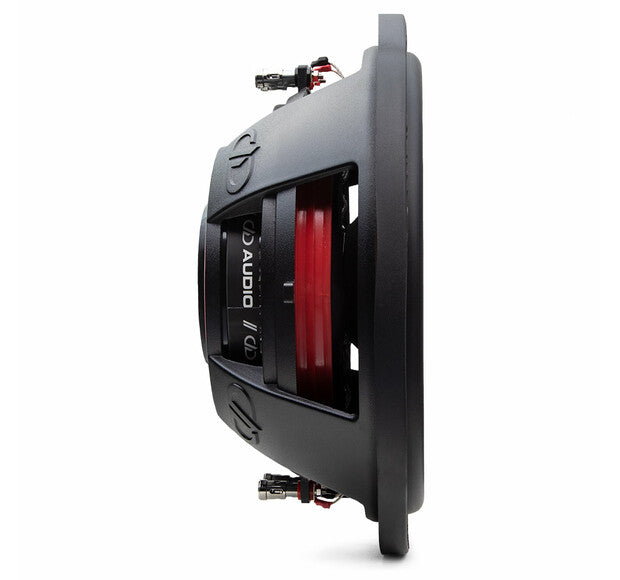

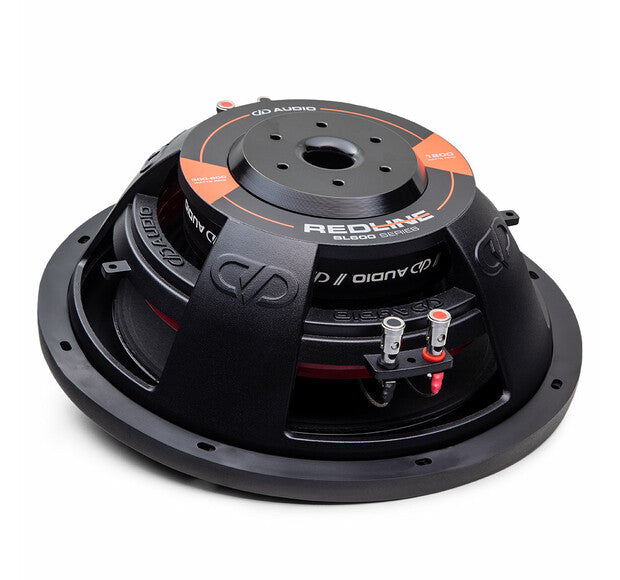

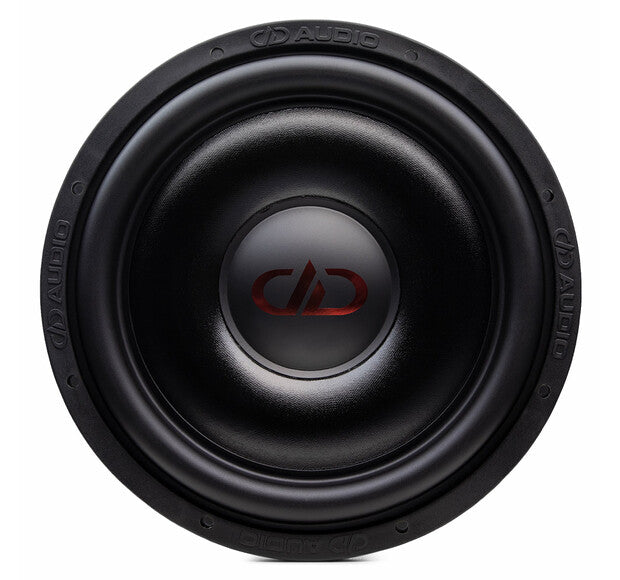

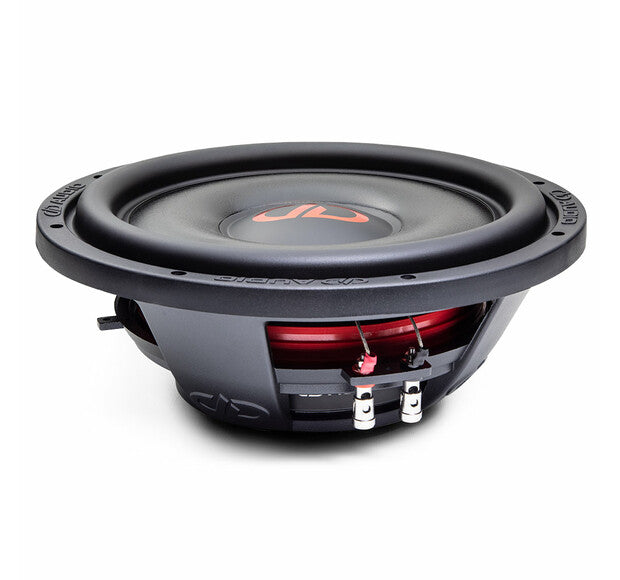

DD Audio SL612 D2

INFORMACIJA

SL600 series subwoofers, featuring the DD Audio HI-DEF SL612 12″ (30cm) flat subwoofer, have a very shallow mounting depth, and their suspensions are tuned to perform optimally in sealed and small bass-reflex enclosures.
To ensure high power handling, good cooling, and high excursion, SL600 subwoofers are equipped with 2.5-inch high-temperature voice coils, 72-ounce magnets, rear plate coil ventilation, and an EROM surround.
One of the unique features of the SL600 is its three-layer, low-profile diaphragm cone. By sandwiching a foam layer between two cellulose layers, the cone remains as light and rigid as a standard cone, yet flat enough to allow a suspension travel equal to that of a full-size subwoofer.

Technical data

Features:

12″ (30cm) subwoofer with EROM surround.
High temperature 2.5″ voice coil
Double layer spider system
Three-layer flat diaphragm body
72oz magnet
Coil gap ventilation at rear plate
DD cast aluminum frame
Speaker size (In): 12
Watts RMS: 300 - 600
Watt peak power: 1200
Impedance: D2
Voice coil (inch): 2.5
Data:

Fs (Hz): 27
Qms: 7.906
Qes: 0.432
Qts: 0.409
Vas: 68.349
Xmech (MM): 40
Xmax (MM): 14.5
Dimensions:

Frame outer diameter (cm): 31.9
Frame outer diameter with gasket(cm): 32.5
Mounting diameter(cm): 28.7
Mounting depth(cm): 10.5
Engine diameter(cm): 16,51
Motor depth(cm): 3.81
woofer displacement : 0.06 litre
Shipping weight: 8 kg
Enclosure Recommendation:

Closed cabinet : 22.5-42 litres
Bass reflex cabinet : 28-50 litres.
