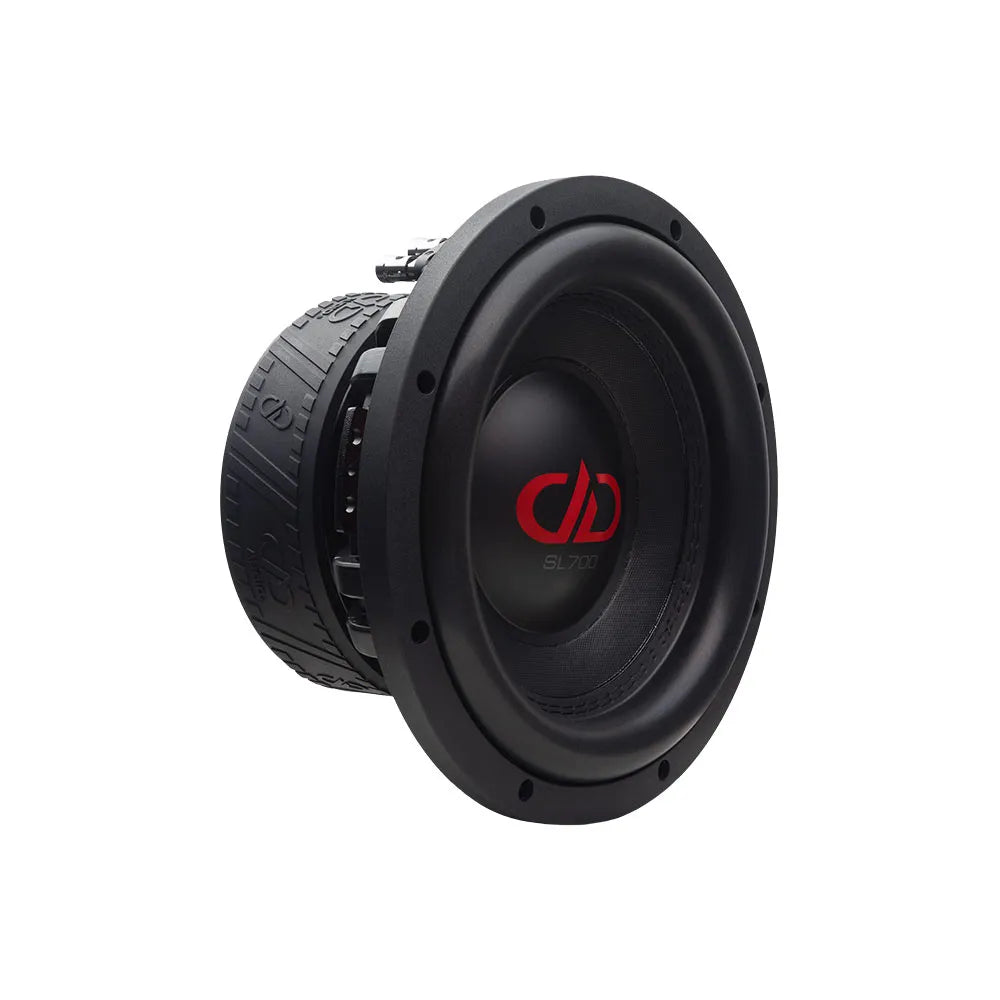

DD audio SL710-D2

INFORMACIJA

The SL700 series is a nostalgic nod to subwoofers from the 2000s, designed to play any music the system is tuned for. With a rich heritage tracing back to the DD9000/DD4500 series from that era, the SL700 models combine stiff, lightweight cones, robust dual spiders, highly compressed EROM surrounds, and a high-energy 3-inch voice coil that hits hard, low, and fast.

While current subwoofer trends are leaning towards air movement and hair tricks, we were asked to develop music-oriented subwoofers that would be highly efficient in smaller, everyday driver enclosures. By focusing the bandwidth from 30-300Hz, we can optimize excursion and output for these applications. Our recently developed shallow cast frames, coupled with high-energy motors, allow SL700 models to fit into compact enclosures suitable for trucks, under or behind seats, motorcycle bags, off-road/marine vehicles, and highly detailed SQ builds in sealed boxes.

Specifications

Speaker Size (In): 10
Watts RMS: 1000
Impedance: D2
VCD (In): 3
Piston Diameter (In): 10
Fs (Hz): 41
Qms: 6.1
Qes: 0.63
Qts: 0.57
Vas (Liters): 11.5
Xmech (MM): 40
Xmax (MM): 19
Frame OD (In): 10.25
Frame OD (MM): 261
Frame OD w/Gasket (In): 10.375
Frame OD w/Gasket (MM): 264
Mounting Diameter (In): 9.375
Mounting Diameter (MM): 238
Mounting Depth (In): 5
Mounting Depth (MM): 127
Motor Diameter (In): 6.7
Motor Diameter (MM): 170
Motor Depth (In): 2.5
Motor Depth (MM): 63.5
Woofer Displacement (CuFt): 0.06
Woofer Displacement (Liters): 1.7
Sealed Enclosure (CuFt): 0.5 - 1
Sealed Enclosure (Liters): 14.2 - 28.3
Ported Enclosure (CuFt): 0.5 - 1.25
Ported Enclosure (Liters): 14.2 - 25.4
