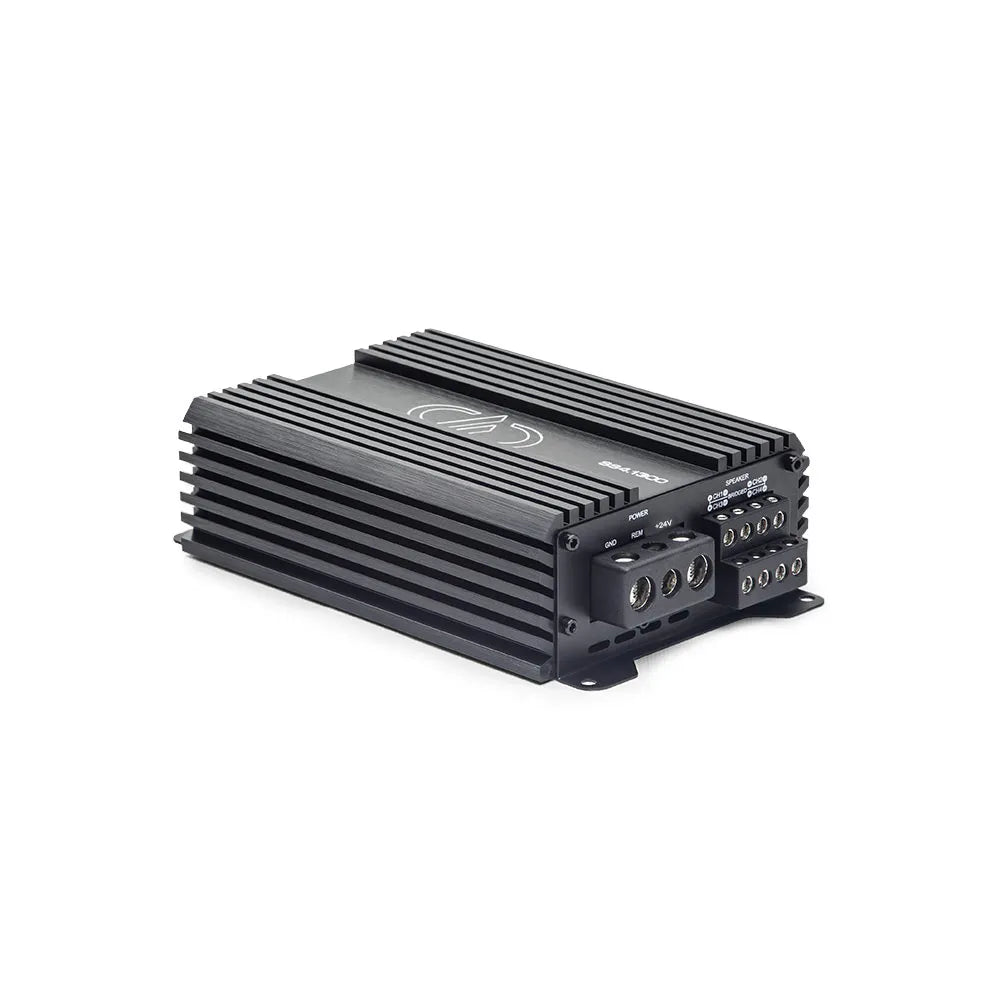

DD Audio SS4.1300-24V

INFORMACIJA

The new SS4.1300 brings a new level of power to the multi-channel amplifier section of the SS series. With nearly 200 watts per channel at 4 ohms and over 325 watts at 2 ohms, these compact amplifiers will take professional audio and motorcycle systems to new heights with exceptional sound quality.

SS amplifiers have quickly earned a reputation for delivering high clean power from a small package. Their high-speed, high-current Class D designs offer significant power and high-quality sound in compact dimensions. The classic DD AUDIO style heat sink housing ensures maximum cooling, thanks to 50% thicker side walls than industry standards with longer fins to increase surface area. Like all DD amplifiers, all key components are from reputable brands, utilizing higher current mosfets and output devices, increased power capacitors, a more powerful transformer, as well as improved ventilation and PCBs with double thermal capacity.

These new high-end mini amplifiers are state-of-the-art, no-compromise designs, delivering the best sound with

Specifications

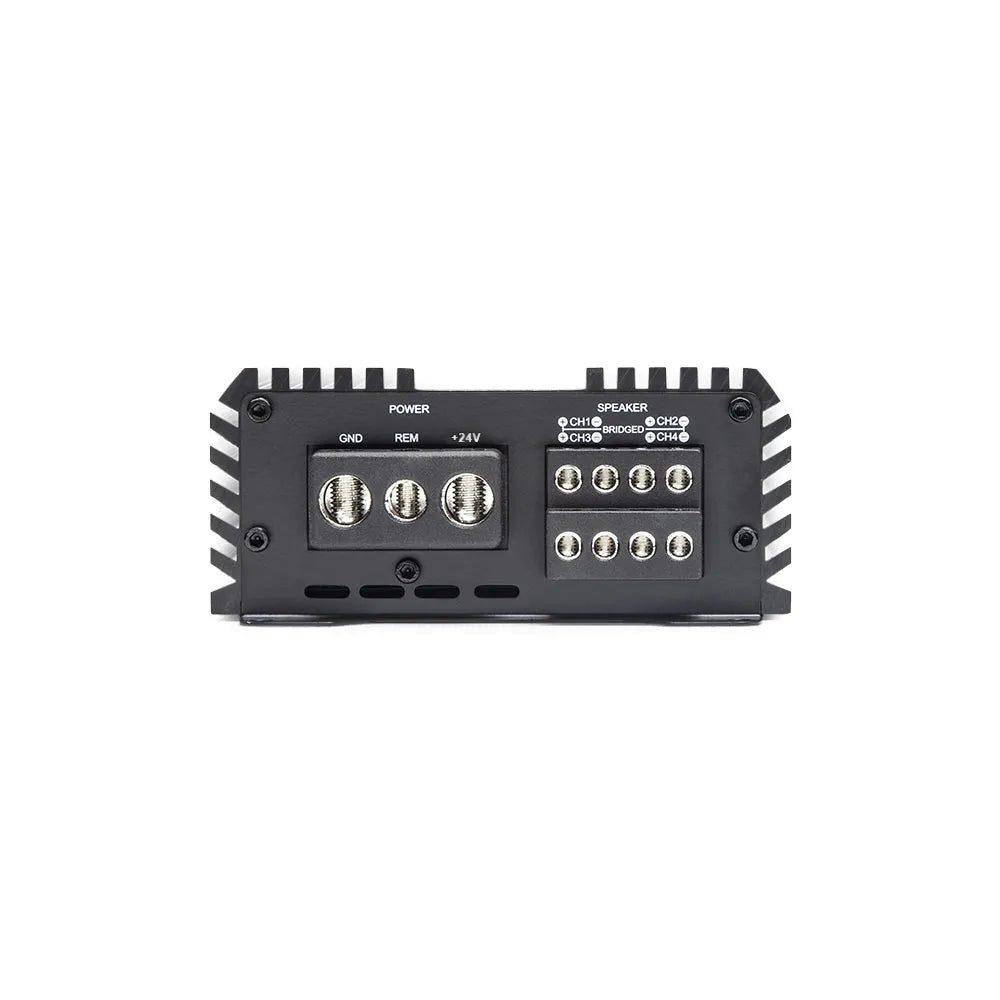

NOTE: Power and remote connections are the same when connecting a 24V amp to a 24V charging system.

Input Channel(s): 4
Output Channel(s): 4
Continuous Wattage @4ohm: 180 x 4 / 650 x 2
Continuous Wattage @2ohm: 325 x 4
Max Current Draw (Amps): 150
RCA Input Voltage Sensitivity: 6 - 0.25
High-Level Input Voltage Sensitivity: 20 - 1.1
RCA Input S/N: 95
Damping Factor: 100
THD: 1.0%
Frequency Response (Hz): 20 - 20k
High Pass Filter: 35 - 600
Low-Pass Filter: 35 - 600
Power Wire Gauge: 4
Speaker Wire Gauge: 14
Dimensions (Inches): 6.25 x 4.6 x 2
Dimensions (MM): 159 x 117 x 50
