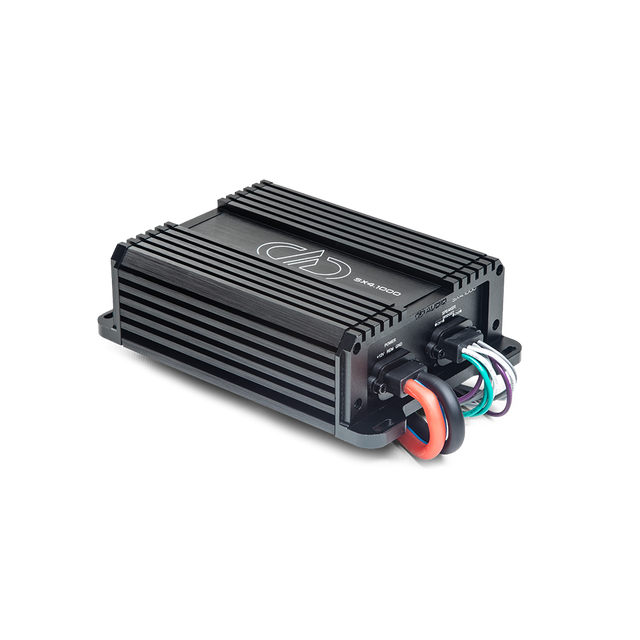

DD AUDIO SX4.1000

INFORMACIJA

1000 produces an impressive 250 watts across 4 channels, contained within a mere 32 square inches. This amplifier can be bridged to provide a stout 2x250 watt output for mids and highs and an additional 500 watts for sub bass. 1000 is the ultimate solution for any robust system design.

SX amplifiers are IPX67 waterproof designs with increased output levels tailored for environments with elevated noise levels. Their enhanced output power and increased ruggedness are achieved through the integration of cast aluminum end panels, aluminum bottom plates, and preamplifier controls with protective plexi covers.

Technical specifications

Features:
High Level Inputs
12dB/Oct High Pass/Low Pass xovers
Heavyweight DD Aluminum Chassis
Aluminum End Panels and Bottom Panel
Set Screw Power and Speaker Terminals
8 AWG Power Terminals

Specifications:
Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 4
Output Channel(s): 4
Continuous Wattage @4ohm: 4 x 150
Continuous Wattage @2ohm: 4 x 250 / 2 x 500
Max Current Draw (Amps): 100
RCA Input Voltage Sensitivity: 10 - 0.4
High-Level Input Voltage Sensitivity: 10 - 0.4
RCA Input S/N: 85
Damping Factor: 70
THD: 0.1%
Frequency Response (Hz): 10 - 20k
High Pass Filter: 50 - 5k
Low-Pass Filter: 5 - 5k
Power Wire Gauge: 8
Speaker Wire Gauge: 16
Dimensions (Inches): 7 x 4.5 x 2
Dimensions (MM): 178 x 115 x 50
