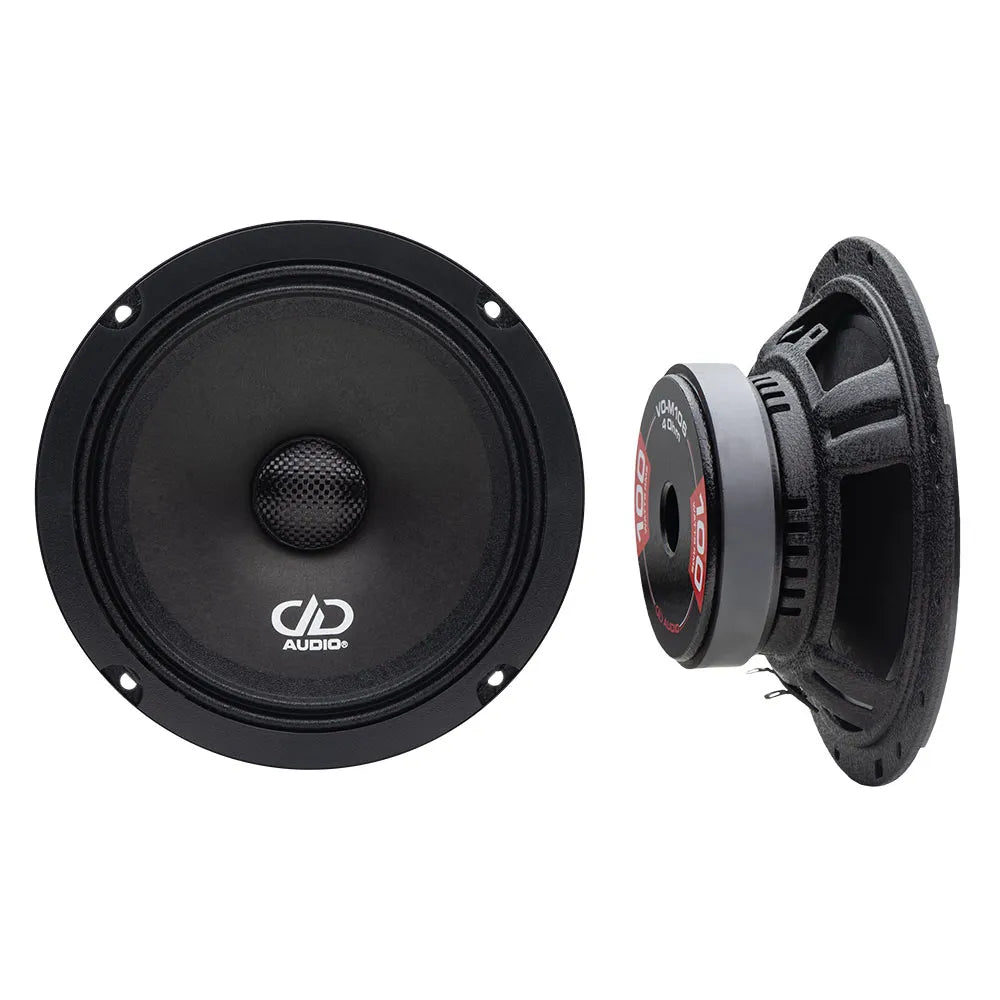

DD Audio VO-M106-S4
DD Audio VO-M106-S4 - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
The ultralight moving mass is powered by a Y35 magnet system, using Faraday shorting rings to reduce distortion and extend the frequency range. The voice coil is wound with CCA wire on a 30 mm diameter, increasing long-term thermal efficiency and overall sensitivity. The waterproof cone material is made of synthetic resin, and the dust cap is made of carbon fiber, glued to the voice coil former to extend natural high-frequency clarity. All these carefully engineered elements are combined into a shallow basket structure to allow installation in many factory (OEM) applications.
Technical data
Driver Size - 6.5″
100 Watts RMS
VCD - 1.25″
Impedance - 4 Ohm
Frequency Response - 120Hz - 20kHz
130 Fs - Hz
Qms 12.55
Qes 1.34
Qts 1.21
Vas 4.5 - liters
Xmax 4 mm
Susension travel 12 mm
dBSPL 98
BL 4.4
Mounting Diameter 142 mm
Mounting Depth 63 mm
DD Audio VO-M106-S4
