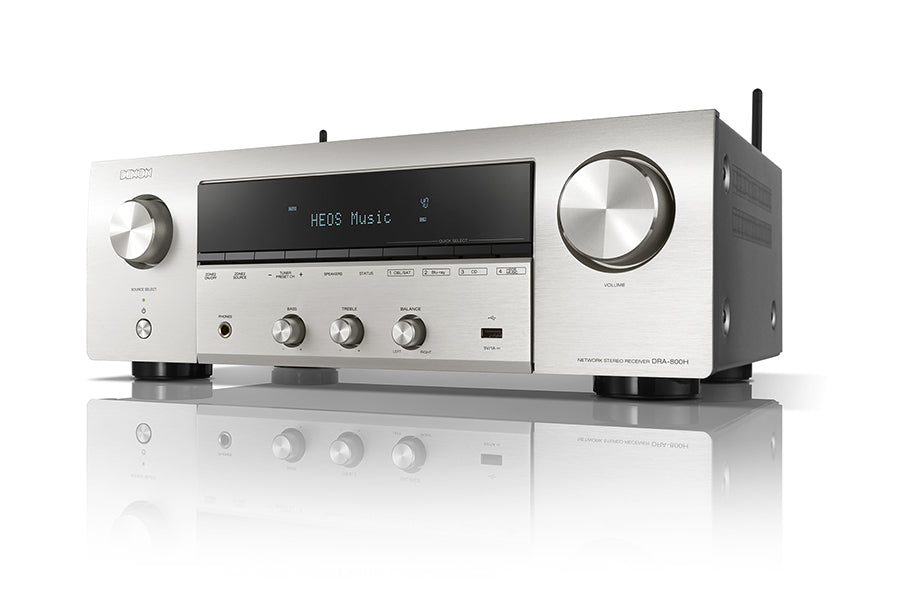

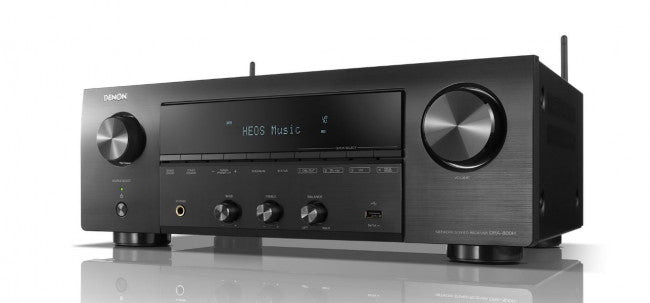

Denon DRA-800H 2-Channel Hi-Fi Smart Network Amplifier Stereo 800 HDMI

INFORMACIJA

An excellent choice for those who want a high-quality stereo system and at the same time enjoy online music sources, convenient control and other functions. All in one body!

• Power RMS 2x100W (8ohm THD: 0.07%, 2ch)
• HDMI (ARC)
• Dimensions 434 x 339 x 151 mm

DESCRIPTION

• Two-channel Hi-Fi network receiver - amplifier: Enjoy the well-known Hi-Fi sound that Denon will provide you.
• Carefully selected: Hi-Fi audio components, reduced audio signal path and other engineering solutions will ensure the best possible sound quality.
• Denon Hi-Fi amplifier: The right and left channels have separate power amplifiers - Feel the powerful sound and hear every sound detail. 100W power per channel (8 ohm, 20Hz – 20kHz, THD: 0.07%, 2ch driven).
• Integrated corrective MM type cartridge equalizer: Connect your existing turntable directly to the DRA-800H.
• FM and DAB+ radio capabilities: Listen to a wide selection of radio stations.
• High-resolution audio format support: Listen to 192kHz/24bit FLAC, WAV, ALAC and DSD 2.8/5.6MHz audio formats directly from the network or using the integrated USB port.
• Supports Spotify, Amazon Music, TuneIn, Deezer and much more: Wirelessly stream and enjoy the most popular music streaming platforms.
• Integrated HEOS wireless home audio system and music streaming technology: Listen to music throughout your home wirelessly.
• Amazon Alexa, Google Assistant and Apple Siri voice control capability: Use your voice to control the DRA-800H and stream music.
• Ability to equalize sound and Direct mode: Control high and low frequencies.
• Premium class D/A converter: hear even the smallest sound details with the 32-bit AKM D/A converter.
• 4K/60Hz, HDR10, HGL, 4:4:4 color resolution and BT.2020: These technologies ensure the best image quality, exceptional brightness, contrast and colors.
• Award-winning Denon initial configuration wizard: A simple and intuitive way to perform initial device configuration.
• Smart TV connection: Easily control the amplifier with the TV remote control. This option will be provided by HDMI-CEC functionality.

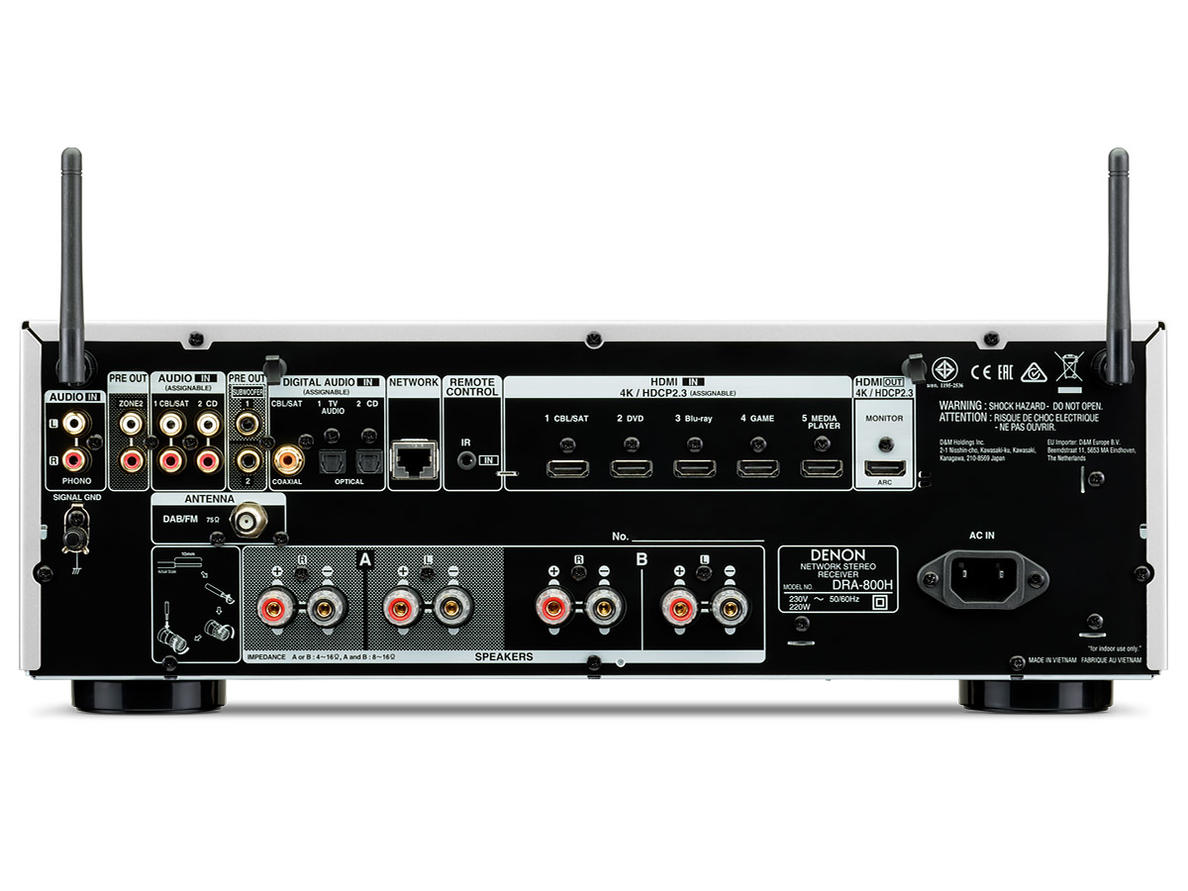

• Analog and digital inputs: Ability to connect any source.
• Speaker A/B connection capability and Zone 2 Pre-out output: Connect up to 2 pairs of speakers to the DRA-800H and choose which speakers should play. Or expand your system with a second zone connection.
• Four quick selection buttons: The quick selection buttons on the front panel of the amplifier allow you to select the desired sound settings for each source.

VIDEO

HIGH PERFORMANCE TWO CHANNEL AMPLIFIER

The DRA-800H Hi-Fi network player receiver-amplifier is specially designed to meet the needs of your two-channel system. Featuring a custom discrete high-current power amplifier, symmetrical design and OFC (oxygen-free copper) winding for the power transformer, the DRA-800H delivers maximum performance and 100W per channel (8 ohm, 20Hz - 20kHz, THD: 0). Due to its low impedance, the DRA-800H offers greater stability for both floor-standing and bookshelf speakers. Automatic ECO mode helps reduce energy consumption without sacrificing sound quality.

QUALITY SOUND TUNING

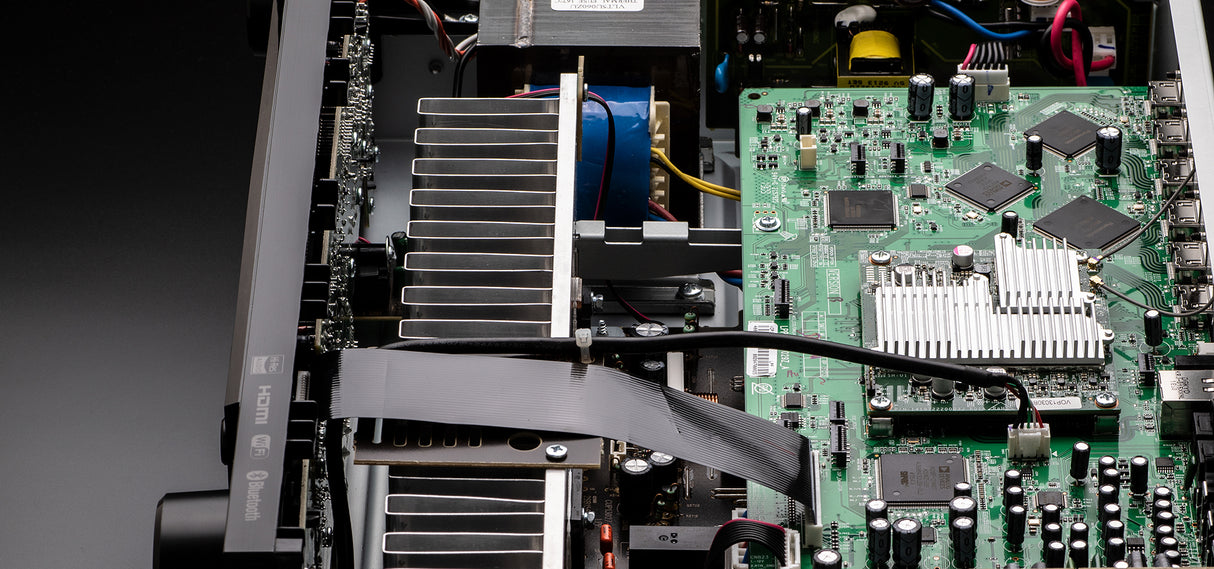

Denon audio engineers use carefully selected Hi-Fi audio components, including custom resistors and audio level capacitors, to tune the stereo receiver. Based on years of amplifier design principles, the DRA-800H features a symmetrical component layout, a dual D/A converter circuit and analog preamplifier circuits that do not interfere with power. A special circuit with short and direct signal paths between the power supply, signal and amplification ensures that the speakers reproduce only high-quality and accurate sound.

MUSIC STREAMING

Enjoy popular music streaming platforms including Spotify, Deezer, Tidal, Amazon Music and many more. Also discover internet radio stations from all over the world with TuneIn.

HIGH RESOLUTION AUDIO

Enjoy the highest sound quality with your favorite high-resolution audio tracks. The DRA-800H with AKM 32-bit D/A converters features high-resolution audio decoding: ALAC, FLAC and WAV up to 24-bit/196 kHz frequency. It is also compatible with 2.8/5.6-MHz DSD files (DSD is the SACD audio encoding format). Play them from a USB drive or via network sources. The DRA-800H also supports other file types such as MP3 and WMA.

A/B SPEAKER CONNECTION AND ZONE 2

Connect two pairs of speakers for easy A/B switching. Or extend your system to a second room and use the pre-out to listen to another source in Zone 2.

INTEGRATED MM TYPE CARTRIDGE EQUALIZER

For over 50 years, Denon has developed turntables, cartridges and phono amplifiers. With an integrated phono input, the DRA-800H allows you to connect a turntable and listen to vinyl records. Enjoy your vinyl collection with exceptional sound quality.

DUAL D/A CONVERTERS

The DRA-800H has an integrated high-end D/A converter that ensures a wide soundstage and sound detail. The selection of suitable D/A converters significantly increases the dynamic range of the sound and reduces unnecessary noise.

ADVANCED HDMI SECTION

Enjoy your favorite movies, TV shows and video games.

ADVANCED HDMI VIDEO SECTION AND ARC

The DRA-800H amplifier has 5 HDMI inputs and 1 output. All these connections support 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling technology, high dynamic range (HDR10), Hybrid Log-Gamma (HLG), ARC, 3D, BT.2020. These technologies ensure incredible image quality, colors and contrast. ARC support allows you to transmit audio directly from your smart TV to the DRA-800H via the connected HDMI cable.

ADVANCED VIDEO CONTROLS

HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content totally uninhibited. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.

EASY INITIAL DEVICE CONFIGURATION

The DRA-800H amplifier's operating system includes a convenient initial device configuration wizard, providing clear connection instructions. After connecting the TV to the DRA-800H via HDMI, the unique Denon setup assistant will appear on the TV screen, which will guide you through the setup step by step.

INTEGRATED BLUETOOTH AND WI-FI CONNECTIONS

The heart of your wireless network. The Denon DRA-800H supports Bluetooth, Wi-Fi and AirPlay 2 wireless streaming, featuring an advanced dual antenna transceiver system for reliable data streaming even in crowded urban environments. Wirelessly stream music to the DRA-800H.

With built-in HEOS technology, play the same song in every room or choose different songs in each room - the choice is yours. HEOS works with Amazon Alexa and Google Assistant for simple voice control.

HEOS supports Spotify, Amazon Music, Deezer, TuneIn, Sound Cloud, Tidal and more.

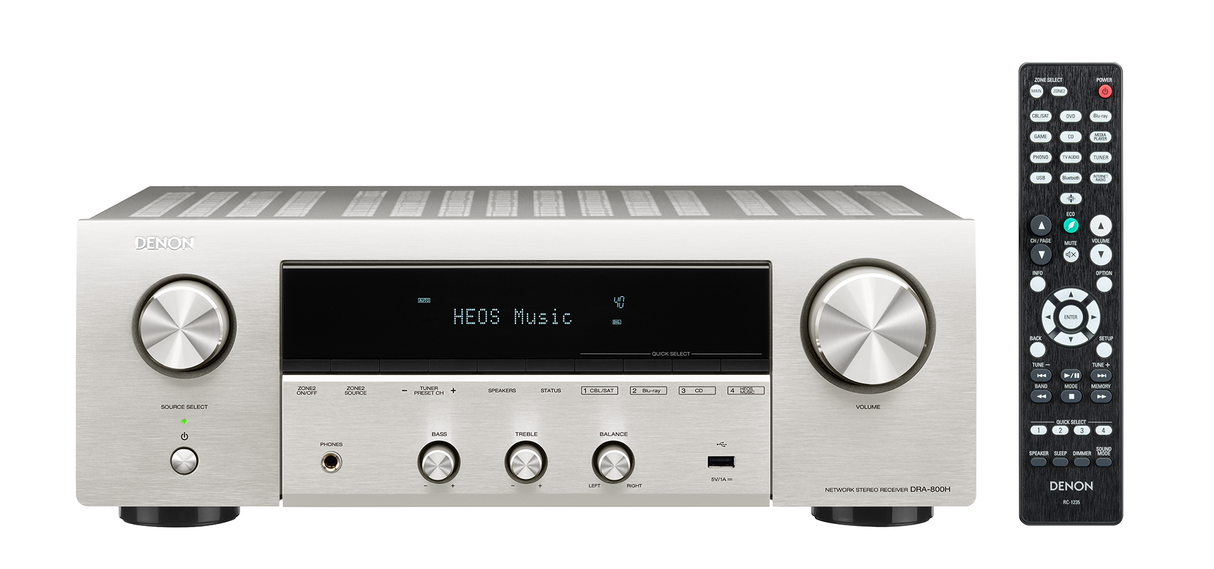

QUICK SELECTION BUTTONS TO CONTROL SOUND SETTINGS

The front panel of the Denon DRA-800H has four quick selection buttons, which store the preferred sound settings for each source. Choose between TV audio, Blu-ray, multimedia players and more, and the DRA-800H will adjust the EQ parameters to your chosen media source parameters. To control this function faster, use the buttons on the amplifier's front panel or select the same buttons on the amplifier's remote control.

AUTO LOW LATENCY MODE

Auto Low Latency Mode (ALLM) ensures that XboX One users can enjoy an even more impressive gaming experience.

WORKS WITH MAJOR VOICE CONTROL PLATFORMS

Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant, Apple Siri. Ask to play your favourite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favourite to use — the choice is yours. Functionality varies by voice agent.

WORKS WITH AMAZON ALEXA

Control the DRA-800H with your voice using Amazon Alexa. Change the volume, select the desired track or even change sources. Download the free "Heos Home Entertainment Skill" app, which will give you the ability to control not only the DRA-800H but also other devices with HEOS technology by voice. This service requires a separate Amazon Echo device and the Alexa app.

WORKS WITH GOOGLE ASSISTANT

Play music using the HEOS app, and Google Assistant will allow you to control the volume, song and much more.

AIRPLAY 2 + APPLE SIRI VOICE CONTROL

Use AirPlay 2 and stream music wirelessly directly to the DRA-800H. It is also possible to create a wireless home audio system by connecting other devices that support AirPlay.

Stream audio from Apple Music, Spotify. Also watch videos from YouTube, Netflix and stream audio directly from any Apple device to Apple AirPlay-enabled speakers.

INTEGRATED HEOS TECHNOLOGY PROVIDES WIDE POSSIBILITIES FOR WIRELESS MUSIC STREAMING

Stream your favorite music wirelessly. This option is provided by the integrated HEOS technology. Enjoy high-quality sound from a wide selection of music streaming platforms. Spotify, TuneIn, Amazon Prime Music, SoundCloud, Tidal, Napster, Deezer and much more. Control all your music easily with the HEOS app.

CREATE THE PERFECT HEOS SYSTEM

The HEOS wireless home audio system functionality will ensure that the DRA-800H amplifier can be connected to any other HEOS-enabled product. Listen to the same song in all rooms, or choose a different song for each room - the choice is yours.

Ready for selected audio system deployment

The Denon DRA-800H features external control capabilities and excellent performance with third-party integration solutions. This provides IP control for major third-party control devices.

More than 100 years of experience in audio equipment manufacturing.

Founded in 1910, Denon has a glorious heritage of "firsts" - the first Japanese audio electronics manufacturer to produce the world's first commercial compact discs. This focused investment in audio research and development ensures that you get the latest technology and the highest quality with every listening experience.

TECHNICAL DATA

• Power: 2 x 100W 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%)
• 5 HDMI inputs, supporting 4K UHD video
• 1 HDMI output, featuring ARC functionality.
• Wireless music streaming via AirPlay 2, Bluetooth or HEOS technology
• Integrated MM phono preamplifier for turntable connection
• High-resolution audio format support (192kHz/24-bit): FLAC, ALAC, WAV, DSD 2.8/5.6MHz
• Gold-plated audio signal outputs
• A/B speaker connection capability
• Ability to control this amplifier using the TV remote control
• 2 optical inputs (digital)
• 1 coaxial input (digital)
• 2 analog RCA inputs
• DAB/FM support
• Internet connection: LAN cable or Wi-Fi
• Second zone PRE-OUT output
• 2 outputs for subwoofer connection. (Sub-Out)
• The front of the amplifier has an integrated USB port for reading high-resolution audio formats
• Height 15.1cm
• Width 43.4cm
• Depth 33.9cm
• Weight 8.6kg
