DD Audio

Digital Designs Basskit PSW212-D4

Powerful subwoofer set with two 12-inch speakers and a spacious enclosure. Upgraded speakers ensure deeper and richer sound.

€469.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

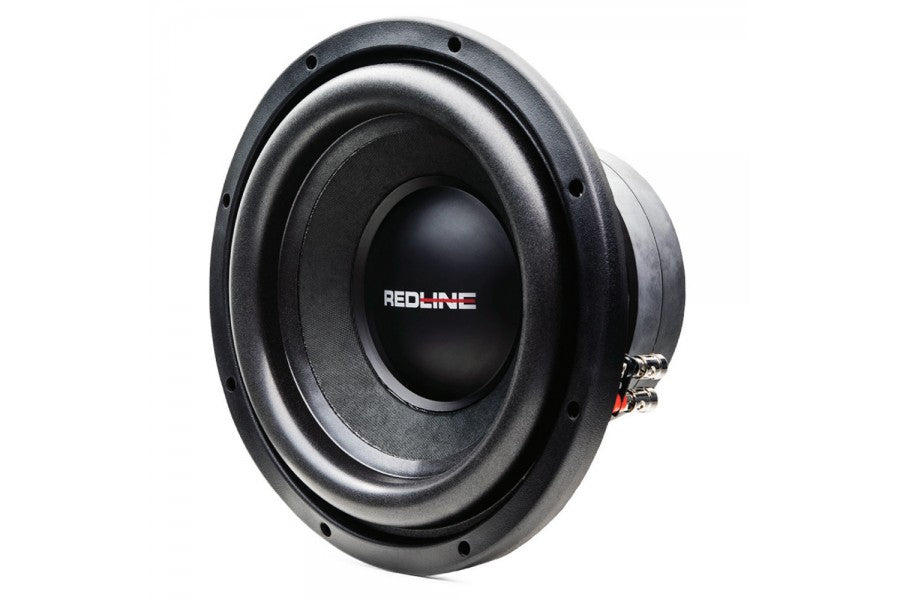

Digital Designs Basskit with 2x12″ PSW subwoofers and a large subwoofer enclosure. REDLINE PSW (power) series subwoofers are a more powerful version of the REDLINE SW series subwoofers. REDLINE PSW subwoofers have been improved in every aspect compared to the REDLINE SW series:
- Larger voice coil
- Better power handling
- Longer Xmax
- Larger magnet
- LOTS OF REAL BASS!

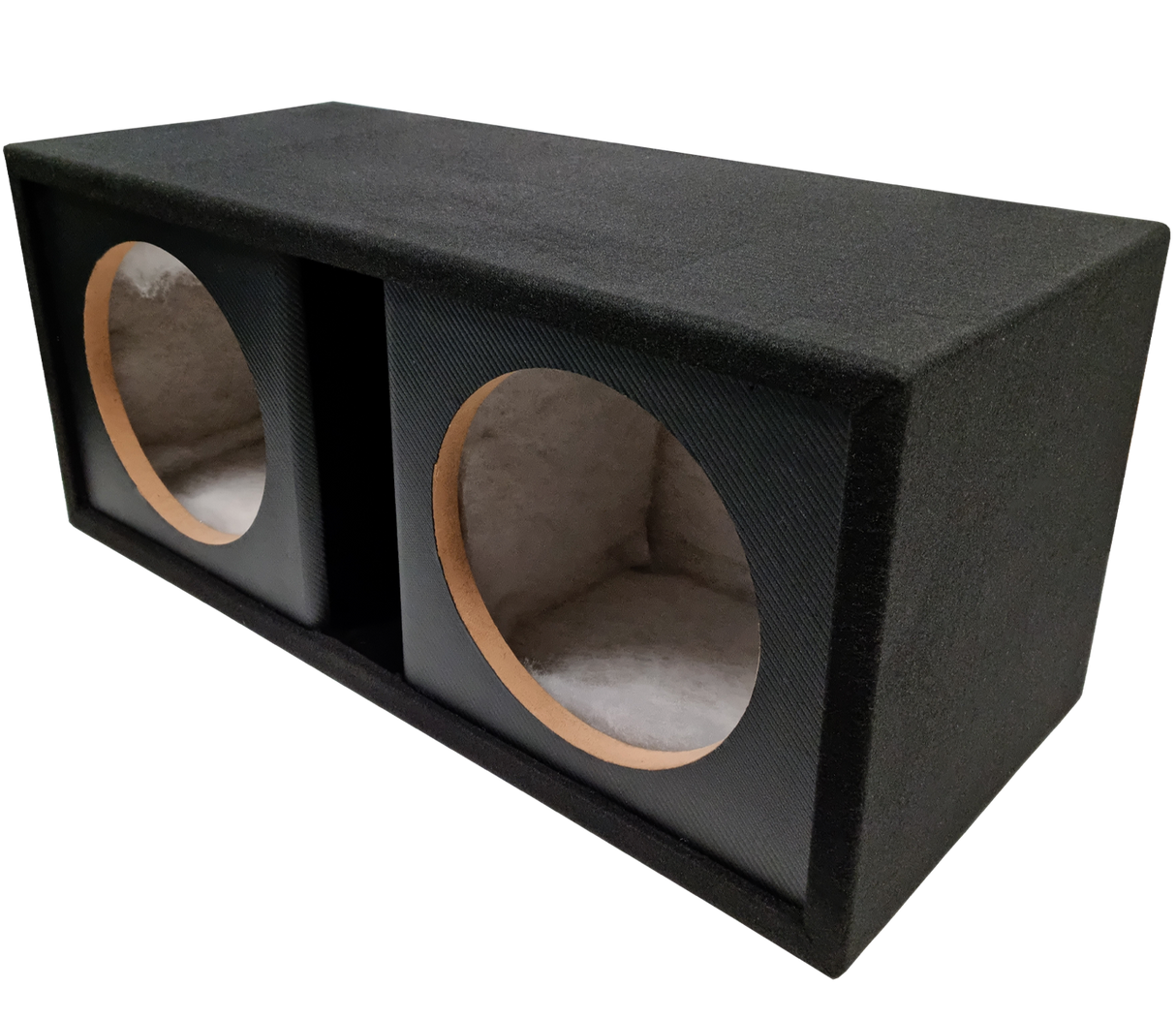

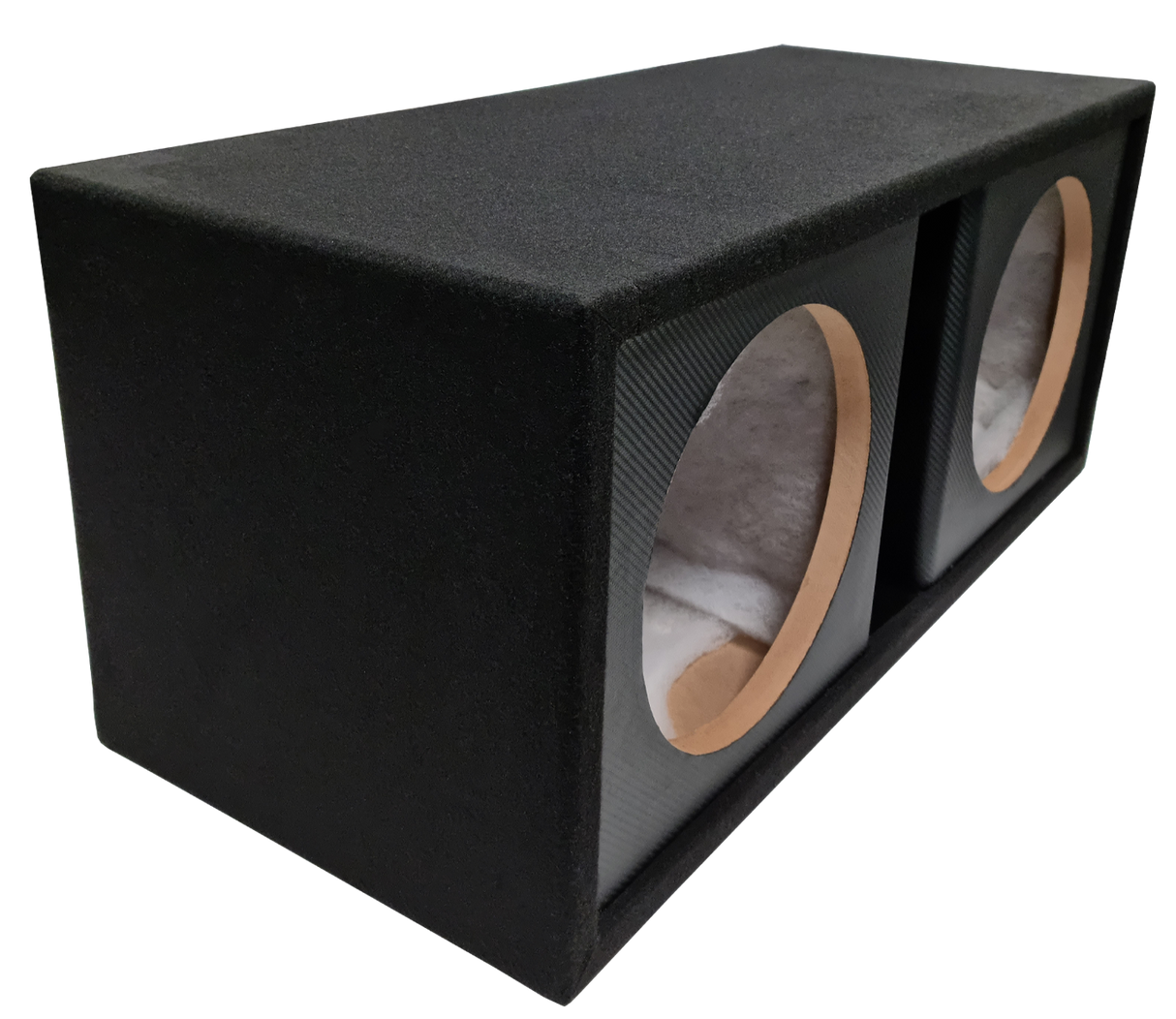

The 4-AI212SLOT model is a large subwoofer enclosure made of MDF board. It features a large rounded port. The enclosure is covered with black carpet, and the front panel has a carbon fiber-look strip. The enclosure also includes cable terminals.

Dimensions: width 930mm x height 380mm x depth 400mm

Technical specifications

DDRL-PSW12-D4:

Speaker size: (in) 12
Watts RMS: 400
Watts peak: 800
Impedance: D4
VCD: (in) 2.5
Piston diameter: (in) 10
FS: (Hz) 37
Qms: 5.835
Qes: 0.845
Qts: 0.738
Vas: (liters) 30.23
dBSPL: 87
Xmech: (mm) 29
Xmax: (mm) 13
Frame OD: (in) 12.126
Frame OD w/Gasket: (in) 11.17

Mounting diameter: (in) 11.02
Mounting depth: (in) 6.53
Motor diameter: (in) 6.14
Motor depth: (in) 2.59
Magnet weight: (Oz) 100
Woofer displacement: (CuFt) 0.07
Ported enclosure: (CuFt) 1.75-2.75
Shipping weight: (lbs) 19

4-AI212SLOT:

Ported enclosure for 2x12″ subwoofer
Net volume: 2x40 liters.
Port area: 350 cm2
Port height: 350mm
Port width: 100mm
Tuning frequency: 38 Hz
Diameter of speaker hole: 285mm
Measurements ( W x H x D ): 930 x 380 x 400.
