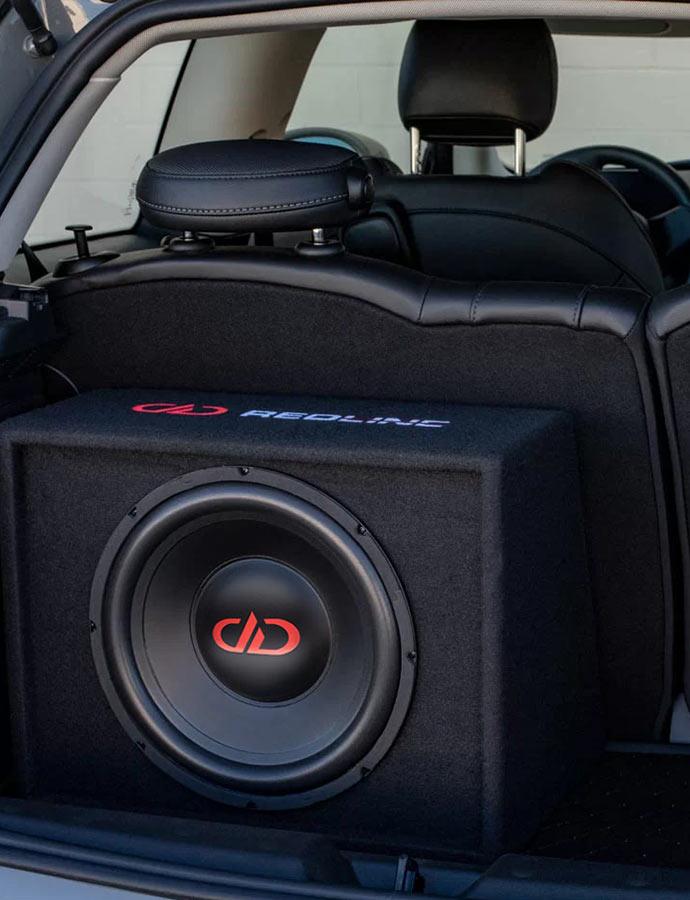

- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - garsiakalbis su logotipu bagažinėje

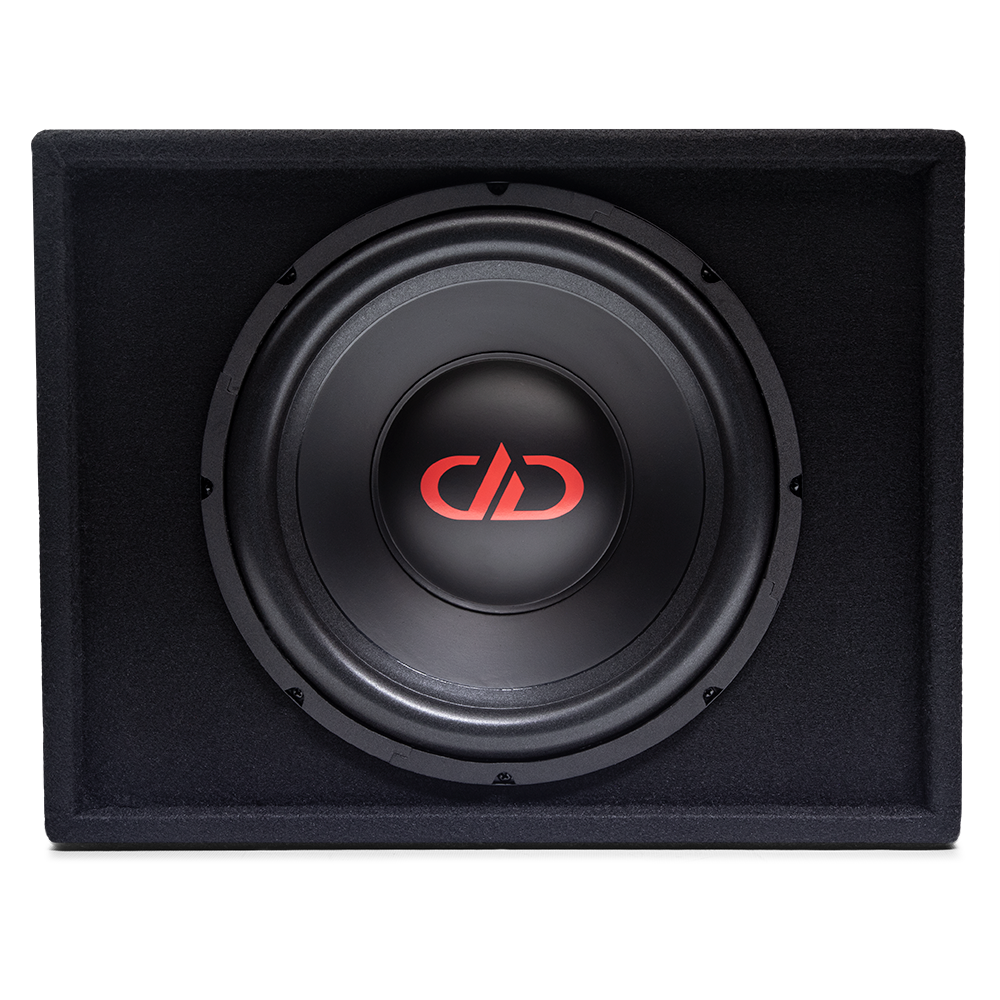

- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - Priekinė dalis su raudonu logotipu

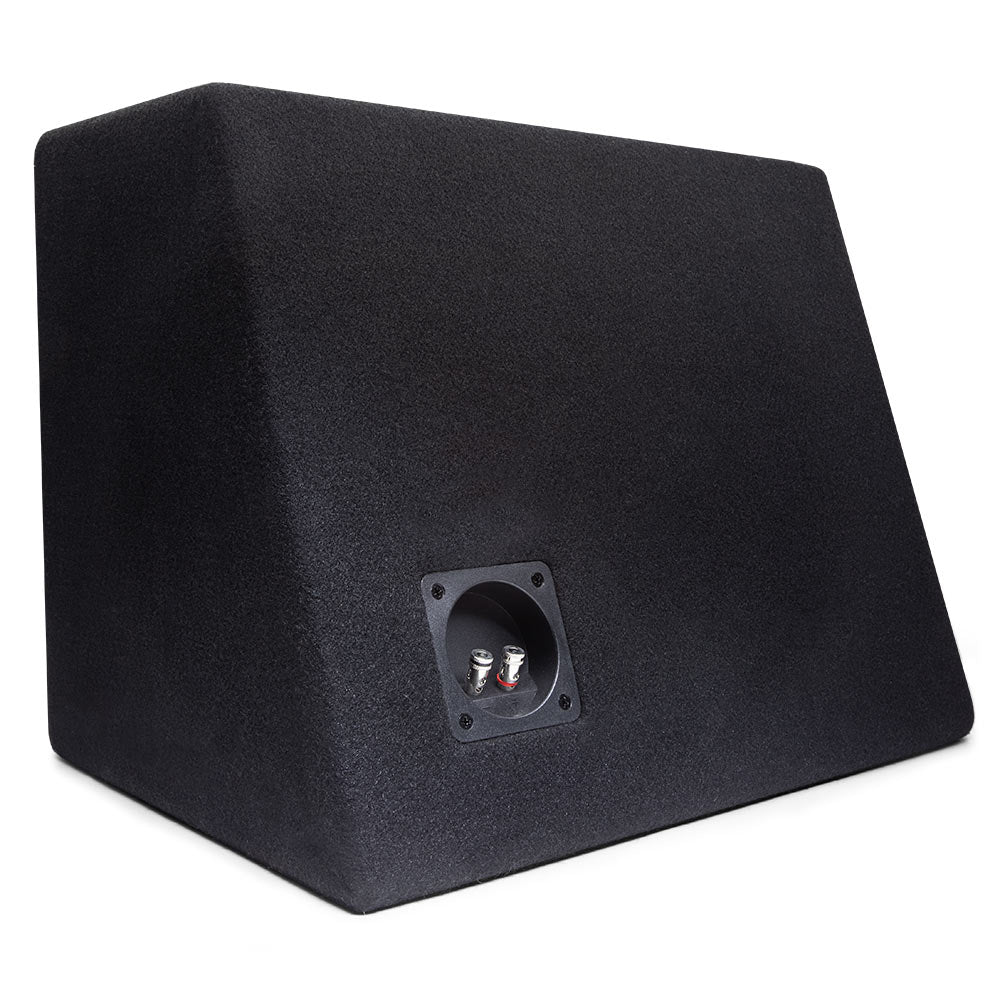

- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - garsiakalbio jungtys iš arti

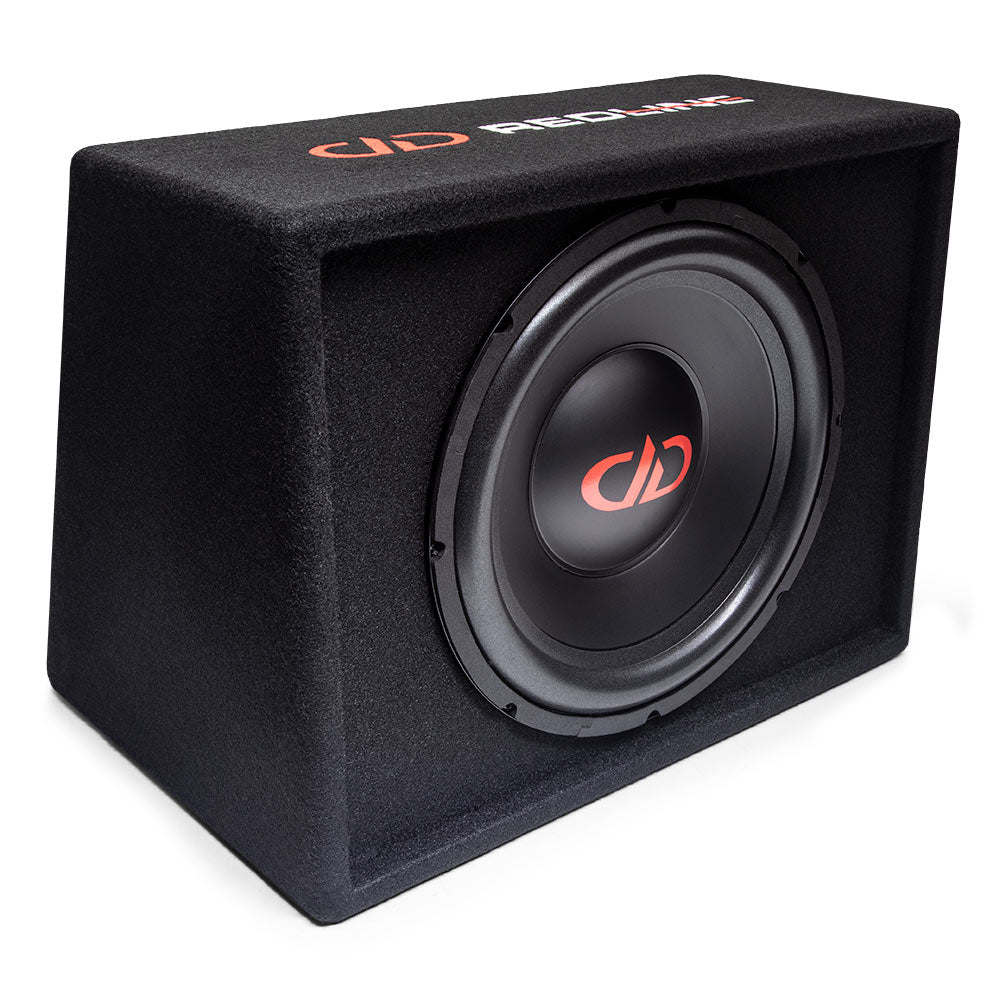

- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - Šoninis kampinis vaizdas su logotipu
- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - Galinė panelė su jungtimis ir etiketėmis
- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - šoninis vaizdas su jungtimis

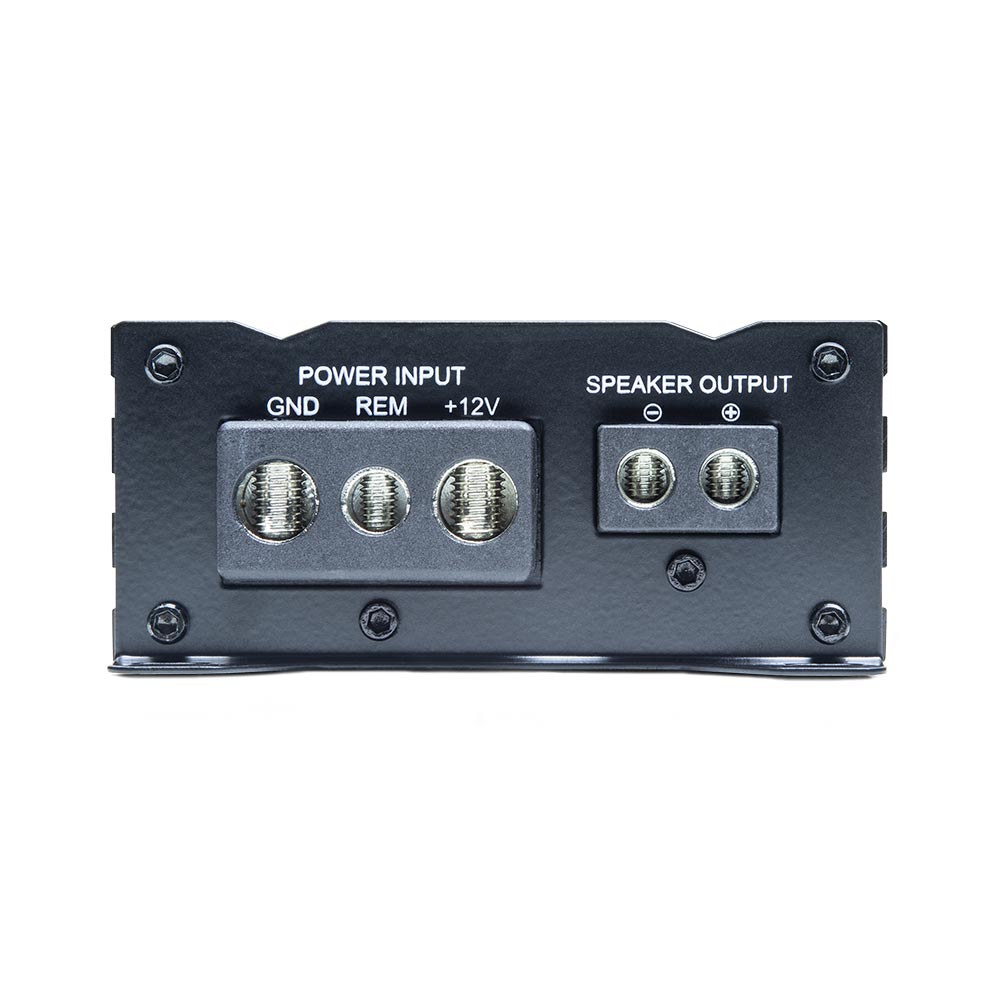

- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - Galinė panelė su jungtimis
- Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - Galinė panelė su jungtimis ir valdikliais
Digital Designs Basskit RL-SA500.1 + RL-SE12-S1
Digital Designs Basskit RL-SA500.1 + RL-SE12-S1 - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA

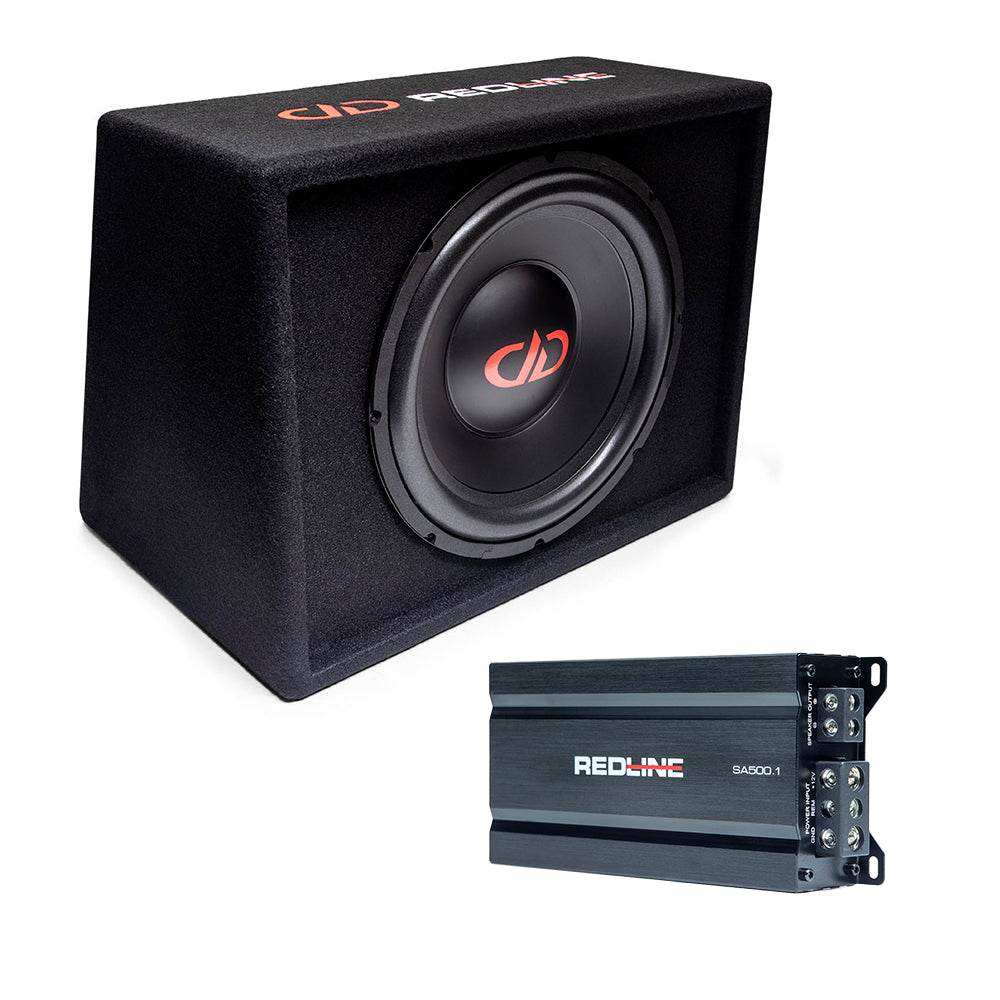

The DD Audio Basskit includes a 12″ RL-SW12-D2 subwoofer in a sealed enclosure and a powerful RL-SA500.1 mono amplifier.
Amplifier:

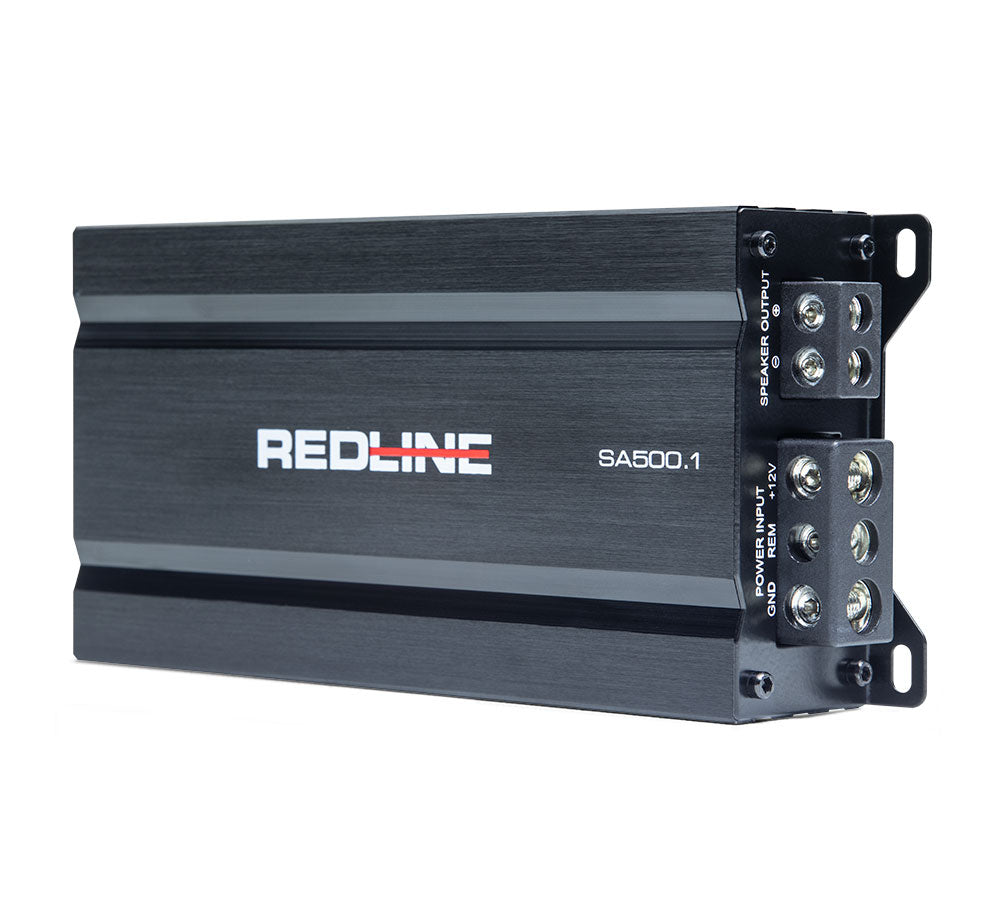

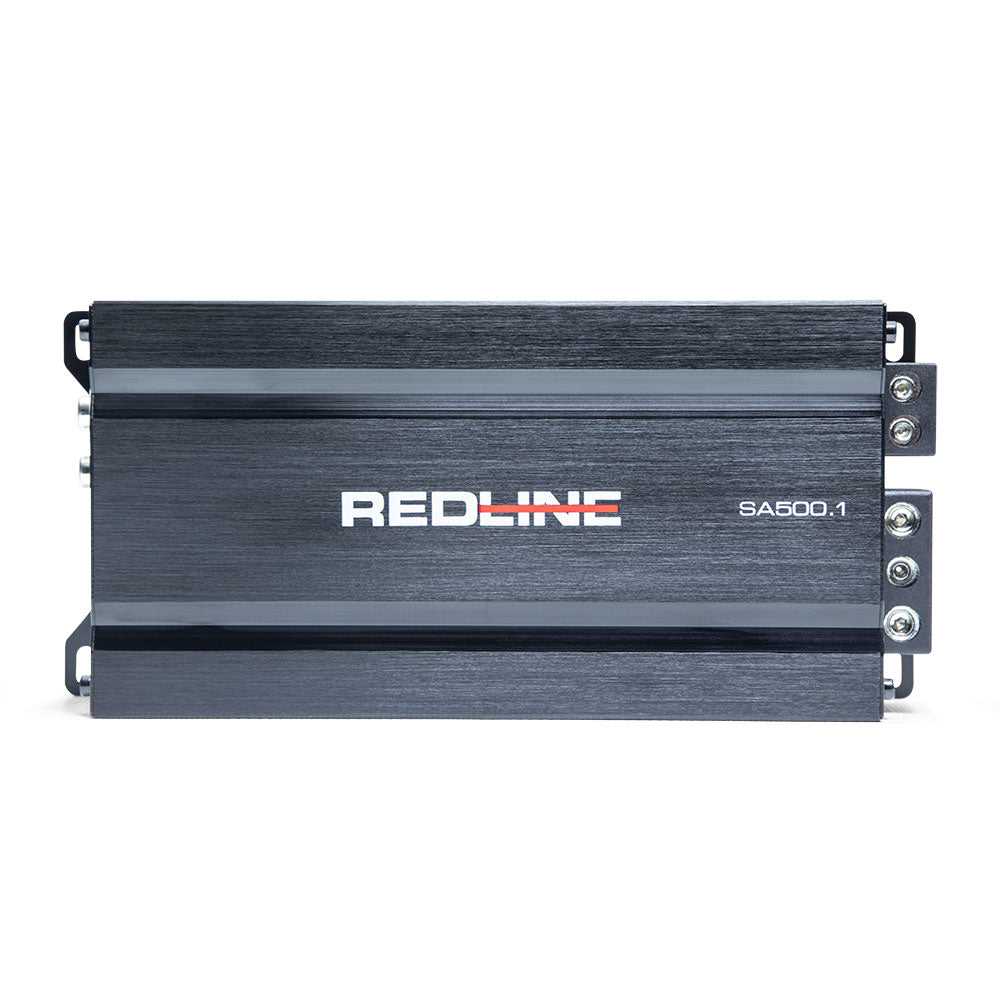

SA series amplifiers are compact amplifiers with full-size features. The SA500.1 is a 1 Ohm stable monoblock subwoofer amplifier with a continuous power output of 500 Watts. Although SA series amplifiers are very compact, they still feature screw-type power and speaker terminals, discrete input sections, and robust aluminum heat sinks. This ensures proper power management from input to output, increasing stability during use and longevity. - Mosfet power supply amplifier - 4 gauge screw-type power terminals - 12 gauge screw-type speaker terminals - Variable 12dB/oct low-pass filters - Remote subwoofer control (SA500.1) - 5-way protection: speaker short circuit, thermal, overload, HI/LOW voltage, DC offset
Subwoofer:
The DD REDLINE RL-SE12 in a sealed enclosure is a lightweight, plug and play solution for robust bass and great value! It's designed to provide deep, satisfying bass at low to medium power levels. They feature sturdy sealed MDF construction, and are covered in a durable carpet with an embroidered logo. They are also loaded with subwoofers that have been specifically designed for this enclosure to ensure maximum performance. Subwoofer model: DDRL-SW12-D2 SERIOUS PERFORMANCE. SERIOUS VALUE.
Technical data
Subwoofer:
Speaker Size (In): 12
Watts RMS: 100 - 300
Watts Peak: 600
Impedance: S1
dBSPL: 88
Dimensions (Inches): 18 x 14 x 8 Top / 13 Base
Dimensions (MM): 458 x 356 x 203 Top / 330 Base
Amplifier:
Class: D-class amplifier
Operating voltage: 9-16
Test voltage: 14.4
Output Channels: 1
Cont wattage @4Ohm: 250
Cont wattage @2Ohm: 390
Cont wattage @1Ohm: 500
Dynamic wattage: 1000
Max current draw - Amps: 50
RCA input sensivity - Volts: 6 - 0.25
High level sensivity - Volts: 20 - 1.1
Frequency response - Hz: 85
S/N Ratio -dB: 70
Damping factor: 10 - 250
THD: 0.1%
Boost level: 12dB @ 45Hz
High pass filter - NA
Subsonic filter - Hz: 10 - 50
Low pass filter - Hz: 35 -250
Remote subwoofer control: Yes
Power wire gauge - IN: 4
Speaker wire gauge - OUT: 12
Dimensions - in 7 x 3.8 x 1.69
Dimensions - mm 180 x 96 x 43
