DLS RCS5.2, 13cm component speakers

High-class, 13cm (5 1/4" car audio system.

€219.00 EUR

DLS RCS5.2, 13cm component speakers - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Which is characterized by exceptional sound and high standard assembly quality!

  • Power: 160 W.
  • Frequency band: 70-22,000 Hz.
  • Sensitivity: 86 dB (1W/1m).
  • A protective grill is included.

DESCRIPTION

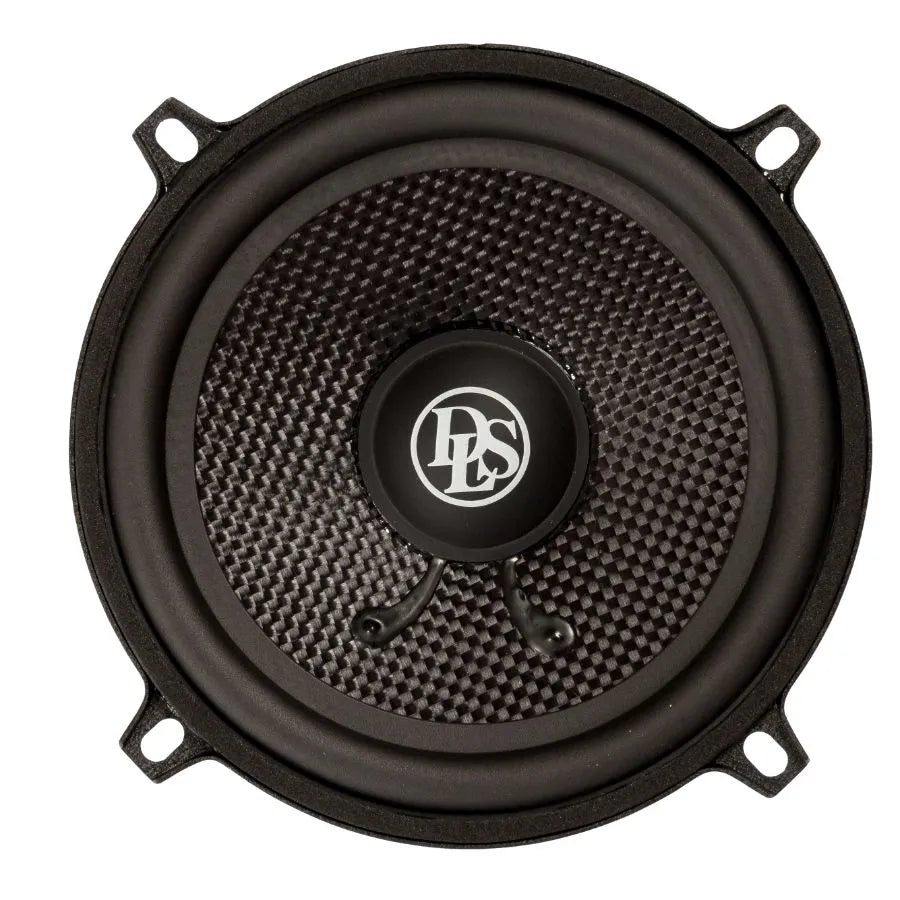

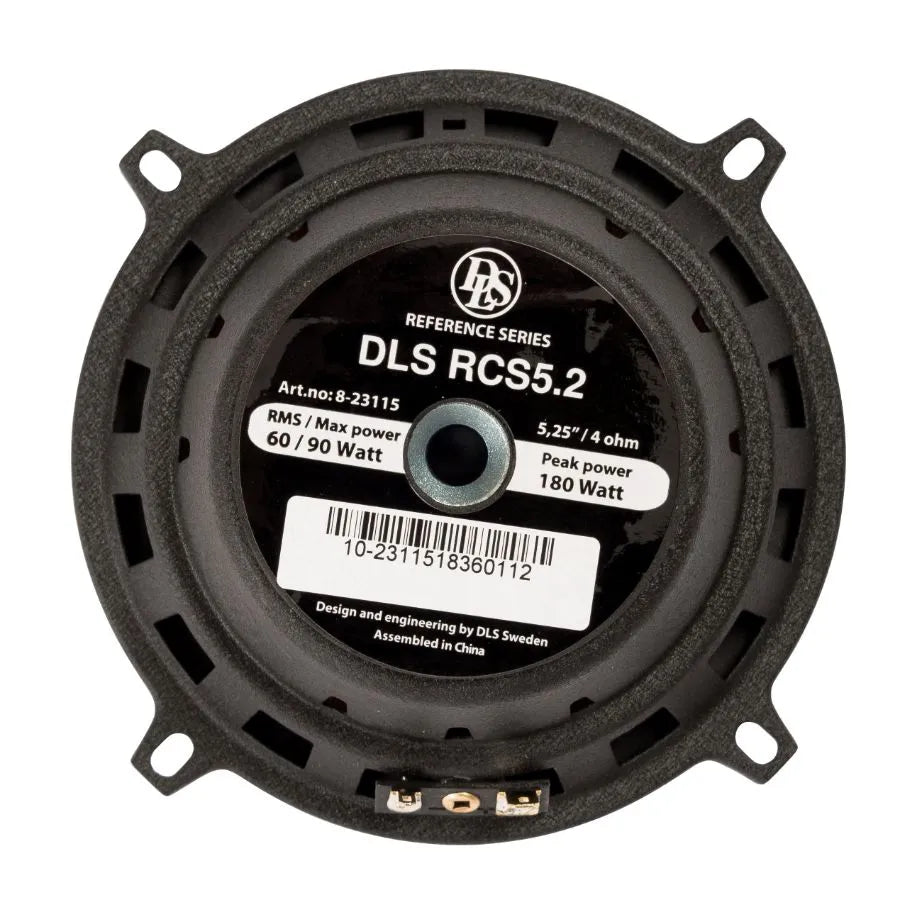

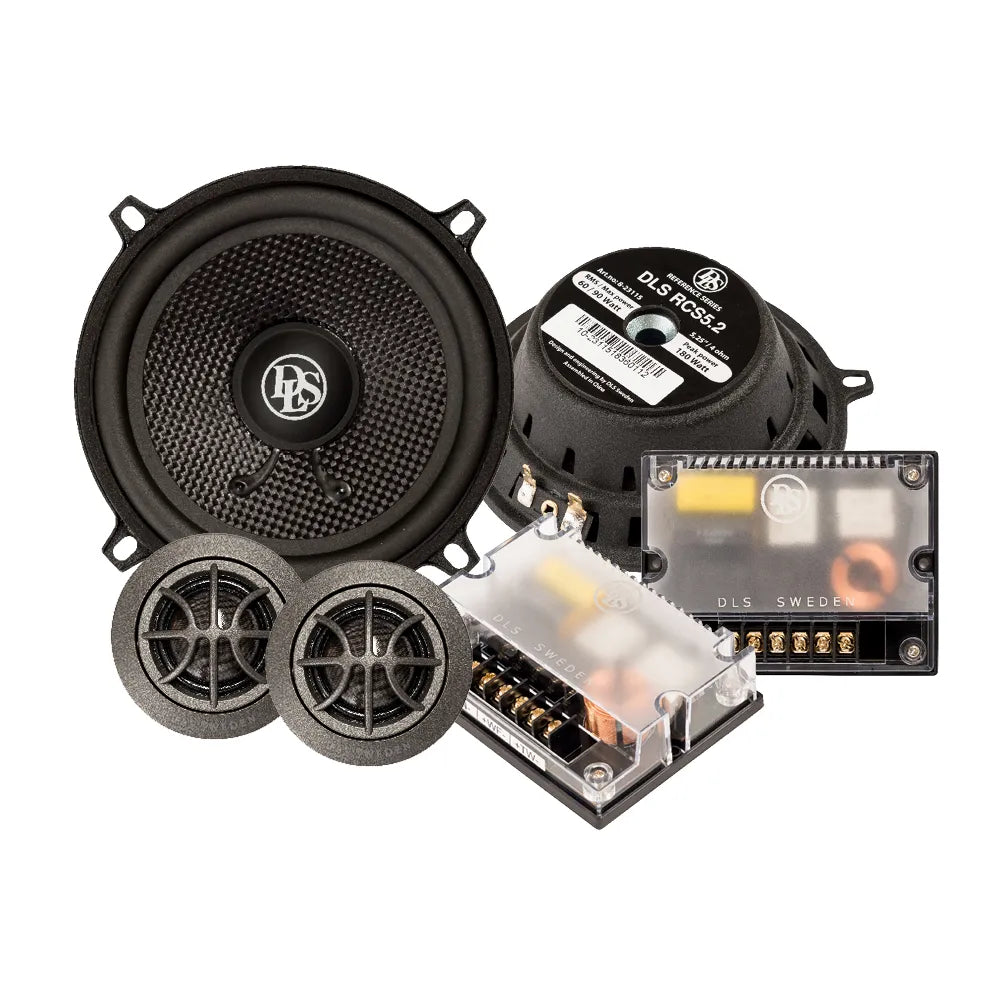

High Quality 13cm (5 1/4”) kit with flat basket design – only 43mm depth, fiberglass cone, powerful Hybrid FE / Nd magnet with vented pole piece.

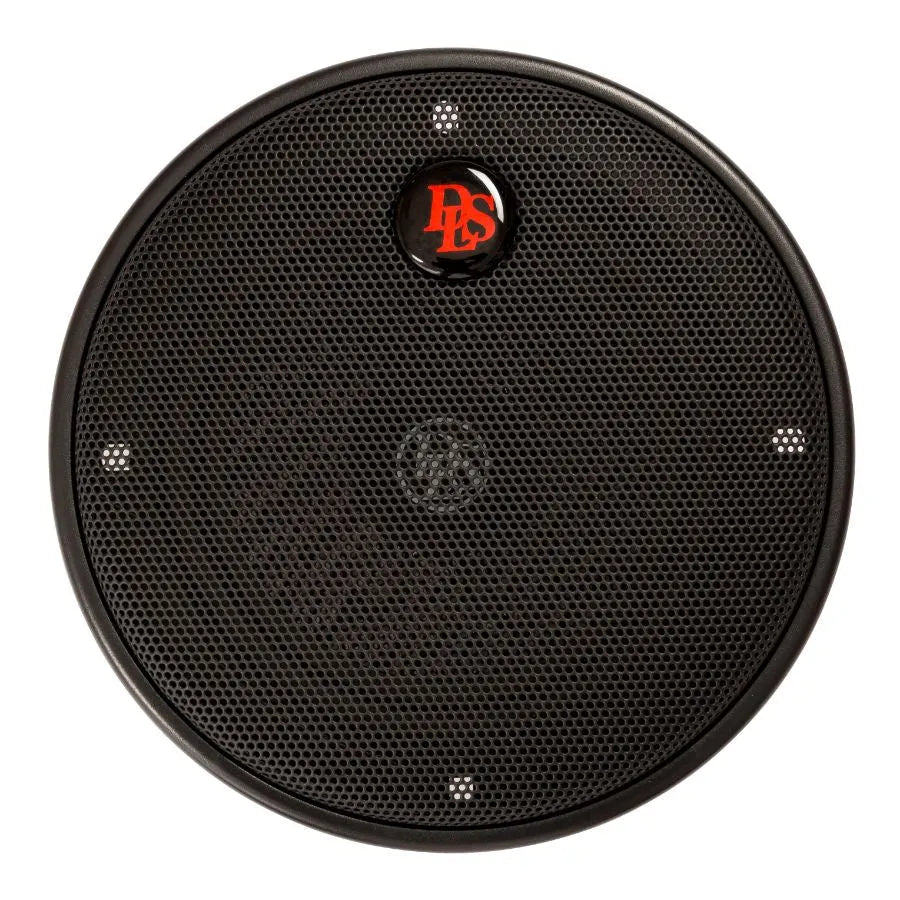

External crossover with selectable tweeter level and 25 mm silk dome tweeters provides both smooth and clear sound. Angled/recessed tweeter cups & woofer grills included

TECHNICAL DATA

SPECIFICATIONS

  • Woofer size 13 cm (5.25″)

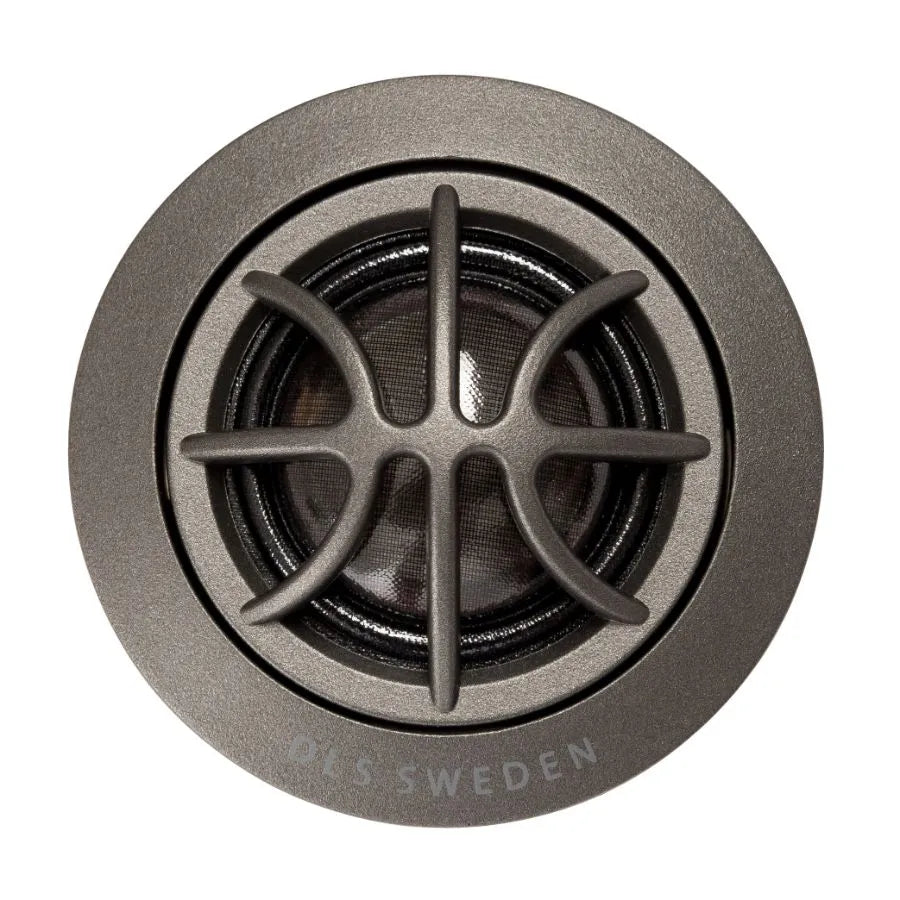

  • Tweeter RC25, 25 mm (1″) silk dome tweeter with copper rings
  • Power handling capacity 50 W RMS / 90 W max / 180 W peak power
  • Impedance 4 ohms
  • Frequency range 70 – 22,000 Hz
  • Sensitivity 86 dB (1W/1m)
  • Outer diameter of woofer 130 mm (5.25″)
  • Cone material Wowen fiber glass
  • Magnet size 70 mm (3.15″), hybrid FE / Nd

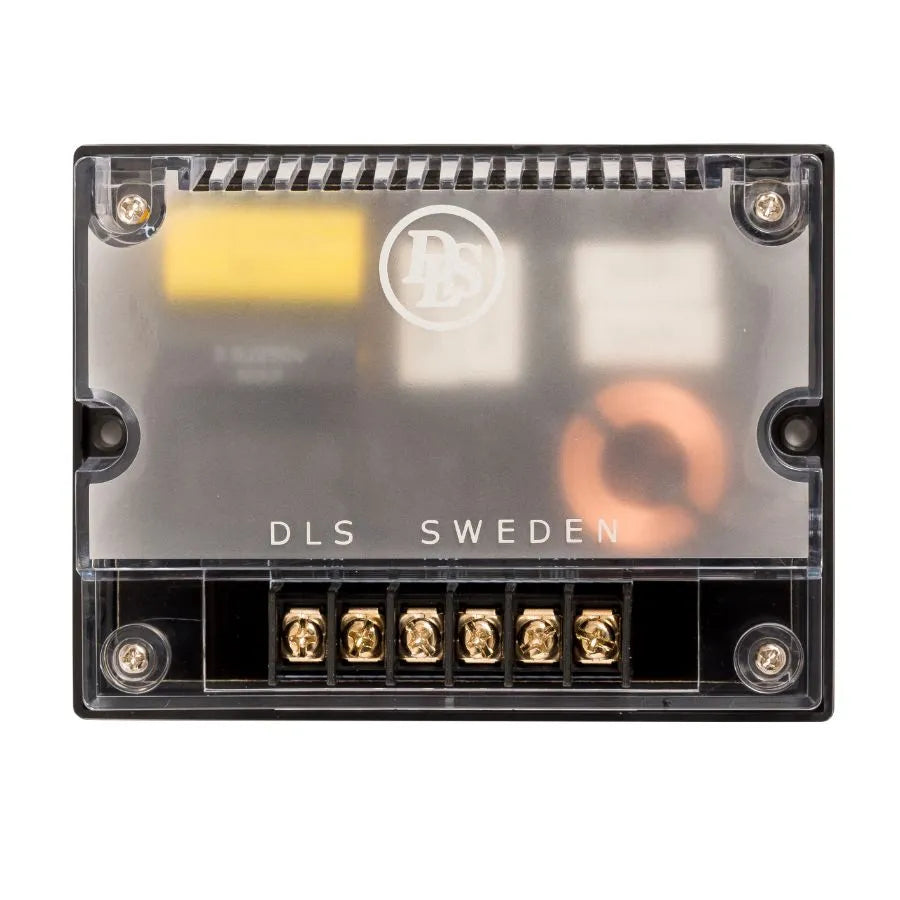

  • Crossover Box filter with 12/12 dB slope (LP/HP)
  • Crossover point (Hz) 5500 Hz
  • Size of filter box 125 x 95 x 34 mm
  • Mounting depth 43 mm (1.7″)
  • Mounting hole 123 mm (4.84″)

T/S parameters

  • single V/C Fs Hz Re Ohm Qms
  • Vas liter Vas Cuft Qes
  • Qts Sd cm² BL

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
