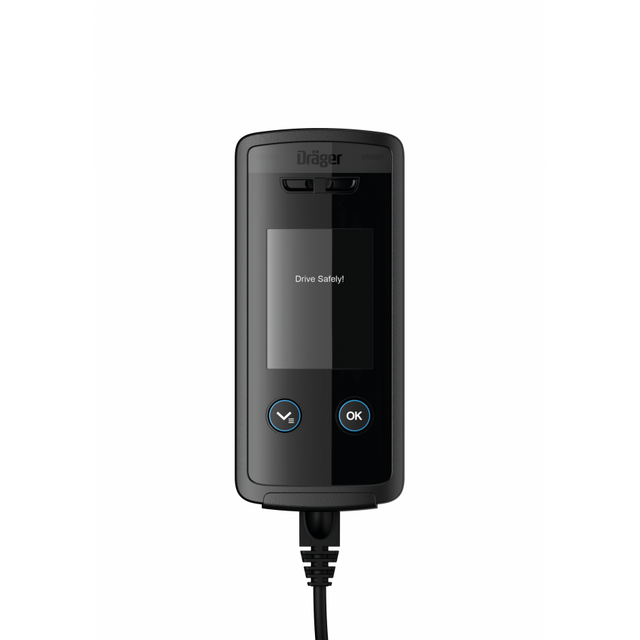

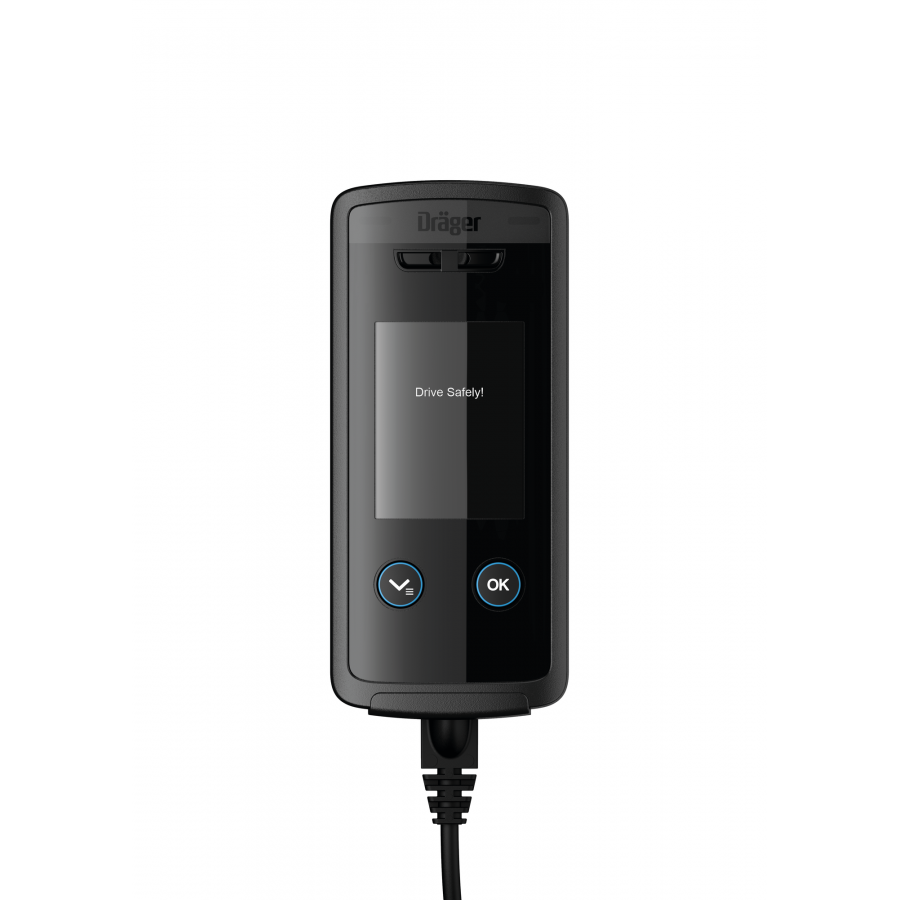

Dräger Interlock 7500, alcohol interlock device

INFORMACIJA

Suitable for drivers who have been subject to an administrative measure – a ban on driving vehicles not equipped with anti-alcohol ignition locks. The device is delivered configured according to the requirements of the Government of the Republic of Lithuania description, along with the mandatory certificate.

INSTALLATION

Please note - the installation of the device depends on the type, model, and installation location of the vehicle, therefore installation is not included in the price. Only approved service centers are authorized to install the device and provide the appropriate certificate; we can offer this service in many cities in Lithuania. Please contact us separately regarding the installation of the device in your vehicle.

Installation price from 150€

Our service contacts: +370 614 30000

DESCRIPTION

The Interlock 7500 prevents an intoxicated person from starting the vehicle's engine or activating another device.

Before starting a journey, the driver's sobriety is checked (the driver blows into the breathalyzer).
If the driver's exhaled air detects an alcohol concentration above the set limit, the device blocks the engine's ignition system.

Complies with European and Lithuanian interlock breathalyzer standards (LST EN 50436-1:2014, LST EN 50436-2:2014, LST EN 50436-6:2015).

FEATURES

-Wide operating temperature range from -40º C to +85ºC.
-Interlock® 7500 prepares for operation very quickly, even at extremely low temperatures.
-At 0º C temperature - the interlock is ready for operation in less than 5 seconds.
-Can be equipped with a video camera.
-Possible interface with GPS tracking, fleet management systems.
-200,000 record memory.
-The Dräger Interlock 7500 uses less than 1 mA of power in standby mode.
-Mouth alcohol detection function.
-The Dräger Interlock 7500 complies with the strictest data protection requirements.
-Data is encrypted and protected, compliant with LST EN 50436-6:2015.
-The blowing mouthpiece is on the back panel of the breathalyzer.

TECHNICAL DATA

-Category Interlock
-Country of manufacture Germany
-Sensor Dräger electrochemical (heated)
-Blowing flow control Controlled blowing strength and time, the system adapts to the lungs
-Mouth alcohol residue detection Has the ability to detect alcohol remaining in the mouth. If the device detects that the result is affected by alcohol remaining in the oral cavity or upper respiratory tract, an appropriate measurement error message is displayed.
-Temperature sensor If the temperature is incorrect, the test cannot be performed. Temperature compensation is used to ensure extremely accurate results.
-Measurement units As required
-Calibration Possible
-Calibration frequency Once a year
-Compliance with standards Complies with LST EN 50436-1:2014, LST EN 50436-2:2014
-Display Graphic with backlight
-Display message language Lithuanian, or others, changeable via user menu
-Preparation time <5 sec. at 0°C; <60 sec. at -20°C; <110 sec. at -40°C
-Power supply 12V / 24V
-Memory 200,000 events
-GPS Optional GPS / GPRS accessory
-Operating temperature -40 - 85°C
-Size Handheld unit 138 mm x 61 mm x 36 mm, control unit 148 mm x 90 mm x 32 mm
-Weight 178g

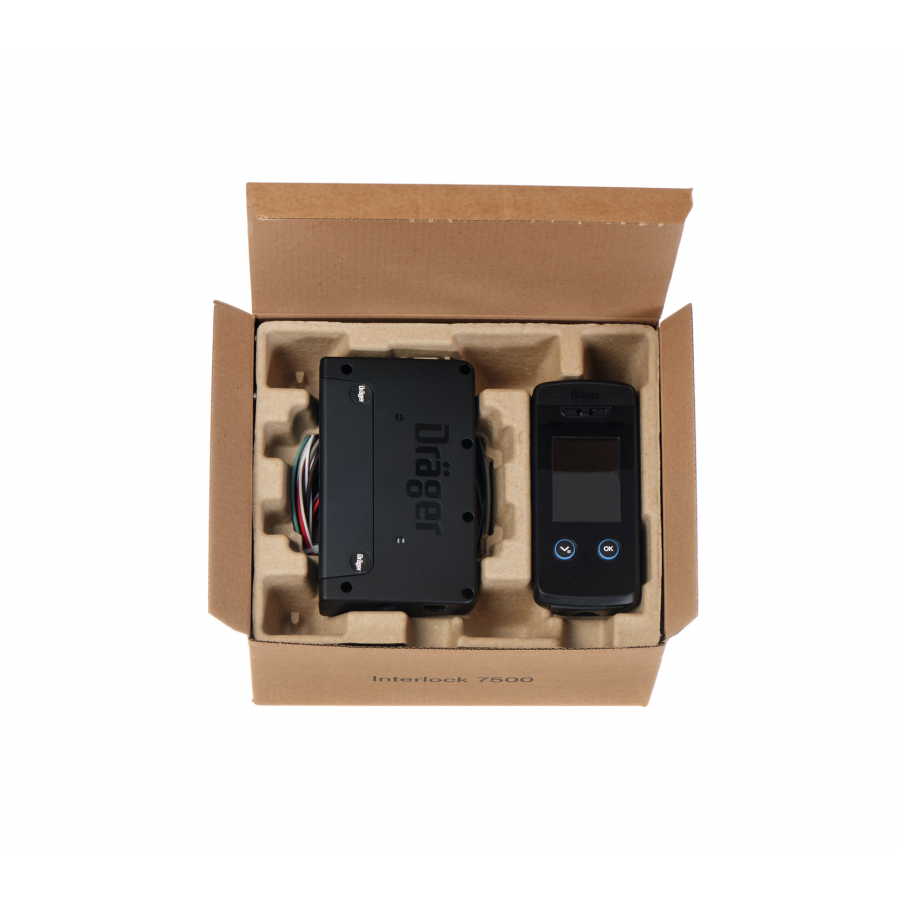

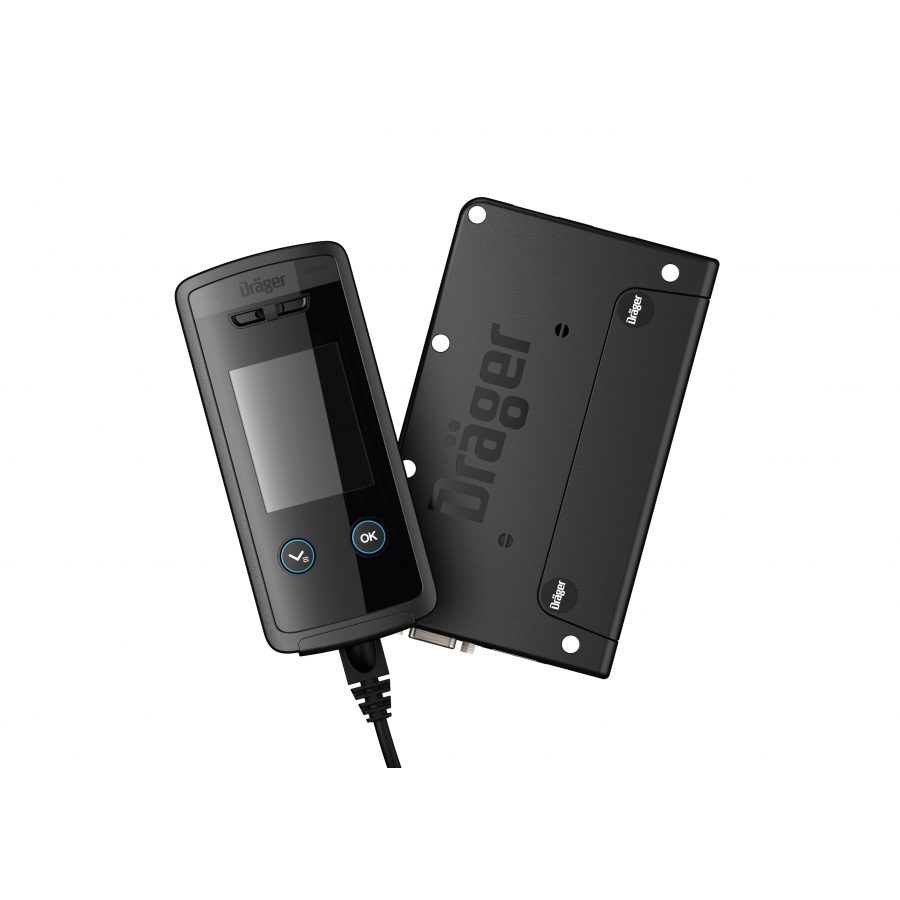

-Kit contents Breathalyzer (handheld unit), 12/24V control unit, coiled cable 1.5 meters (extends to 2.5 - 3.0 meters), 3 blowing mouthpieces, handheld unit mounting bracket, wires required for standard connection, 6 crimps, user manual in Lithuanian.
