Elipson PLANET SUB, subwoofer (various colors)

INFORMACIJA

. Keeping the room looking good.

• Power: 200W.
• Loudspeaker 20 cm
• Frequency band: 30 Hz - 240 Hz.
• Bass-Reflex technology.
• Created by designer: Jean-Yves Le Porcher.

DESCRIPTION

The Planet Sub carries the genes of Elipson's Planet range: its exceptional design and uncompromising audio performance testify to this prestigious lineage.

Equipped with a 20 cm driver and featuring bass-reflex technology, this subwoofer is particularly responsive in the upper-bass register in order to support compact surround speakers. Its active class-D amplifier delivers up to 200 watts and its response reaches down to 30Hz, giving it a sense of versatility that allows it to be equally as suited for use in a stereo installation as in a home cinema installation.

Thanks to its adjustable cutoff frequency, the Planet Sub can be paired with other types of speakers (compact models, floorstanding models...).

Its cylindrical design promotes a very fluid internal airflow, while the down-firing driver allows for placement anywhere in the listening room. Combining elegance and performance, the Planet Sub is designed to ensure harmonious integration with Elipson's spherical speakers.

TECHNICAL DATA

SPECIFICATIONS

• Speaker: Subwoofer
• Event (Bass-Reflex) : Tubular
• Woofer : 8" subwoofer speaker, high density cellulose membrane, down firing
• Amplifier: 200 W (max. power)
• Frequency Response (±3 dB): 30 Hz - 240 kHz
• Standby : Auto, 2 adjustable sensitivity levels
• High pass filtering: 24 dB at 30 Hz
• Adjustable Low Pass filtering: 50 Hz to 200 Hz

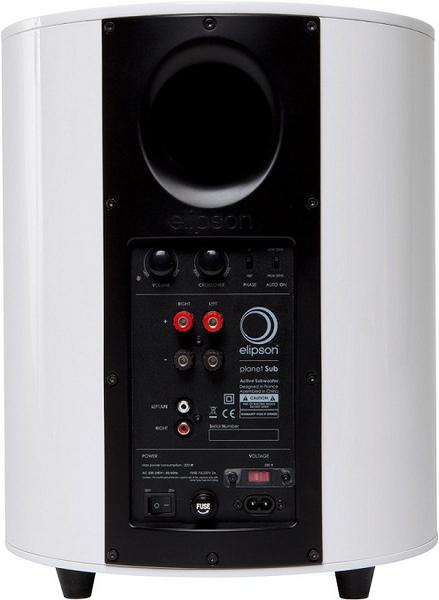

• Input : Stereo line level, LFE
• Input/Output: High level

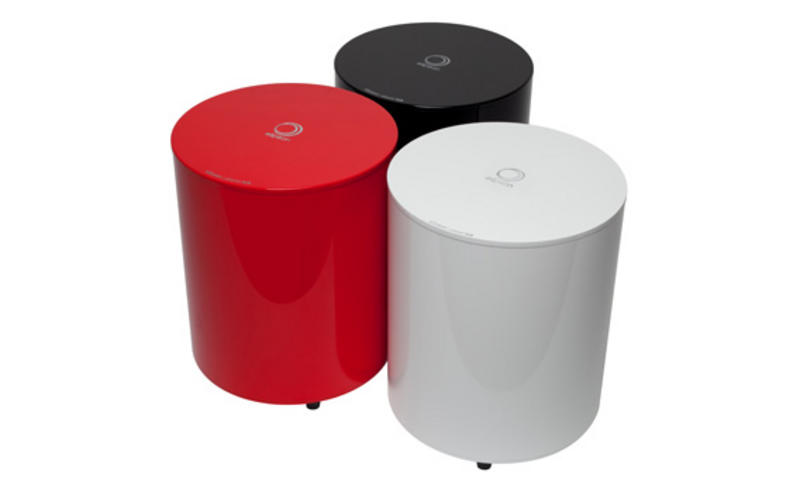

• Colors : Black, white or red lacquer
• Dimensions (W x H x D): Ø316 x H393 mm
• Weight : 14 kg
• Dimensions packaging (W x H x D) : 383 x 461 x 383 mm

DOCUMENTS

USER'S MANUAL

User Manual (EN).
