Elokance ELO 800C, compact DJ sound system 800W RMS

INFORMACIJA

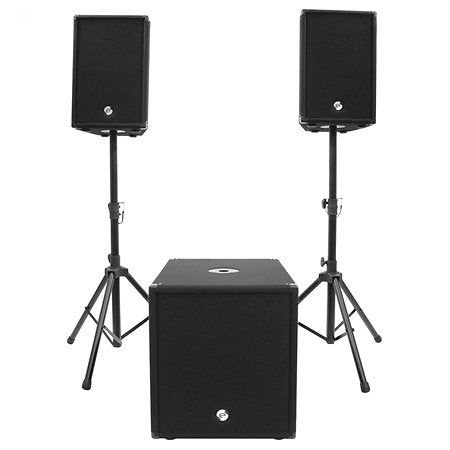

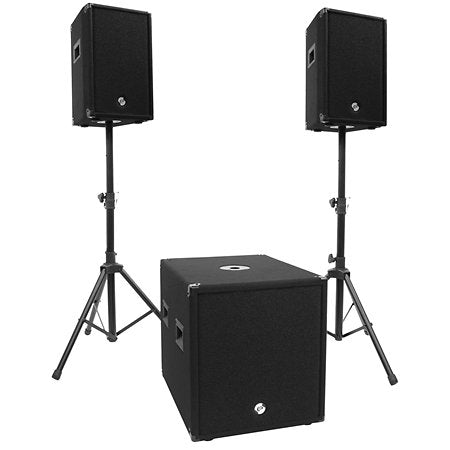

Elokance ELO 800C is a reliable and professional 3-way 800 W RMS active sound system, ensuring high-quality sound for both indoor and outdoor events. This system consists of 2 passive Elo 10C speakers and 1 active subwoofer ELO SUB15AC. The kit includes 2 speaker stands and 2 pcs., 5 meter long speakon cables. This is a flexible, expandable and durable sound system, adapted for intensive use in various conditions.

RMS power (W): 800
Integrated mixer: Yes
Effects: DSP processed audio signal
Sound pressure (dB): 120 to 130
Amplifier type: Class D

DESCRIPTION

Presentation

With great reliability and quality sound, the new Elo range of Elokance features the latest technological innovations. Versatile and scalable, the range is composed of active subwoofers and passive satellites offering a wide range of possibilities for adapting the power to your needs while maintaining a homogeneous system and excellent sound quality. With excellent workmanship and ultra-resistant paint, the Elokance Elo are also equipped with a high-end speaker driver. Thanks to that, the Elo systems are renowned for their reliability and resistance. Used both indoors and outdoors, the Elokance Elo will quickly become the speaker series that will suit you to insure your benefits for many years.

Active PA Set

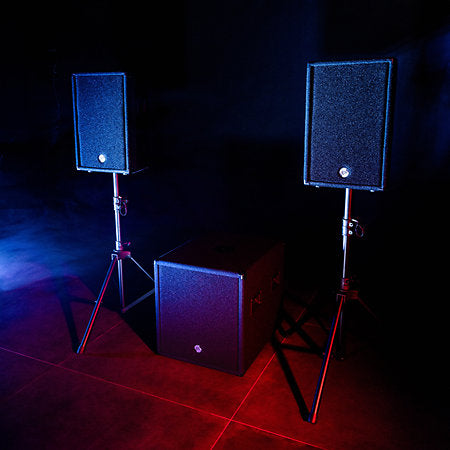

Amplified PA system 3 ways 800W RMS Elokance Elo 800C, composed of 2 Elo 10C and 1 ELO SUB15AC. Delivered with 2 loudspeaker stands and 2 Speakon cables of 5m ELO SPEAKON : Elocance, THE reference for DJs. Carpeted finish.

TECHNICAL DATA

General Information
Application: | Ambiance, Sound reinforcement, Mobile DJ, Front speaker
Type: | Line Array System
Tweeter: | None
RMS Power (W): | 800
Integrated Mixer: | Yes
Effects: | DSP-processed audio
Sound Pressure Level (dB): | 120-130
Amplifier Type: | Class D
Inputs: | XLR (3-pin female), Jack (mono female)

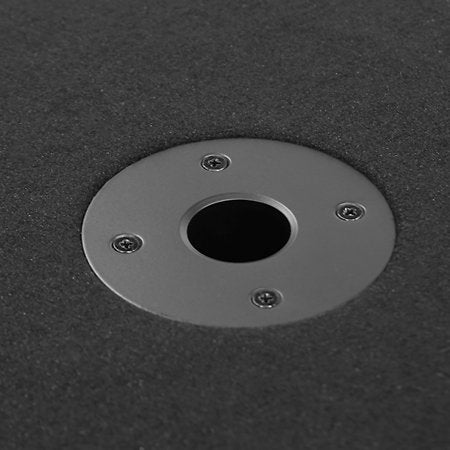

Pole Mounting: | Ø 35 mm (1 3/8"), bracket included
Stands Included: | Yes
Subwoofer Included: | Yes
Power Supply: | 220 V

Package Configuration
Model: | Elokance ELO 800C
Type: | Triphonic sound system
Includes: | 2 × ELO 10C + 1 × ELO SUB15AC
Total Power: | 800W RMS

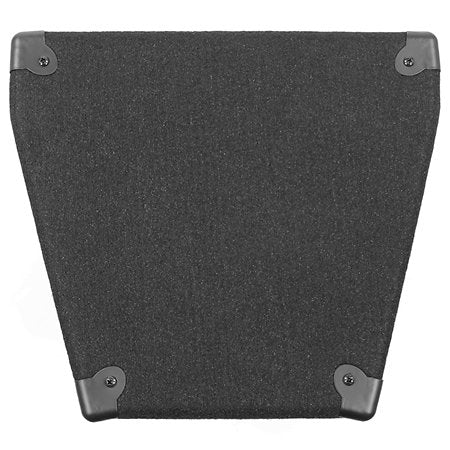

Finish: | Carpet-covered

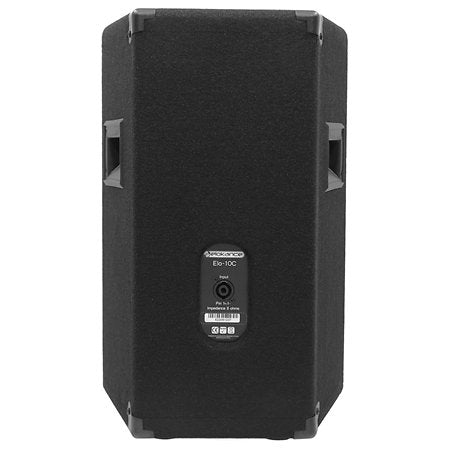

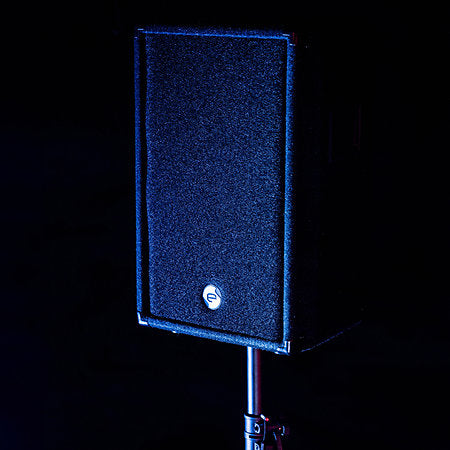

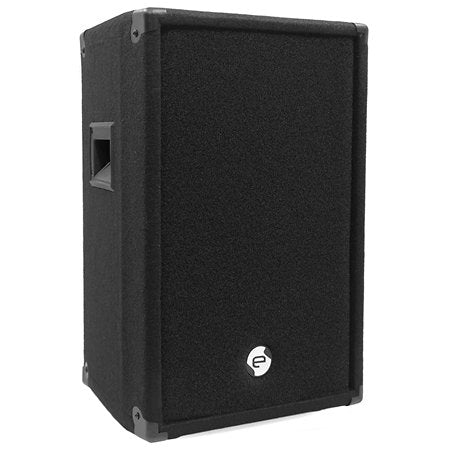

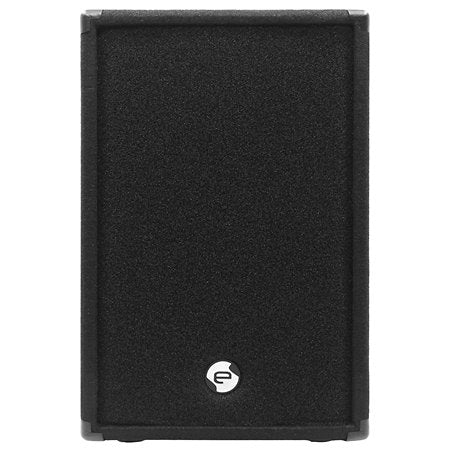

ELO 10C (Satellite Speakers)
Type: | Passive loudspeaker
Woofer Size: | 10" (25 cm)
Twitter: | 1" (25 mm) compression driver
Power: | 200W RMS / 400W Peak (8 Ohms)
Frequency Range @-10dB: | 65 Hz - 19 kHz
Max SPL: | 127 dB
Sensitivity (1W/1m): | 97 dB
Crossover Frequency: | 2.5 kHz
Inputs: | 1 × Speakon

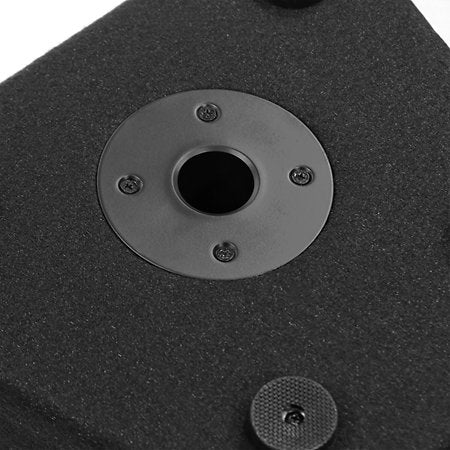

Pole Mount: | 35 mm

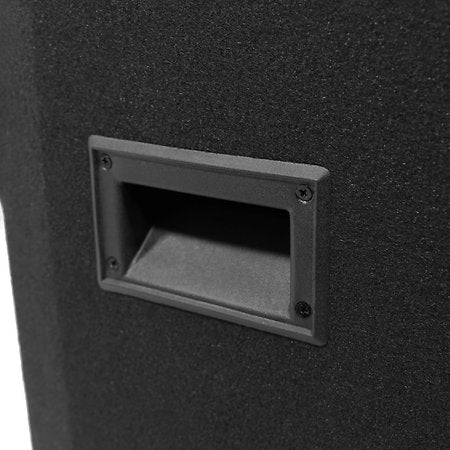

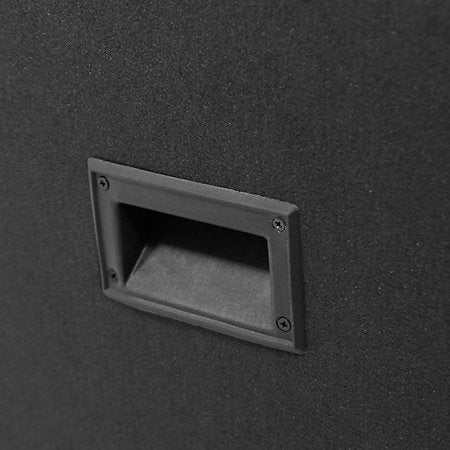

Handles: | 2
Dimensions: | 320 × 280 × 485 mm
Weight: | 12 kg

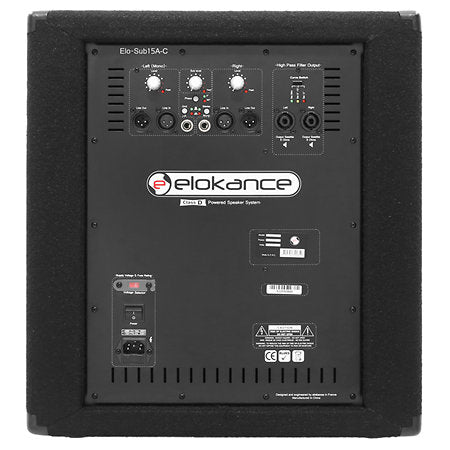

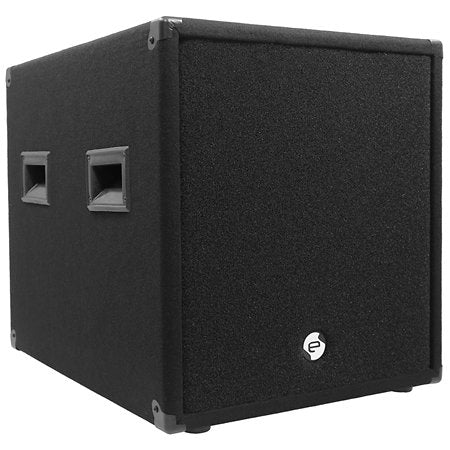

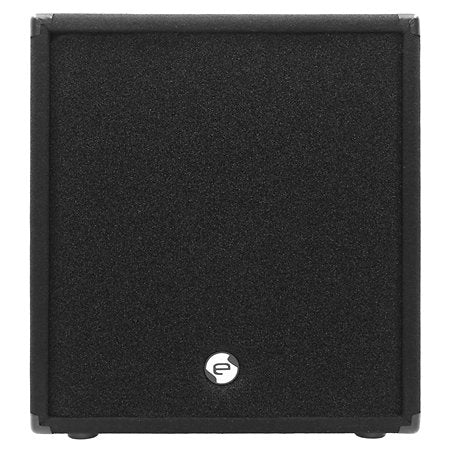

ELO SUB15AC (Active Subwoofer)
Type: | Active with built-in amplifier
Amplifier: | Class D
Woofer Size: | 15" (38 cm)
Subwoofer Power: | 500W RMS
Satellite Output Power: | 2 x 150W RMS
Frequency Range @-10dB: | 35 Hz - 20 kHz
Protections: | Limiter, short circuit, overheat

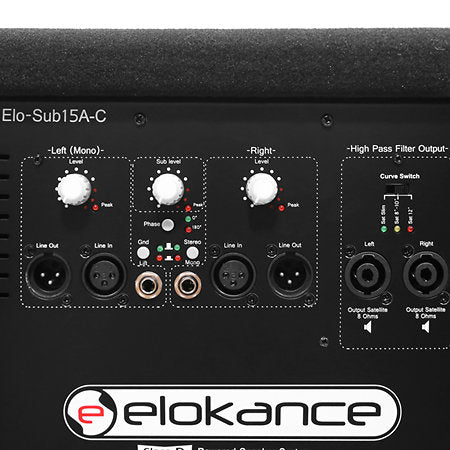

Inputs: | XLR / Jack 6.35 mm
Outputs: | Speakon (with filter selector switch)
Controls: | Sub level, L/R channel volume
Additional Switches: | Ground/Lift, Mono/Stereo, Phase (0° / 180°)

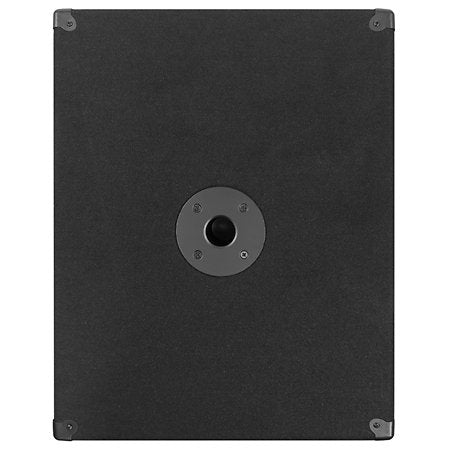

Pole Mount: | 35 mm
Handles: | 2 (side-mounted)
Dimensions: | 450 × 580 × 486 mm
Weight: | 38 kg

Accessories Included

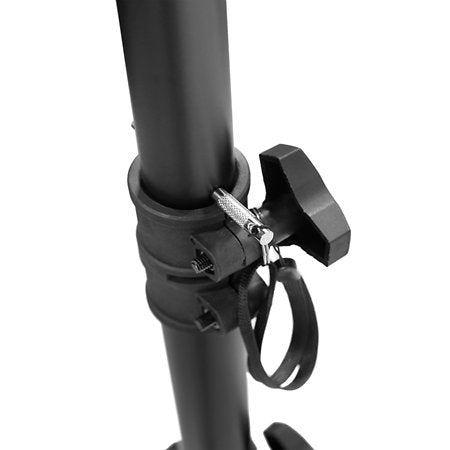

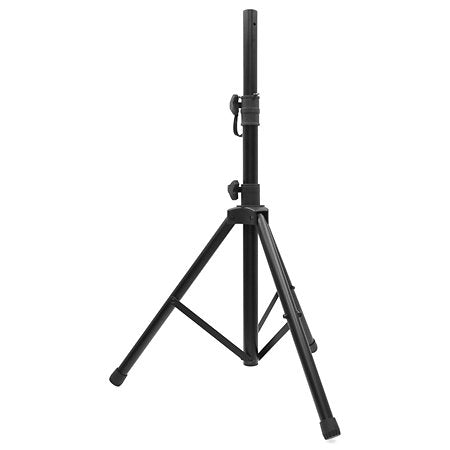

2 speaker stands

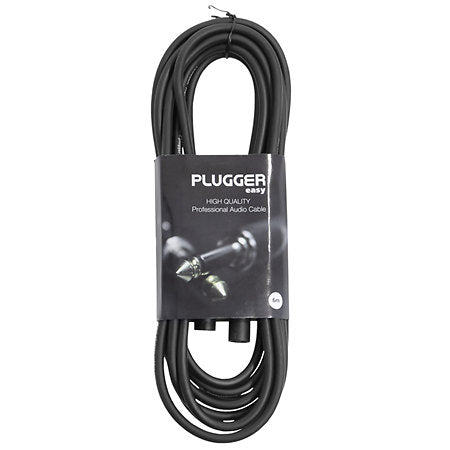

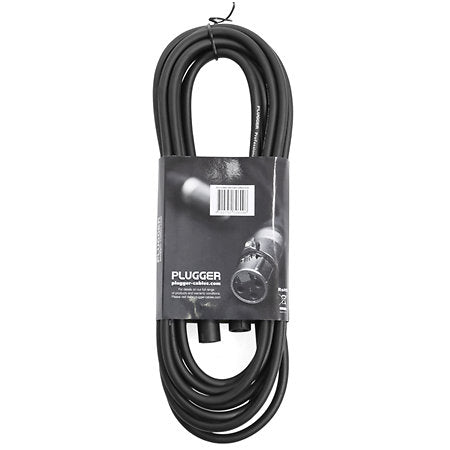

2 × 5 m Speakon cables

Additional Features
High-quality sound
Expandable system - add more satellites or subs
Rugged carpet finish
