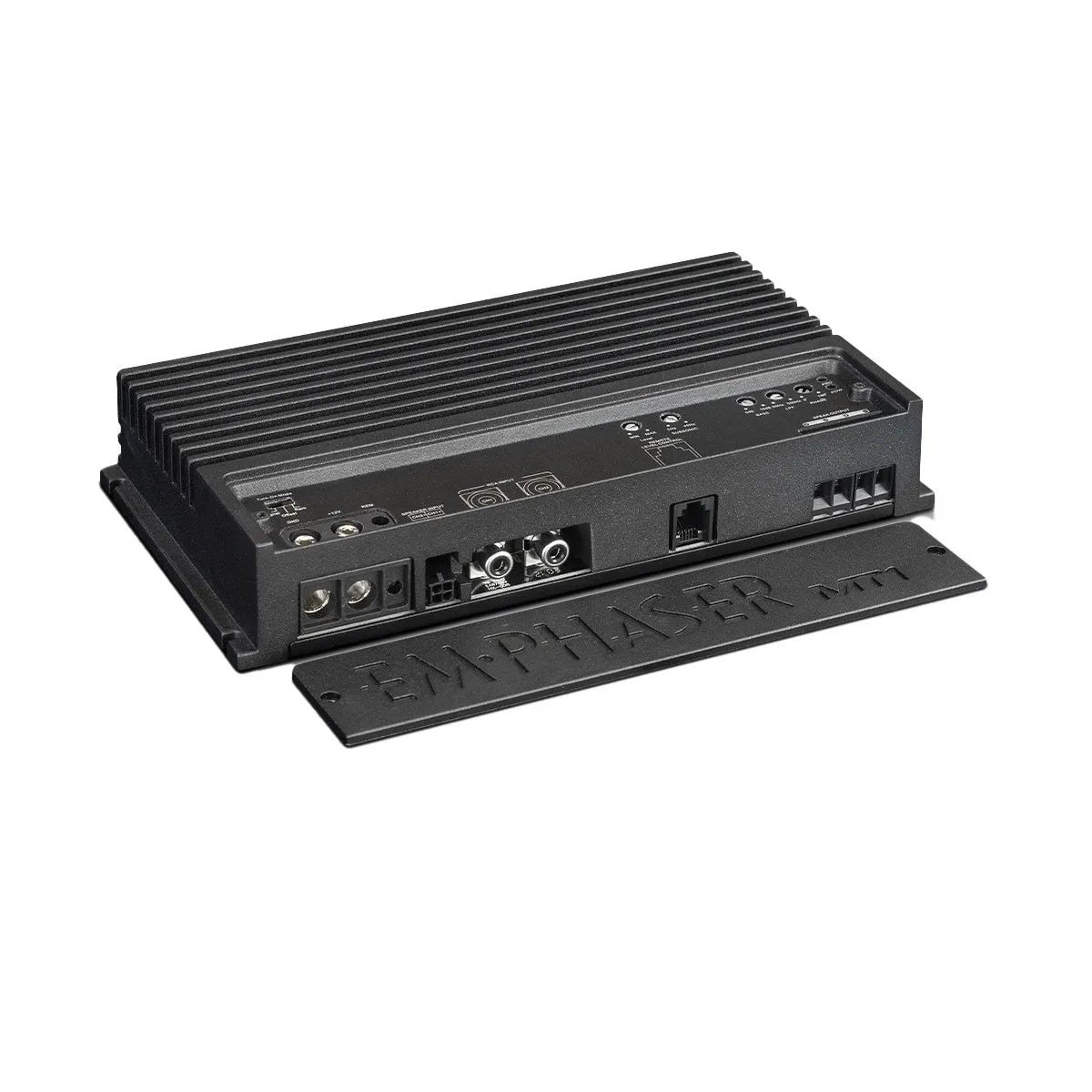

Emphaser EA-MT1 – Compact Monolith Series Class-D Amplifier

Emphaser EA-MT1 is a high-quality Monolith series 1-channel Class-D amplifier, designed to provide powerful and dynamic bass reproduction in car audio systems. Its compact size and advanced technologies enable high performance even in limited installation spaces.

Technical Features:

• Output Power: 1 x 450 W RMS @ 4 Ω; 1 x 600 W RMS @ 2 Ω
• Frequency Response: 10 Hz – 500 Hz
• Subsonic Filter: 12 dB/oct. with adjustable frequency 15–40 Hz
• Low-Pass Filter: 12 dB/oct. with adjustable frequency 50–500 Hz
• Bass Boost: 0–15 dB @ 40 Hz
• Phase Shift: 0–180°
• Input Sensitivity: 0.3 – 6 V
• Signal-to-Noise Ratio (S/N): > 90 dB
• Damping Factor: > 400 @ 4 Ω
• Dimensions: 212 × 35 × 110 mm (W × H × D)
• Equipment: RCA and high-level inputs with auto-turn-on function, 20 mm² power connection terminals, remote control

Advantages:

• Compact design: only 212 mm wide, allowing for easy installation even in limited spaces.
• Efficient cooling: die-cast aluminum housing ensures excellent heat management.
• Extensive frequency control: subsonic and low-pass filters, bass boost, and phase shift allow sound customization to individual needs.
• Reliable connection: high-quality RCA and high-level inputs with auto-turn-on function ensure easy integration with various audio systems.

The Emphaser EA-MT1 is an excellent choice for those seeking high-quality and powerful bass reproduction in their car, whether using an original or aftermarket radio.
