Eton  |  Bar code: 4039449100480

ETON, MA1 audio amplifier, 1x400W

ETON MA1 1-channel Class D power amplifierNewly developed 1-channel monoblock, state-of-the-art Class D power amplifier in a modern, timeless cast aluminum housing with top features.
€369.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

ETON MA1 1-channel Class D power amplifier

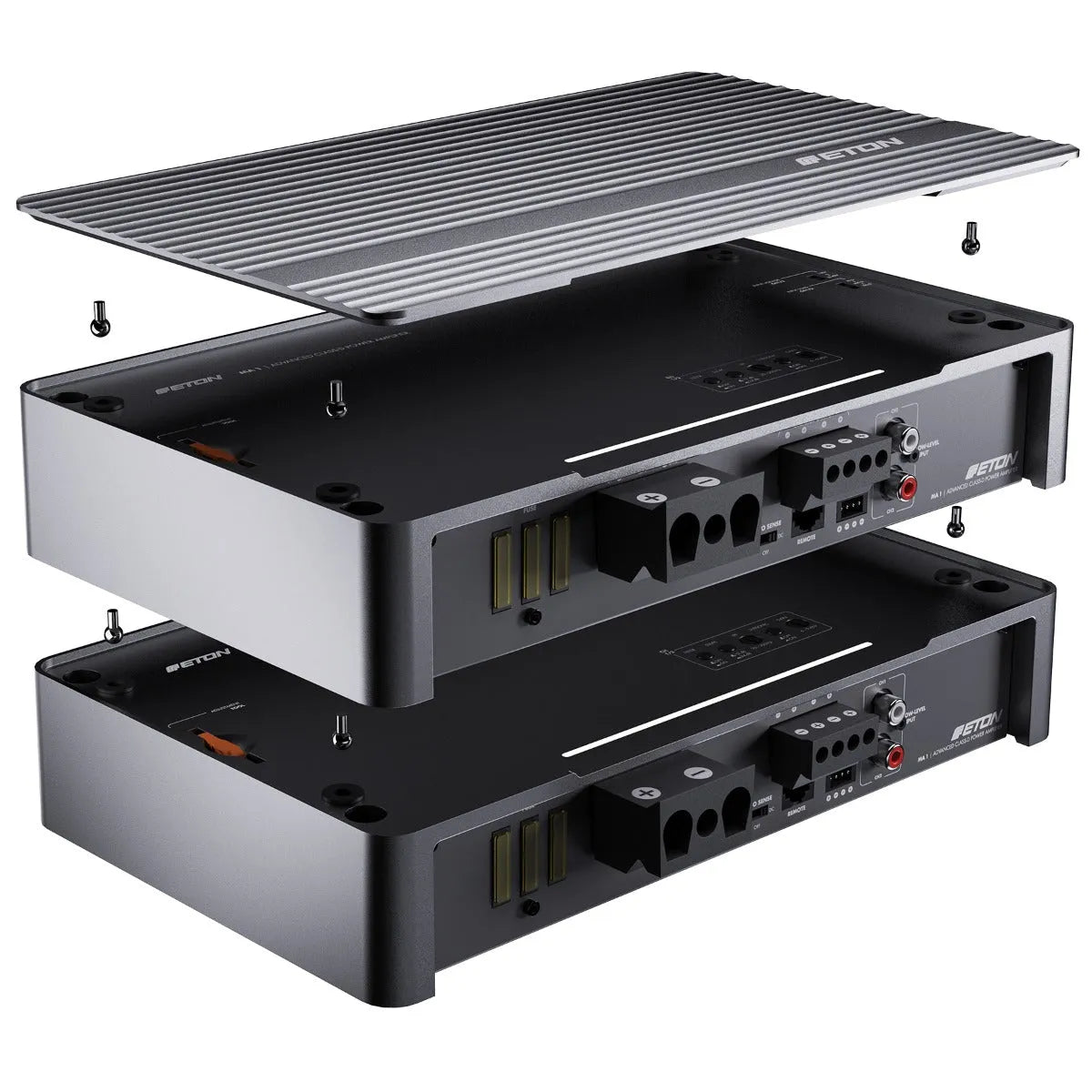

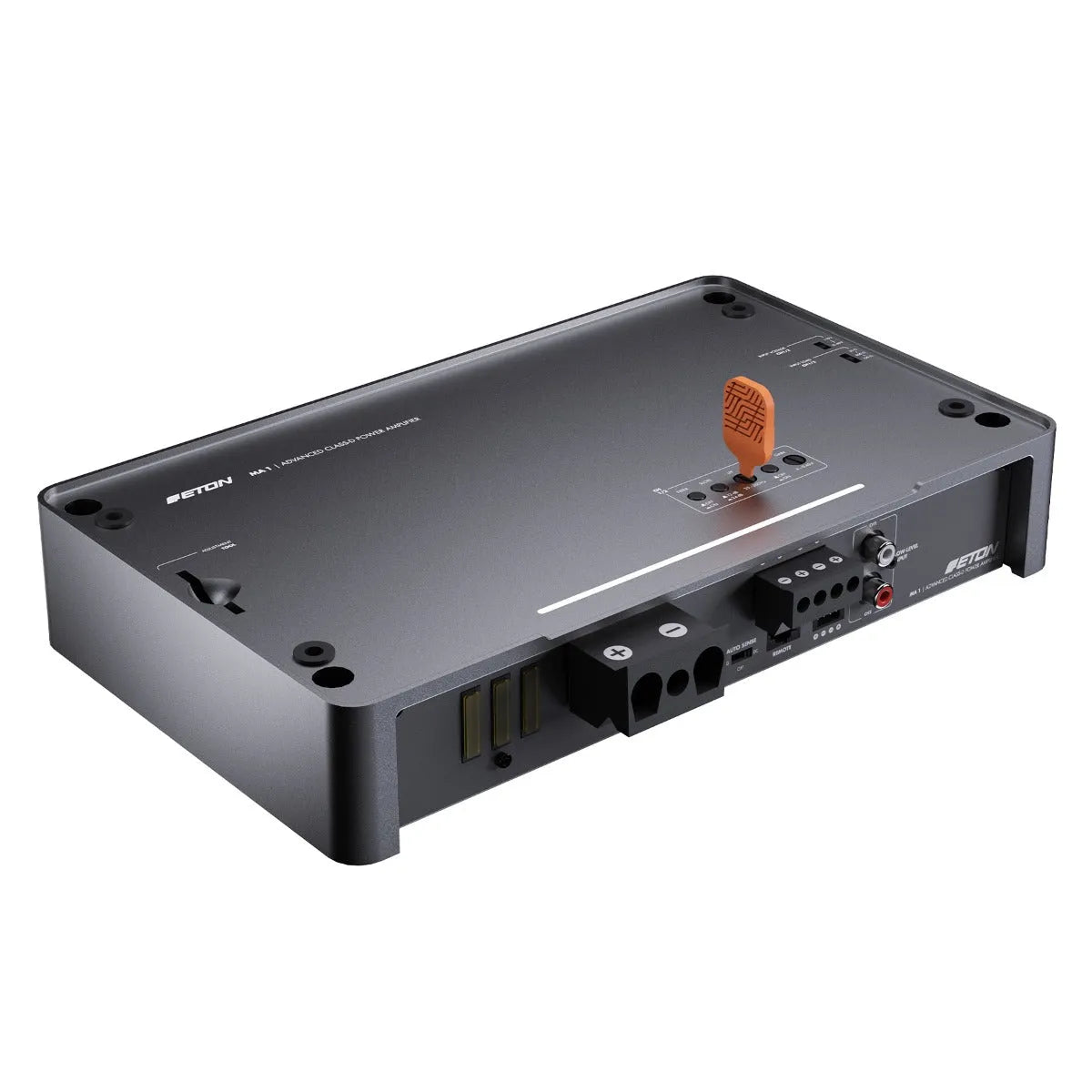

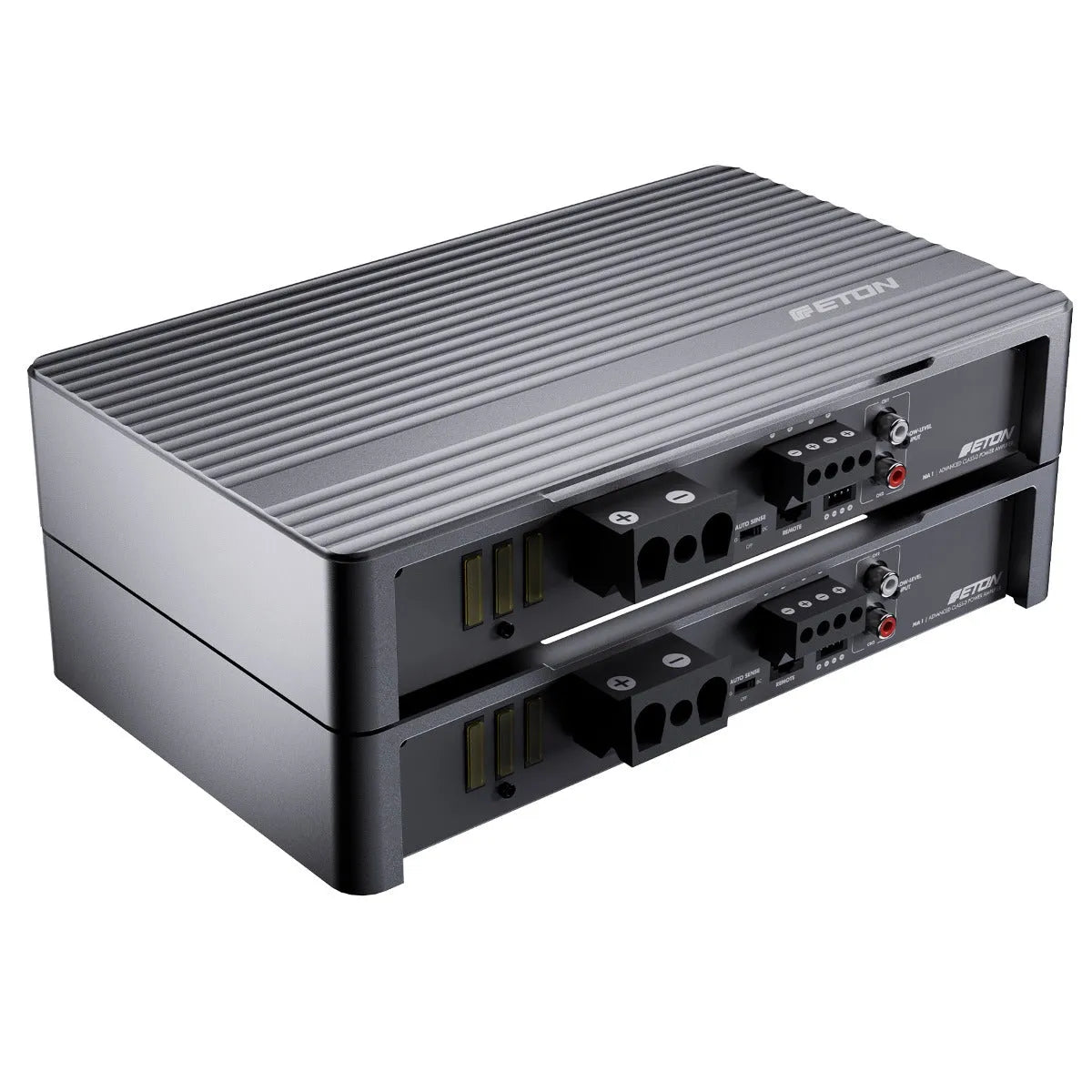

Newly developed 1-channel monoblock, state-of-the-art Class D power amplifier in a modern, timeless cast aluminum housing with top features. High-performance amplifier with 1 x 690 W RMS at 4 Ω, 1 x 1120 W RMS at 2 Ω and 1 x 1510 W RMS at 1 Ω. Also equipped with the latest features: active filter (subsonic and low pass), adjustable high-level signal input voltage and adjustable signal impedance, auto-sense on function (SIG / DC detection), suitable for vehicles with start-stop function, ultra low THD+N distortion, high and low level inputs, LED status light bar, removable housing cover (logo can be rotated 180°), integrated adjustment tool. Hidden mounting points or variable mounting feet, multi-amp stacking function, removable power and audio signal plugs, wired level remote control, incl. mounting accessories.

Engineered in Germany!

Product features

Modern state-of-the-art Class D amplifier technology with smart installation dimensions of only 270 x 160 x 51 mm. High-quality cast aluminum housing with metal finish. High-performance 1-channel monoblock amplifier with 1 x 690 W RMS at 4 Ω, 1 x 1120 W RMS at 2 Ω and 1 x 1510 W RMS at 1 Ω, signal-to-noise ratio 96.5 dB, damping factor @ 4 Ω >340, Ultra Low-THD+N 0.003 @ 100 W 60 Hz, subsonic filter 30 Hz, active filter low-pass: 25 - 250 Hz with adjustable slope 12 dB / 24 dB Oct, auto-sense function: SIG / DC , 2 x high level inputs, 2 x low level inputs (RCA), High-level input signal voltage: 1 - 15 V | 15 - 40 V, High-level input impedance: 10 | 150 | 600 Ω, adjustable gain 0.45 V - 6 V, removable connector plugs (power and audio signal), removable aluminum cover (ETON logo rotatable by 180° upside down), integrated adjustment tool for active filter and gain settings, LED status light bar, stacking function of multiple amplifiers, hidden installation using blind holes or easy installation using removable and adjustable mounting feet, incl. level remote control, high-level cable adapter, mounting feet and mounting screws.

Technical data

  • 1 channel
  • Power at 4 ohms 1 x 690W
  • Power at 2 ohms 1 x 1120W
  • Power at 1 ohm 1 x 1510W
  • Hi-Lo connection
  • Dimensions 270 x 160 x 51 mm

Manufacturer: ETON, Germany
