Eton  |  Bar code: 4039449004559

ETON, MINI150.4DSP sound amplifier, 4x100W

ETON, MINI150.
€629.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

4DSP 4-channel car radio amplifier digital 4 x 100W RMS

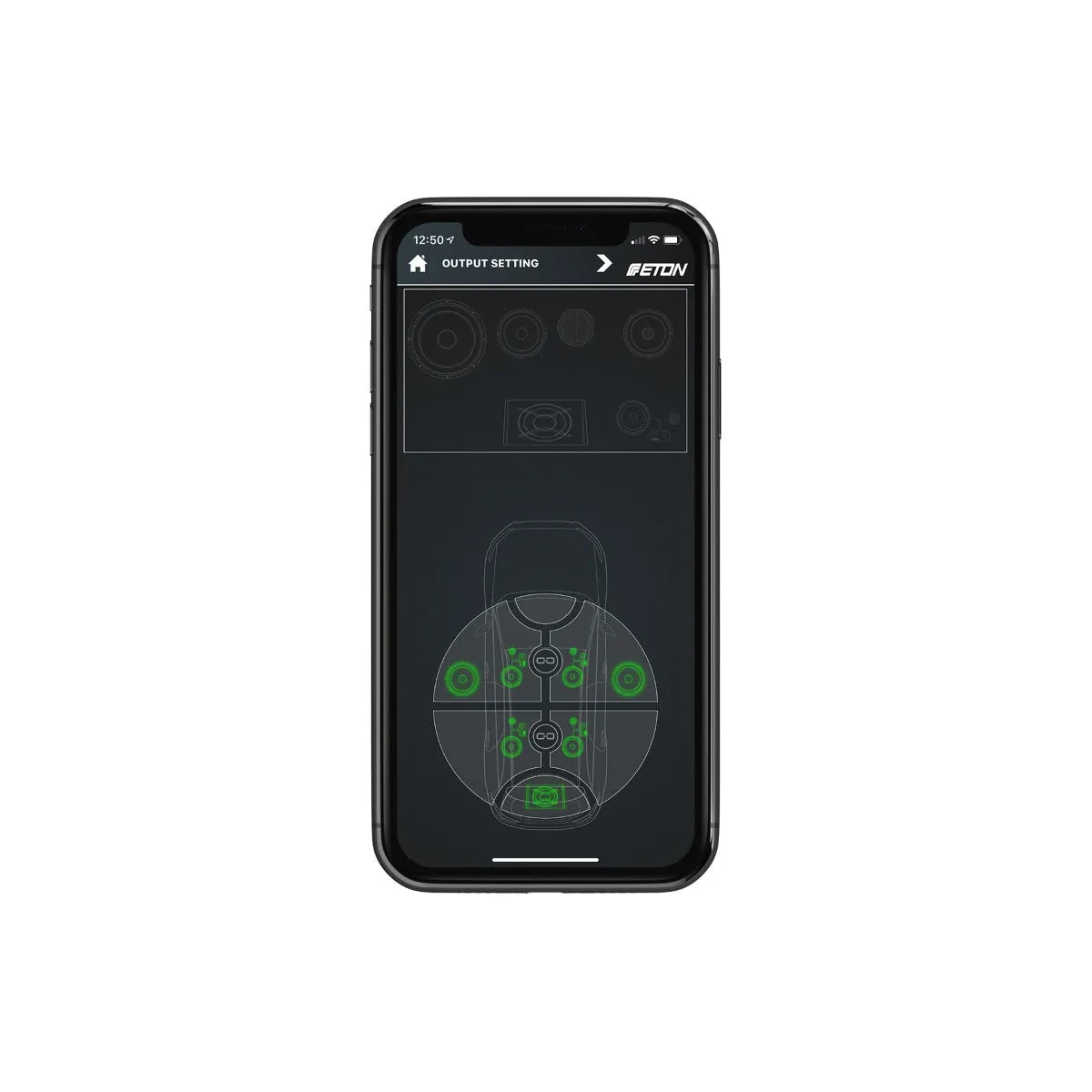

Class D amplifier with high computing power integrated DSP. Ultra low THD+N 0.003% @ 5 W RMS, Hi-Lo level inputs. SPDIF input and output, "HiRes" stream (Android and iOS). Full control using the innovative ETON app. Remote Out & DSP Out, Auto-Sense On function (DC/SIG), suitable for vehicles with start-stop function. 10 fully parametric EQ bands per output, incl. Ahigh/low-pass filter (freely selectable, 80 bands). Per input: 21 fully parametric EQ bands, incl. High/low-pass filter (freely selectable 168 bands), LZK up to 20 ms in 0.002 ms steps, HP/LP/BP: 6 - 48 dB, phase shift 0/180° per channel. Freely assignable inputs and outputs, incl. mixer, freely selectable remote control illumination color (RGB adjustment). Integrated measurement microphone input (additional ETON RTA 3.5 required, not included).

MINI 150.4DSP - 4-channel Class D amplifier

  • "Auto-Sense On" function
  • Hi-Lo level inputs
  • Level remote control
  • Low and high-pass filters
  • Adjustable active crossovers
  • Adjustable input sensitivity 0.45 V - 6 V.
  • Suitable for cars with start-stop function
  • Smart dimensions 183 x 146 x 50 mm (LxWxH)
  • Modular, adjustable mounting brackets
  • Innovative cooling fin design
  • Modern connector for optimal installation

Technical specifications:

  • Channels: 4
  • Output power:
  • 4 x 100 watts RMS at 4 Ω
  • 4 x 155 watts RMS at 2 Ω
  • 2 x 310 watts RMS, bridged at 4 Ω
  • LPF: 30 - 300 Hz / 600 - 6000 Hz
  • HPF: 15-30 Hz
