Eton  |  Bar code: 4039449100527

ETON, PA1 audio amplifier, 1x300W

ETON PA1 1-channel Class D Power AmplifierMicro-format power: The latest advanced Class D amplifier technology ensures maximum performance and efficiency in the smallest size – up to 480 W RMS! The high-quality cast aluminium housing with a removable cover and an integrated adjustment tool, as well as removable power and audio signal connection plugs and active filters are real highlights! Thanks to its adjustable input signal impedance and voltage, it is also ideal for use in modern vehicles!Engineered in Germany!Product features1-channel monoblock Advanced Class D power amplifier with the latest amplifier technology and a high-quality cast aluminium housing with a removable cover.
€179.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

ETON PA1 1-channel Class D Power Amplifier

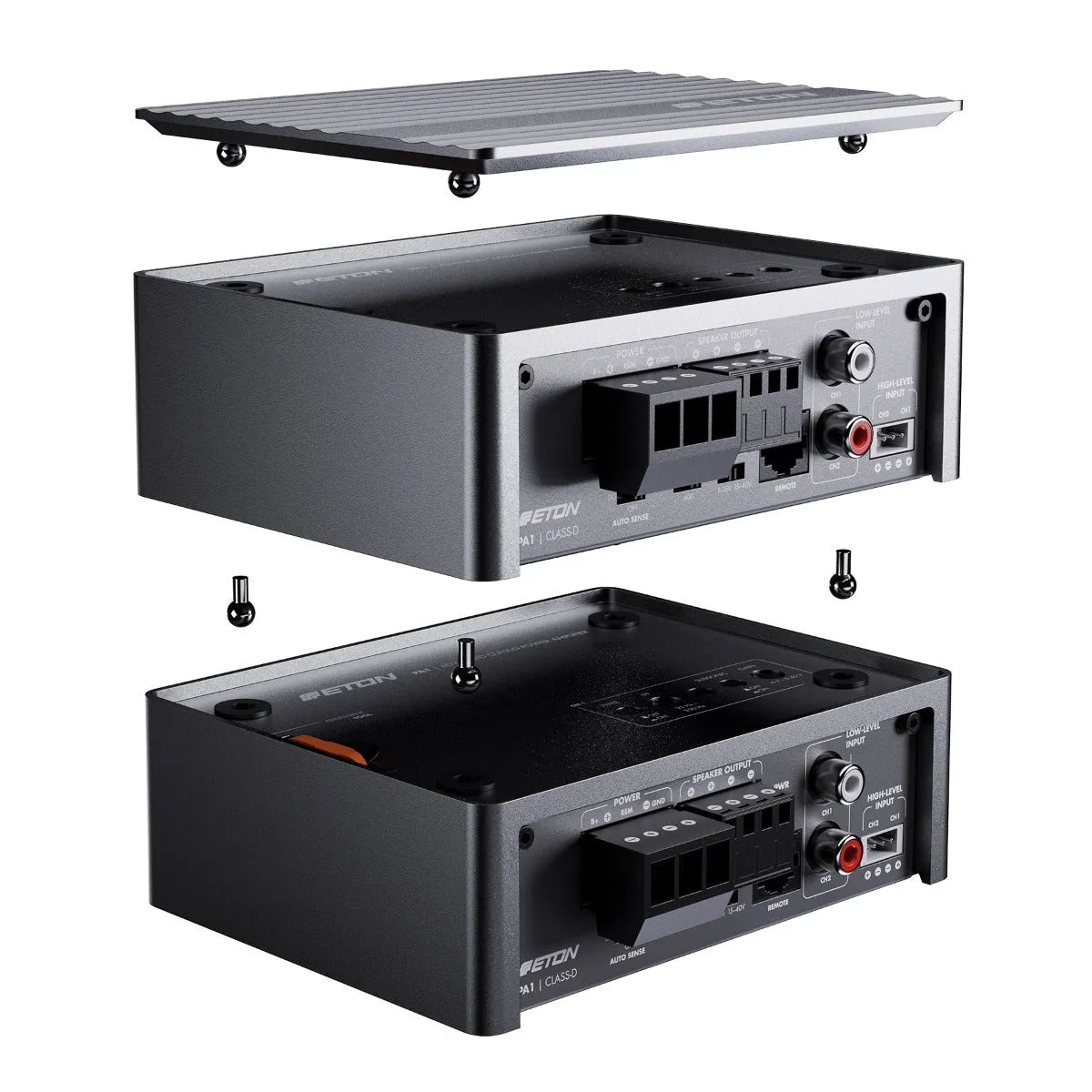

Micro-format power: The latest advanced Class D amplifier technology ensures maximum performance and efficiency in the smallest size – up to 480 W RMS! The high-quality cast aluminium housing with a removable cover and an integrated adjustment tool, as well as removable power and audio signal connection plugs and active filters are real highlights! Thanks to its adjustable input signal impedance and voltage, it is also ideal for use in modern vehicles!

Engineered in Germany!

Product features

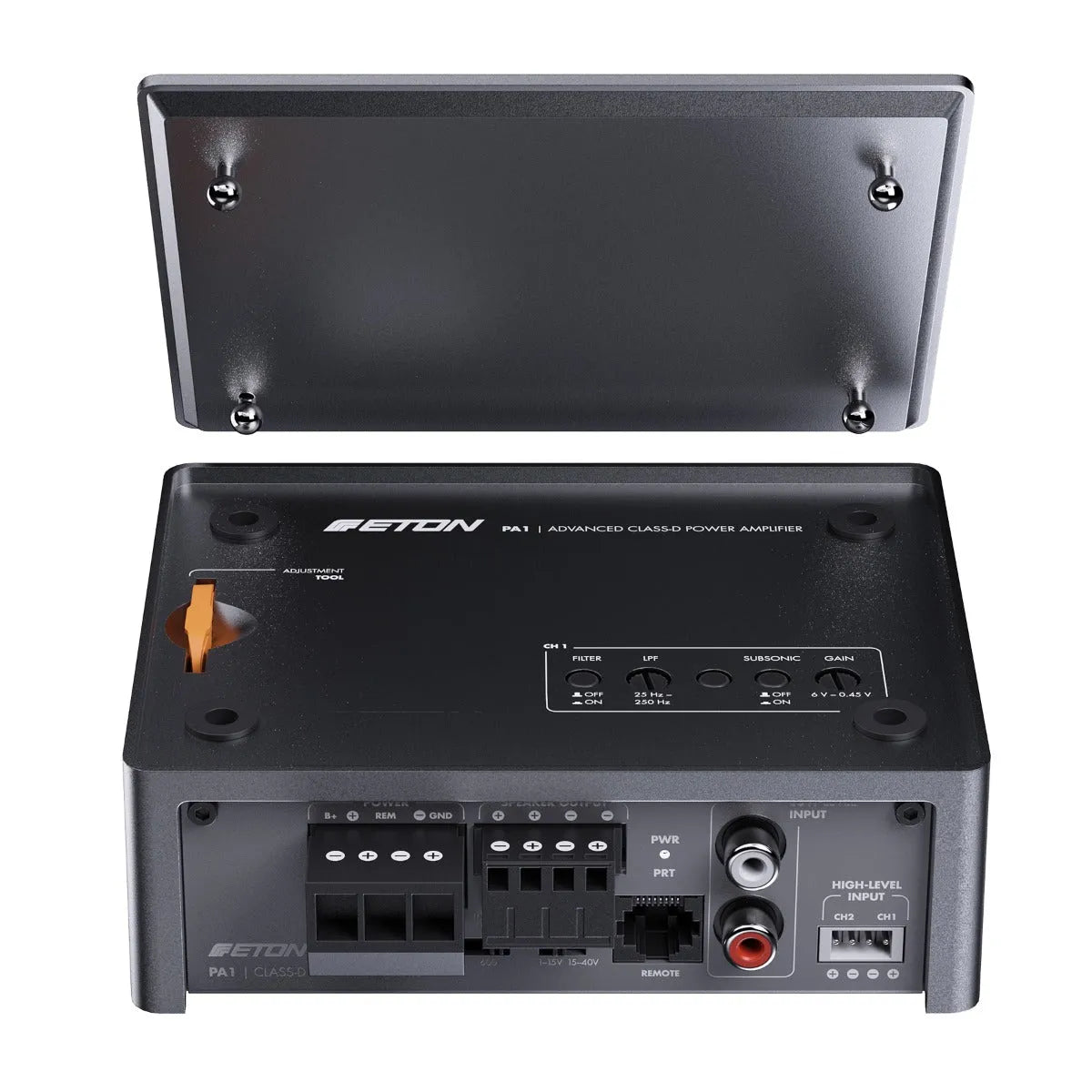

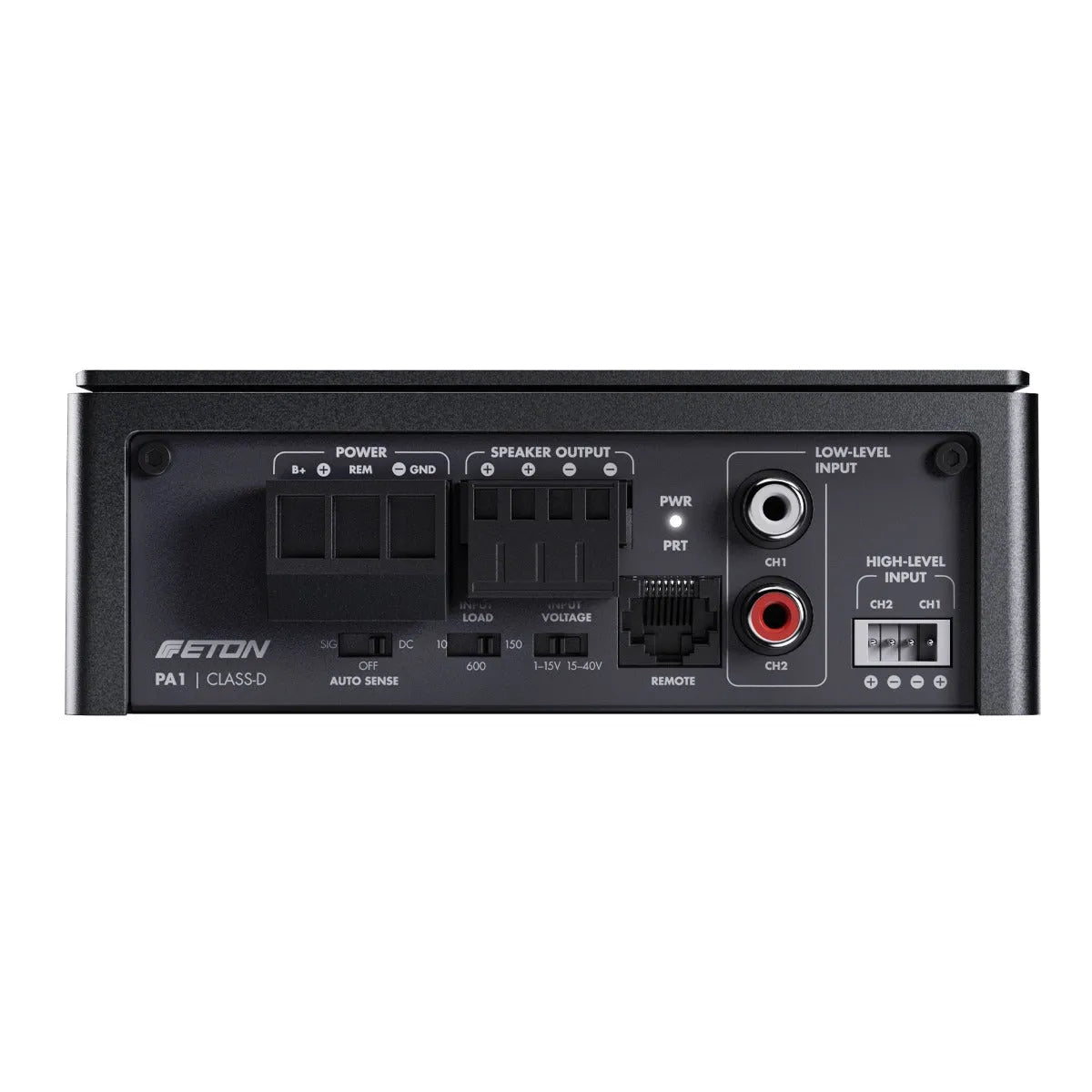

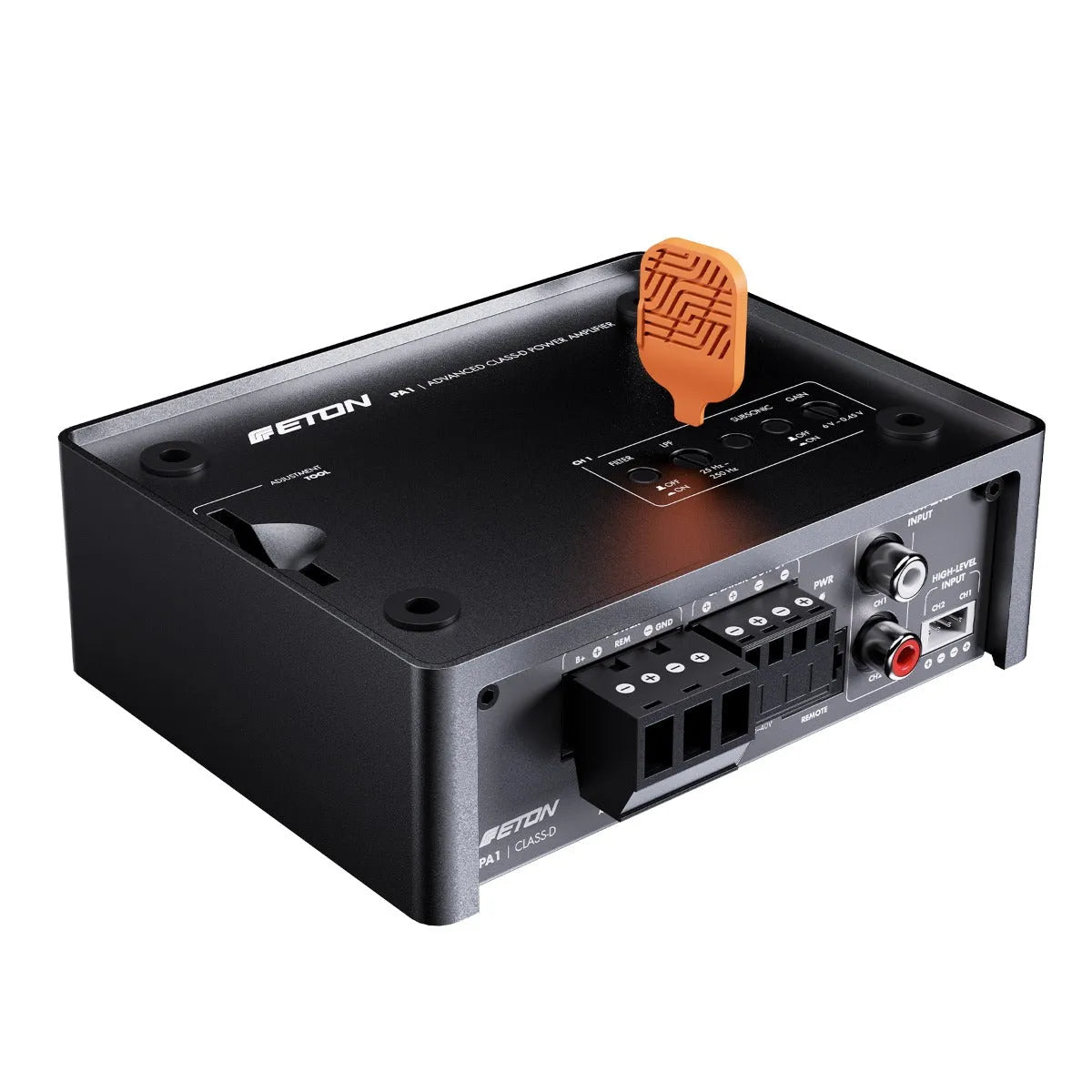

1-channel monoblock Advanced Class D power amplifier with the latest amplifier technology and a high-quality cast aluminium housing with a removable cover. The integrated adjustment tool allows for easy amplifier adjustment even overhead or in confined spaces. Full performance in the smallest size: 1 x 200 W RMS at 4 Ω, 1 x 340 W RMS at 2 Ω, 1 x 480 W RMS at 1 Ω. Signal-to-noise ratio 83.5 dB, damping factor @ 4 Ω >88, ultra-low THD+N <0.02% @ 50 W 60 Hz, subsonic active filter 30 Hz, low-pass active filter: 25–250 Hz with adjustable slope 12 dB / 24 dB Oct, Auto-Sense On function (SIG / DC), gain 0.45 V - 6 V, adjustable high-level input voltage 1 - 15 V | 15 - 40 V, adjustable high-level input impedance 10| 150 | 600 Ω, 4 x audio input (high & low level), variable mounting feet, removable power and audio signal cable connection plugs, incl. level remote control, smart dimensions (LxWxH) 128 x 100 x 45 mm.

Technical data

  • 1 channel
  • Power at 4 ohms 1 x 200W
  • Power at 2 ohms 1 x 340W
  • Power at 1 ohm 1 x 480W
  • Hi-Lo connection
  • Dimensions 128 x 100 x 45 mm

Manufacturer: ETON, Germany
