ETON, PA2 audio amplifier, 2x85W

INFORMACIJA

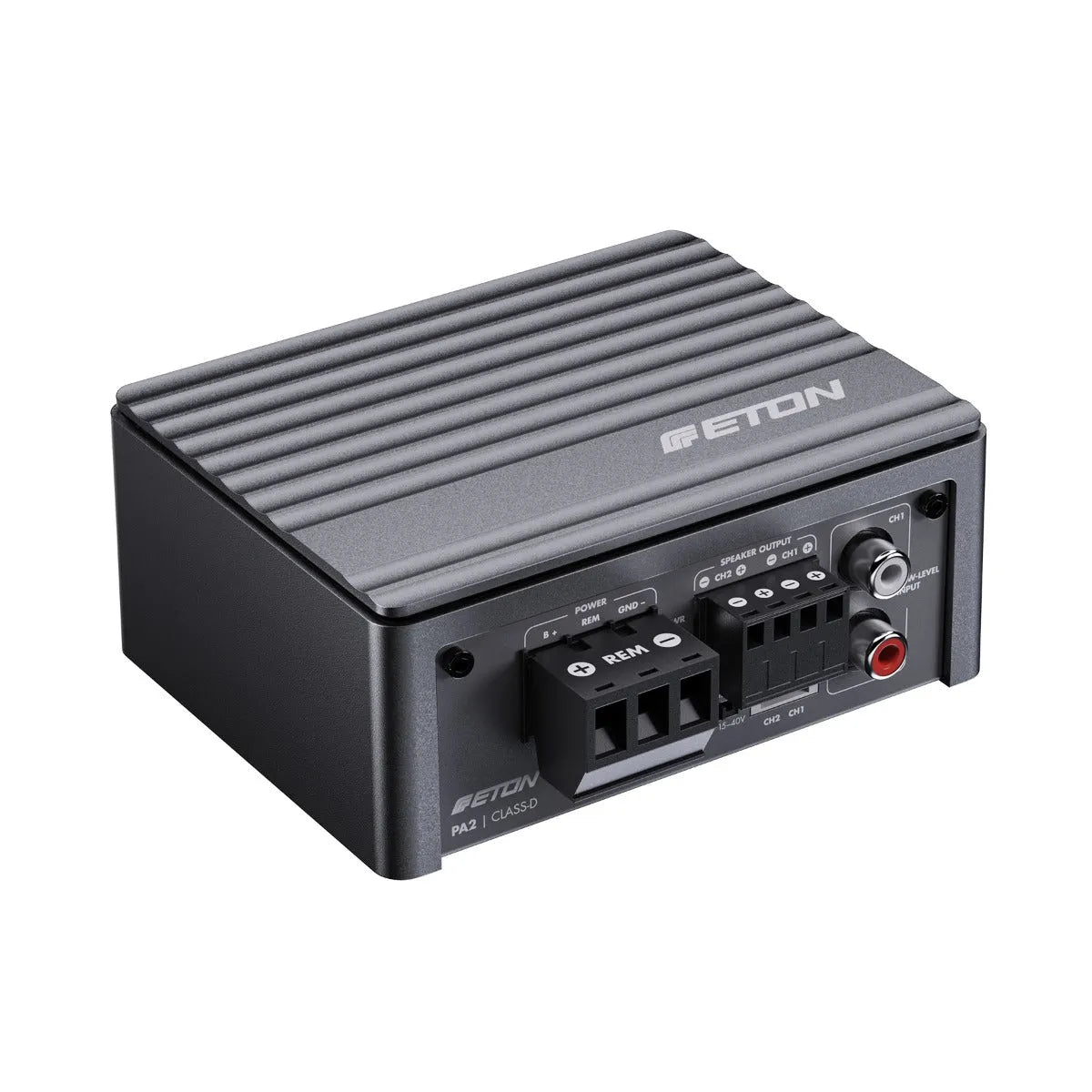

ETON PA2 2-channel Class D power amplifier

Minimum size meets maximum performance and features! State-of-the-art Class D power amplifier technology makes efficiencies possible that have never been seen in this class before, with the smallest dimensions and maximum amplifier power. Not only is the performance impressive with up to 2 x 140 W RMS, but the sound is also impressive: with an ultra-low 0.01% distortion THD+N, it is one of the best on the market! A complete range of active filters, connections (high and low level) and features make the PA 2 a real problem solver and versatile. Ideal for hidden installation in the vehicle. High-quality cast aluminum housing with removable connection plugs and variable mounting feet, plus an integrated adjustment tool for easy handling.

Engineered in Germany!

Product features

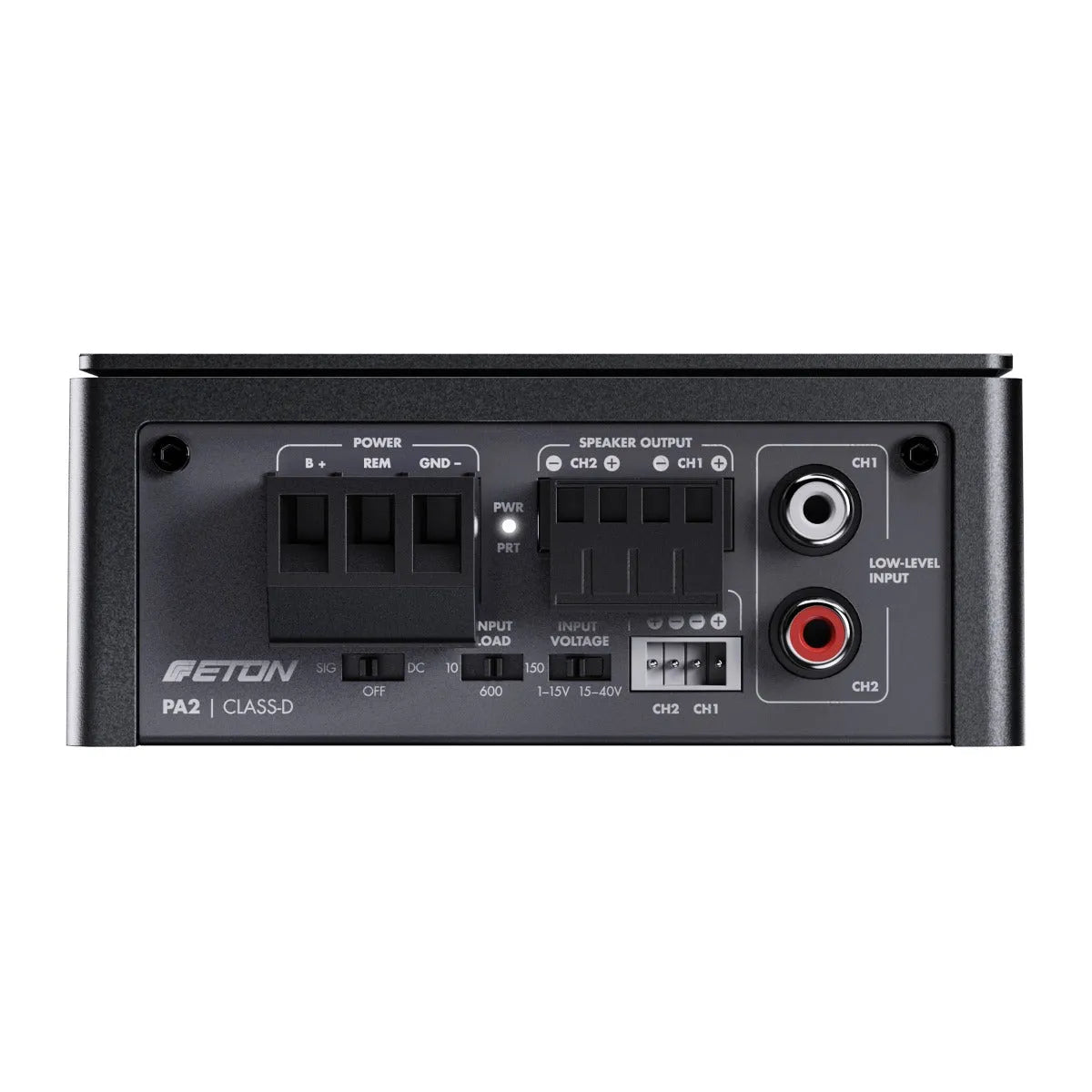

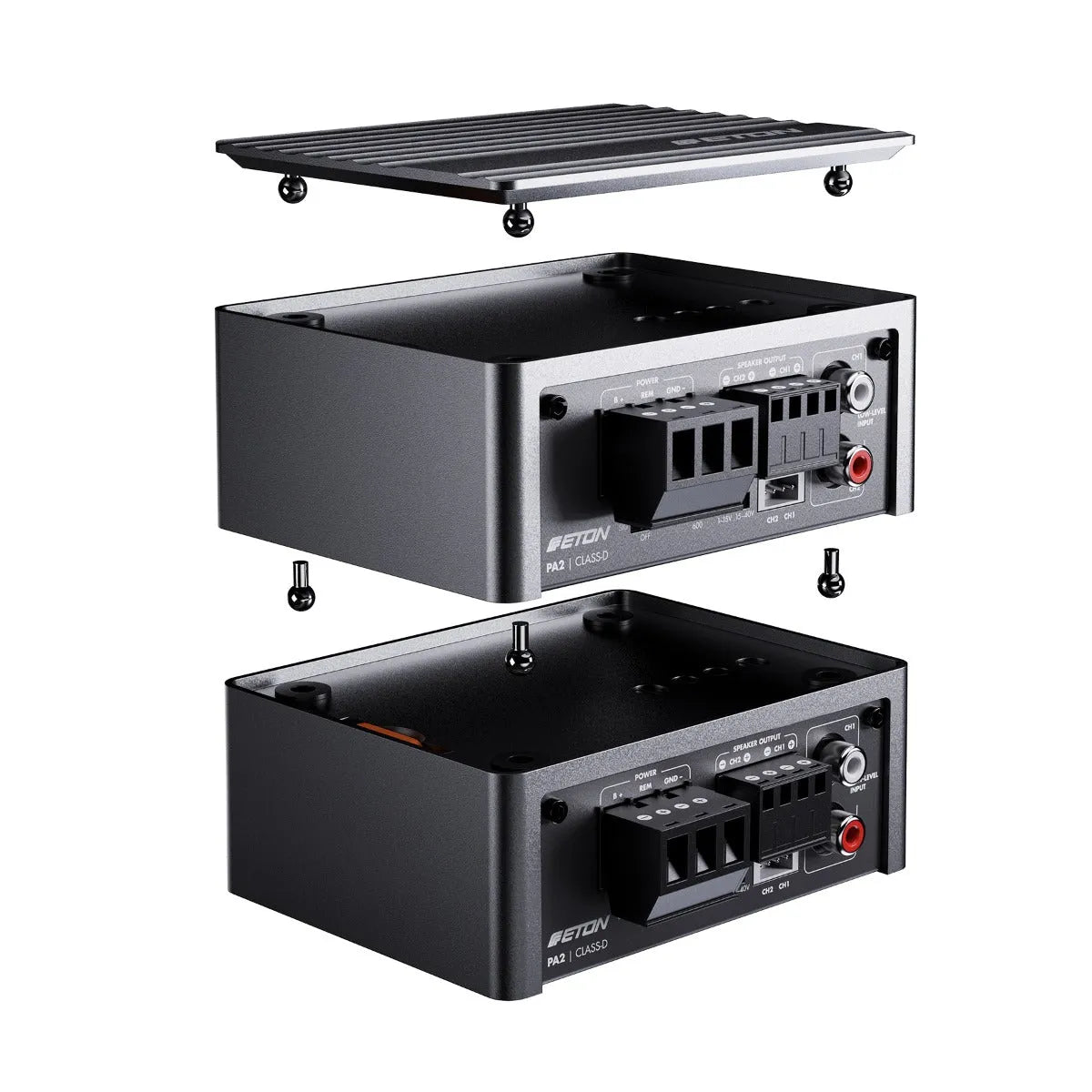

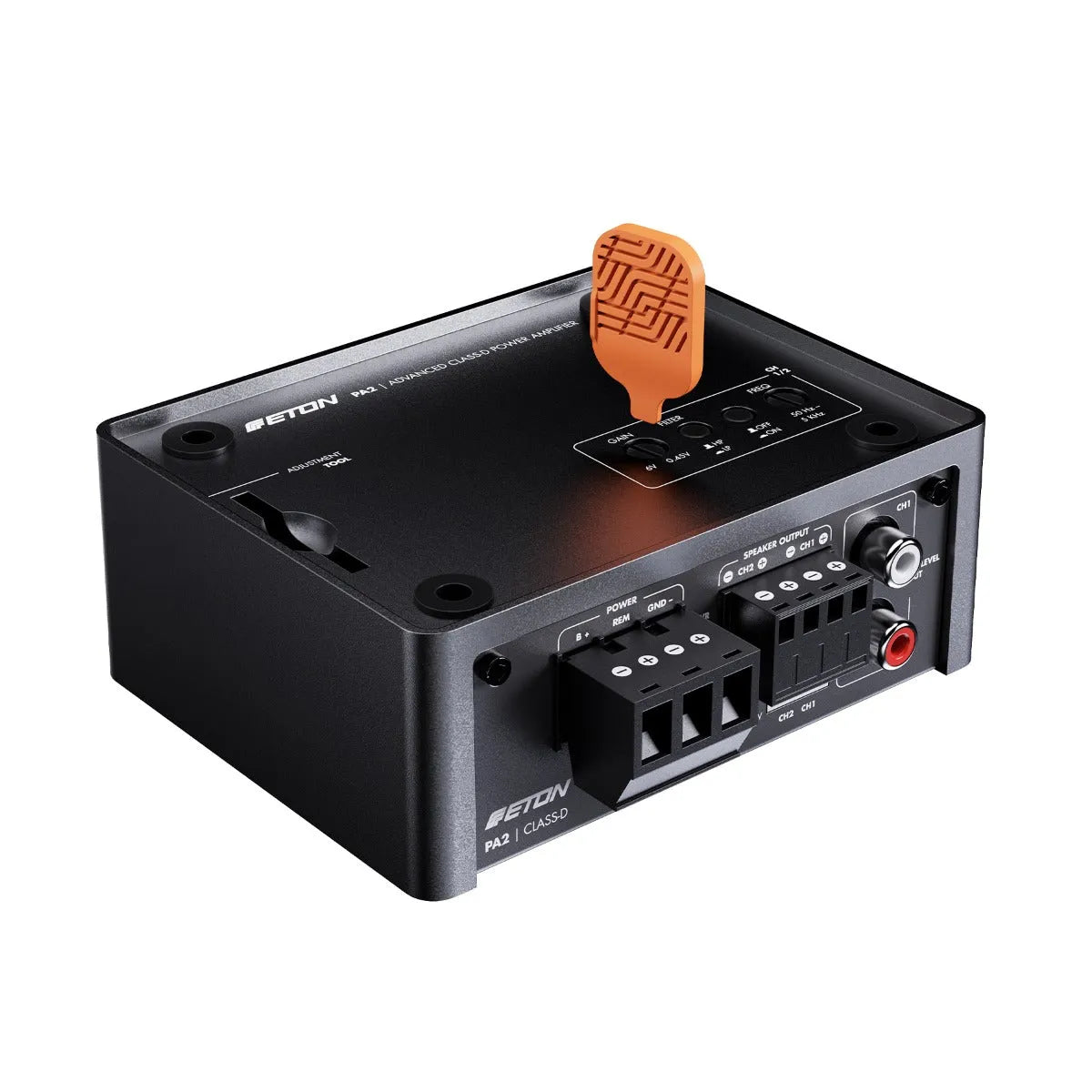

2-channel advanced Class D amplifier with state-of-the-art amplifier technology and high-quality cast aluminum housing with removable cover. The integrated adjustment tool allows for easy adjustment of the amplifier even overhead or in tight spaces. Full performance in the smallest size with 2 x 85 W RMS at 4 Ω, 2 x 140 W RMS at 2 Ω, 1 x 285 W RMS at 4 Ω. Signal-to-noise ratio 88 dB, damping factor @ 4 Ω >40, ultra-low THD+N 0.01% @ 10 W 1 kHz, active high-pass filter CH1/2: 25–250 Hz, active low-pass filter CH1/2: 25–250 Hz, auto-on function (SIG / DC), switchable audio input signal to CH1-4, gain 0.45 V - 6 V, adjustable high-level input voltage 1 - 15 V | 15 - 40 V, adjustable high-level input impedance 10 | 150 | 600 Ω, 4 x audio input (high and low level), variable mounting feet, removable power and audio signal cable connection plugs, intelligent dimensions (LxWxH) 110 x 85 x 45 mm.

Technical data

• 2 channels
• Power at 4 ohms 2 x 85W
• Power at 2 ohms 2 x 140W
• Power at 4 ohms bridged 1 x 285W
• Hi-Lo connection
• Dimensions 110 x 85 x 45 mm

Manufacturer: ETON, Germany
