ETON, PA4 audio amplifier, 2x45W + 2x80W

INFORMACIJA

ETON PA4 4-channel Class D power amplifier

One of the smallest car amplifiers on the market - yet maximum performance and maximum features: the new PA amplifier series impresses worldwide! Asymmetric power distribution, the latest advanced Class D amplifier technology with maximum efficiency. Timeless, smart extruded aluminum housing with removable cover and integrated adjustment tool, variable mounting feet and removable power and audio cable connecting plugs. Thanks to active filters, adjustable input signal impedance and voltage, it is also ideally suited for use in modern vehicles!

Engineered in Germany!

Product features

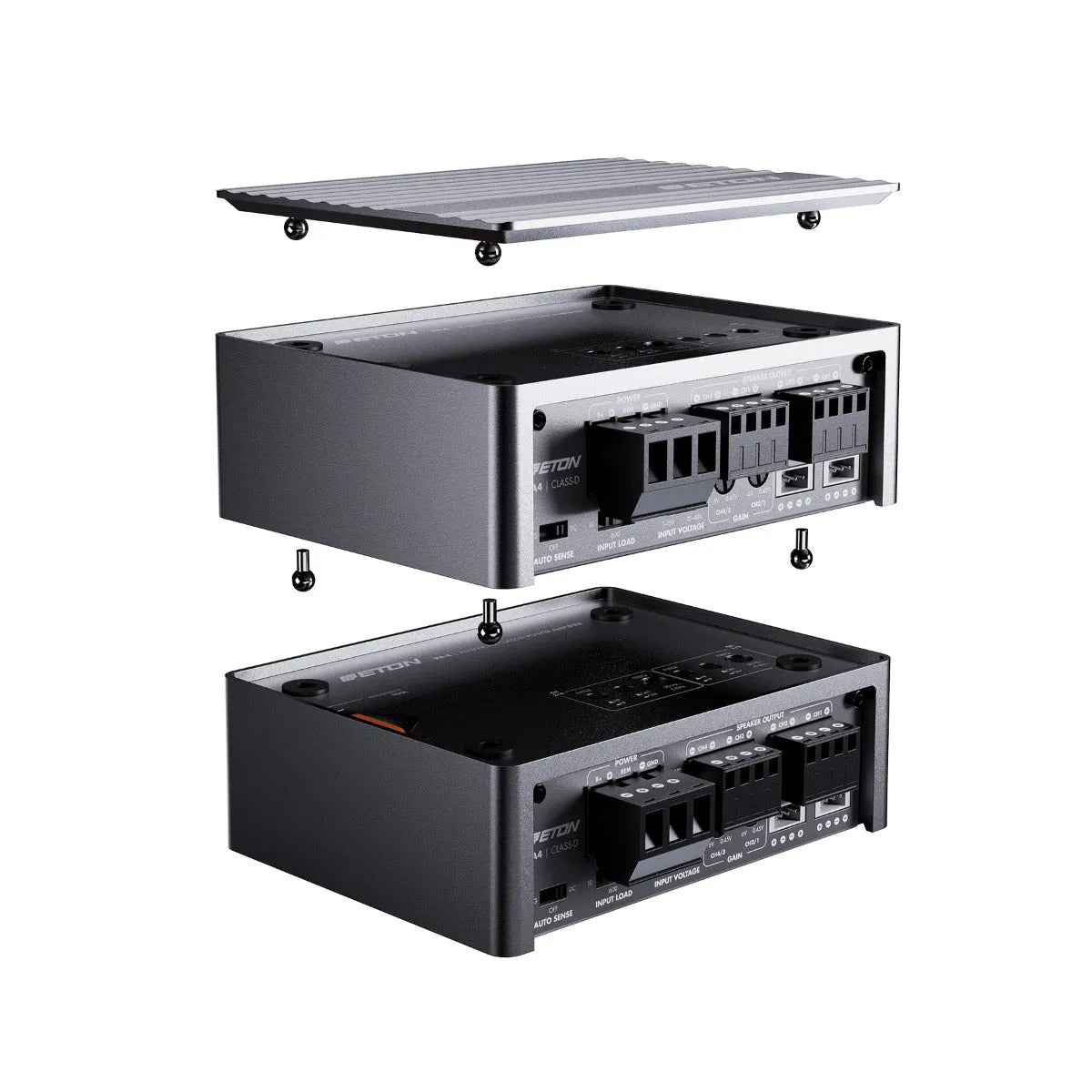

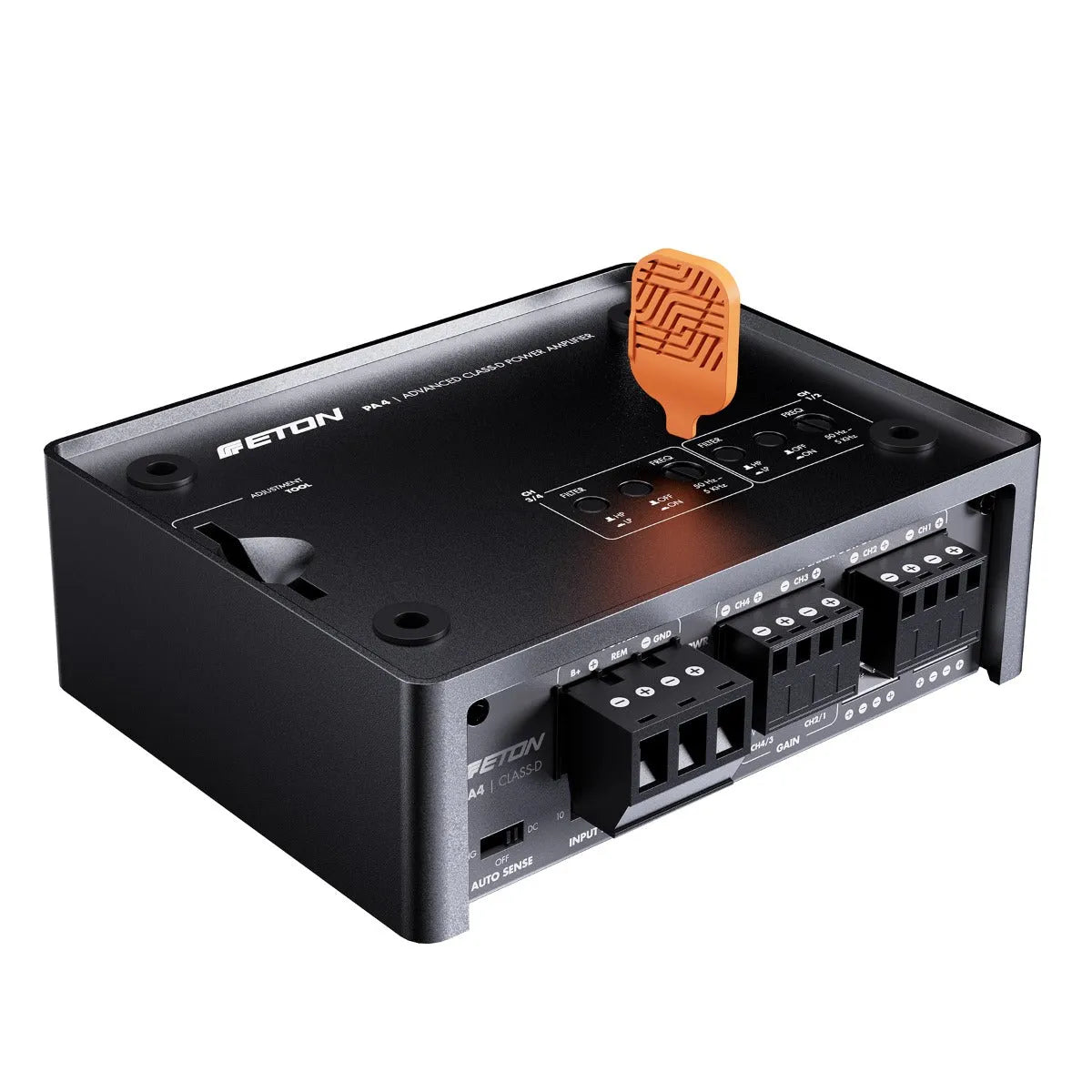

4-channel advanced Class D amplifier with state-of-the-art amplifier technology and high-quality cast aluminum housing with removable cover. The integrated adjustment tool makes it easy to adjust the amplifier even overhead or in tight spaces. Full performance in a minimal size with asymmetric power distribution: CH1/2 2 x 45 W at 4 Ω + CH3/4 2 x 80 W at 4 Ω, CH1/2 at 2 Ω not supported + CH3/4 2 x 140 W at 2 Ω, CH1/2 power bridge at 4 Ω not supported + CH3/4 1 x 280 W at 4 Ω bridge. Signal-to-noise ratio 78 dB, damping factor @ 4 Ω >65, ultra-low THD+N 0.01 % @ 10 W 1 kHz, active high-pass filter CH1/2 and CH3/4: 50–5000 Hz, low-pass active filter CH1/2 and CH3/4: 50 - 5000 Hz, auto turn-on function (SIG / DC), switchable audio input signal to CH1-4, gain 0.45 V - 6 V, adjustable high-level input voltage 1 - 15 V | 15 - 40 V, adjustable high-level input impedance 10| 150 | 600 Ω, 4 x audio input (high and low level), variable mounting feet, removable power and audio signal cable connection plugs, smart dimensions (LxWxH) 128 x 100 x 45 mm.

Technical data

• 4 channels
• Power at 4 ohms 2x45/2 x 80W
• Power at 2 ohms 2 x 140W
• Power at 4 ohms bridged 1 x 280W
• Hi-Lo connection
• Dimensions 128 x 100 x 45 mm

Manufacturer: ETON, Germany
