Eton  |  Bar code: 4039449100855

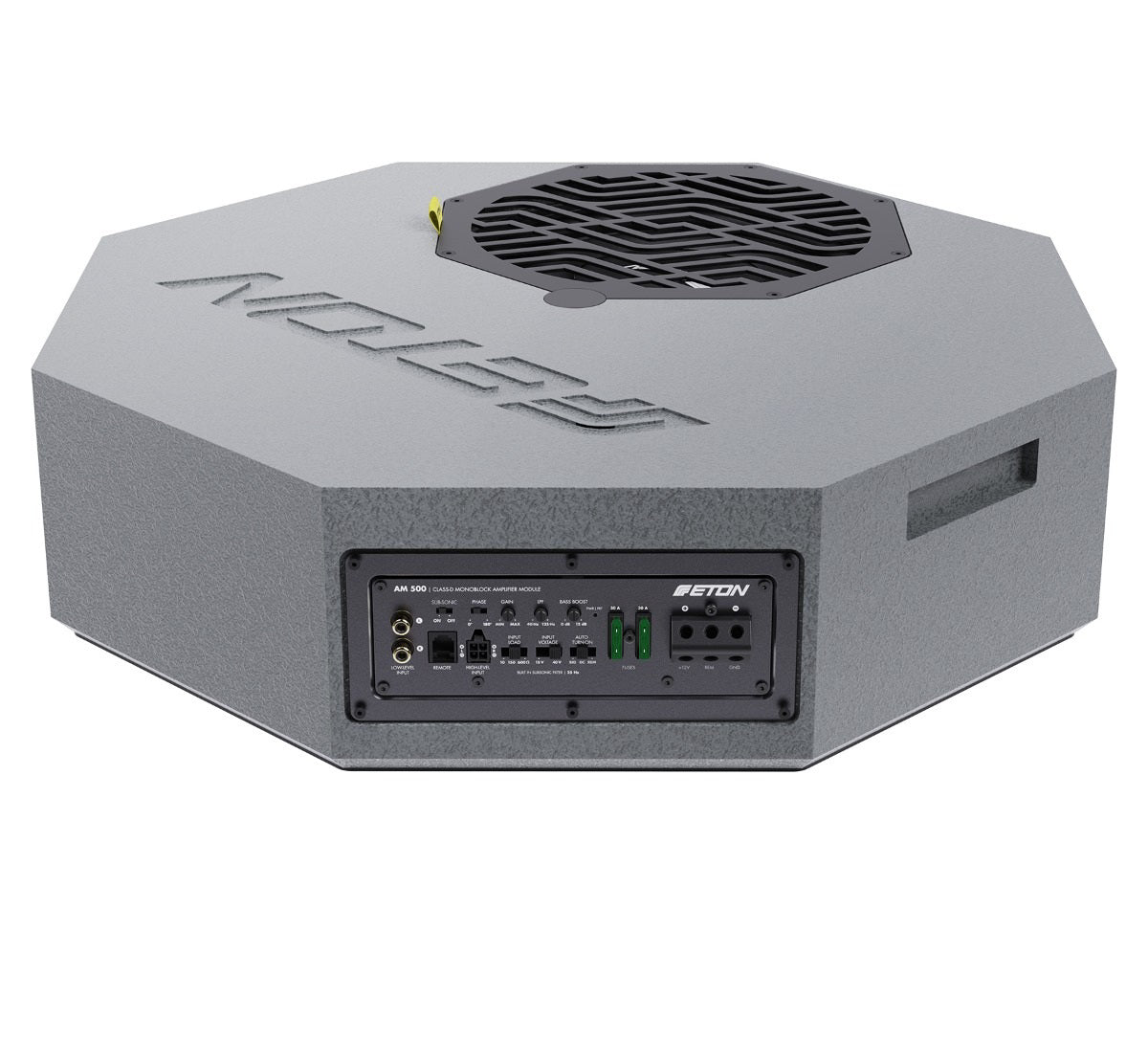

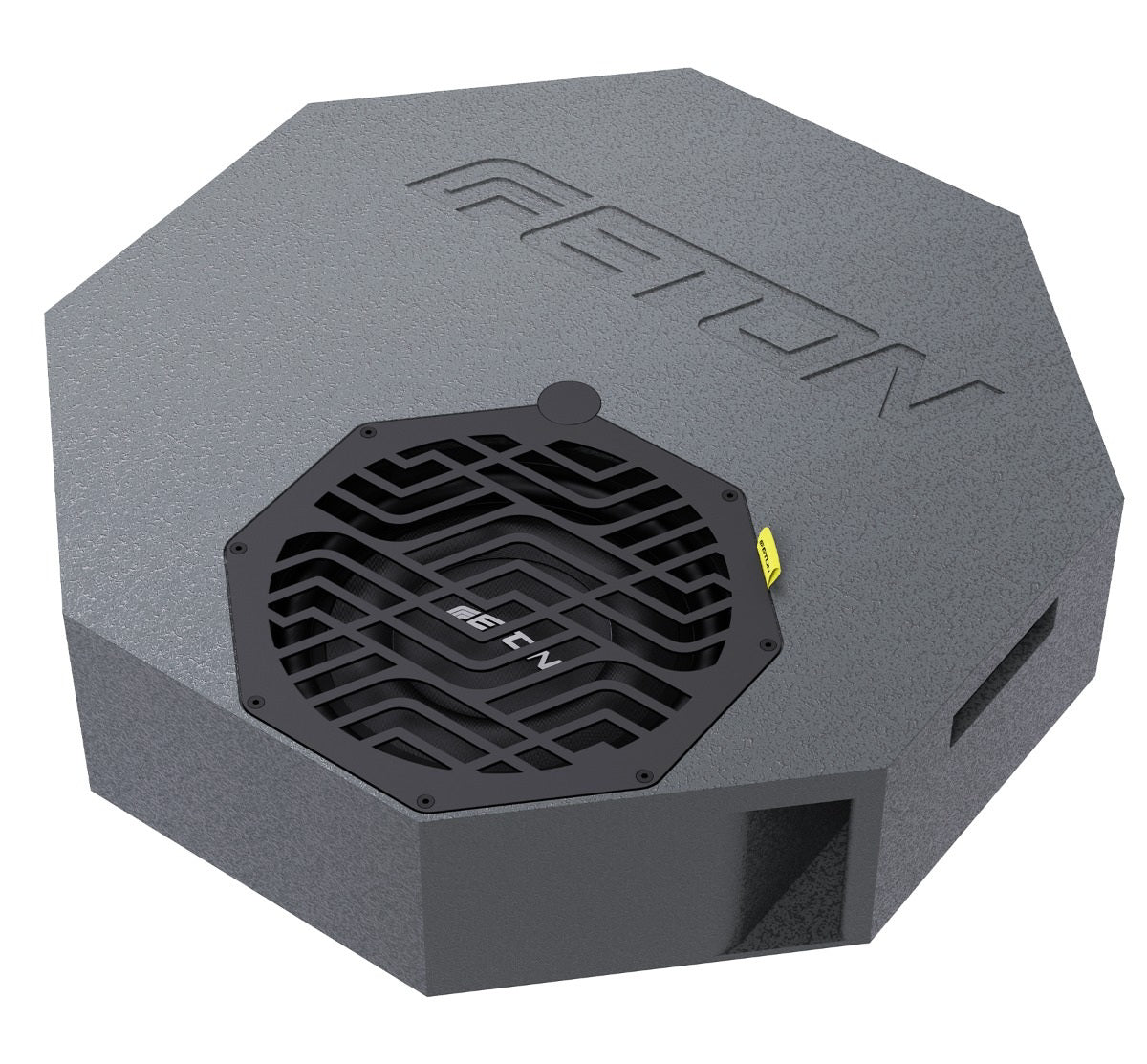

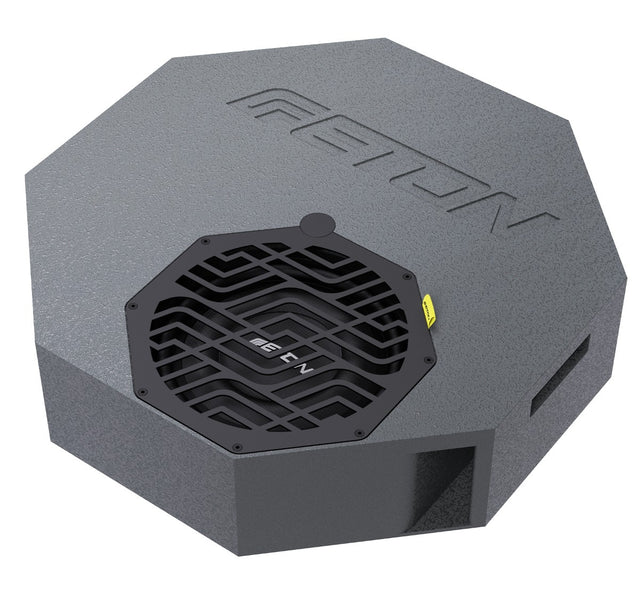

ETON, RES10AR, 25 cm active subwoofer

ETON RES10AR – active 10-inch spare wheel well subwooferThe ETON RES 10 AR is a top-of-the-line active 10-inch (250 mm) subwoofer designed for installation in the spare wheel well of a vehicle.
€429.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

ETON RES10AR – active 10-inch spare wheel well subwoofer

The ETON RES 10 AR is a top-of-the-line active 10-inch (250 mm) subwoofer designed for installation in the spare wheel well of a vehicle. This model allows you to enjoy powerful, deep bass without losing valuable trunk space. The upgraded MDF bass-reflex enclosure, long-excursion driver, and integrated 540 W RMS Class D amplifier ensure exceptional performance and precise low-frequency reproduction.

Key features

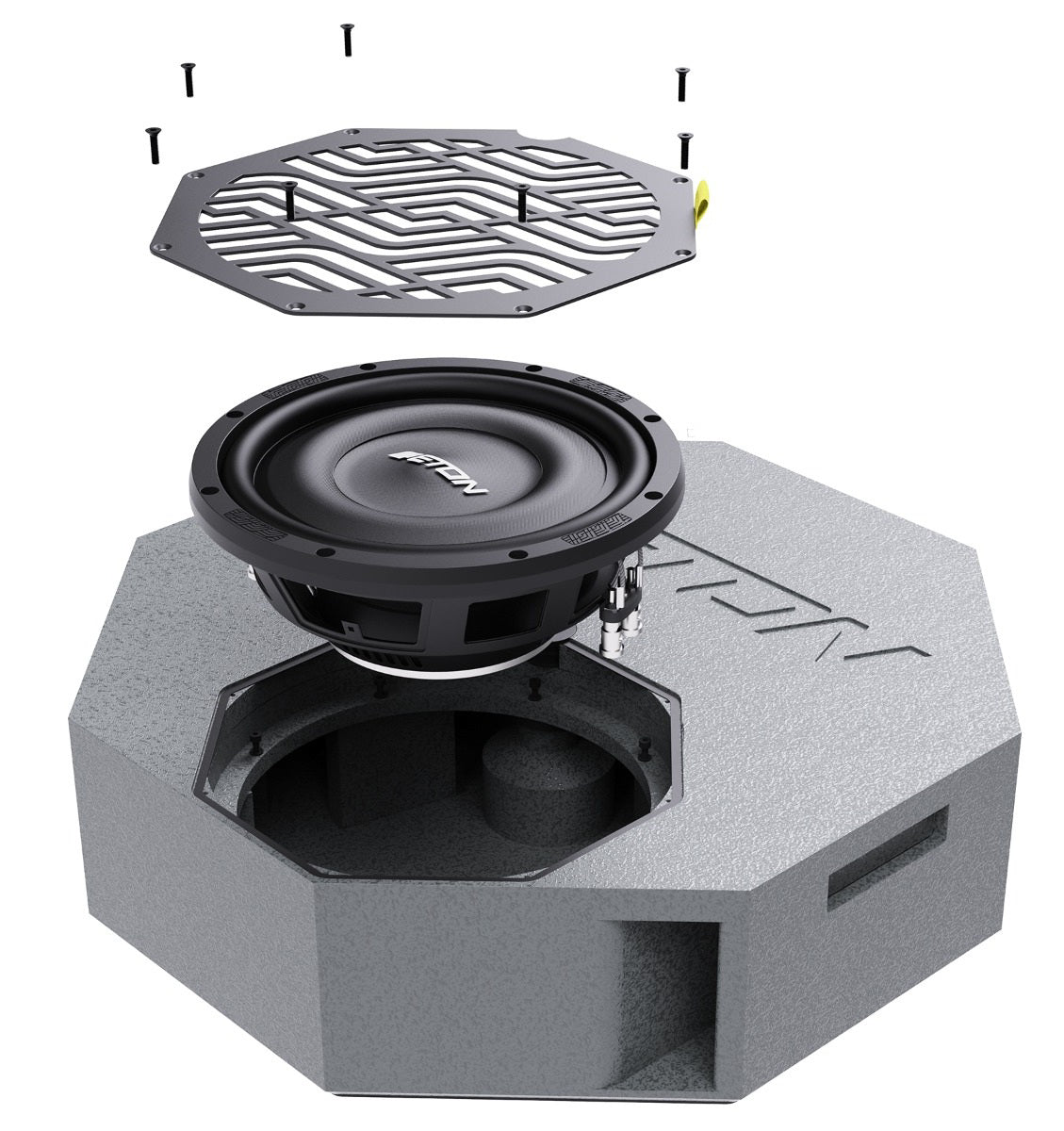

  • 10-inch (250 mm) long-excursion subwoofer with a 2 x 2 Ω dual voice coil and a powerful ferrite magnet.

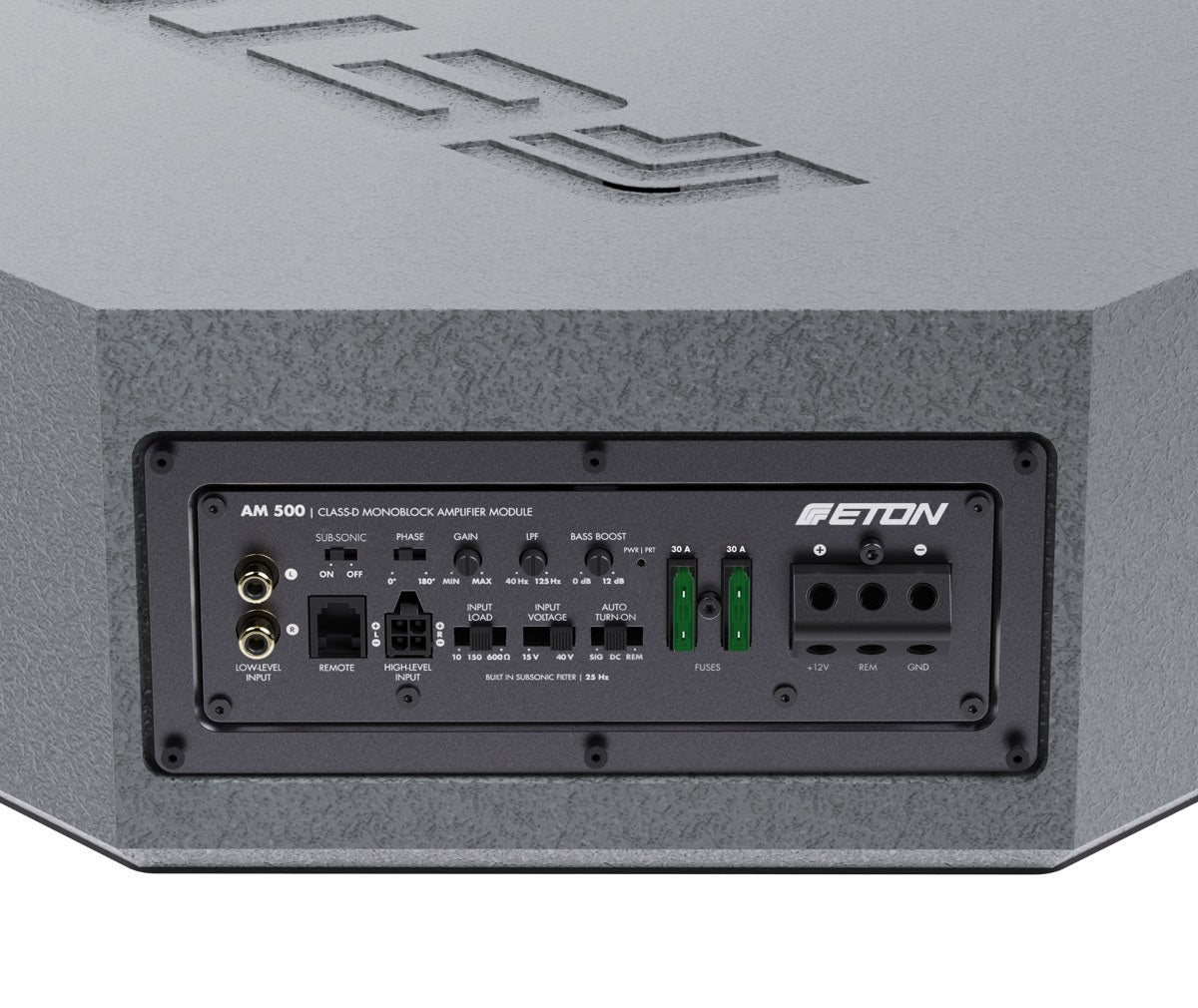

  • Integrated 540 W RMS Class D amplifier ensures high power output and efficient energy usage.

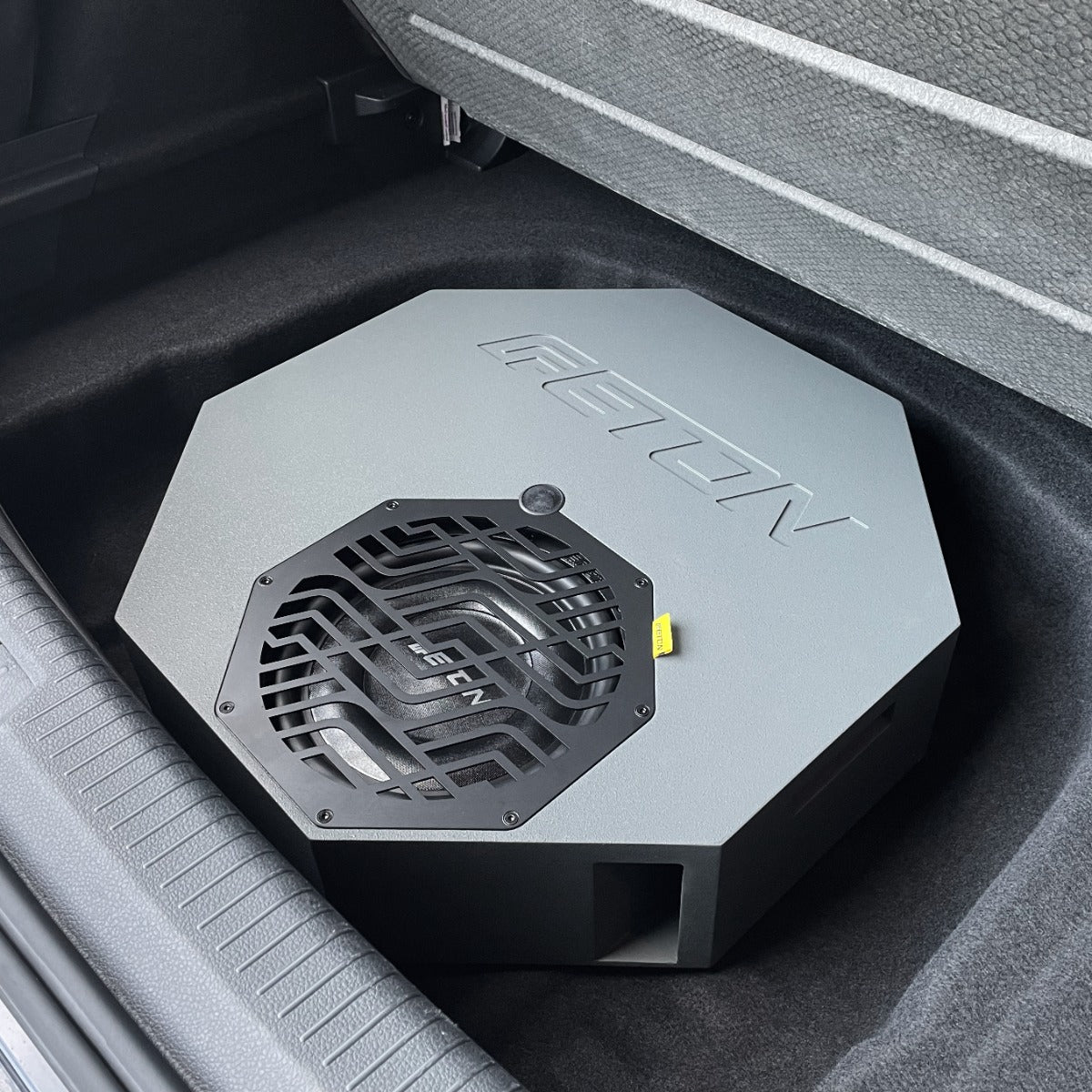

  • Designed for spare wheel well mounting, preserving your entire trunk space.
  • Reinforced MDF bass-reflex enclosure reduces resonances and improves sound quality.
  • Adjustable low-pass filter (40–125 Hz) allows for optimal integration with other speakers in your vehicle.
  • Integrated 25 Hz subsonic filter protects the driver from ultra-low, unwanted frequencies.
  • High-Level and Low-Level inputs allow for connection to both factory and aftermarket audio systems.
  • Auto-turn-on function (SIG/DC/REM) and compatibility with Start-Stop systems.
  • Included remote controller provides convenient bass level adjustment.

Technical specifications

  • Model: ETON RES10AR
  • Type: Active bass-reflex subwoofer
  • Driver diameter: 10" (250 mm)
  • Nominal power (RMS): 540 W
  • Driver impedance: 2 x 2 Ω (Dual Voice Coil)
  • Low-pass filter (LPF): 40–125 Hz, 12 dB/oct.
  • Subsonic filter: 25 Hz, 12 dB/oct.
  • Bass Boost: 0–12 dB
  • Phase control: 0° / 180°
  • Adjustable High-Level input sensitivity and impedance

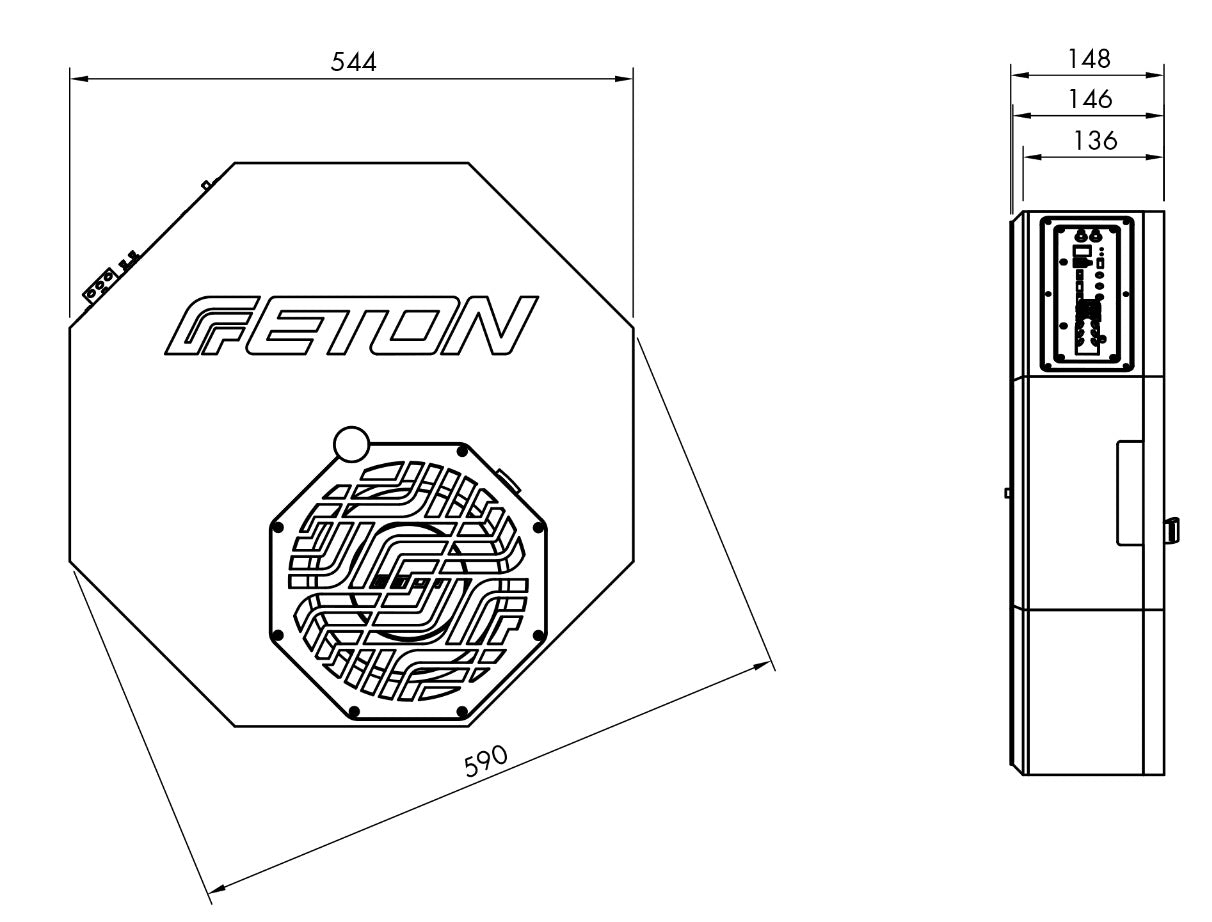

  • Enclosure diameter: approx. 590 mm
  • Height: approx. 148 mm
  • Weight: approx. 15.8 kg

An excellent choice for those seeking maximum bass without losing space

The ETON RES10AR is designed for drivers who want to significantly improve the low-frequency response of their car audio system without sacrificing trunk capacity. Installation in the spare wheel well maintains the vehicle's original appearance, while the advanced design and powerful amplifier deliver impressive sound across various music genres.

Package contents

  • ETON RES 10 AR active subwoofer
  • Wired remote bass level controller
  • Mounting kit with adjustable locking rod
  • High-Level wiring harness
  • Installation manual

For more information about the product, visit the official ETON website:
https://eton-audio.com/subwoofer/res-10-ar.html
