1 5
 |  Bar code: 4026397693072

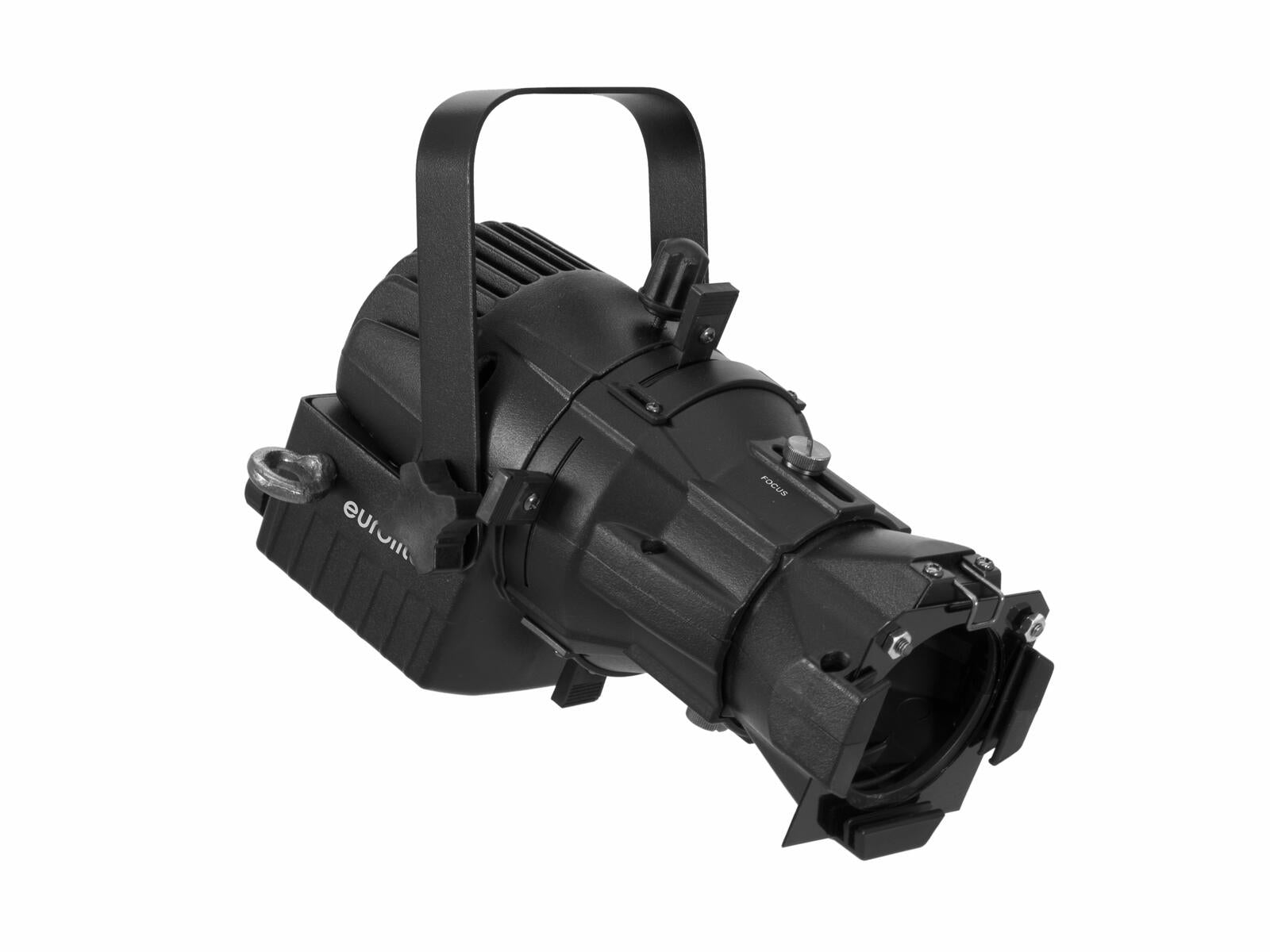

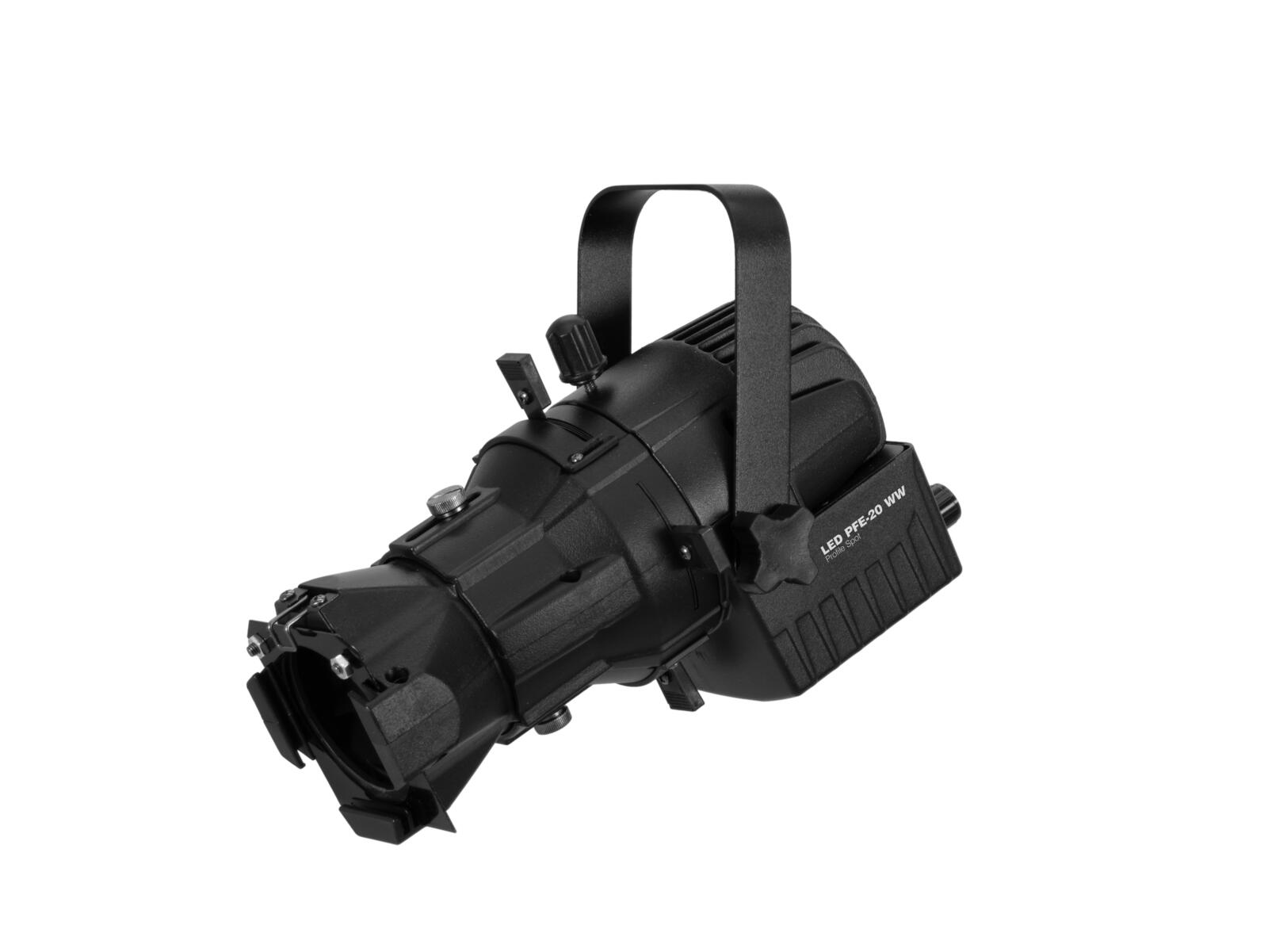

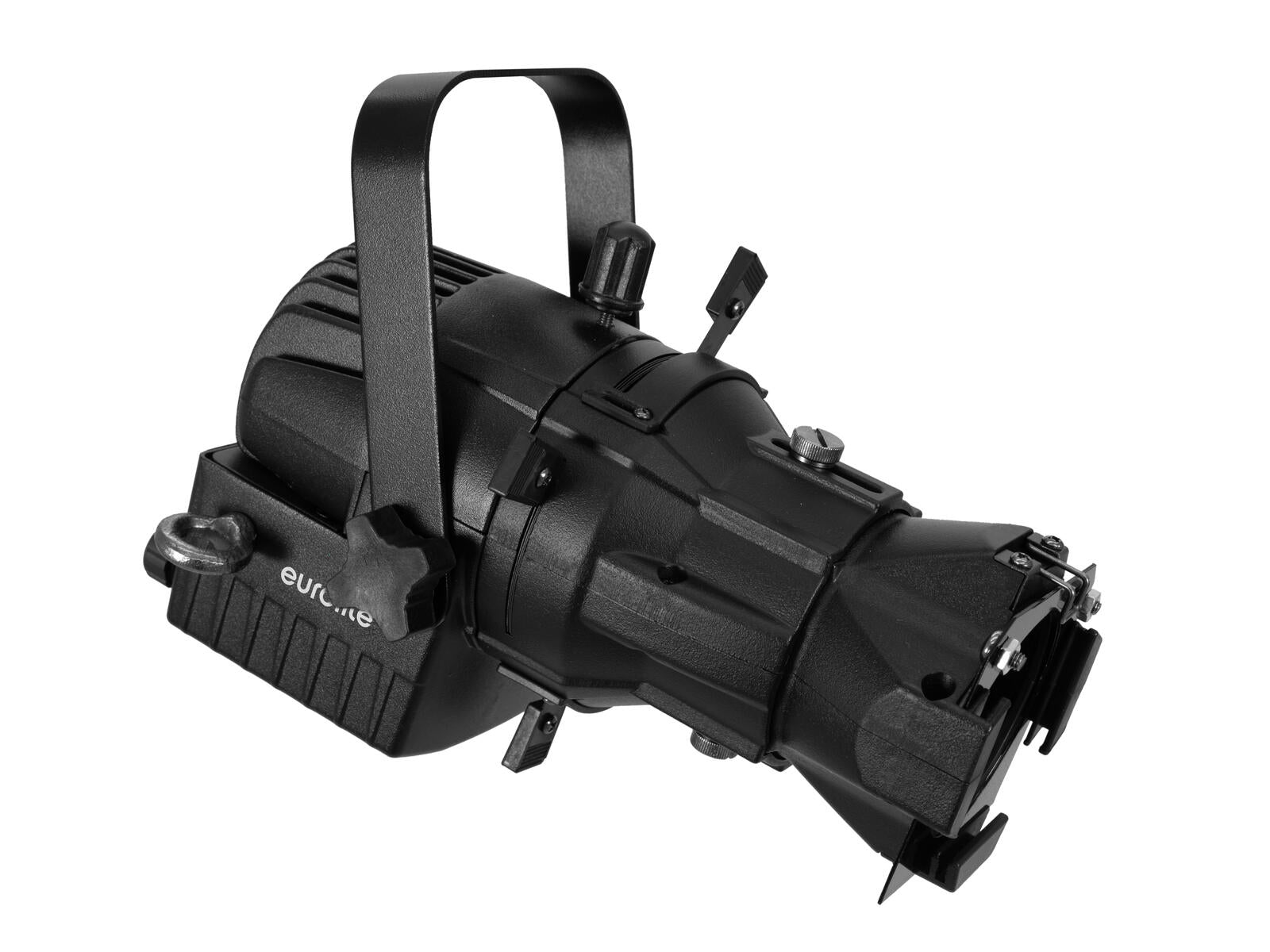

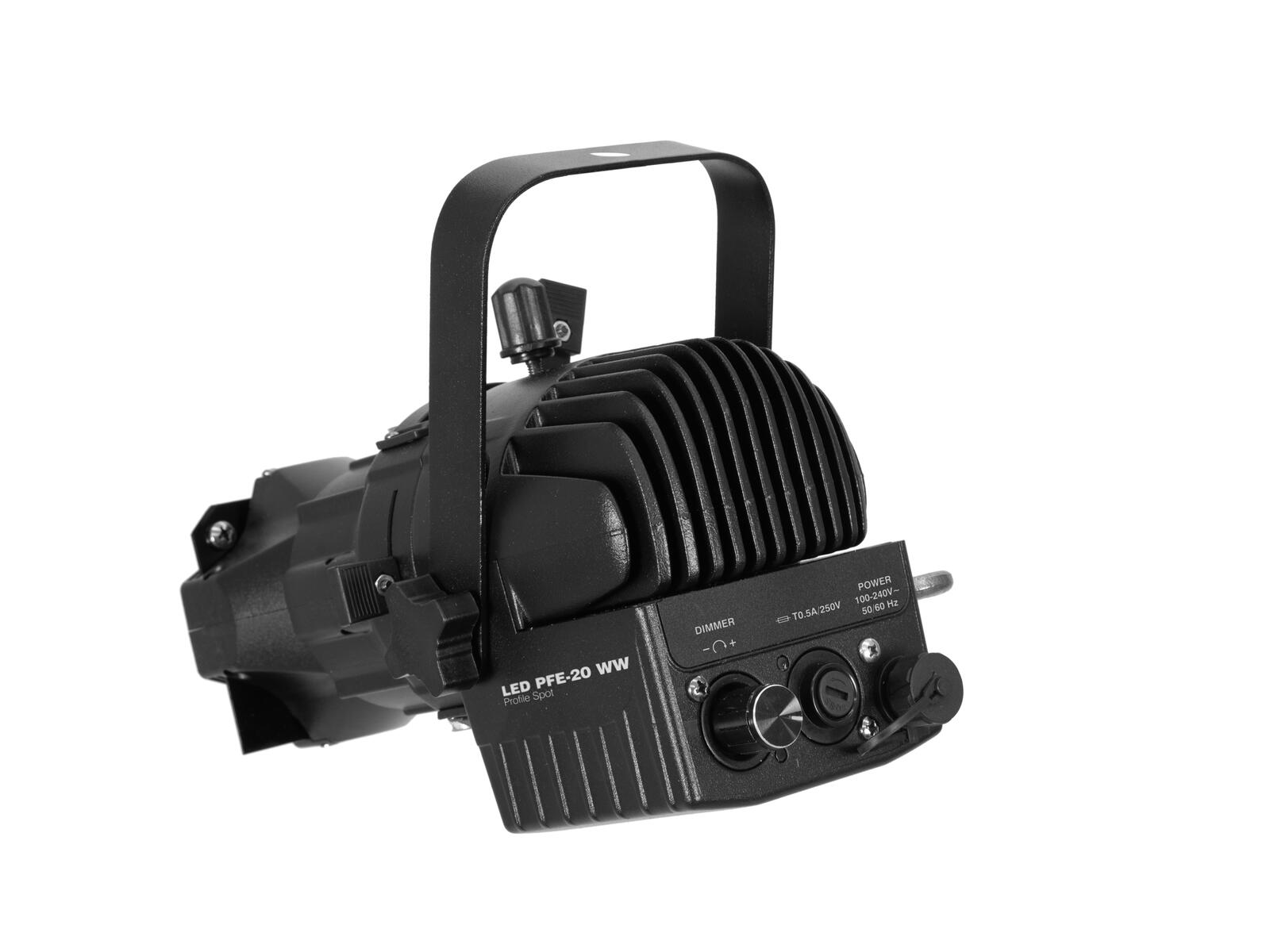

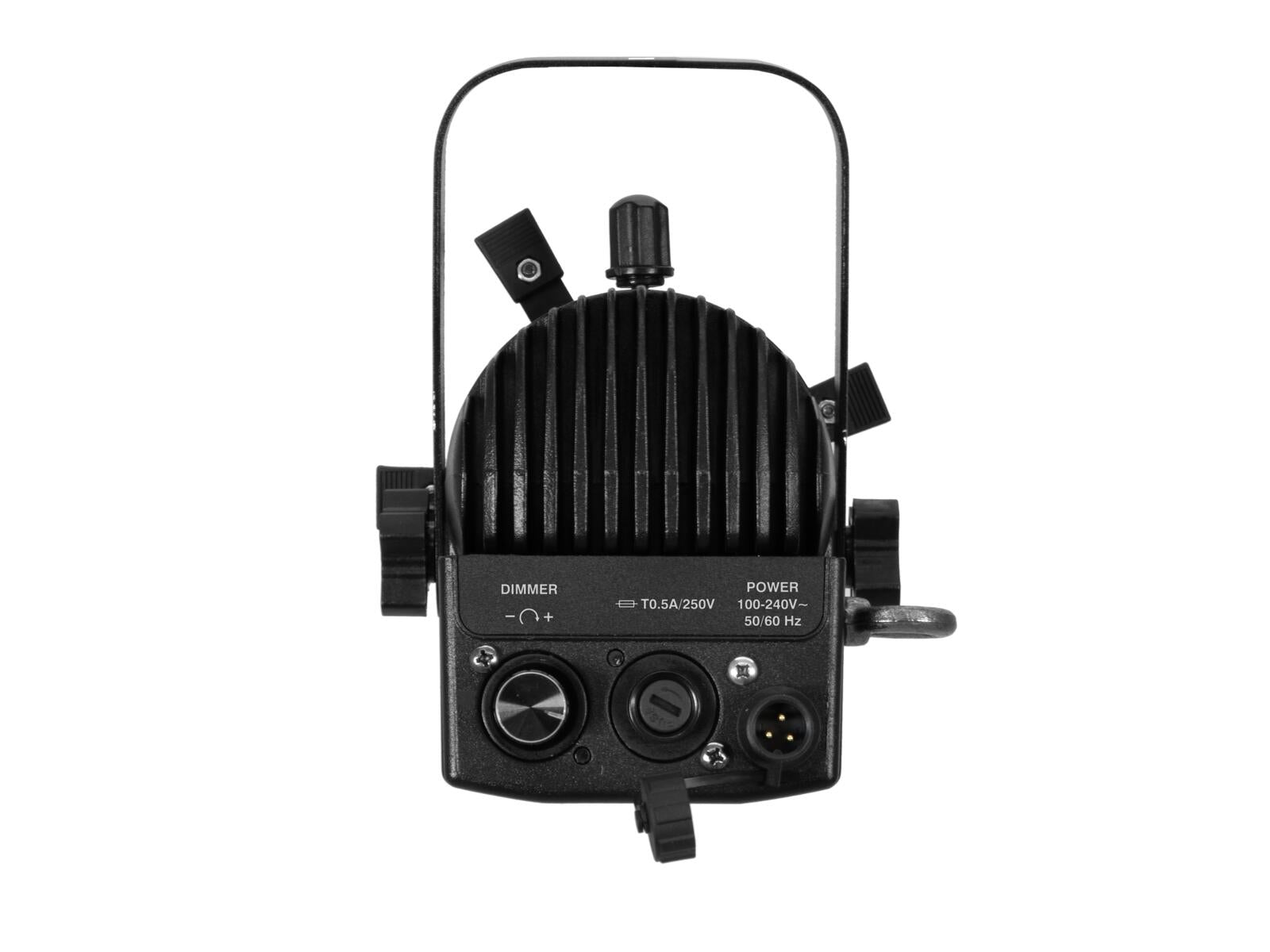

EUROLITE LED PFE-20 WW Profile Spot bk

Convenient stage spotlight with 20 W COB LED, CRI >95 4 shutter blades With a beam angle of 19° Silent operation Very high color rendering index (CRI) Flicker-free 1 LED 20 W COB (chip-on-board) warm white (WW) Electronic dimmer With mounting bracket Device is cooled by passive convection cooling Application areas: decoration; exhibition and shop fitting; restaurants, bars and hotels; video and photography; advertising/shop window Application possibilities: suspended; on a tripod Package contents 1 x spotlight 1 x gobo holder 1 x filter frame 2 x screw 2 x washer 1 x user manual Power supply: 100-240 V AC, 50/60 Hz Power consumption: 20 W Protection class: Protection class I Power connection: Mains input via 3-pin screw connector (M) mounting version power cord with safety plug (included) Fuse: 5 x 20 mm, T 0.
€179.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA



Convenient stage spotlight with 20 W COB LED, CRI >95

  • 4 shutter blades
  • With a beam angle of 19°
  • Silent operation
  • Very high color rendering index (CRI)
  • Flicker-free
  • 1 LED 20 W COB (chip-on-board) warm white (WW)
  • Electronic dimmer
  • With mounting bracket
  • Device is cooled by passive convection cooling
  • Application areas: decoration; exhibition and shop fitting; restaurants, bars and hotels; video and photography; advertising/shop window
  • Application possibilities: suspended; on a tripod


Package contents
  • 1 x spotlight
  • 1 x gobo holder
  • 1 x filter frame
  • 2 x screw
  • 2 x washer
  • 1 x user manual


Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 20 W
Protection class: Protection class I
Power connection: Mains input via 3-pin screw connector (M) mounting version power cord with safety plug (included)
Fuse: 5 x 20 mm, T 0.5 A fuse, replaceable
Lamp type: LED lamp
LED type: 1 x 20 W COB (chip-on-board) warm white (WW)
Cooling: Passive convection cooling
Projection: Flicker-free
Beam angle: 19°
Beam angle (1/2 peak): 19°
Color temperature: 3000K
Color rendering index (CRI): 97 Ra
Illuminance in Lux (lx): Warm white (WW) 1m: 5177 lx, 3m: 611 lx, 6m: 154 lx
Housing color: Matte black
Attachment system: Mounting bracket
Material: Die-cast aluminum; metal; plastic
Dimensions: Length: 22.2 cm
Width: 15.8 cm
Height: 20.3 cm
Weight: 1.23 kg
Noise classification: Class 0 (completely noise-free)
Gobo holder
Gobos: Outer diameter 42mm
Image diameter 18mm
Material: Aluminum, 0.3 mm
Dimensions: Width: 4.4 cm
Height: 10.1 cm
Diameter: Ø 3.4 cm
Power cord
Cable construction: 3 x 0.75 mm² H05VV-F
Cable length: Approx. 1.4 m
Filter frame
Material: Aluminum, 0.3 mm
Dimensions: Width: 6.9 cm
Height: 6.9 cm
Diameter: Ø 5.6 cm
Mounting bracket
Mounting hole diameter: 1 x Ø11mm; 2 x Ø7mm
Material: Die-cast aluminum, 2 mm
Screw
Thread: M5 thread x 11 mm
Washer
Material: Plastic
Dimensions: Height: 0.1 cm
Diameter: Ø 1.2 cm
