 |  Bar code: 4026397757644

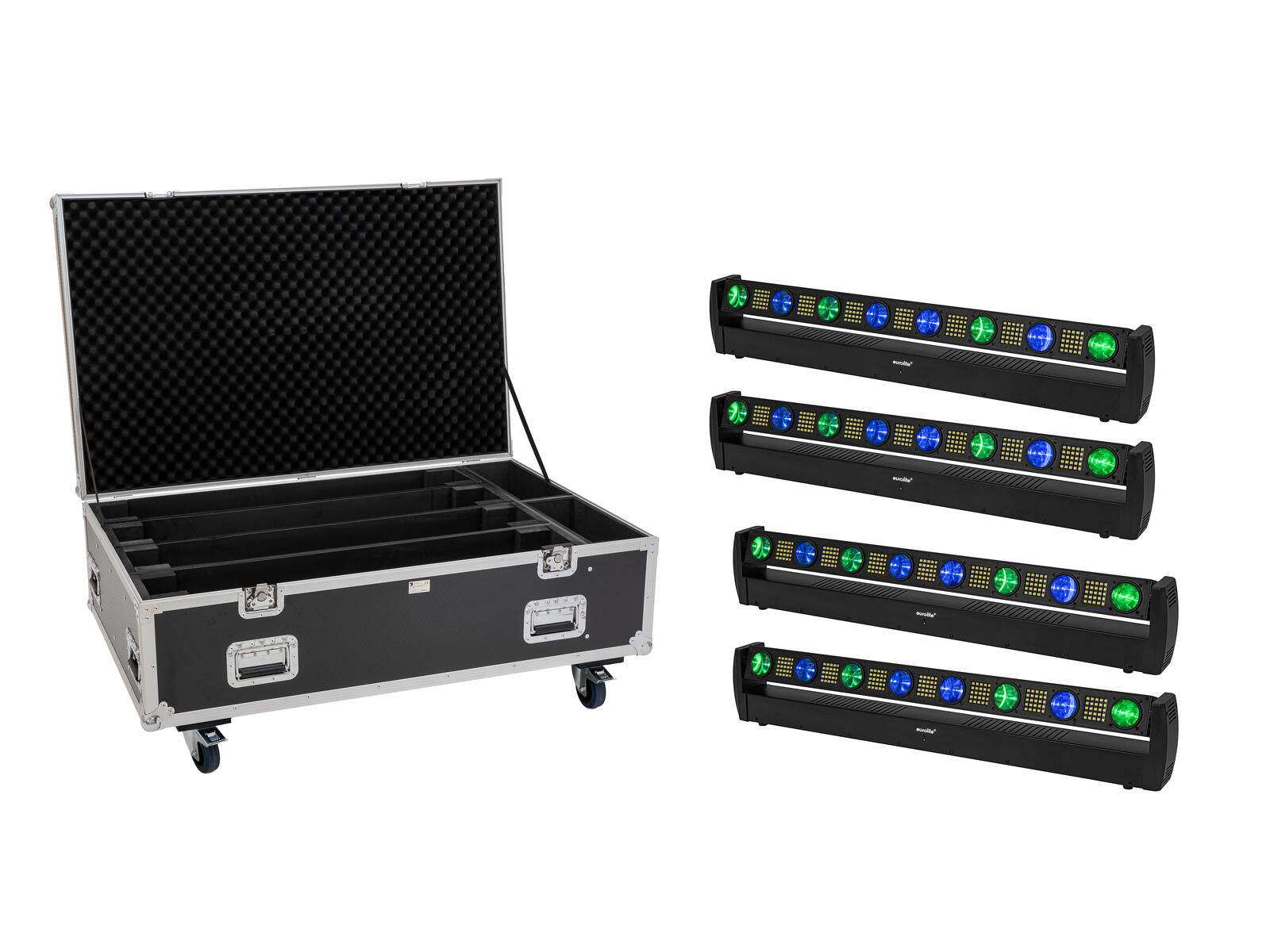

EUROLITE Set 4x LED BAR-8 SWING QCL bar + Bag with wheels

The EUROLITE LED BAR-8 SWING QCL bar with stroboscopic effect and tilt angle will provide impressive lighting for your event.

€2,399.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

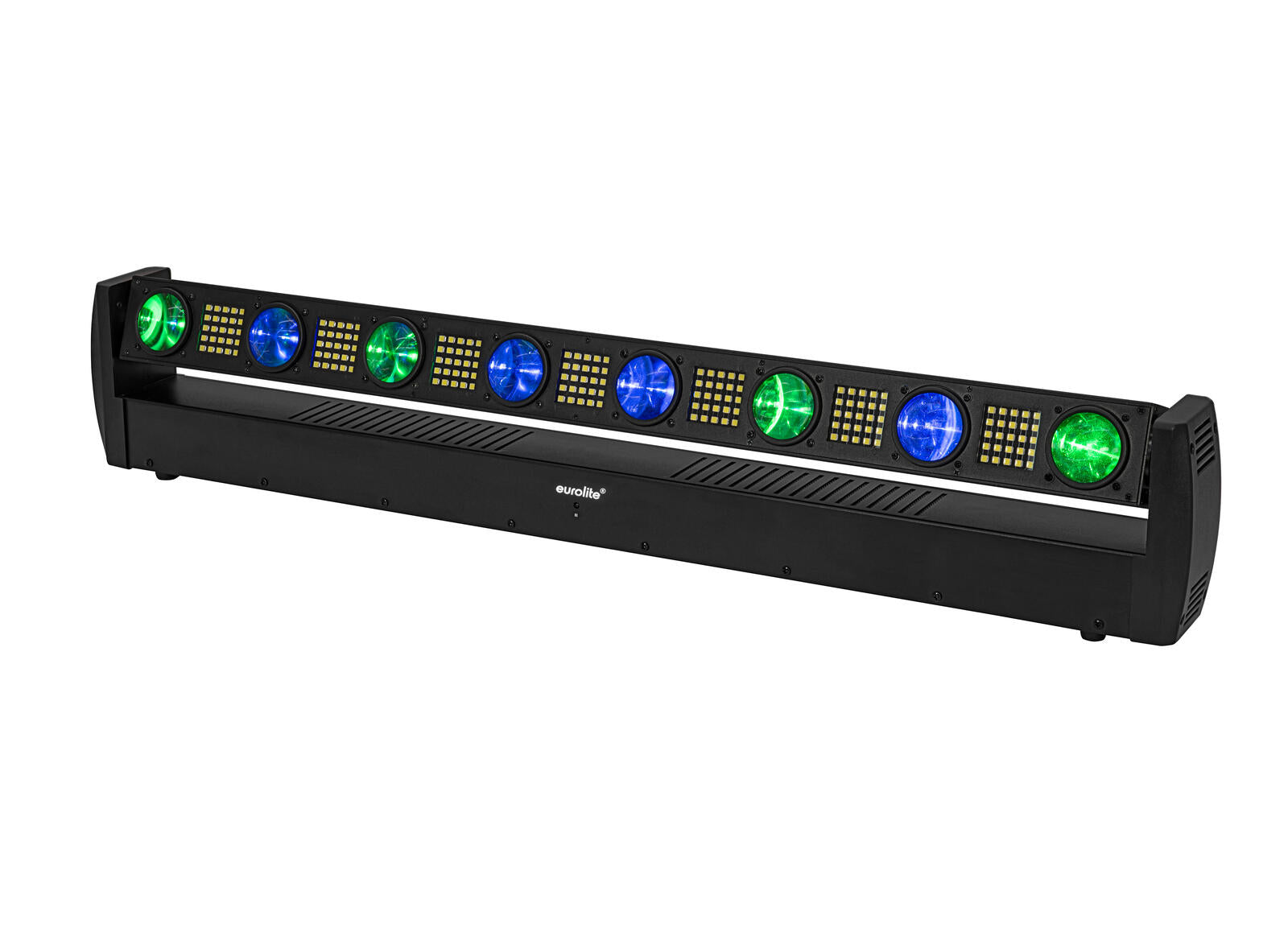

EUROLITE LED BAR-8 SWING QCL bar

Swiveling LED light effect bar with 8 beams and strobe effect

  • Vertical tilt angle adjustable
  • Electronic dimmer; color fading; color changing; color blending; color selection
  • Strobe effect; uplight effect; multi-beam effect
  • 5 built-in show programs
  • Direct color selection for 18 preset colors
  • Device is cooled by passive convection cooling
  • Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone
  • Flicker-free
  • With mounting bracket
  • 4-digit 7-segment LED display
  • Mains input and output for power linking up to 8 units
  • Use cases: clubs/dance schools; stage; mobile DJ / entertainer; party rooms; restaurants, bars and hotels
  • Very quiet operation
  • Application: standing; hanging

spotlight

  • 8 LEDs 8 W high-power 4in1 RGBW (homogeneous color mix)
    LEDs controlled separately
  • With a beam angle of 1°

strobe

  • 175 LEDs 0.2 W SMD 5050 cold white (CW)
    7 segments controlled separately
  • With a beam angle of 120°

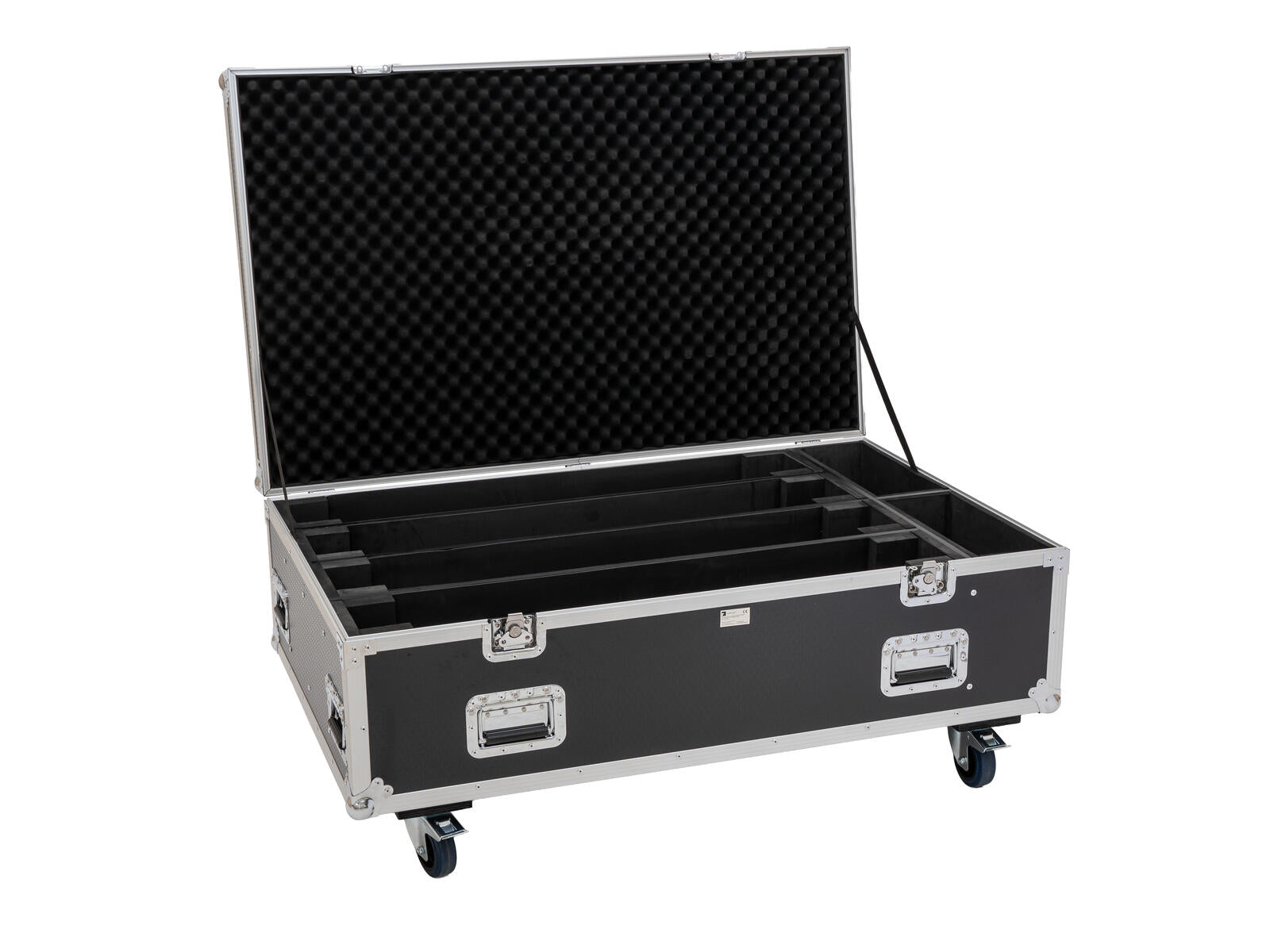

ROADINGER Flightcase PRO 4x LED BAR-8 SWING with wheels

Flight case with wheels, PRO version

  • With 2 accessory compartments
  • 8 hinged, chrome-plated case handles
  • Branded hardware
  • 2 high-quality butterfly locks with locking function
  • 4 x casters with 2 locking brakes
  • With 4-unit compartment
  • High-quality workmanship with 9.5 mm plywood, black
  • Aluminum profile frames 30mm with rounded edges
  • 3 chrome-plated locking hinges
  • Closes with


Scope of delivery

4 x EUROLITE LED BAR-8 SWING QCL bar

  • 1 x light effect
  • 1 x mounting bracket
  • 1 x user manual
  • 1 x power cord
  • 1 x remote control
  • 1 x battery


Weight: 76.35 kg
EUROLITE LED BAR-8 SWING QCL bar
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 80 W
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power cord with safety plug (provided)
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 1 A fuse replaceable
Lamp type: LED lamp
Max. TILT movement: 215° positioning
Flash rate: 0.35 - 20 Hz
DMX channels: 8; 12; 23; 27; 49
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone
Device supported for: Colorchief; Light Captain; GDTF (GrandMA3)
Projection: Flicker-free
PWM frequency: 7800 Hz
Illuminance (lx): Cold white (CW) 1m: 8183 lx, 3m: 1527 lx, 6m: 372 lx
Cold white (CW) 1m: 66 lx, 3m: 9 lx, 6m: 2 lx
Housing color: Black
Attachment system: Mounting bracket
Display type: 4-digit 7-segment LED display
USB port: Type A
Material: Plastic; metal
Dimensions: Length: 100.0 cm
Depth: 10.7 cm
Height: 25.1 cm
Weight: 7.30 kg
Noise classification: Class 1 (very low noise, suitable for noise-sensitive environments)
Photobiological safety: Risk group 0
Strobe
LED type: 175 x 0.2 W SMD 5050 cold white (CW)
Beam angle (1/2 peak): 120°
Spotlight
LED type: 8 x 8 W high-power 4in1 RGBW (homogeneous color mix)
Beam angle (1/2 peak): 1° multicolor
Mounting bracket
Mounting hole diameter: 3 x Ø11mm; 2 x Ø5mm
Material: Metal, 3 mm
Color: Black
Dimensions: Length: 27.5 cm
Width: 5.3 cm
Height: 8 cm
Weight: 0.39 kg
Power cord
Cable construction: 3 x 1.0 mm² H05VV-F
Cable length: Approx. 1.2 m
Remote control
Battery: 1 x button cell 3.0 V CR2025 lithium-manganese built-in
Legal requirements
Special product: Not designed for household illumination
Intended use: Show effect lighting
ROADINGER Flightcase PRO 4x LED BAR-8 SWING with wheels
Maximum load: 50 kg
Aluminum profile frames: 30 mm
Case handle: 8 pcs.
Hinge: 3 pcs.
Lock:
