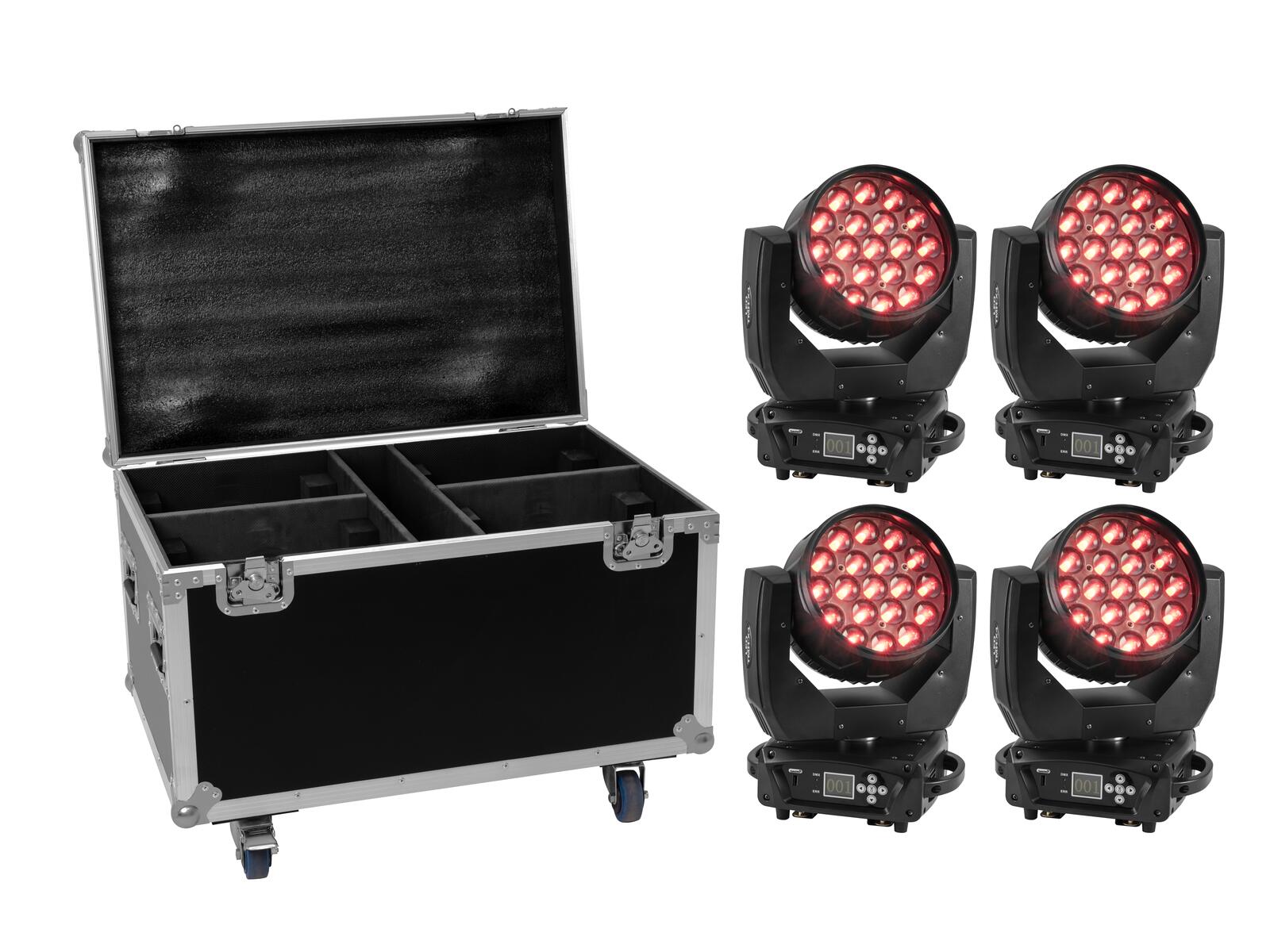

EUROLITE Set 4x LED TMH-X4 + Case with wheels

EUROLITE LED TMH-X4 Moving Head Wash ZoomWash beam with 19 x 15 W LEDs, 4in1 RGBW color mixing and motorized zoom 19 LEDs 15 W COB (chip-on-board) 4in1 RGBW (homogeneous color mixing)3 segments can be controlled individually Positioning 540° PAN, 270° TILT Automatic position correction (feedback) Exact positioning (16-bit resolution) Motorized zoom Stepless color mixing; color change adjustable; electronic dimmer Strobe effect Integrated show programs Operable in 16; 24 CH mode Device cooling via temperature-controlled fan in the head; cooling fan in the base Control via standalone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional) Flicker-free With a beam angle of 1° - 40° Multicolor LCD display Power input and output for power linking up to 8 units Application areas: stage; clubs/dance schools; weddings/gala/events; mobile DJs/entertainers; restaurants, bars and hotels; rental Installation possibility: standing; hanging ROADINGER Flightcase 4x TMH-X4Road case with wheels With 4 device compartments With 1 accessory compartment Interior with foam paddinglid with foam padding Aluminum profile frames 30mm with rounded edges 4 hinged, chrome-plated case handles 2 chrome-plated lid hinges 2 high-quality butterfly locks Lockable with 4 x wheels with 2 locking brakes Further information on this product can be found in the data sheet in the "Downloads" section Scope of delivery4 x EUROLITE LED TMH-X4 Moving Head Wash Zoom 1 x moving head 1 x user manual 1 x power cord 2 x omega bracket Weight: 59.
€2,649.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrininkų St. 1, Kaunas
Working hours: Monday-Friday 9:00-18:00

INFORMACIJA

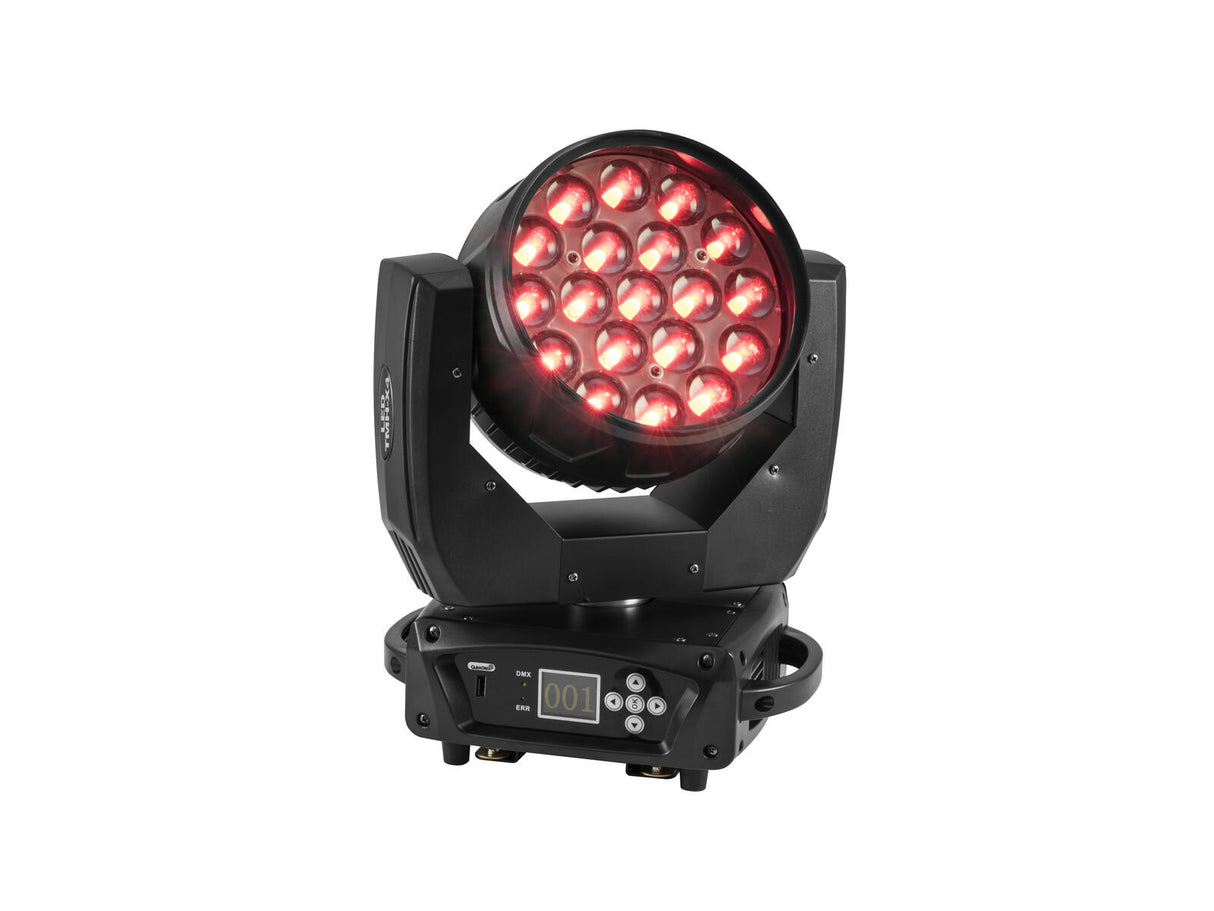

EUROLITE LED TMH-X4 Moving Head Wash Zoom

Wash beam with 19 x 15 W LEDs, 4in1 RGBW color mixing and motorized zoom

  • 19 LEDs 15 W COB (chip-on-board) 4in1 RGBW (homogeneous color mixing)
    3 segments can be controlled individually
  • Positioning 540° PAN, 270° TILT
  • Automatic position correction (feedback)
  • Exact positioning (16-bit resolution)
  • Motorized zoom
  • Stepless color mixing; color change adjustable; electronic dimmer
  • Strobe effect
  • Integrated show programs
  • Operable in 16; 24 CH mode
  • Device cooling via temperature-controlled fan in the head; cooling fan in the base
  • Control via standalone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Flicker-free
  • With a beam angle of 1° - 40°
  • Multicolor LCD display
  • Power input and output for power linking up to 8 units
  • Application areas: stage; clubs/dance schools; weddings/gala/events; mobile DJs/entertainers; restaurants, bars and hotels; rental
  • Installation possibility: standing; hanging

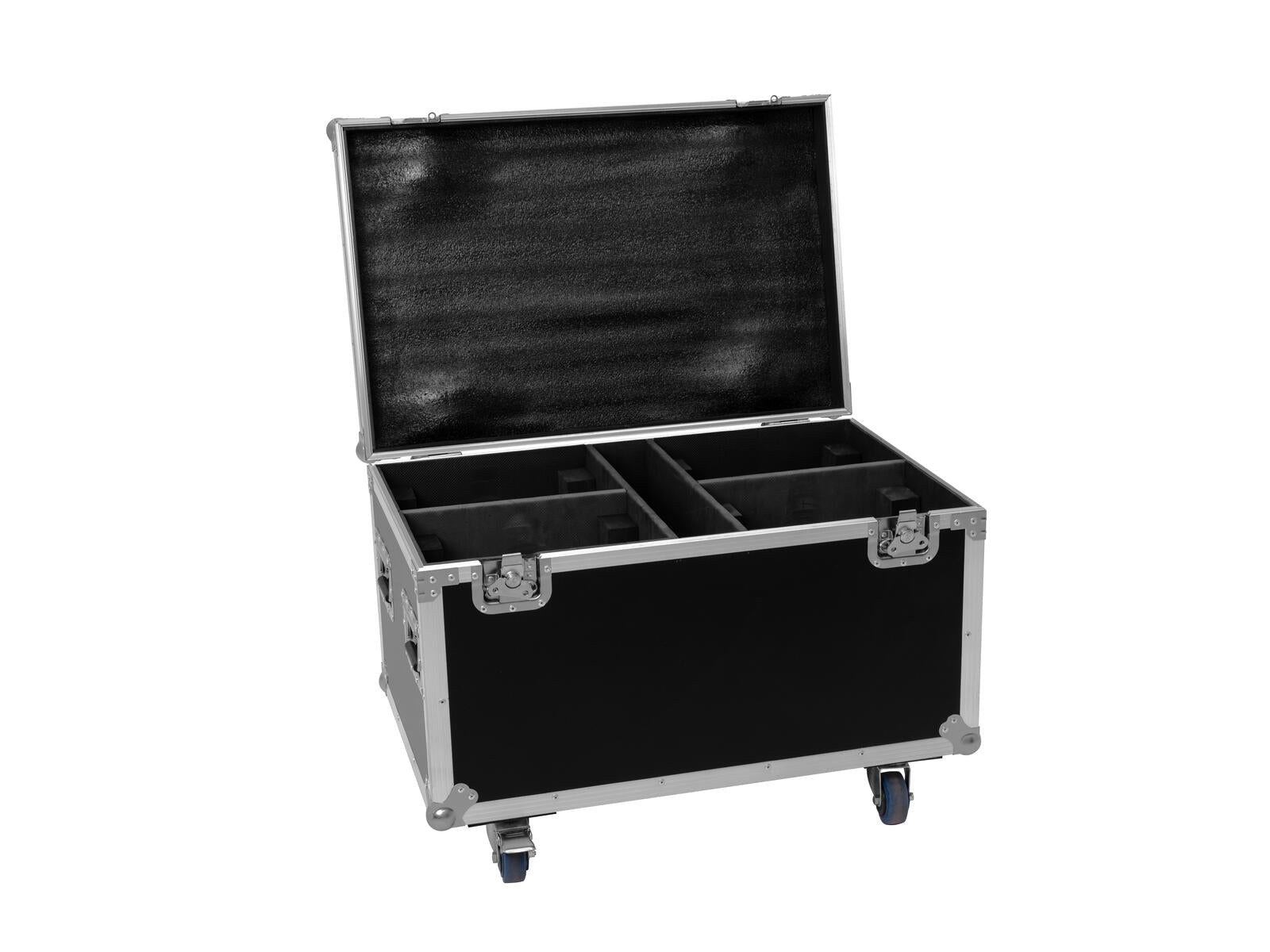

ROADINGER Flightcase 4x TMH-X4

Road case with wheels

  • With 4 device compartments
  • With 1 accessory compartment
  • Interior with foam padding
    lid with foam padding
  • Aluminum profile frames 30mm with rounded edges
  • 4 hinged, chrome-plated case handles
  • 2 chrome-plated lid hinges
  • 2 high-quality butterfly locks
  • Lockable with
  • 4 x wheels with 2 locking brakes
  • Further information on this product can be found in the data sheet in the "Downloads" section


Scope of delivery

4 x EUROLITE LED TMH-X4 Moving Head Wash Zoom

  • 1 x moving head
  • 1 x user manual
  • 1 x power cord
  • 2 x omega bracket


Weight: 59.85 kg

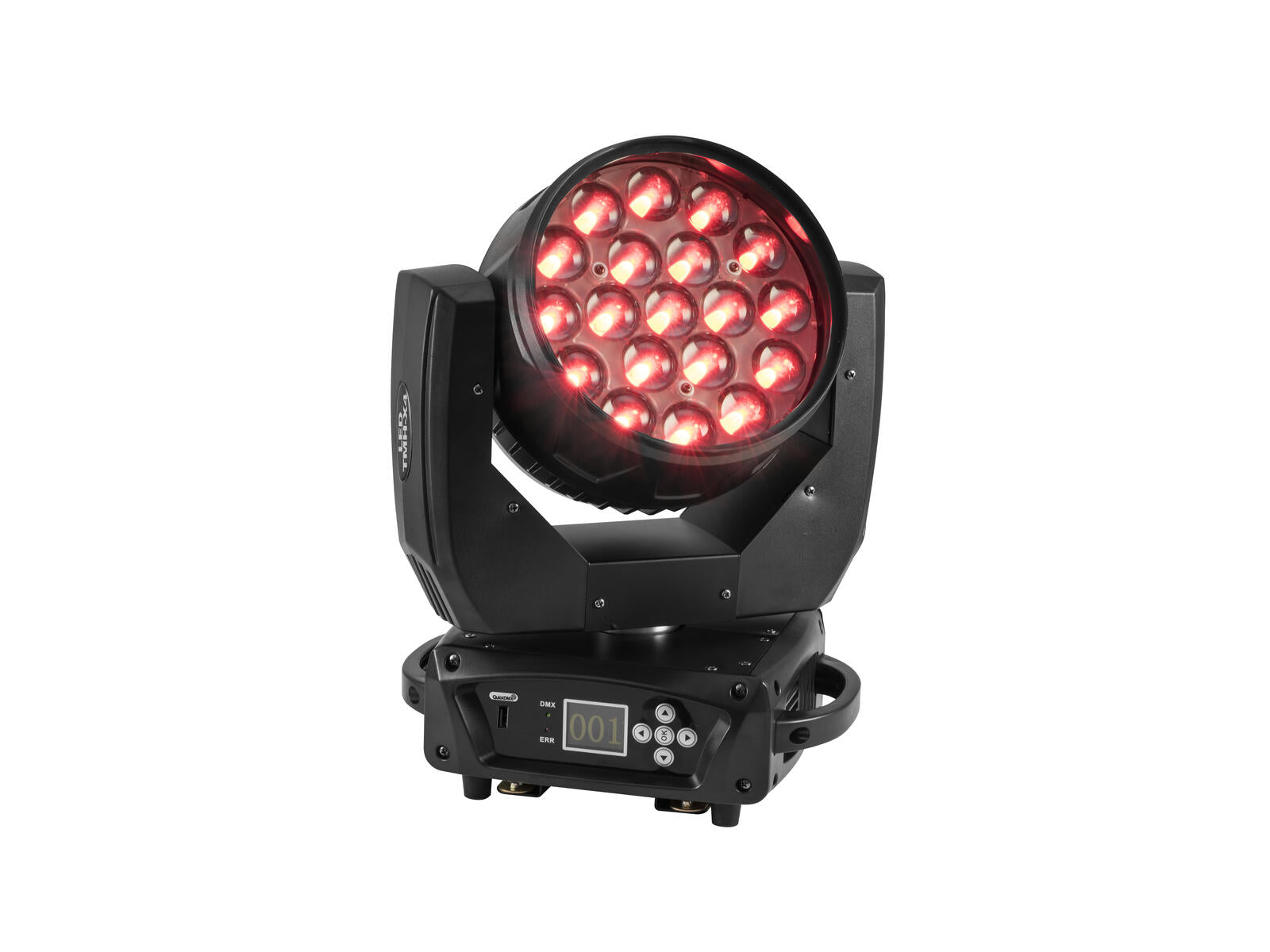

EUROLITE LED TMH-X4 Moving Head Wash Zoom
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 225 W
Protection class: Protection class I
Power connection: Power input via P-Con (blue), mounting version power cord with safety plug
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A fuse replaceable
Lamp type: LED lamp
LED type: 19 x 15 W COB (chip-on-board) 4in1 RGBW (homogeneous color mixing)
Max. TILT movement: 270° exact positioning (16-bit resolution) automatic position correction (feedback)
Max. PAN movement: 540° exact positioning (16-bit resolution) automatic position correction (feedback)
Flash rate: 1.5 - 25 Hz
Equipment: Motorized zoom
DMX channels: 16; 24
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Temperature-controlled fan in the head
Cooling fan in the base
Control: Standalone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Available devices: Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; GDTF (GrandMA3)
Projection: Flicker-free
PWM frequency: 4400 Hz
Beam angle: 1° - 40°
Beam angle (1/2 peak): 1 - 25°
Beam angle (1/10 peak): 8 - 40°
Illuminance in Lux (lx): Narrow red (R) 3m: 2779 lx, 6m: 763 lx
Narrow green (G) 3m: 7893 lx, 6m: 1841 lx
Narrow blue (B) 3m: 1468 lx, 6m: 390 lx
Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx
Narrow all 3m: 19553 lx, 6m: 5001 lx
Wide red (R) 3m: 272 lx, 6m: 73 lx
Wide green (G) 3m: 583 lx, 6m: 160 lx
Wide blue (B) 3m: 117 lx, 6m: 34 lx
Wide cold white (CW) 3m: 740 lx, 6m: 211 lx
Wide all 3m: 1568 lx, 6m: 439 lx
Housing color: Black
Display type: Multicolor LCD display
Dimensions: Width: 30.5 cm
Depth: 20.0 cm
Height: 40.0 cm
Weight: 8.62 kg
Noise classification: Class 3 (clearly audible sounds)
Photobiological safety: Risk group 0
ROADINGER Flightcase 4x TMH-X4
Maximum load: 100 kg
Aluminum profile frames: 30 mm
Case handle: 4 pcs
Hinge: 2 pcs
Lock: Butterfly lock: 2 pcs
Transportation aid: 4 x wheels with 2 locking brakes
Material: Plywood, multi-layered, glued
Color: Black, laminated
Inner dimensions: 74 cm x 47 cm x 40 cm
Device compartment: 32 cm x 23 cm x 40 cm
Accessory compartment: 8 cm x 47 cm x 24 cm
Dimensions: Width: 80 cm
Depth: 53 cm
Height: 55 cm
Weight: 21.50 kg
