EZVIZ CS-RS20-PRO-PGA2, smart vacuum cleaner - robot, 7200 Pa

3 in 1

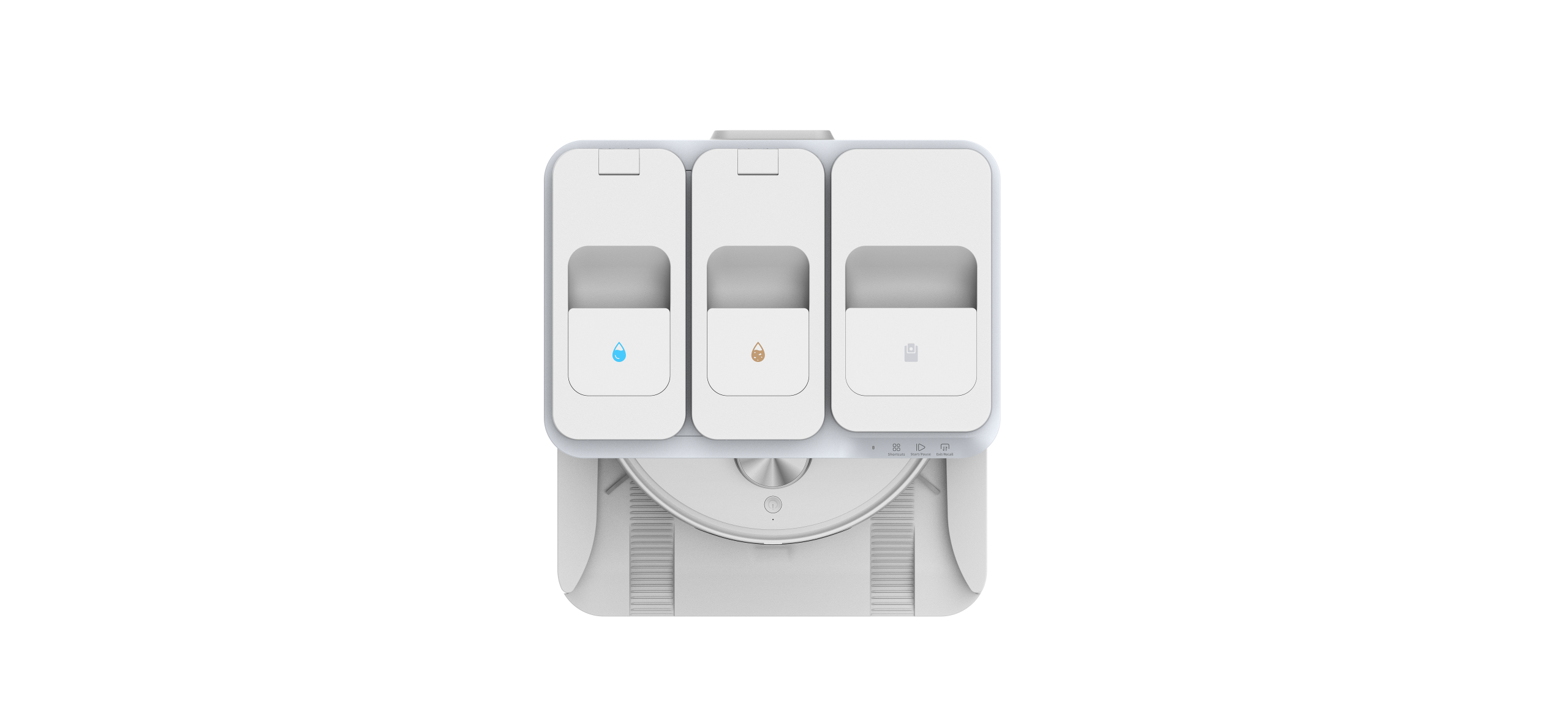

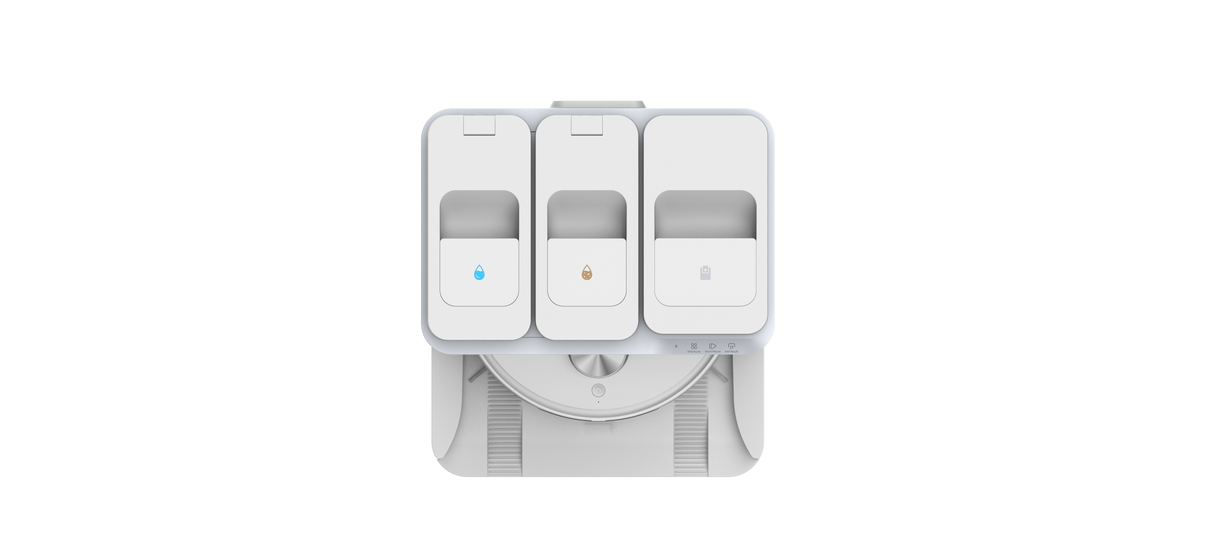

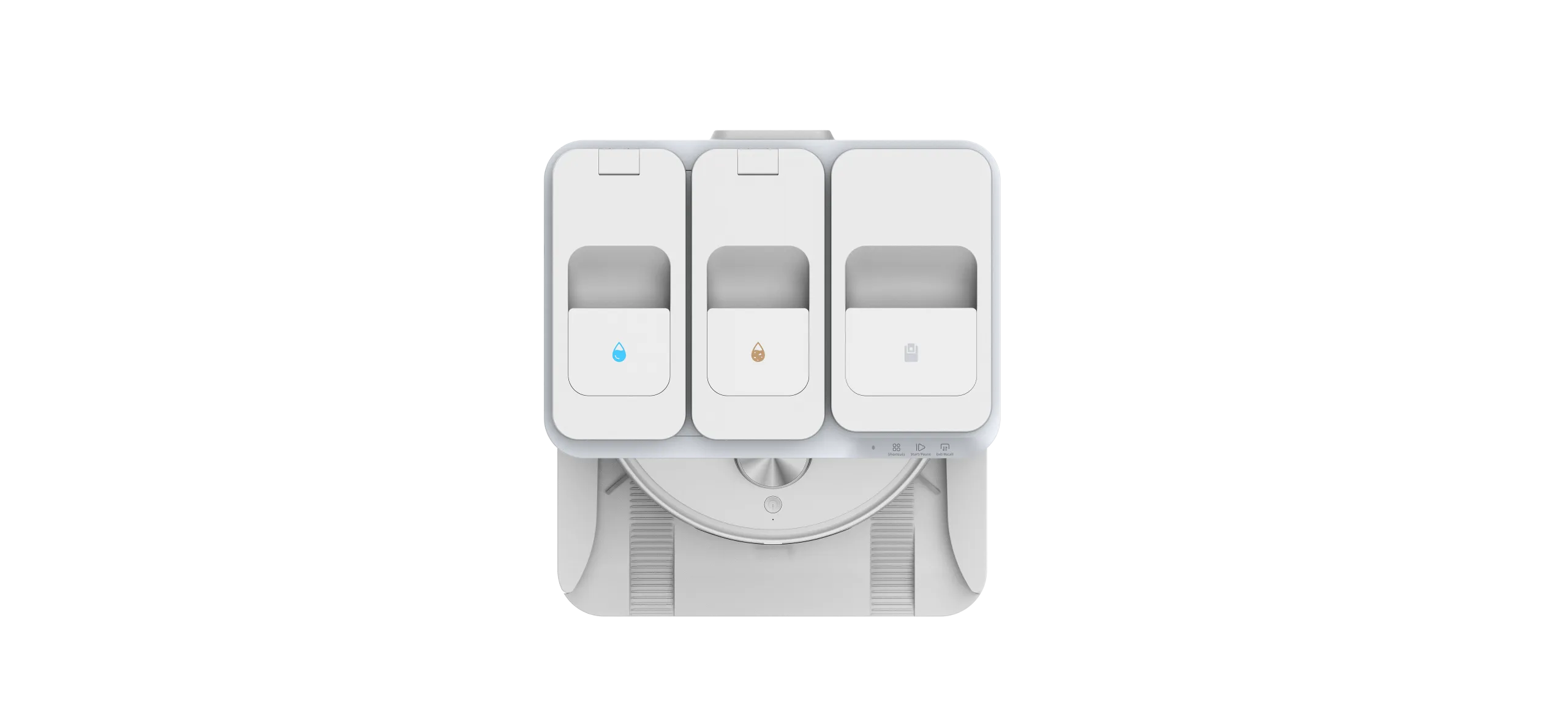

The RS20 Pro has three tanks: for clean water, dirty water and dust.
The robot refills itself with clean water when it returns to the station. Upon returning to the station, the robot washes itself by mopping and the dirty water is collected in the dirty water tank. The robot also discharges the dust into the dust tank itself.

Personal home cleaning expert

RS20 PRO has two rotating mops and two brushes. The brushes are safe with soft but durable TPE plastic. Powerful 7200 PA suction. The mops of the vacuum cleaner rotate 180 times per minute and with a force of 10N will clean even dried dirt. 5200mAh integrated battery which is enough for an area of ​​300m2. The robot turns when approaching the walls, thus increasing the cleaning area.

Suitable for all floor types

Say goodbye to all the cleaning tools piling up around your home. The one and only RS20 Pro can do it all. With its technically advanced features, sophisticated design and ease of use, it significantly improves cleaning efficiency.

Switch cleaning modes to adapt to the current situation
1. Vacuuming and washing after vacuuming.
2. Vacuuming and washing at the same time.
3. Suction only
4. Wash only

Elegantly fits your smart home style

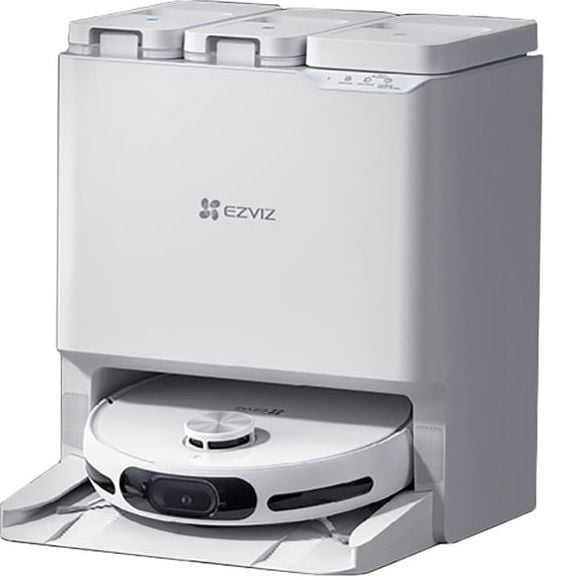

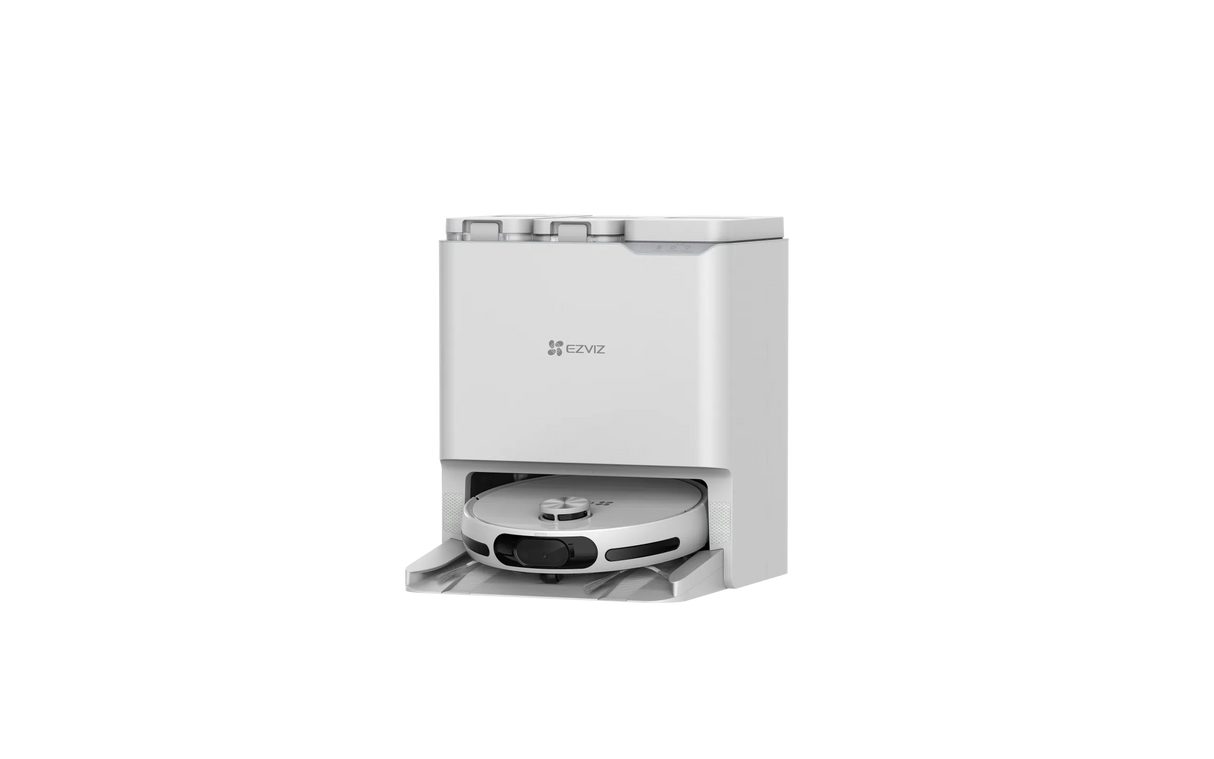

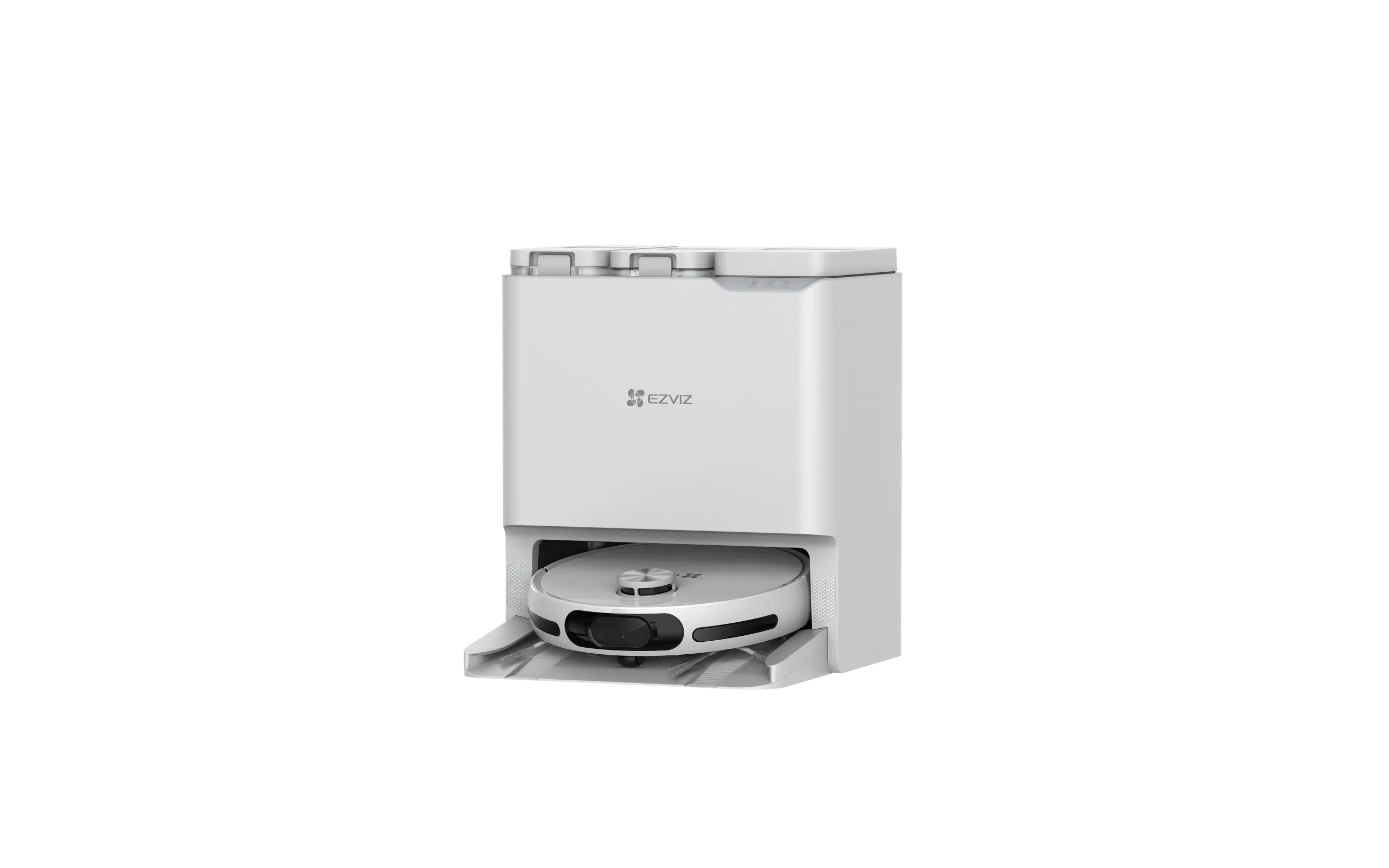

The RS20 PRO and the cleaning station work in harmony to keep your home tidy and the robot vacuum cleaner out of sight.

Designed for carpet vacuuming

Carpet detection function. RS20 Pro will never go on carpet with a mop. If the robot is set to wash and vacuum or only wash mode, it will not go on carpet. The robot will vacuum the carpet after washing the house and returning to take off the mops.

Automatic mop removal. The robot vacuum cleaner can remove or add mops at the station without human intervention.

Brush lift. When vacuuming carpet, the RS20 PRO lifts the brushes to prevent them from getting tangled in the carpet and to make it easier for the robot to vacuum.

Suction power boost. The RS20 PRO increases suction power when it starts vacuuming the carpet, pulling out all the dirt, hair and crumbs from the carpet.

Automatic cloth washing and drying

To prevent human hair and pet dander from clogging the robot, the RS20 PRO counter-rotates its roller brush independently, effectively removing them at the station. During heavy cleaning tasks, the RS2 automatically returns to the station to remove such hair every 30 minutes.

The station can automatically refill the RS20 PRO's water-receiving tank with fresh water, so the robot's mops are always washed with clean water. The robot fills with water automatically.

Intelligent obstacle avoidance

The RS20 PRO identifies common household items and avoids them.

Quick mapping and route planning

D-ToF laser technology and an RGB camera work together to create a map of your home. You can then fine-tune the map and set
specific cleaning tasks for each area. Even in large homes, the RS2 PRO can automatically generate cleaning plans for different floors.

Voice control

Enjoy hands-free use with third-party assistants. Launch your RS20 Pro just by saying
Hey Google or Alexa.

TECHNICAL DATA

ModelCS-RS20-PRO-PGA2
Navigation & MappingLDS LiDAR
Obstacle Avoidance Laser Obstacle Detection & Avoidance, AI Virtual Recognition and Marking (Identify 65+ obstacles)
Cleaning functions: Room, Full, Area
Cleaning ModeVacuum Only, Mop Only, Vacuum before Mop, Vacuum while Mop
Cleaning Frequency1, 2
Maximum suction power7200 Pa
Suction Level AdjustmentQuiet, Original, Powerful, Super Power
Increasing the pressure of the main brushSupports
Particle Identification & Boost Suction Mode Supports
Ultrasonic Carpet DetectionSupports
Water level adjustmentLow Grade, Medium, Max
Mopping TypeDual Spin Mop
Cleaning Pressure10N
Mop Dimension113 cm²
Mopping Area300 m²
Hybrid Dynamic Edge CleaningSupports
Robot rated power 65W
Robot operating voltage14.4 V
Dust box capacity0.35 L
Water tank capacity0.1 L
Tangle Detection Supports
3-in-1 Proactive Hair Cutting Supports
Auto Fill LightSupports (With spotlight)
Noise Level≤65 dB (A) on Standard Mode (Sweep)
Battery capacity Li-ion 5200 mAh
Charging time3h
Working time Silent Mode (Sweep): 220 min, Standard Mode (Sweep): 190 min, Silent Mode (Sweep & Mop): 130 min, Standard Mode (Sweep & Mop): 110 min
Base Station Rated Power (Charging & Mop Drying State) 65 W
Base Station Rated Power (Dust Empty State) 965 W
Base Station Rated Power (Cleaning with Hot Water State) 1265 W
Rated Working Voltage AC: 220-240V~50/60Hz
Rated Output20 V == 2.5 A
Clean Water Tank Capacity5 L
Dirty Water Tank Capacity4.2 L
Dust Bag Capacity5 L
Auto Hot Water Mop WashingSupports (60°C)
Auto Mop Installation & DetachmentSupports
Auto Side Brush LiftingSupports
Auto Clean Water RefillingSupports
Auto Cleaning Solution RefillingSupports
Low Water Level AlertSupports
Auto Hot Air Drying Supports
InteractionTouch Buttons
Wi-Fi / Smartphone AppSupports (EZVIZ App)
Wi-Fi frequency band2.4 GHz
Voice controlGoogle Assistant & Amazon Alexa
Child Lock Supports
Camera Max. Resolution 1920 × 1080
Smart DetectionObstacle Recognition, Room Recognition & Mapping, Carpet Recognition, AI-Powered Human Shape Detection, AI-Powered Pet Detection
Supported Languages ​​English (default), German, French, Italian, Spanish, Portuguese, Polish, Arabic, Turkish, Vietnamese, Thai, Indonesian, Russian, Japanese, Korean, Chinese (more in the future)
Dust box filterFilter Net + E11 Level High Efficiency Filter
Washable Filter Supports
Main brush typeAuto-lifting Main Brush
Main brush materialRubber + Bristle + Hair Cutting Blade
Side Brush Left + Right
Mop Pad2 Mop Clothes
Robot Parts IncludedDust Bag, Mop Cloth, Side Brush, Main Brush, High Efficiency Filter
Maintenance Frequency Main Brush: 1 Week, Side Brush: 2 Weeks, High Efficiency Filter: 1 Week
Replacement Frequency Dust Bag: 3-4 Months, Mop Cloth: 2-3 Months, Side Brush: 3-6 Months, Main Brush: 6-12 Months, High Efficiency Filter: 3-6 Months
In the BoxRobot Vacuum & Mop Cleaner *1, Base Station *1, Side Brush *2, Mop Assembly *2, Cleaning Tool *1, Cleaning Solution *1, Power Cord *1, Camera Sticker *1, Quick Start Guide *2, Regulatory Information *1
CertificatesCE-EMC, CE-LVD, CE-RED, ErP, CE-RoHS, REACH SVHC, WEEE, CB, UN38.3
