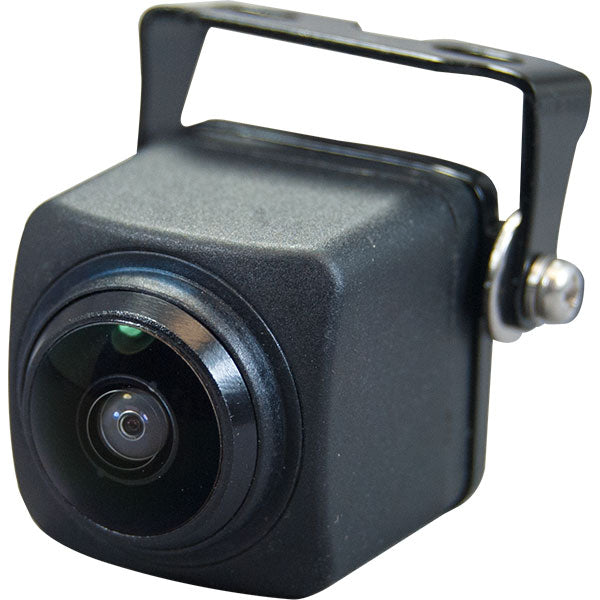

FC NTSC 1/4 Zoll CMOS, front camera

Extremely compact front camera.
€174.00 EUR

FC NTSC 1/4 Zoll CMOS, front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. 205 degree diagonal viewing angle.

  • Sensor: 1/4inch CMOS.
  • Resolution: 720 x 480.
  • Resistance standard IP 69K.
  • Cable length: 8.8 m.

TECHNICAL DATA

TECHNICAL DATA

Product features

  • Mini mount-under front camera
  • Sensor type 1/4 inch CMOS
  • Picture format NTSC color
  • Resolution 720 x 480 pixels
  • Min illumination 0.5 Lux

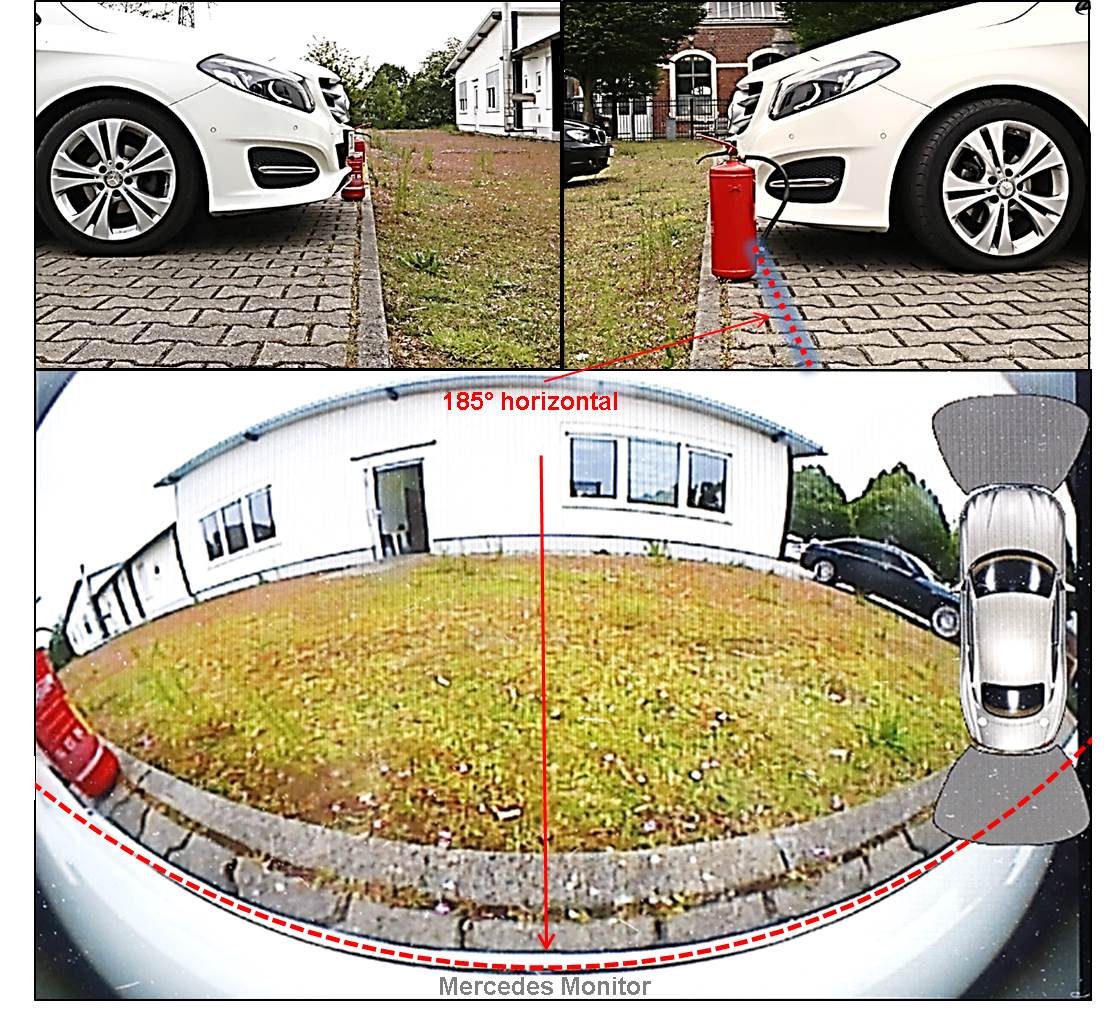

  • Angle horizontal 185°, vertical 80°, diagonal 205°
  • Unmirrored picture (fixed)
  • System cable with throughput, eg for reverse signal
  • Protection class IP69K
  • Suitable for permanent operation
  • Holder and camera color black

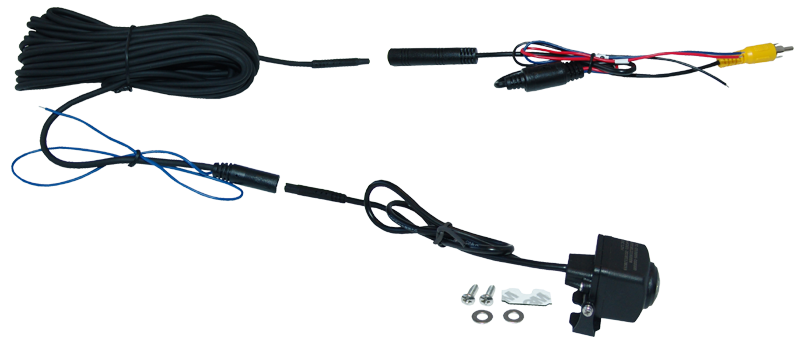

  • Total cable length about 8.80 m
  • Video-connector RCA male connector
  • System connector camera 4pin BM
  • Diameter camera connector 5mm

Specifications

Operating voltage +12V DC (9~16V)
Current consumption 100mA
Weight incl. cable about 218 g
Operating temperature range -40°C to +85°C
Dimensions camera only 40 x 23 x 23mm (W x H x H)
Dimensions camera with holder 40 x 33 x 30mm (W x H x H)
