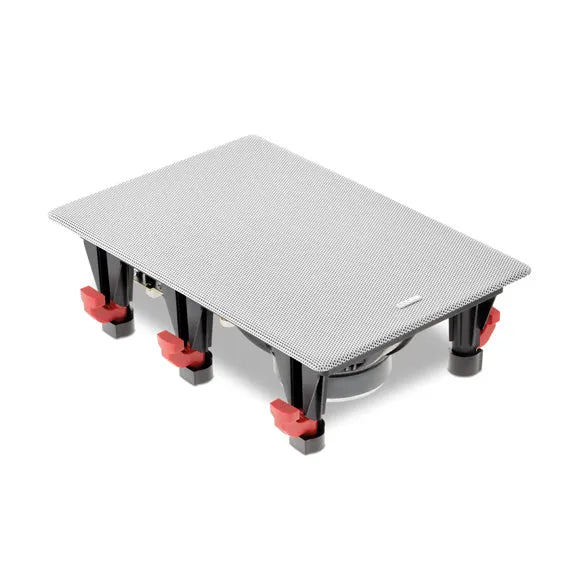

Focal 100 IW 6, In-wall coaxial speaker (installation depth: 88 mm.)

2-way in-wall coaxial speaker from Focal.
€219.00 EUR

Focal 100 IW 6, In-wall coaxial speaker (installation depth: 88 mm.) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Quality and manufacturer-level sound standard is guaranteed. The column is made and assembled in France.

  • Recommended amplifier power: 25-120W (8 ohms).
  • Sensitivity: (2.83V/1m): 89 dB.
  • Frequency range: (+/-3dB) 60Hz-23kHz.
  • Installation depth: 88 mm.
  • Mounting cut-out: (Ø x depth): 273 x 170 mm


DESCRIPTION

IN-WALL/IN-CEILING 2-WAY COAXIAL

The 100IW6 loudspeaker which is dedicated to home deliver an amazing sound quality and has a compact design . This product is aimed at small to medium sized rooms and for three types of use: distributed systems (hallways, living rooms...), stereo systems (bedrooms, kitchens...) and Home Cinema systems (in dedicated rooms or living rooms). The product is suitable for every room in the house, even in humid environments such as bathrooms.

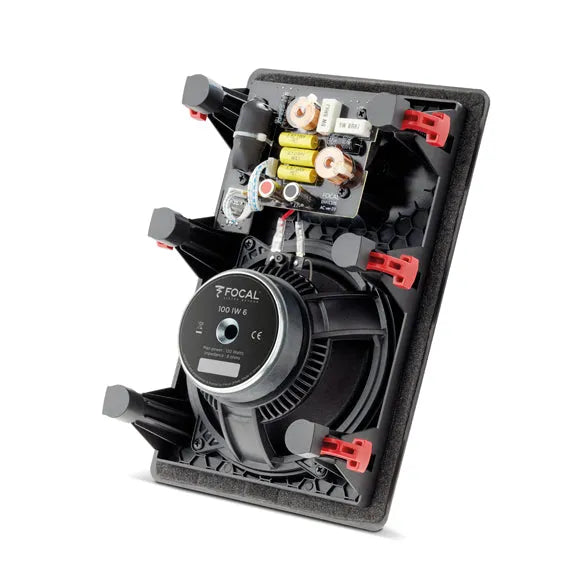

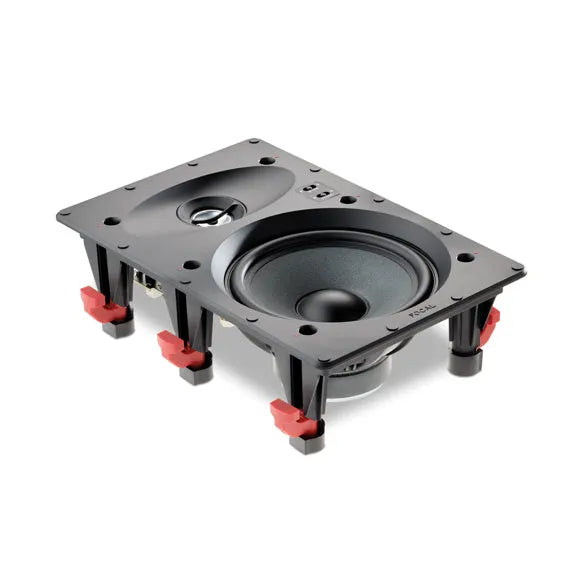

This in-wall loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving sound dispersion. It is also equipped with a new Polyglass cone (6 1/2 ” – 16.5 cm).

A two-position switch allows adjusting the treble and the mid-bass for a better acoustic performance.

The 100 Series brings an unexpected musicality to your home with ease . Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.

The 100 Series line brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use.

PERFECT ACOUSTICS

100ICW5, 100ICW6 and 100ICW8, 100IC6ST and ICLCR5 offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.

HI-FI OR HOME CINEMA

All the products from the 100 Series can be used to reinforce classic Hi-Fi systems, particularly the loudspeakers from the Chorus 700 series, for those looking for discreet, high-quality Home Cinema system.

INSTALLATION IN HUMID ENVIRONMENTS

Tropicalisation is used on Polyglass membranes to allow the installation in humid environments, such as bathrooms.

EASY TO INSTALL

Installation is an important criterion: the three mounting brackets with optimized grips ensure a quick and easy installation. The screw system prevents screws from falling out when dismantling the product. The installation time is reduced to its bare minimum. The 100 Series products have a shallow mounting depth which greatly facilitates installation.

TECHNICAL DATA

SPECIFICATIONS

  • Type In-wall 2-way Drivers 61/2" (16.5cm)
  • Polyglass Midbass 1" (25mm) AI inverted dome
  • Tweeter Sensitivity (2.83V/1m) 89dB
  • Frequency response (+/-3dB) 60Hz-23kHz
  • Low frequency point (-6dB) 48Hz
  • Nominal impedance 8Ώ
  • Minimum impedance 7.2Ώ
  • Recommended amplifier power 25-120W
  • External dimensions
  • (Ø/Depth) 113/4"x711/16"x35/8" (298x195x92mm)
  • Cut-Out diameter 103/4"x611/16" (273x170mm)
  • Depth from wall 37/16" (88mm)
  • Net weight (with front grille) 4.1lbs (1.85kg)
  • Packing dimensions (WxDxH) 131/2"x97/16"x415/16" (343x240x126mm)
  • Total weight (with packaging) 4.98lbs (2.25kg)

Physical data

  • product dimensions: 298 x 195 x 92 mm
  • net weight: 1.85 kg
