Focal

Focal 100 IWSUB8 AMPLIFIER, sound amplifier

Sound amplifier from Focal.
€949.00 EUR

Focal 100 IWSUB8 AMPLIFIER, sound amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. Quality and manufacturer-level sound standard is guaranteed. The amplifier is manufactured and assembled in France.

  • Power: 150W.
  • Subsonic filter: 18dB/oct.
  • Bandwidth: 20 - 250 Hz.
  • Resistance: 4 Ohms.


DESCRIPTION

THE HIGH-POWER SUBWOOFER AMPLIFIER

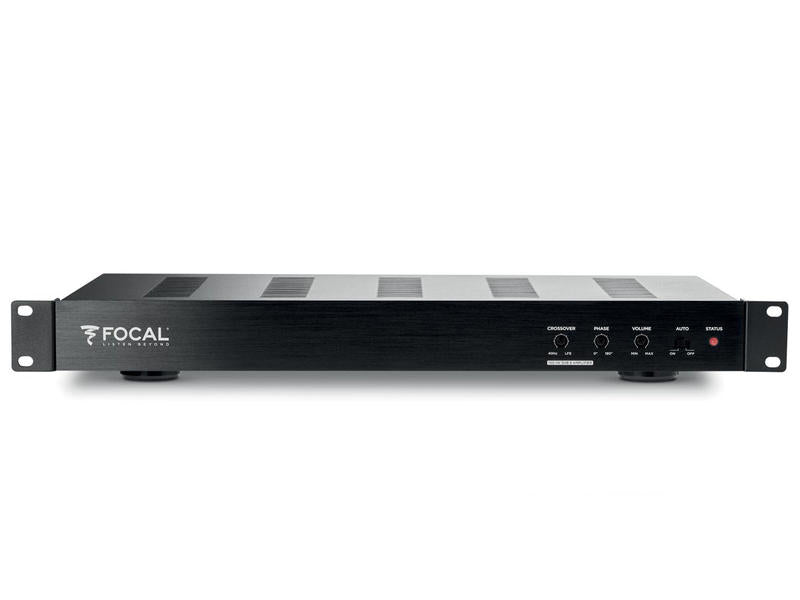

Designed for integration, with rack-mountable design, 100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, while ensuring a high-level electronic protection. Specially tailored for the passive subwoofer 100 IWSUB8 , this amplifier is able to power up to two subwoofers connected in parallel.

This powerful combination is the ideal add-on to a 100 Series audio/video setup , delivering a unique ambiance and sound coverage in your living spaces.

KEY POINTS


  • Peak power: 200W (continuous power: 150W under 4Ώ).
  • Amplifier able to drive 2 x 100 IWSUB8 subwoofers connected in parallel.
  • High-level electronic protection (dynamic power control, thermal protection, short circuit, fuse, and over-current protection).
  • Flush potentiometers .
  • Dimensions (HxWxD): 1¾ x 16⅞ x 10⅛ " [44.5 x 429 x 257mm]
    - Height with stands: 2⅟ 16 "
    - Width with brackets: 19"
High-power
ABLE TO POWER UP TO TWO 100 IWSUB8 SUBWOOFERS

100 IWSUB8 Amplifier delivers a peak power of 200 watts and a continuous power of 150 watts under 4 ohms, while ensuring a high-level electronic protection. This amplifier is able to power up to two subwoofers 100 IWSUB8 connected in parallel.


TECHNICAL DATA

SPECIFICATIONS

  • Power (continuous): Max 200W, 150W continuous (4Ώ)
  • Minimum load: 4Ώ
  • Voltage range: 100-120V~60Hz / 220-230V~50Hz
  • Power consumption: 150W
  • Stand-by power consumption: 0.5W
  • Bandwith: 20 - 250 Hz
  • Subsonic filter: 18dB/oct.

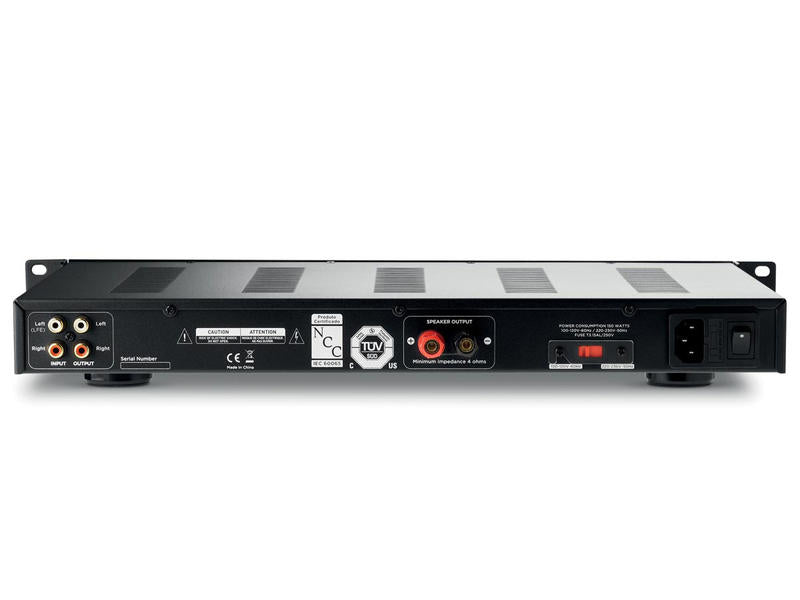

  • Inputs: LFE, Line in L/R
  • Outputs: Line out L/R and subwoofer power output on speaker terminal
  • Cord: Detachable IEC power cord
  • Protection: Dynamic power control, thermal protection, short circuit, fuse, and over-current protection

Physical data

  • product dimensions: 429 x 45 x 257 mm
  • net weight: 3.10 kg


    • DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
