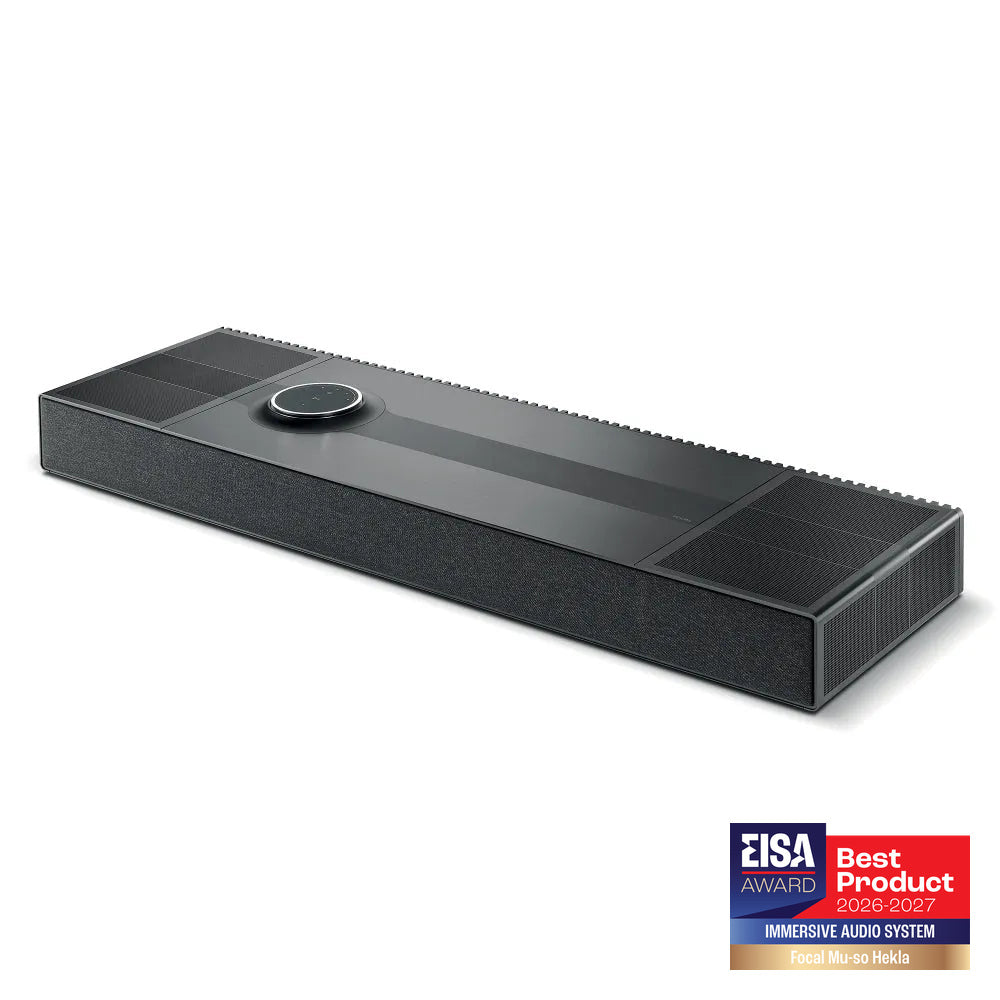

Focal Mu-so Hekla, all-in-one Dolby Atmos Home Cinema System, 660W

INFORMACIJA

Focal Mu-so Hekla - a premium all-in-one sound system with Dolby Atmos, 15 speakers, and 660 W power. Supports AirPlay 2, Spotify Connect, TIDAL, WiFi 6, and HDMI eARC. Smart ADAPT calibration ensures perfectly balanced sound in every room. Due to its compact "all-in-one" design, it does not require complex speaker installation or numerous cables. The system can be easily placed on a TV cabinet, shelf, or dresser, making it ideal for both your living room and a modern home theater room.

Speaker System: 15 integrated speakers (Dolby Atmos)
Amplifier Power: 660 w
Frequency Range: 30 hz – 20 khz
Maximum Sound Pressure: 108 db
Streaming: airplay 2, spotify connect, tidal, chromecast, qobuz
Connectivity: wi-fi 6, bluetooth 5.1, hdmi earc, optical
Control: focal & naim app (iOS / Android)

DESCRIPTION

Immersive All-in-One System
Experience every film, every piece of music, every video game as a true sensory adventure with Mu-so Hekla. This immersive Home Cinema system combines Dolby Atmos® technology, outstanding sound performance, and ease of use to transform your everyday listening.

PRECISION AND POWER
Developed collaboratively by Focal and Naim engineers, Mu-so Hekla embodies the brands’ shared pursuit of acoustic excellence. Its precision acoustics and meticulously designed architecture combine advanced electronics with a total amplification of 660 watts to drive dedicated tweeters, midrange drivers, and woofers with exceptional clarity and control. Adjustable acoustic settings allow you to fine-tune performance to your room and preferences, ensuring sound that is perfectly balanced for your space.

CHOOSE YOUR LISTENING MODE
Available via the Focal & Naim app, customizable Audio Modes enhance your audiovisual content, whether in stereo or Dolby Atmos®. Dolby Movie, Dolby Music, Dolby Night, Sphere Music, Sphere Movie: choose your atmosphere and let the sound carry you away.

REFINED SIMPLICITY
Refined materials and minimalist design come together for a timeless aesthetic. Hekla boasts anodised aluminium features with brushed and sandblasted finishes, finely perforated aluminium grilles, and a tactile volume control dial that provides an intuitive interface. The result is a system that looks as exceptional as it sounds, a perfect blance of form and function.

Sensational immersion
Dive into truly immersive sound with Dolby Atmos® technology and 15 expertly engineered speaker drivers, each meticulously positioned for optimal performance. Inspired by the power of Iceland’s Hekla volcano, the system delivers expansive, room-filling audio with remarkable clarity and depth, all without the need for a complex setup. The result is a breathtaking soundstage where effects envelop you, dialogue comes to life, and bass resonates with controlled precision.

Connected to your world
Mu-so Hekla integrates seamlessly with all your entertainment sources, from your TV, gaming console and Blu-ray player to your preferred streaming platforms. Control is effortless through the Focal & Naim app, your smartphone, smartwatch (Apple or Samsung), or voice assistants such as Siri and Google Home. For those already enjoying Focal & Naim systems, Mu-so Hekla synchronises flawlessly with existing streamers, and it can be easily integrated into your smart home for a truly connected listening experience.

Tailored listening experiences
Using the Focal & Naim app, experience Focal’s patented ADAPT (Adaptive Acoustic Personal Tuning) technology. Simply enter the distances between your system, walls, ceiling and listening area, and ADAPT intelligently calibrates the sound to your space, delivering perfectly balanced, immersive acoustics in any listening mode.

JOIN THE COMMUNITY
Get a sneak preview of the latest audio innovations and new products from Focal and Naim by subscribing to our exclusive newsletters. Be among the first to benefit from privileged information delivered straight to your inbox.

TECHNICAL DATA

Design
Height : 11.8 cm /
Width : 100 cm /
Depth : 29.5 cm /
Weight : 15.5 kg /
Finishes :
Brushed and sandblasted black aluminium casing,
Anodised and shot-blasted aluminium heat sinks.

Sound - Acoustics
Product type : All-in-one System - 15 Speakers
Response at - 6dB (Low frequency point) : 27 Hz
Frequency response (+/- 3dB) :
30 Hz – 20 kHz
Maximum SPL (peak@1m) :
108 dB SPL

Speakers
Speaker system :
15 speakers
Front:
- 3 x woofers (13 x 6 cm)
- 2 x midrange speakers (6 cm)
- 2 x tweeters (25 mm)

Sides:
2 x 2 full-range speakers (4 x 7 cm)

Top:
2 x 2 full-range speakers (4 x 7 cm)

Technical Specifications
Audio Formats :
WAV – up to 32-bit/384 kHz
FLAC and AIFF – up to 24-bit/384 kHz
ALAC (Apple Lossless Audio Codec) – up to 24-bit/384 kHz MP3 – up to 48 kHz/320 kbit (16-bit)
AAC – up to 48 kHz/576 kbit (16-bit)
OGG – up to 48kHz (16 bits)
OPUS – up to 48kHz (16 bits)
DSD64 and DSD128
Bluetooth® 5.1 – SBC, AAC
Note: Smooth, uninterrupted playback on all formats. All formats up to a maximum of 384kHz over wireless networks.
Multichannel audio formats :
-Dolby Digital AC3 Channel - Based 5.1 (up to 48 kHz)
-Dolby Digital AC4 - Up to 7.1.4 (up to 48 kHz)
-Dolby Digital Plus (EAC3) - Channel-based: 7.1 (up to 48 kHz) ; Object-based: 16 channels (up to 48 kHz)
-Dolby Digital TrueHD - Channel-based: 7.1 (up to 96 kHz) ; Channel-based: 5.1 (up to 192 kHz) ; Object-based: 16 channels (up to 96 kHz)
-Dolby MAT (HDMI only) - Channel-based: 7.1 (up to 48 kHz) ; Object-based: 16 channels (up to 48 kHz)
-Multichannel FLAC (streamer only) - Channel-based 7.1 (up to 192kHz)
-Multichannel WAV (streamer only) - Channel-based 7.1 (up to 192kHz)
-Apple APAC (streamer only) - Configured in 7.1.2 mode (up to 192kHz)

Streaming / Sources
Streaming - Stereo : Apple AirPlay 2, Bluetooth, Chromecast, Internet Radio, Qobuz, Qobuz Connect, QQ Music, Spotify®Connect, Tidal, via Tidal Connect or from F&N app, UPnP™
Streaming – Multichannel (Dolby Atmos) : Amazon Music HD, via Chromecast, Apple Music, using Airplay2, TIDAL Connect and TIDAL native
Internet Radio Formats : Codecs : MP3, AAC, Vorbis, FLAC, OPUS., Internet Radio (with enhanced Xperi metadata) from the Naim server, Streaming containers: HLS, DASH, OGG
WiFi : Wi-Fi 6 (802.11 a/b/g/n/ac/ax) integrated into the heat sink.
Internet Radio Provider : Naim servers
Multiroom : Synchronise up to 32 Focal & Naim streamers and control them from the Focal & Naim app.
Network : Ethernet (1000/100/10 Mbps), Wi-Fi (Wi-Fi 6)

Power Supply
Automatic standby time : User selection: adjustable up to 2 hours (default automatic standby: 20 minutes)
Power consumption (quiescent) : < 0.5W
Power consumption in network standby mode : < 2W
Consumption in normal use : 200 W
Mains cable : Electrical power cable
Mains power supply : 100V to 240V, 50/60 Hz

Control
App control : Focal & Naim App
Updates : Update your system by wireless connection via the Focal & Naim application
User control product :
Touch control interface, rotary volume control with proximity sensor
Supported mobile operating system : Android, iOS

Inputs/Outputs Specifications
Analogue outputs :
1 x RCA pair (Subwoofer)
Power Output :
660W – (3 x 60W + 12 x 40W)
Digital inputs :
1 x Optical TOSLINK (up to 24-bit/96kHz)
Other inputs : 1 x HDMI eARC, CEC

Included Accessories
Cables provided :
Power cables
Grilles : A black fabric grille is included.
Accessories :
Product reset pin

DOCUMENTS

User Manual (EN)

Quick Start Guide (EN)

Data Sheet (EN)
