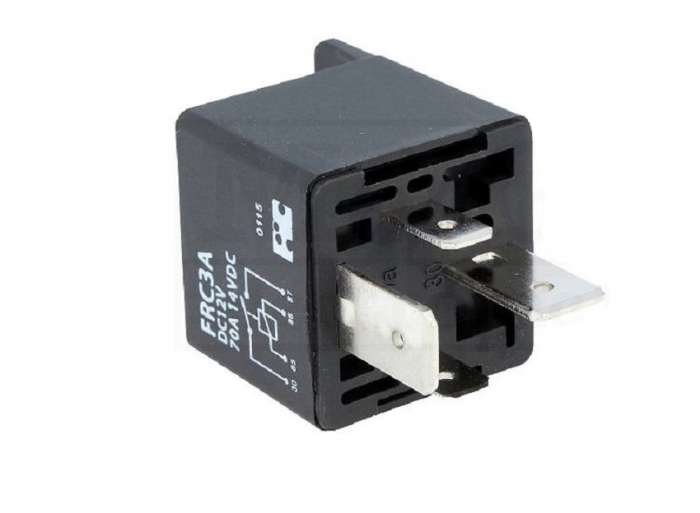

FORWARD INDUSTRIAL 12V 70A FRC3-12F, relay

€3.50 EUR

FORWARD INDUSTRIAL 12V 70A FRC3-12F, relay - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

12V 70A FRC3-12F, relay.

  • Cycles: 100000.
  • Operating time: 10ms.
  • Resistance: 80Ω.

SPECIFICATIONS

Manufacturer FORWARD INDUSTRIAL CO.
Mounting on panel
Mechanical durability 10000000 cycles
Leads 6.3x0.8mm terminals; 9.5x1.2mm connectors
Weight 47 years
Electrical life 100000 cycles
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Type of relay electromagnetic
Operating time 10ms
Contact resistance 30mΩ
Release time 10ms
Coil resistance 80Ω
Relay variant king
Coil voltage min. 7.8V DC
Coil voltage max. 18V DC
Contact current max. 70A
Relay series FRC3
Coil current 150mA
Coil power consumption 1.8W
DC contacts rating @R 60A / 14V DC
Body dimensions 29x29x26.5mm
Switched voltage max. 75V DC
Operating temperature -40...85°C
