Helix  |  Bar code: 4057204321239

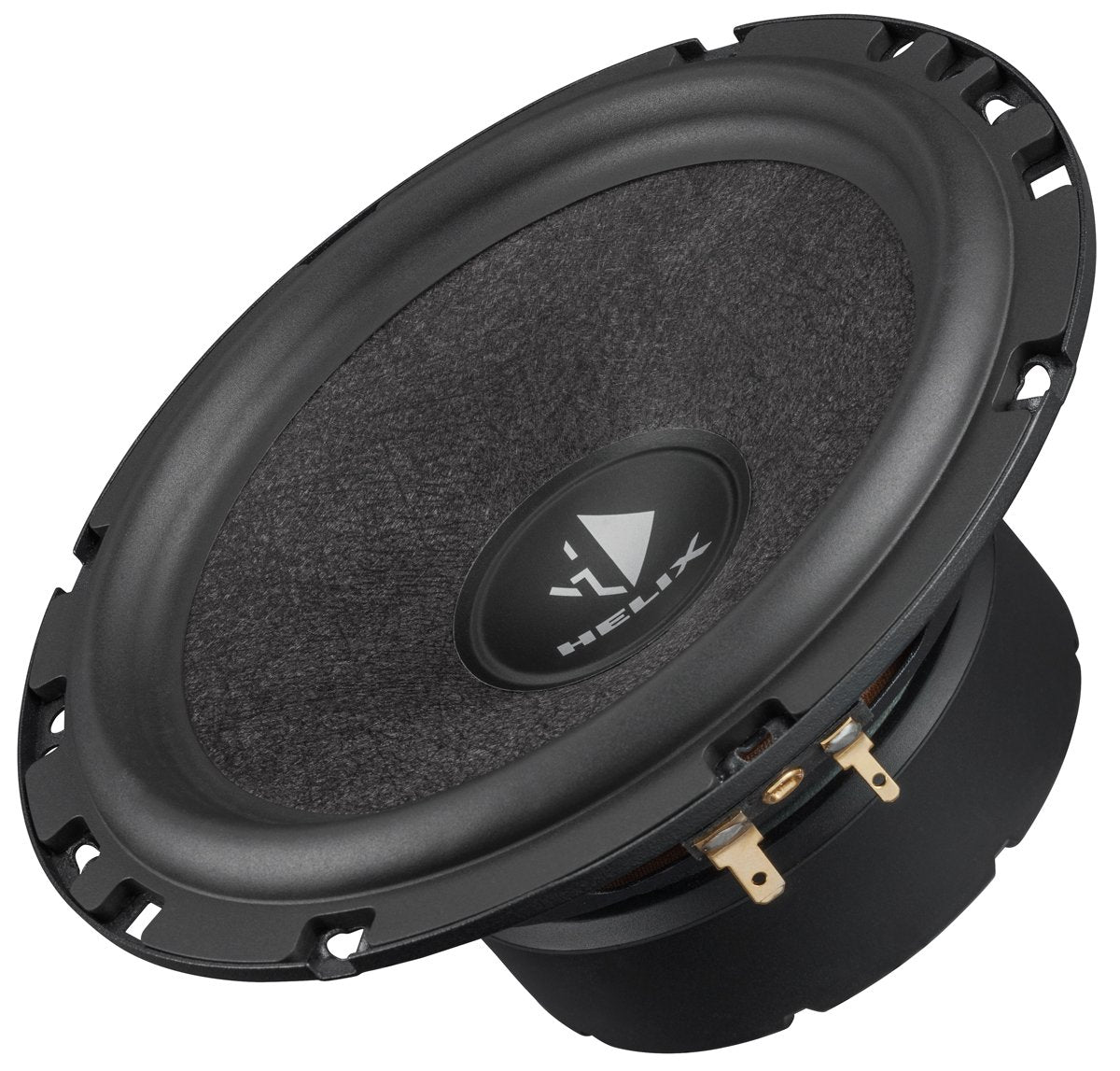

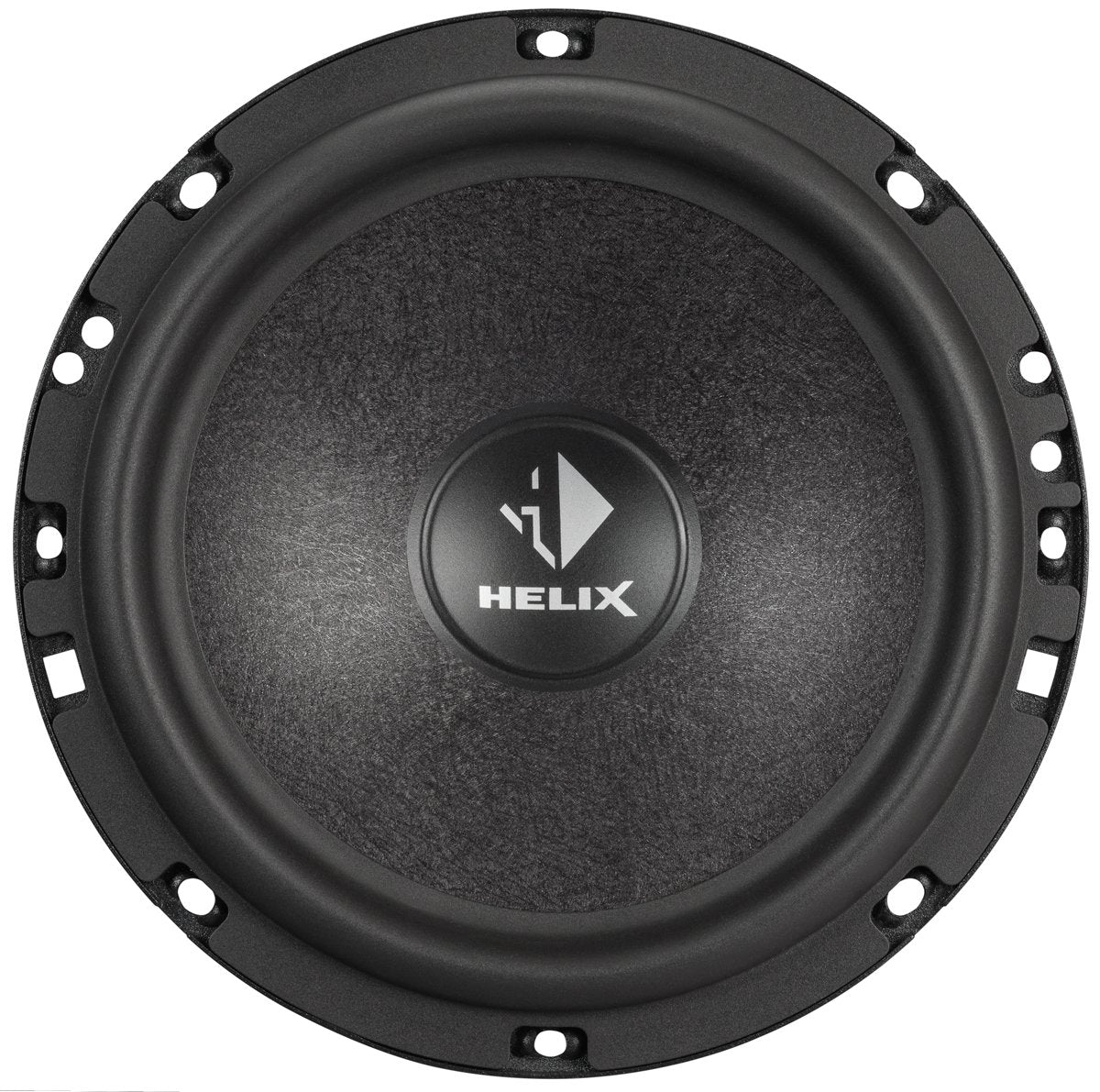

Loudspeakers Helix S 6B, 200W, medium/low frequencies

Power: RMS 100W / MAX 200W Frequency range: 45 Hz - 4000 Hz Sensitivity: 90 dB 1W/1m Resistance: 4 Ohms Installation depth: 65 mm Resonant frequency: 67 Hz Mounting diameter: 143 mm Outer diameter: 165 mm Set includes 2 pcs.
€149.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Power: RMS 100W / MAX 200W
  • Frequency range: 45 Hz - 4000 Hz
  • Sensitivity: 90 dB 1W/1m
  • Resistance: 4 Ohms
  • Installation depth: 65 mm
  • Resonant frequency: 67 Hz
  • Mounting diameter: 143 mm
  • Outer diameter: 165 mm

Set includes 2 pcs.

DESCRIPTION

Elegantly designed mid-woofer trimmed for maximum sound quality.
The extremely rigid cone consists of a novel basalt-fiber-paper compound – the perfect combination to guarantee clear and straight sound even at high volume levels. Beside a powerful bass reproduction and peerlessly neutral mids, the S 6B impresses with exceptionally low distortion.

A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!

PROPERTIES

  • 6.5” / 165 mm mid-woofer with novel basalt-fiber-paper compound cone – a perfect combination of lowest weight, high stiffness and inner damping
  • Specially shaped rubber surround for larger effective cone area and increased maximum excursion
  • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Rugged rubber magnet boot with HELIX-logo
  • Gold-plated terminals

TECHNICAL DATA

Power RMS / max. Mr 100 / 200 Watts
Impedance Z 4 Ω
DC resistance Re 3.4 Ω
Frequency response   45 Hz - 4,000 Hz
Resonance frequency Fs 67 Hz
Mechanical Q factor Qms 3.87
Electrical Q factor Qes 0.96
Total Q factor Qts 0.77
Compliance Cms 370 μm/N
Equivalent air volume February 10.3 L
Force factor B*I 4.8 Vol
Efficiency 1 W / 1 m SPL 90 dB
Cone area Sd 141 cm²
Moving mass Mmm 14.8 g
Cone material   Basalt-fiber-paper compound
Mechanical resistance Rs 1.64 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height   12 mm
Max. linear excursion Xmax +/- 3 mm
Outer diameter ø 165mm / 6.50"
Installation diameter ø 143mm / 5.63"
Installation depth   65mm / 2.56"

Recommended enclosure volumes
Sealed box
Even in volume   9 L
Lower limiting frequency (-3dB)   75 Hz

In the package

  • 2 x Mid-woofer HELIX S 6B
  • 1 x Mounting material
  • 1 x Data sheet
  • 1 x Mounting pattern
