1 4
Bowers & Wilkins

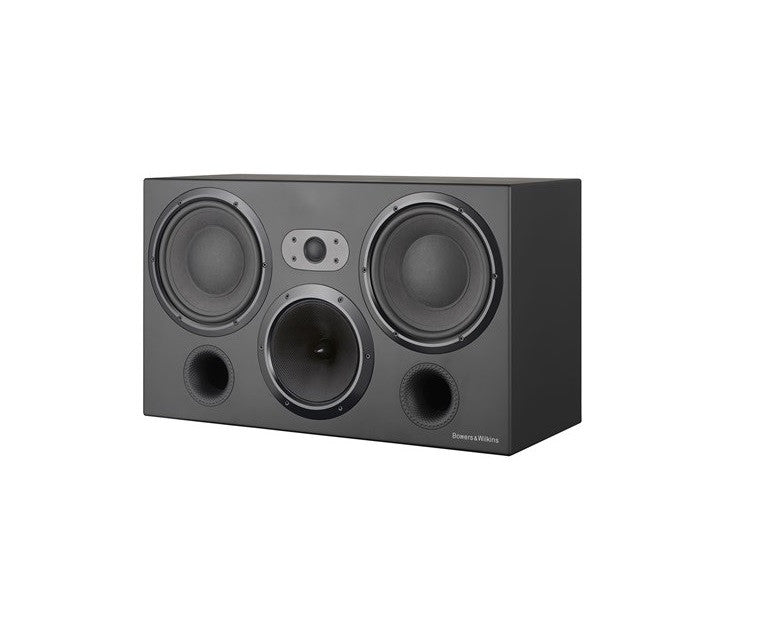

Sound speaker Bowers & Wilkins CT7.3 LCRS, dedicated to the cinema

Recommended amplifier power: 50-200W 3-way (2.
€1,500.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Recommended amplifier power: 50-200W
  • 3-way (2.5cm high, 15cm medium and 2 x 20cm woofers)
  • Sensitivity: 92 dB/W/m
  • Resistance: 8Ω
  • Frequency range: 36 - 28.000Hz (-6dB)
  • Dimensions: 36 x 60.6 x 26.5 cm / Weight: 22.5 kg

DESCRIPTION

The top of the range 7.3 offers unparalleled clarity combined with powerful low frequency effects thanks to a pair of whopping 8" paper/ Kevlar® bass units and a dedicated Kevlar® FSTTM midrange.

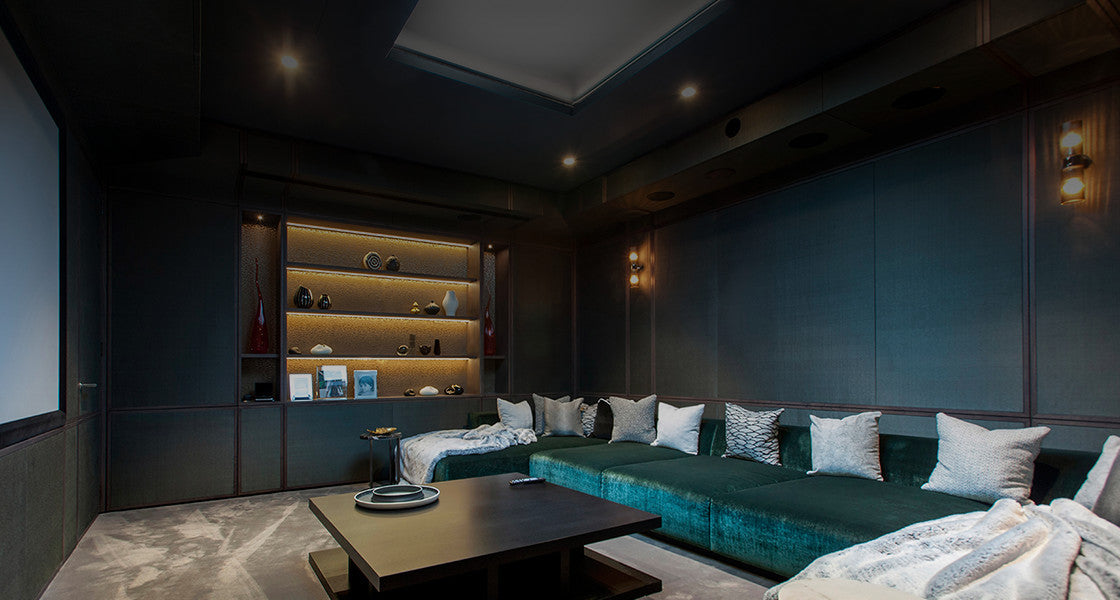

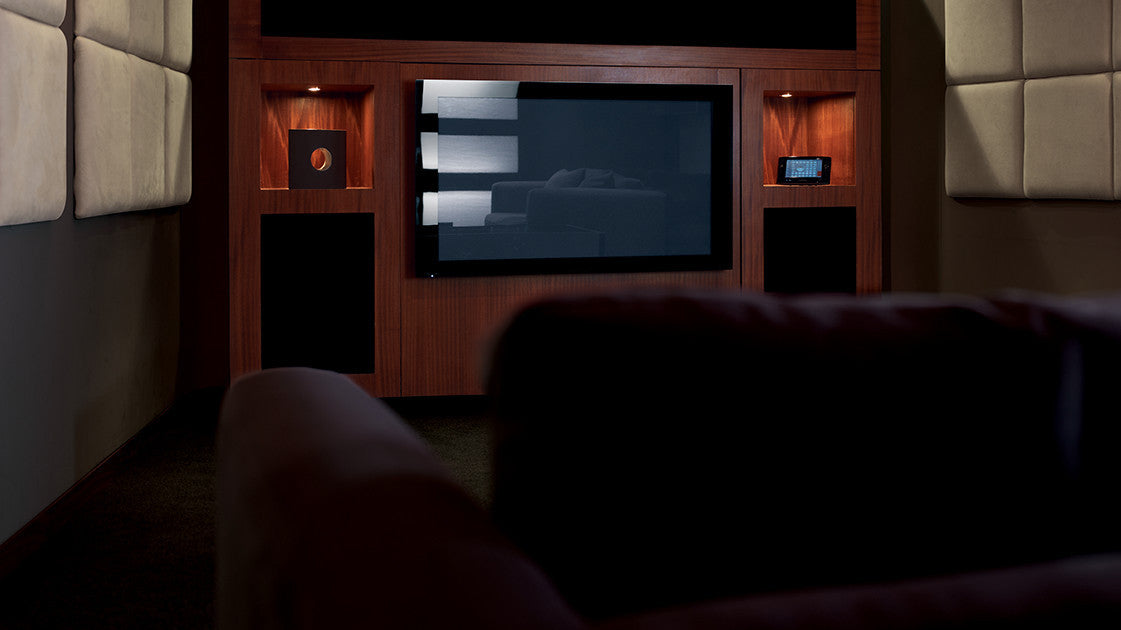

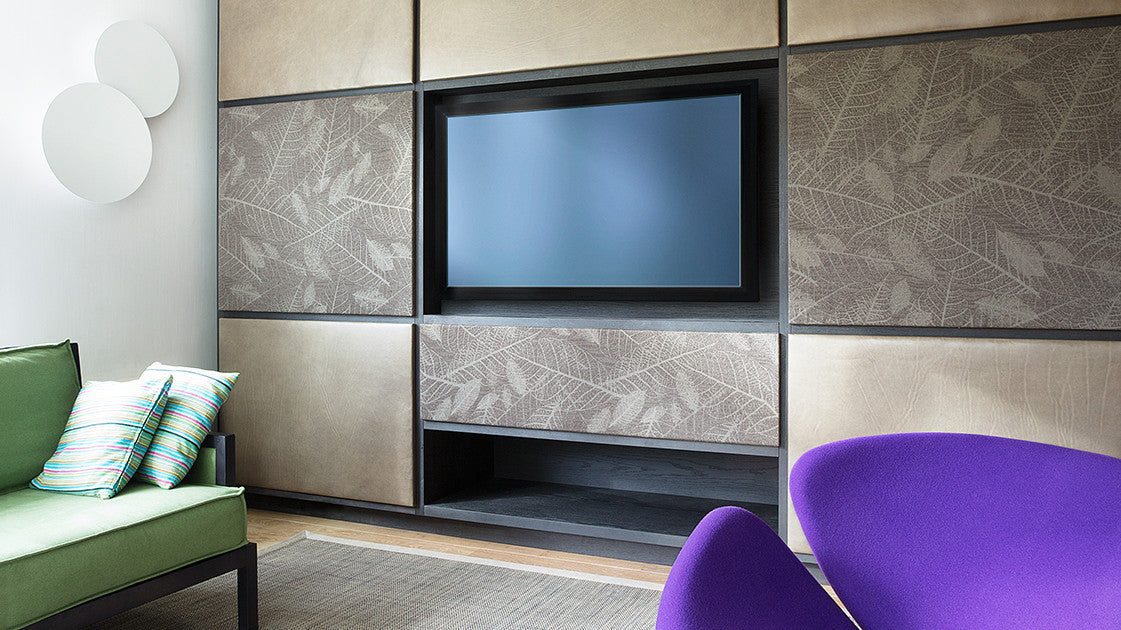

Designed to slot discreetly into custom-built cabinetry, every speaker in the CT700 range can take on either front, center or surround duties within a multi-channel theater set-up. Each speaker uses Kevlar drive units, and features B&W's famous Nautilus tube-loaded tweeters – a pioneering technology that draws away and dampens distorting sound waves from the rear of the drive units, thereby producing a much purer sound from the front.

TECHNICAL DATA

Technical features
  • Nautilus™ tube loaded tweeter
  • Kevlar® brand fiber cone FST™ midrange
  • Paper/Kevlar®cone bass driver
  • Flowport™
  • Magnetically attached grille
  • Description 3-way vented-box system
Drive units
  • 1 x ø25mm (1 in) cloth dome high-frequency
  • 1 x ø150mm (6 in) woven Kevlar®FST™ mid-range
  • 2 x ø200mm (8 in) Paper/Kevlar™ bass units
  • Frequency range -6dB at 36Hz and 28kHz
  • Frequency response 42Hz – 22kHz ±3dB on reference axis
Dispersion
  • Within 2dB of reference response
  • Horizontal: over 60º arc
  • Vertical: over 10º arc
  • Sensitivity 92dB spl (2.83V, 1m)
  • Harmonic distortion 2nd and 3rd harmonics (90dB, 1m) <1% 50Hz – 20kHz
  • Crossover frequencies 350Hz, 4kHz
  • Recommended amplifier power 50W – 200W into 8ohm on unclipped program
  • Max. recommended cable impedance 0.1ohm
Dimensions
  • Height: 360mm (14.2in)
  • Width: 606mm (23.9in)
  • Depth: 265mm (10.5in)
  • Depth with grille: 288mm (11.3 in)
  • Net weight 22.5kg (49.6lb)
  • Finishes Cabinet Black painted, Grille Black cloth

DOCUMENTS

User Guide
