Bowers & Wilkins

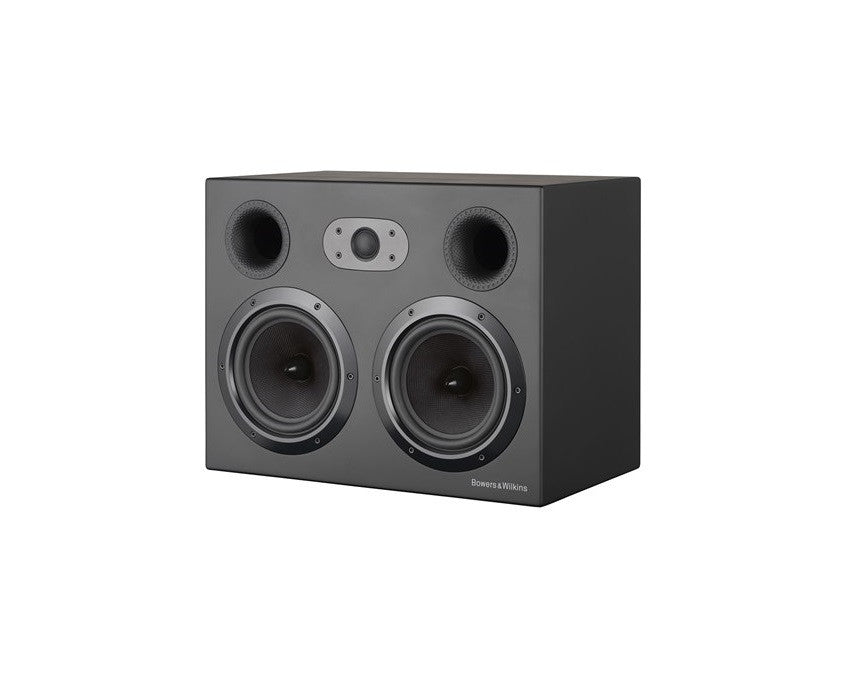

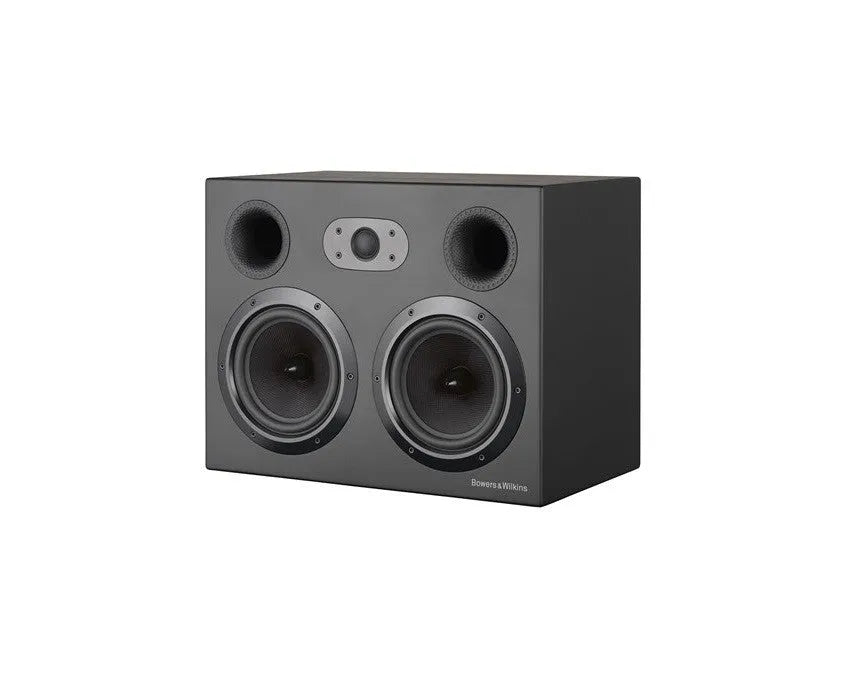

Sound speaker Bowers & Wilkins CT7.4 LCRS, dedicated to the cinema

CT-700 series Recommended amplifier power: 50-150W 2-way (2.
€1,000.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

CT-700 series
  • Recommended amplifier power: 50-150W
  • 2-way (2.5cm tweeters and 2 x 16.5cm woofers)
  • Sensitivity: 94 dB/W/m
  • Resistance: 8Ω
  • Frequency range: 43Hz - 28kHz -6dB
  • Dimensions: 34.3 x 44.4 x 26.5 cm / Weight: 11.5 kg

DESCRIPTION

The mid-point speaker in the CT700 range offers superior performance at lower frequencies through its two 6" Kevlar® bass/midrange drivers.

Designed to slot discreetly into custom-built cabinetry, every speaker in the CT700 range can take on either front, center or surround duties within a multi-channel theater set-up. Each speaker uses Kevlar drive units, and features B&W's famous Nautilus tube-loaded tweeters – a pioneering technology that draws away and dampens distorting sound waves from the rear of the drive units, thereby producing a much purer sound from the front.

TECHNICAL DATA

Technical features
  • Nautilus™ tube loaded tweeter
  • Kevlar® brand fiber bass/midrange cone
  • Flowport™
  • Magnetically attached grille
  • Description 2-way vented-box system
    Drive units
    • 1x ø25mm (1 in) cloth dome high-frequency
    • 2x ø165m (6.5 in) woven Kevlar® cone bass/midrange
    • Frequency range -6dB at 43Hz and 28kHz
    • Frequency response 49Hz – 22kHz ±3dB on reference axis
      Dispersion
      • Within 2dB of reference response
      • Horizontal: over 60º arc
      • Vertical: over 10º arc
      • Sensitivity 94dB spl (2.83V, 1m)
      • Harmonic distortion 2nd and 3rd harmonics (90dB, 1m), <1% 90Hz – 20kHz
      • Nominal impedance 8 ohm (minimum 4.0 ohm)
      • Crossover frequency 4kHz
      • Recommended amplifier power 50W – 150W into 8 ohm on unclipped program
      • Max. recommended cable impedance 0.1 ohm
      Dimensions
      • Height: 343mm (13.5in)
      • Width: 444mm (17.5in)
      • Depth: 265mm (10.5in)
      • Depth with grille: 288mm (11.3 in)
      • Net weight 11.5kg (25.4lb)
      Finishes
      • Cabinet Black painted
      • Grille Black cloth

        DOCUMENTS

        User Guide
