Yamaha

Active speaker Yamaha DXR10, 700W

10" Two-Way Self-Powered Speaker The Yamaha DXR 10 powered speaker pushes the boundaries of powered portable speakers.
€559.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

10" Two-Way Self-Powered Speaker

The Yamaha DXR 10 powered speaker pushes the boundaries of powered portable speakers. Boasting a Class-D power amplifier delivering 700 dynamic watts and 1100 peak watts in an enclosure that only weighs 32lbs! A 10" woofer featuring a 2" voice coil with ferrite magnet and a 1.4" compression driver, deliver a tuned frequency response of 56Hz-20kHz (+/-10dB). The Yamaha DXR 10 is a multipurpose speaker seen in setups as a main speaker, monitor speaker, or keyboard amplifier. Working with Nexo, a world leader in touring and professional audio, Yamaha's FIR-X tuning, developed for their DSR and DXR powered loudspeakers, is featured in all DXR series powered loudspeakers, bringing the acclaimed D -Contour processing presets: FOH/Main, Monitor, or off Don't be fooled by its size, the DXR 10 is a serious contender for users needing high output, lightweight, portable powered speakers!

VIDEO



TECHNICAL DATA

  • Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type
  • Frequency range (-10dB): 56Hz - 20kHz Nominal coverage: H: 90°; V: 60°
  • Components: LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite; HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet: Ferrite
  • Crossover: FIR-X tuning™ (linear phase FIR filter)
  • Output power: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
  • Maximum output level (1m; on axis): 131dB SPL

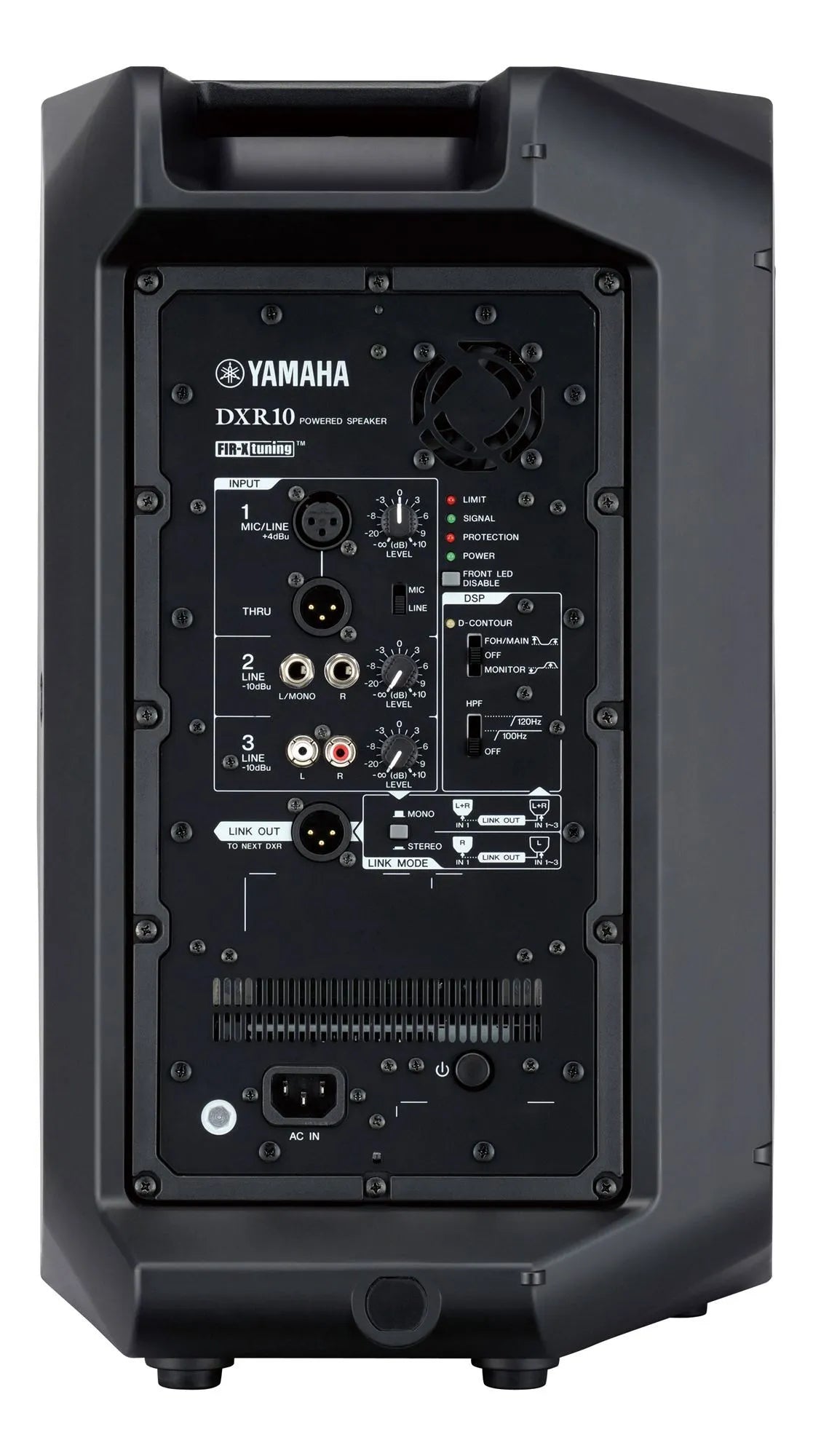

  • I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
  • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • Power requirements: 100V - 240V, 50Hz/60Hz
  • Power consumption: 90W
  • Flying and mounting hardware: Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
  • Pole socket: 35mm with 2-way features (0 or 7 degrees)
  • Dimensions WxHxD: 305mm (12") x 502mm (19 6/8") x 310mm (12 2/8")
  • Net weight: 14.6kg (32.2lbs)
  • Material: ABS (Matte Finish, Black)
