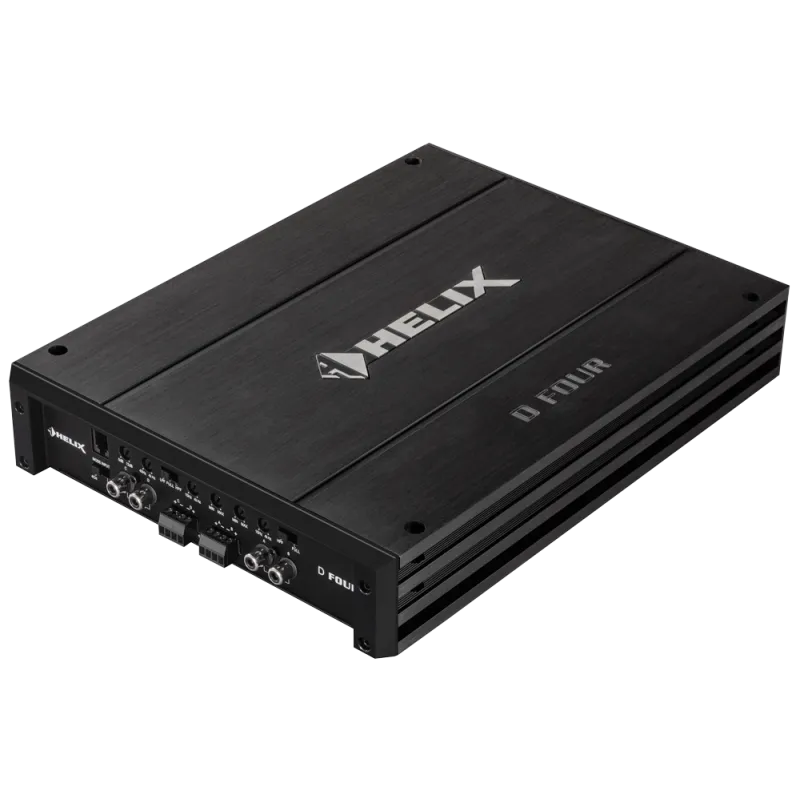

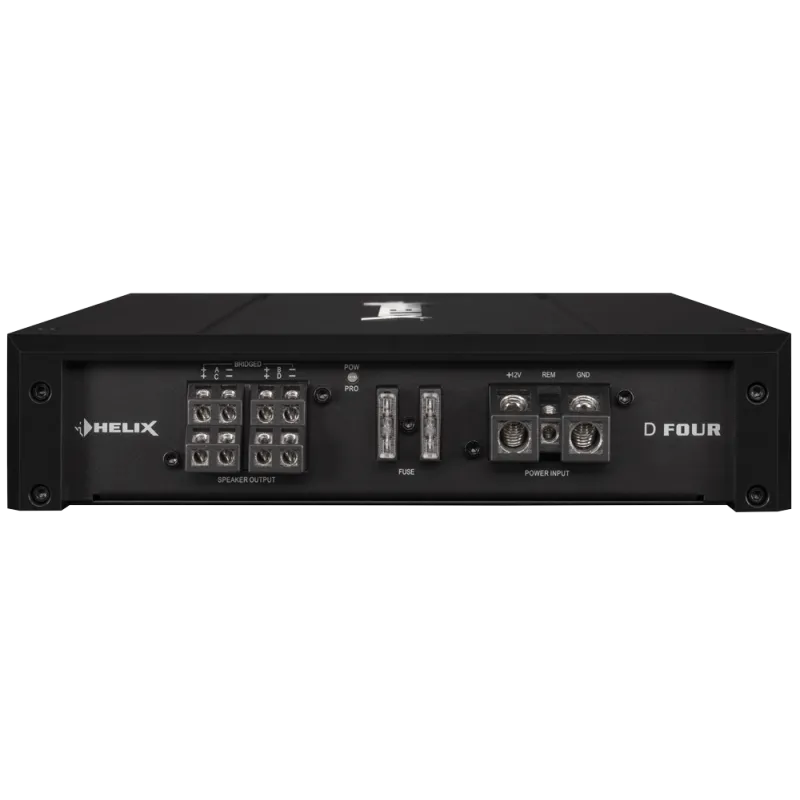

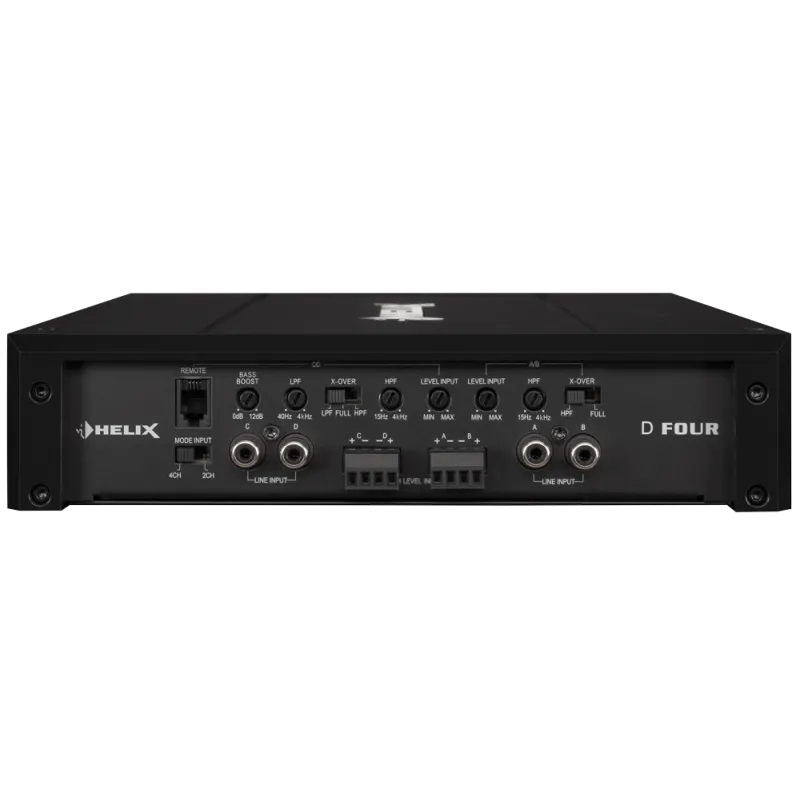

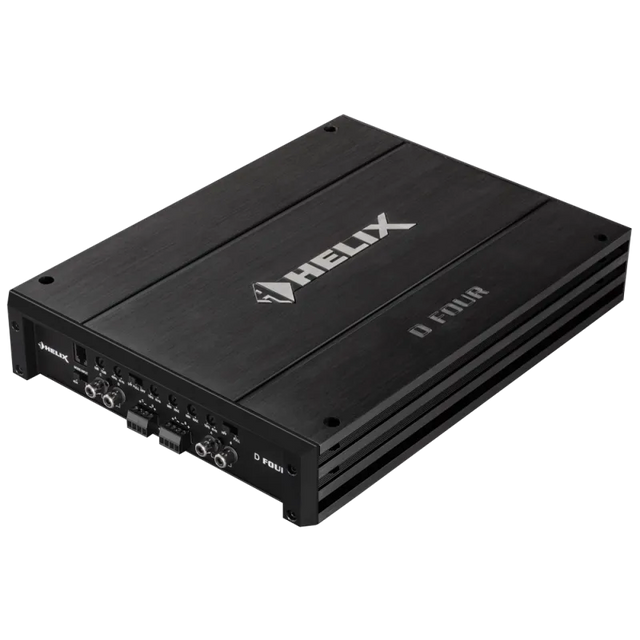

Audio amplifier Helix D FOUR, 360W
Audio amplifier Helix D FOUR, 360W - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Power RMS/MAX:
@ 4 ohms 4 x 65 / 130W
@ 2 ohms 4 x 90 / 180W
@ 1 ohm - / -
- Bridged @ 4 ohms 2 x 180 / 360 W
- By bridge @ 2 ohms - / - - Frequency range: 10 Hz - 50 kHz
- Sensitivity: 108 dB
- Damping factor: > 65
- Dimensions: 53 x 320 x 230 mm
DESCRIPTION
D FOUR
The new HELIX D amplifiers open new horizons in terms of price performance ratio. It is the first time that HELIX offers a lot of amplifier performance for such a low budget without neglecting the proven HELIX quality. Both power packs convince at first sight through high-quality processing in many details. The fine brushed aluminum heatsink and the stylish HELIX-logo make these models very attractive.
PROPERTIES
- 4-channel high- and low-level input
- Smart high-level input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Fully active crossover with highpass, lowpass, bandpass and bass boost
- Extremely stable MOSFET power supply
- "Input mode" switch for flexible input signal routing
- High level input sensitivity up to 14 Volts max.
- Cable remote control for volume adjustment of the channels C & D optionally available
- Massive aluminum heatsink for best cooling conditions
Smart high level input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (eg fader function) appear quite often - but not with the D FOUR.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
TECHNICAL DATA
- Amplifier technology Class AB
- Inputs 4 x RCA / Cinch
4 x High-level speaker input
1 x Remote In
1 x Remote control input - Input sensitivity RCA / RCA 0.5 - 6 Volts
- High level 1 - 14 Volts
- Input impedance RCA / RCA 30 kOhms
- Input impedance high level 12 Ohms
- Outputs 4 x Speaker output
- Output voltage RCA / RCA -
- Signal converter for digital input -
- Frequency response 10 Hz - 50,000 Hz
- Bass boost 0 - 12 dB / 45 Hz
- Highpass 15 Hz - 4,000 Hz adjustable
- Lowpass 40 Hz - 4,000 Hz adjustable
- Bandpass 15 Hz - 4,000 Hz adjustable
- Subsonic -
- Phase -
- Slope high- / lowpass 12 dB/Oct.
- Slope subsonic / lowpass -
- Signal-to-noise ratio digital input -
- Signal-to-noise ratio analog input 108 dB (A-weighted)
- Distortion (THD) 0.02%
- Damping factor 65
- Operating voltage 9.6 - 16 Volts
- Current draw 1000 mA
- Fuse 2 x 25 A Maxi-fuse (APX)
- Additional features: Active, adjustable crossover, bass boost, input mode switch, high-level input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), optional cable remote control
