Goobay CAT 6A, S/FTP (PiMF) extension cable, 5m - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
Goobay CAT 6A - high-quality LAN network cable extension with connector ensures a stable and fast Internet connection at home or in the office. Double shielding prevents interference, the CU copper core and gold-plated contacts ensure excellent bandwidth, and the halogen-free insulation is safer for the environment. Convenient installation allows easy connection of network components, and the locking protection on the connector ensures durability and reliable use every day. Suitable for networks up to 10 Gbps.
DESCRIPTION

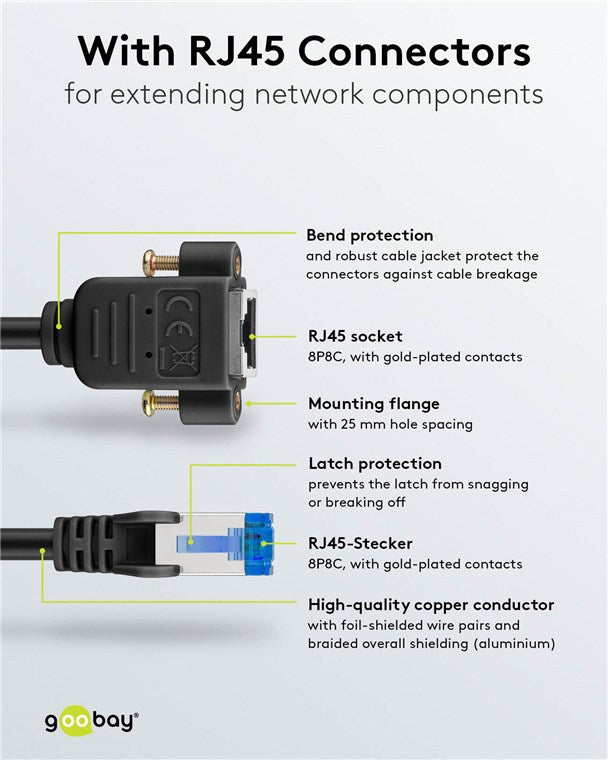

- Double-shielded LAN cable extension with RJ45 plugs for connecting network components

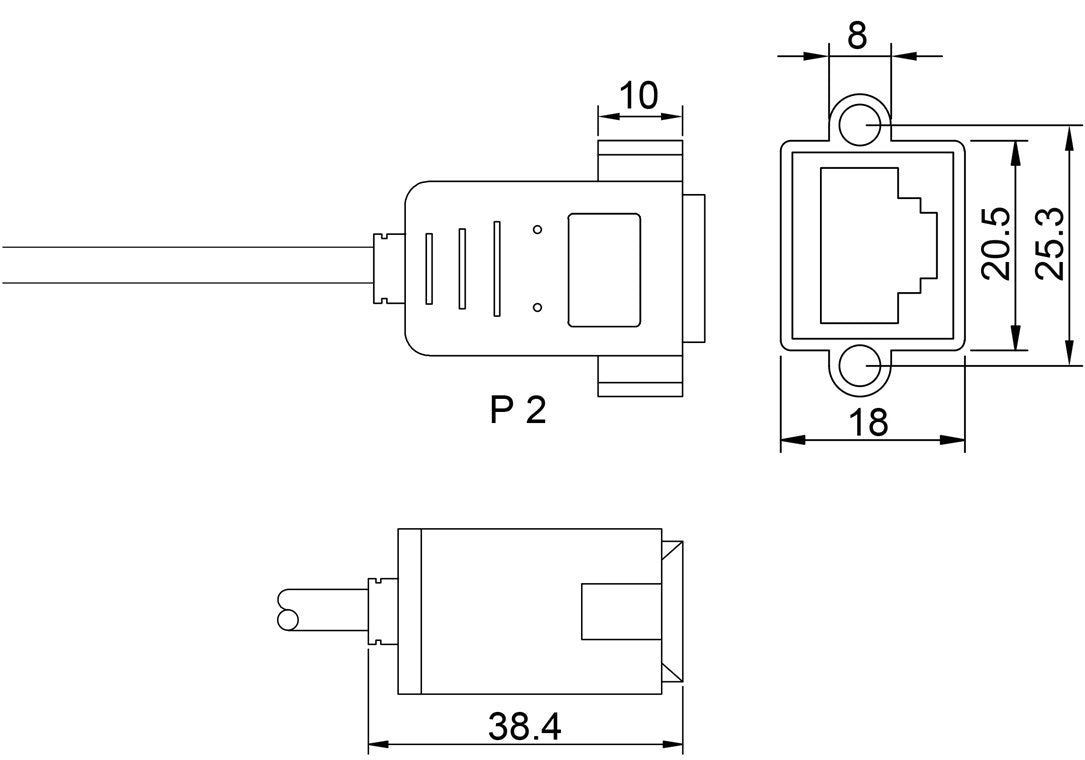

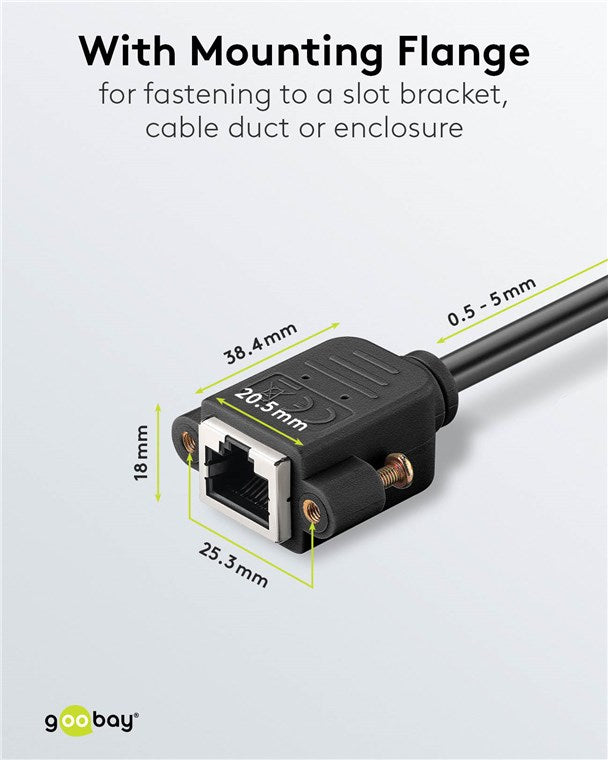

- Mounting flange with 25 mm hole spacing for fastening eg to a slot bracket, cable duct or enclosure with corresponding cut-out
- High-quality copper conductor (CU) and gold-plated contact surfaces for an excellent, high-performance network connection
- S/FTP overall shielding: aluminum foil shield for individual wire pairs (PiMF) and aluminum braid shielding for the cable sheath
- Bend protection and a sturdy jacket effectively protect the extension cable from breakage
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1, suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
TECHNICAL DATA
Connections
Connection, contact material
gold-plated 3µm
Connection, type
RJ45 male (8P8C)
Connection 2, type
RJ45 female (8P8C)
Connection, shielding
yes
Latch protection
unilaterally
Contacting
EIA/TIA-568 B
Kink protection
both sides
Cable
Specifications
CAT6A
Cable type
round cable
Shielding class
S/FTP (PiMF)
Cable length
5 years
Cable sheath diameter (approx.)
5.8 mm
Inner conductor material
CU (copper)
AWG
27/7 (stranded)
Number of shieldings
2 times
Type 1, shielding
foil (aluminum) PiMF
Type 2, shielding
braid (alu) overall shield
Cable sheath material
LSZH
LSZH compliant
yes
Signal transmission
max. bandwidth
500MHz
General
Outer sheath material
LSZH
Color
black
Markings
WEEE, CE
Special feature
Length indication on connector
Operating temperature from
-20 °C
Operating temperature up to
75 °C
Packaging type
Bulk
