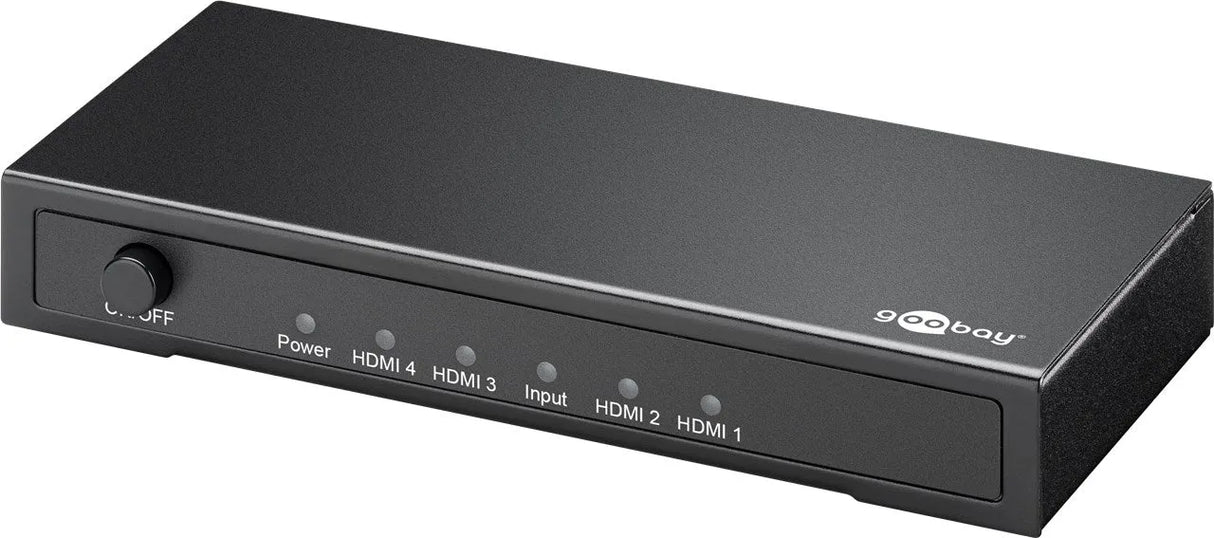

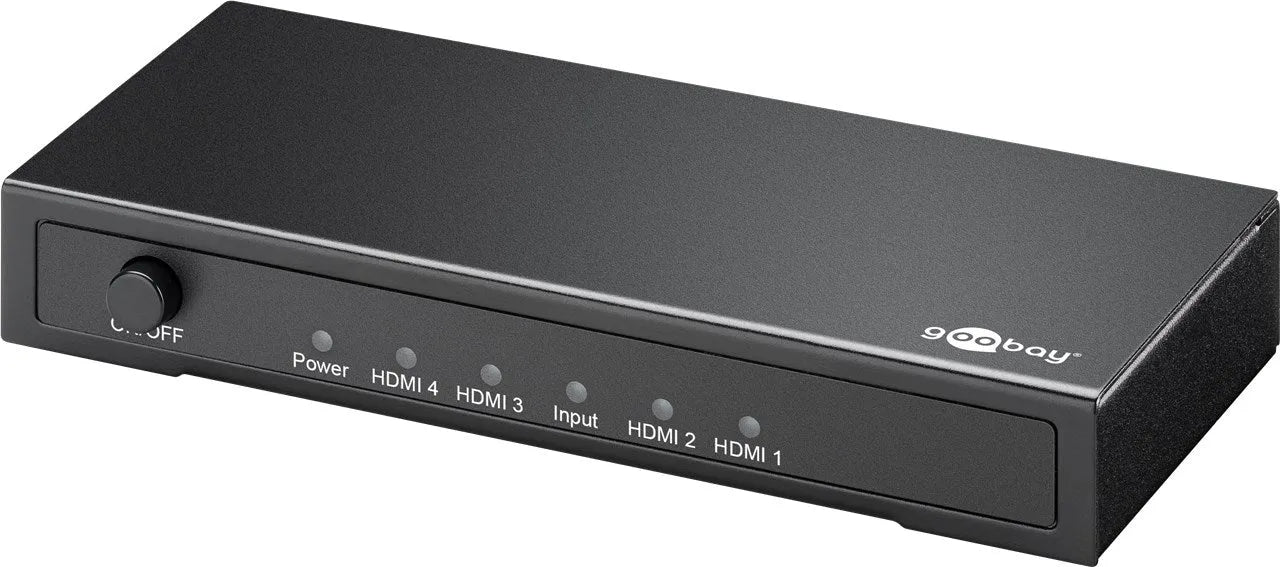

Goobay HDMI™ Splitter, HDMI splitter (1/4)

HDMI splitter.
€69.99 EUR

Goobay HDMI™ Splitter, HDMI splitter (1/4) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Operating principle 1 to 4 connections (Full HD).

  • 2 HDMI™ (Type A) connectors.
  • 4 HDMI™ (Type A) connectors.
  • Supported audio standards: 4K 3D, DTS-HD MA.
  • Resolution: Full HD 1080p (60 Hz), 4K Ultra HD 2160p (30 Hz).

DESCRIPTION

Distributes 4 HDMI™ signals with a number of different resolutions as well as multi-channel audio in the mix across up to two screens
  • supports 4K, 3D and Full HD (1080p)
  • can assign either one or multiple sources to the HDMI™ outputs
  • smart, automatic function for switching to active inputs is integrated
  • supports uncompressed audio formats such as LPCM
  • supports audio formats such as DTS Digital and Dolby Digital (including DTS-HD and Dolby TrueHD)
  • supports HDCP
  • shielded metal housing and 24-karat gold-plated contacts

TECHNICAL DATA

SPECIFICATIONS


    Device connections

  • Input, type4 HDMI™ female (Type A)
  • number of inputs 4 pcs.
  • Output, type 2 HDMI™ female (Type A)
  • Number of outputs 2 ports


    • Signal Transition

    • Supported audio standards 4K 3D, DTS-HD MA

    General

    • Packaging type Retail Box
    • Consumption Unit 1 pc. in cardboard box
    • max. resolution Full HD 1080p (60 Hz), 4K Ultra HD 2160p (30 Hz)
    • Color black
    • Material metal
    • Markings CE, WEEE
    • Operating temperature from 0 °C
    • Operating temperature up to 70 °C
    • Length 270 mm
    • Width 111 mm
    • Height 25 mm
    • Weight 770 g

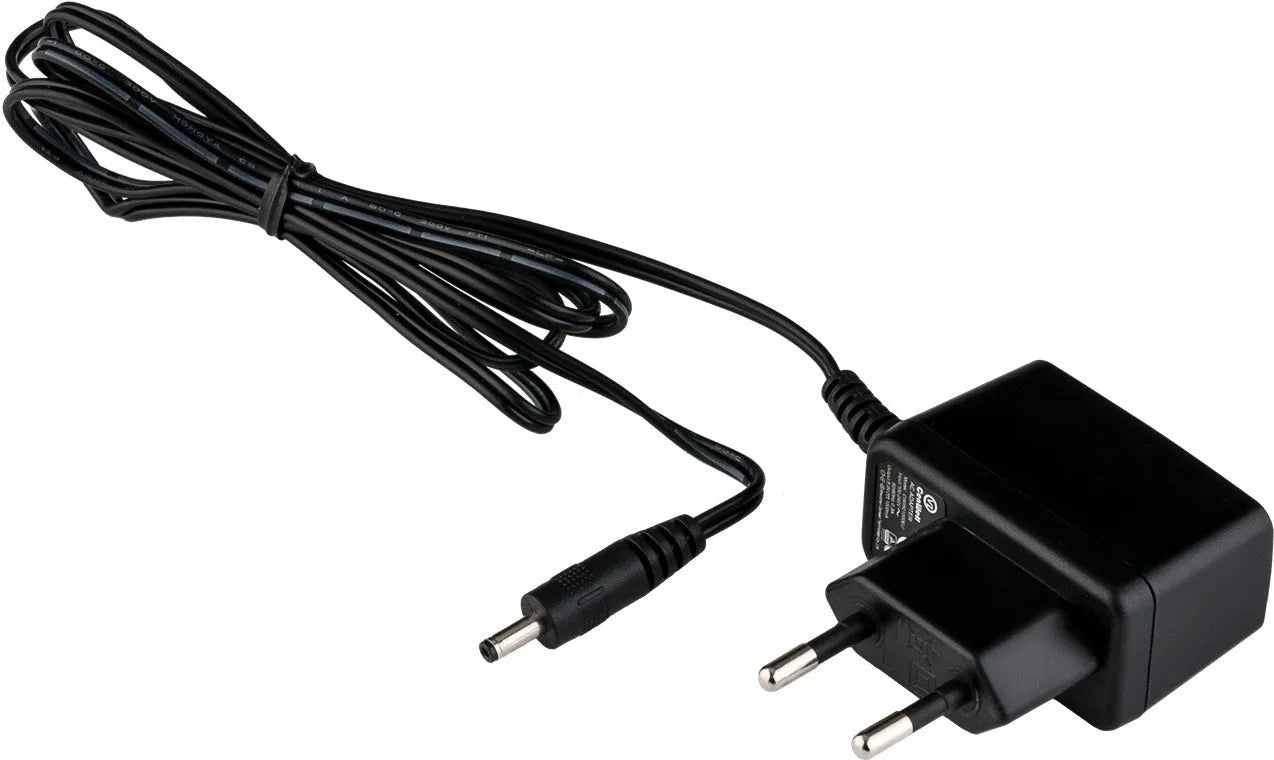

      Power Supply

      • Input voltage 100-240 V
      • Input AC frequency 50/60 Hz
      • Input current 0.4 A
      • Output voltage 5 V
      • Output current 2 A
      • Output power 10 W
      • No-load power consumption 0.09 W
      • Average active efficiency 79%
      • Efficiency at low load (10%) 72.9%
      • Dimensions 60.9x27.1x72.6
      • Cable length 1.4 mm
      • Weight 77.5 g

      Scope of delivery
      • Scope of delivery manual, power supply
