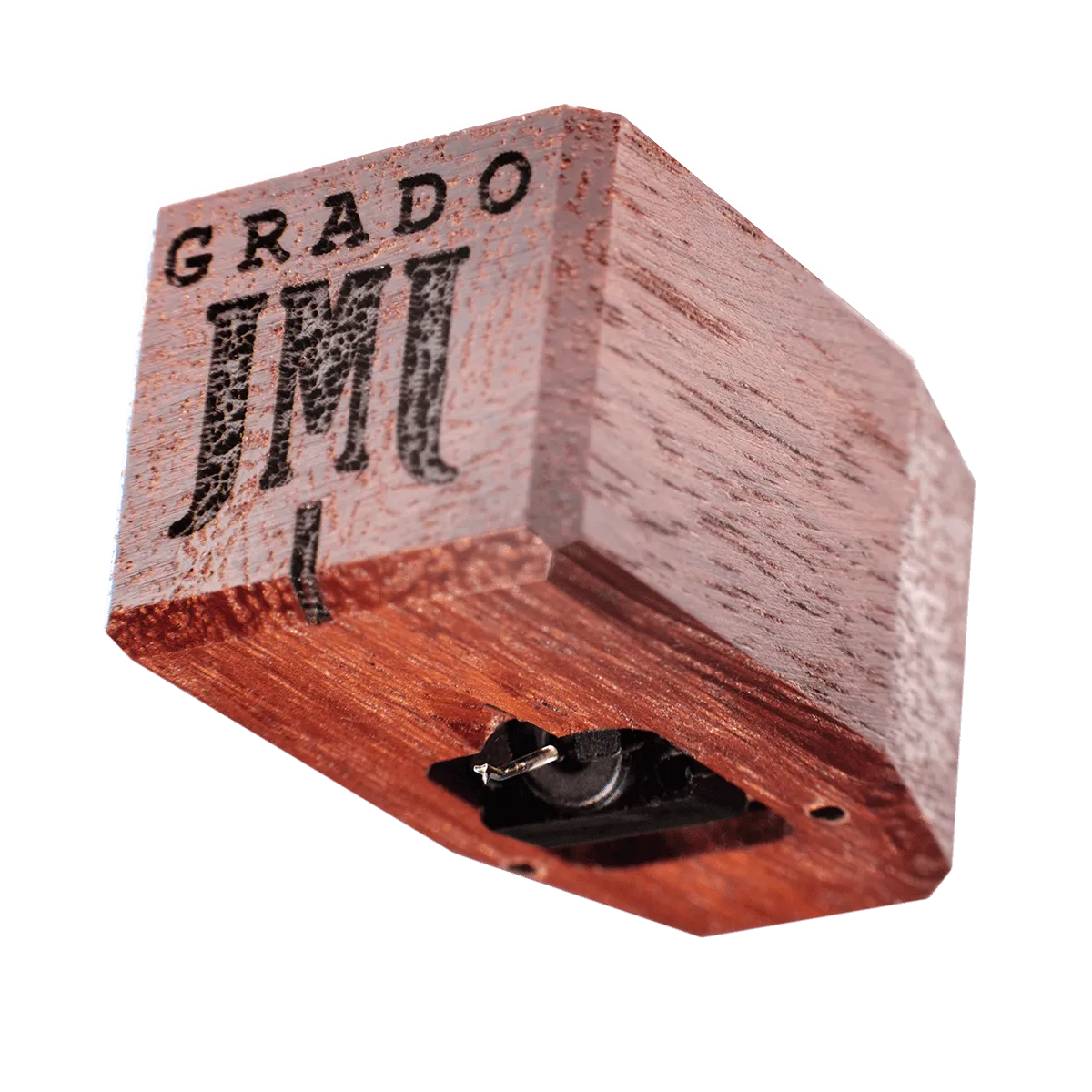

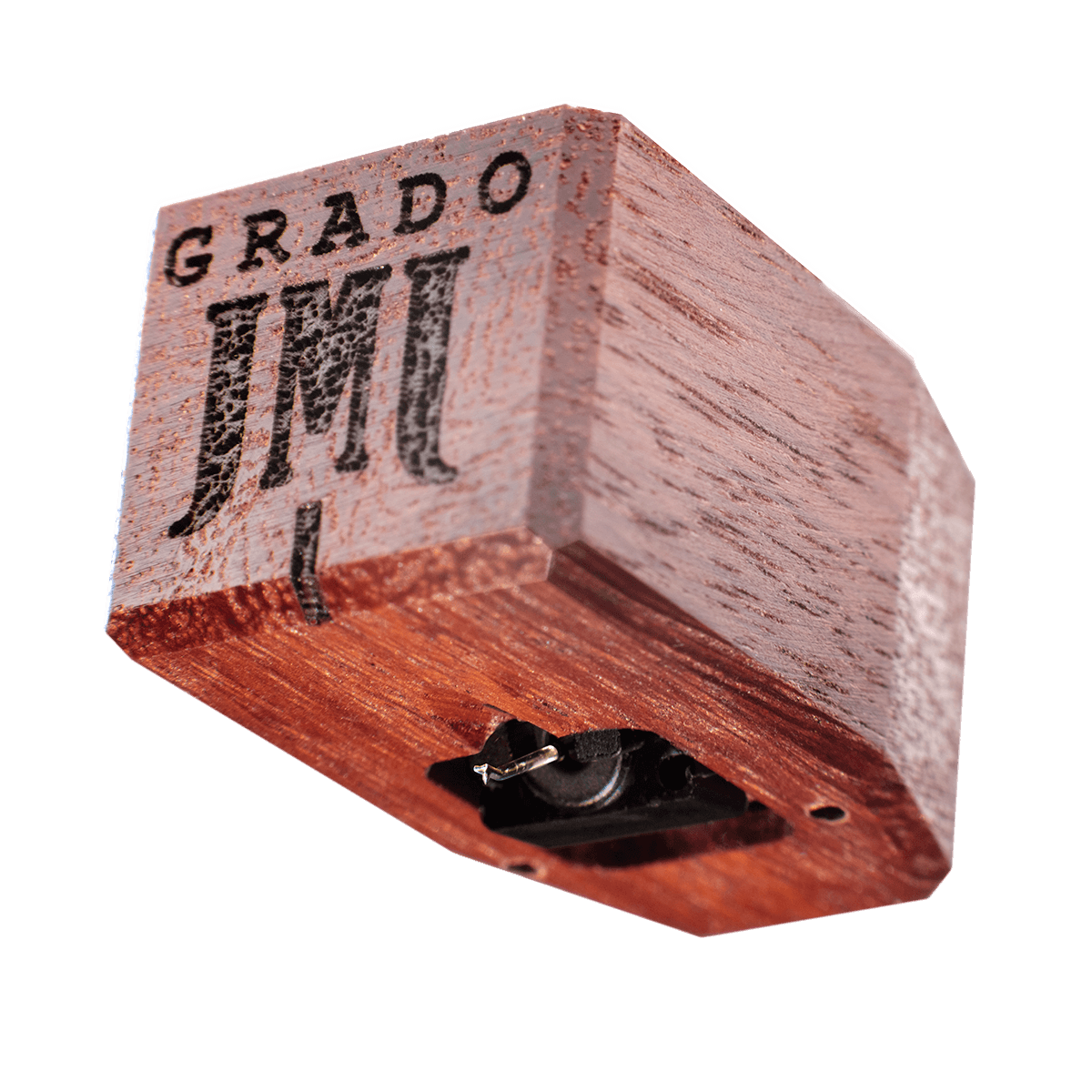

Grado Platinum3, cartridge
Timbre series, luxury, exceptional assembly quality (hand-assembled) cartridge from Grado.
Regular price
€499.00 EUR
Unit price
/
Unattainable
Grado Platinum3, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
This is a true work of art worthy of a true enthusiast!
- Only the most luxurious materials are used in the cartridge.
- Australian Jarrah wood body.
- Frequency band: 10-60 kHz.
- Cantilever: Aluminum/Elliptical diamond.
DESCRIPTION
Platinum Blonde
The first step-up from the Opus3, the Platinum3 puts Jarrah wood and a twin magnet system to work for your favorite music.
Timbre in a Nutshell.
Hear More
The Platinum3 is a great example of what the Timbre Series is made for: to start listening to your music with more clarity and depth than you've heard before.
Since we have considerably fewer turns in the Statement Series we can use a much larger size wire, thus knocking resistance from 470 ohms to 2 ohms in the Statement Series. This new wire has over 16 times more area for carrying the signal: this also shortens the distance the signal must travel from 125ft to a little over 7ft. In the Statement series we have also shortened the magnetic gap, increasing the flux density.
Small Necessities.
The Materials
To make the Timbre Series work as a whole, we created a way for Jarrah, diamonds, and a twin magnet system to integrate with our Flux-Bridge™. We modified our four piece OTL cantilever technology to achieve a 10% tip mass reduction over the Prestige Series and use ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum3 uses a specially designed elliptical diamond by Grado.
In the Details.
Extreme Precision
Grado has combined newly developed coil winding techniques with decades-old disciplines. A new two-step shielding process brings not only exact unison between the four coils but an unobstructed path for a cleaner signal. The music is allowed to travel undistorted through the coils, greatly reducing mechanical noise while improving tracking. There is an extreme clarity over the full frequency range, with absolutely no stridency or shrillness. Precisely hand tipped with a diamond, a great amount of care goes into each cartridge we build.
The Sound of Wood.
Built from Jarrah
After the Platinum3 cartridge is crafted, it is then placed inside an Australian Jarrah housing. Jarrah is necessary for the majority of Timbre Series with its ability to produce surgically precise clarity without losing any depth. Through a variation of thermal aging processes, the housing gains the ability to better dampen and control the resonant frequencies.
With Love.
Hand-Built in Brooklyn
Each Platinum3 is hand-built by our team in Brooklyn, as it has been for decades. Fine tuned for everything from entry-level turntables up to the highest-end stereo systems, the solid mass of the wood helps keep the Platinum3 steady and producing the Grado signature
TECHNICAL DATA
SPECIFICATIONS
- Body: Australian Jarrah Wood
- Cantilever: Aluminum / Elliptical Diamond
- Output:
- High 4.0mV @5 CMV (45)
- Low 1.0mV @5 CMV (45)
- Inductance:
- High Output 55mH
- Low Output 6mH
- Resistance:
- High Output 660 ohms
- Low Output 70 ohms
- Input Load: 10k-47k ohms
- Cartridge Weight: 9 grams
- Tracking Force: 1.6-1.9 grams
- Compliance 20μm/mN
- Channel Separation: Average 30db - 10-30k Hz
- Controlled Frequency Response: 10-60 KHz
- Non-Sensitive to Capacitive Load
- Builds: High Output, Low Output, Mono
