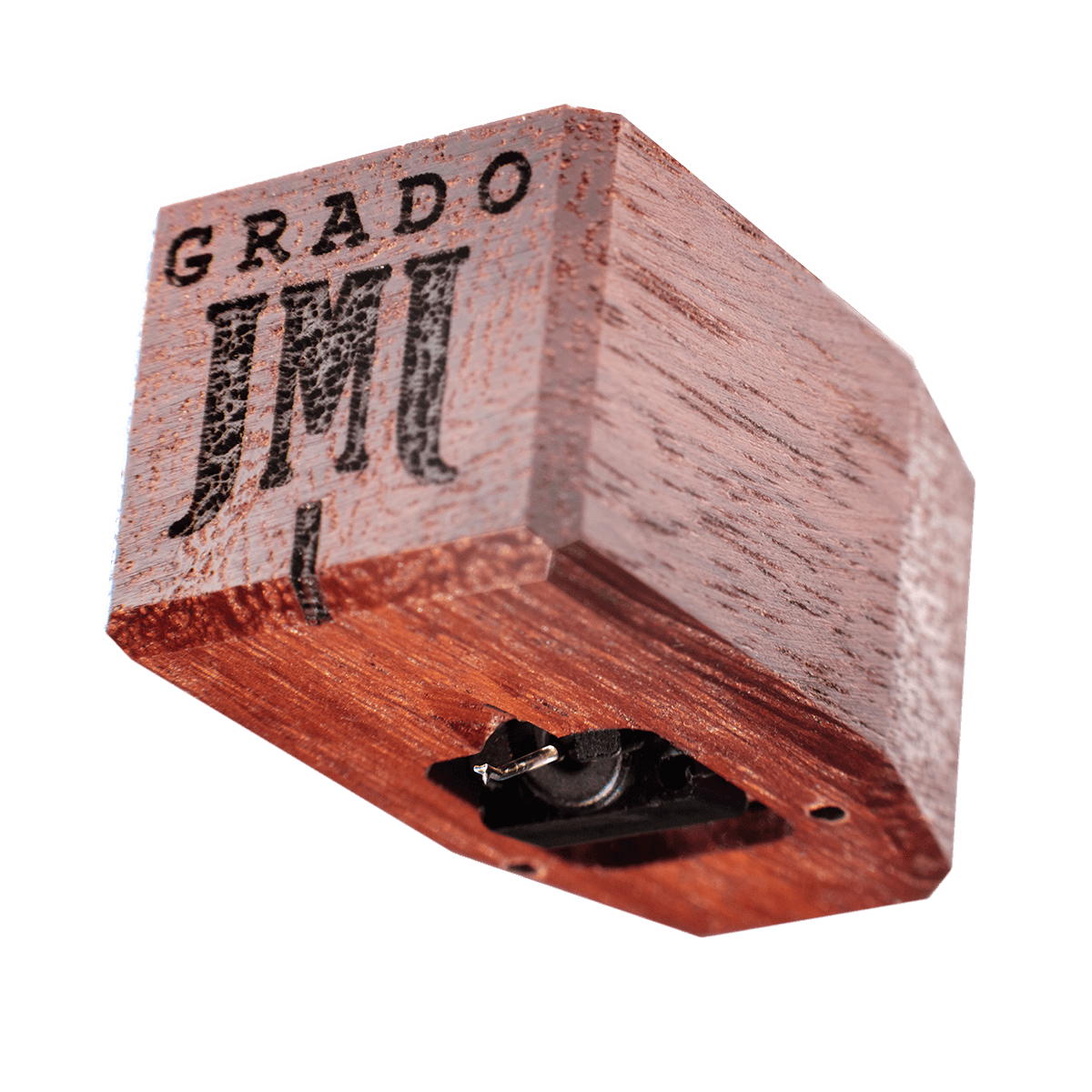

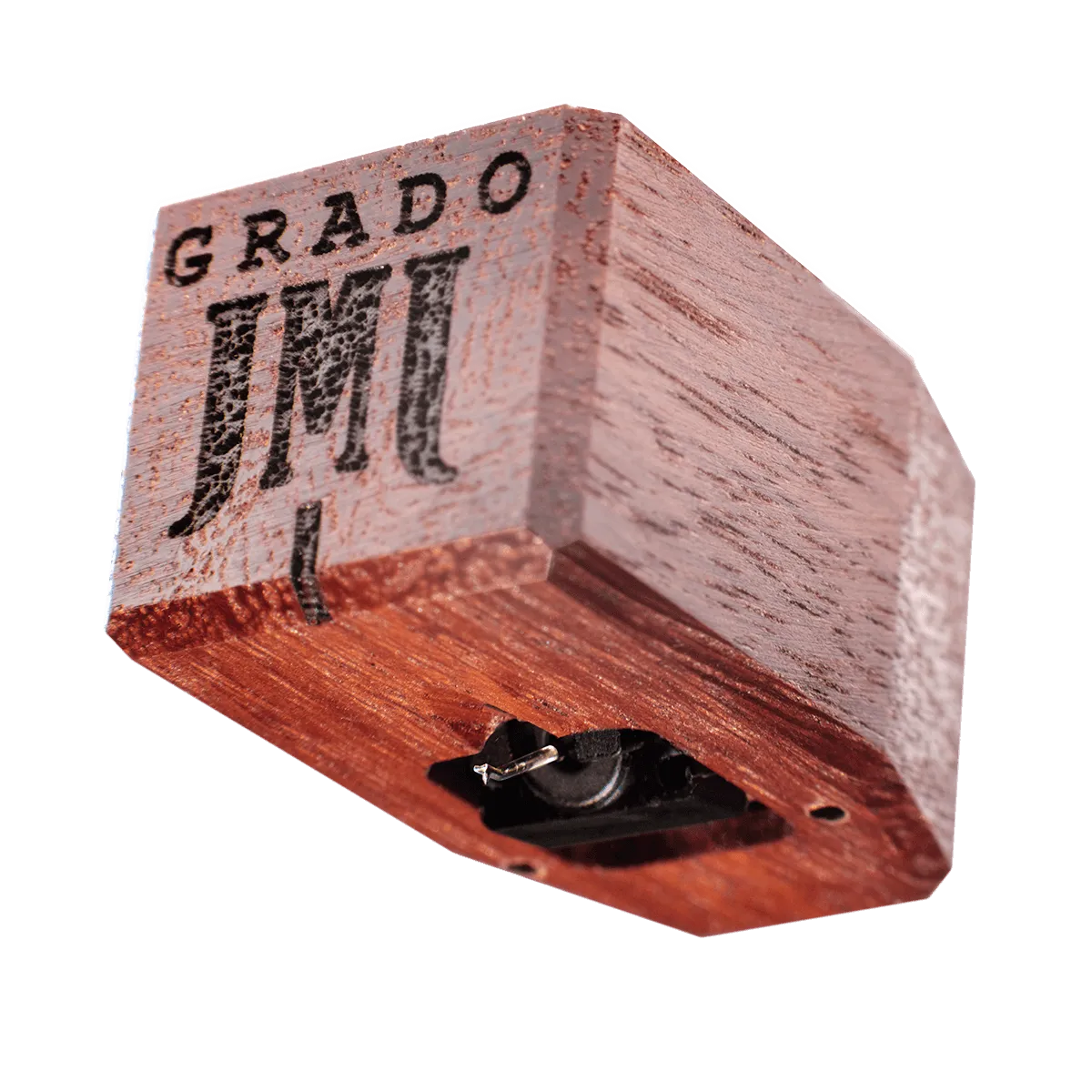

Grado PLATINUM3 (MI), cartridge

The Platinum3 and Sonata3 models use a modified four-piece OTL cantilever technology that provides 10% less tip weight compared to the Prestige series, and the coils use oxygen-free Ultra High Purity Long Crystal (UHPLC) copper wire.

€419.00 EUR 499.00 €

Grado PLATINUM3 (MI), cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Type: Moving Iron (MI).
  • Reproducible frequency band: 10 - 60,000 Hz.
  • Two configurations of this head are available: low (1.0 mV) or high (4.0 mV) output level.
  • Channel separation (at 1 Khz): 30 dB.
  • Recommended pressing weight: 1.6 - 1.9 g.
  • Head weight: 9 g.


    DESCRIPTION

    The Platinum3 and Sonata3 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum3 model uses Grado's specially designed elliptical diamond, and the Sonata3 model uses Grado's specially designed nude elliptical diamond.

    TECHNICAL DATA

    SPECIFICATIONS

    • Body: Australian Jarrah Wood
    • Cantilever: Aluminum / Elliptical Diamond
    • output:
      High 4.0mV @5 CMV (45)
      Low 1.0mV @5 CMV (45)
    • Inductance:
      High Output 55mH
      l
    • Low Output 6mH
    • Resistance:
      High Output 660 ohms
      Low Output 70 ohms
    • Input Load: 10k-47k ohms
    • Cartridge Weight: 9 grams
    • Tracking Force: 1.6-1.9 grams
    • Compliance: 20μm/mN
    • Channel Separation: Average 30db - 10-30k Hz
    • Controlled Frequency Response: 10-60 KHz
    • Non-Sensitive to Capacitive Load
    • Builds: High Output, Low Output, Mono
