Grado

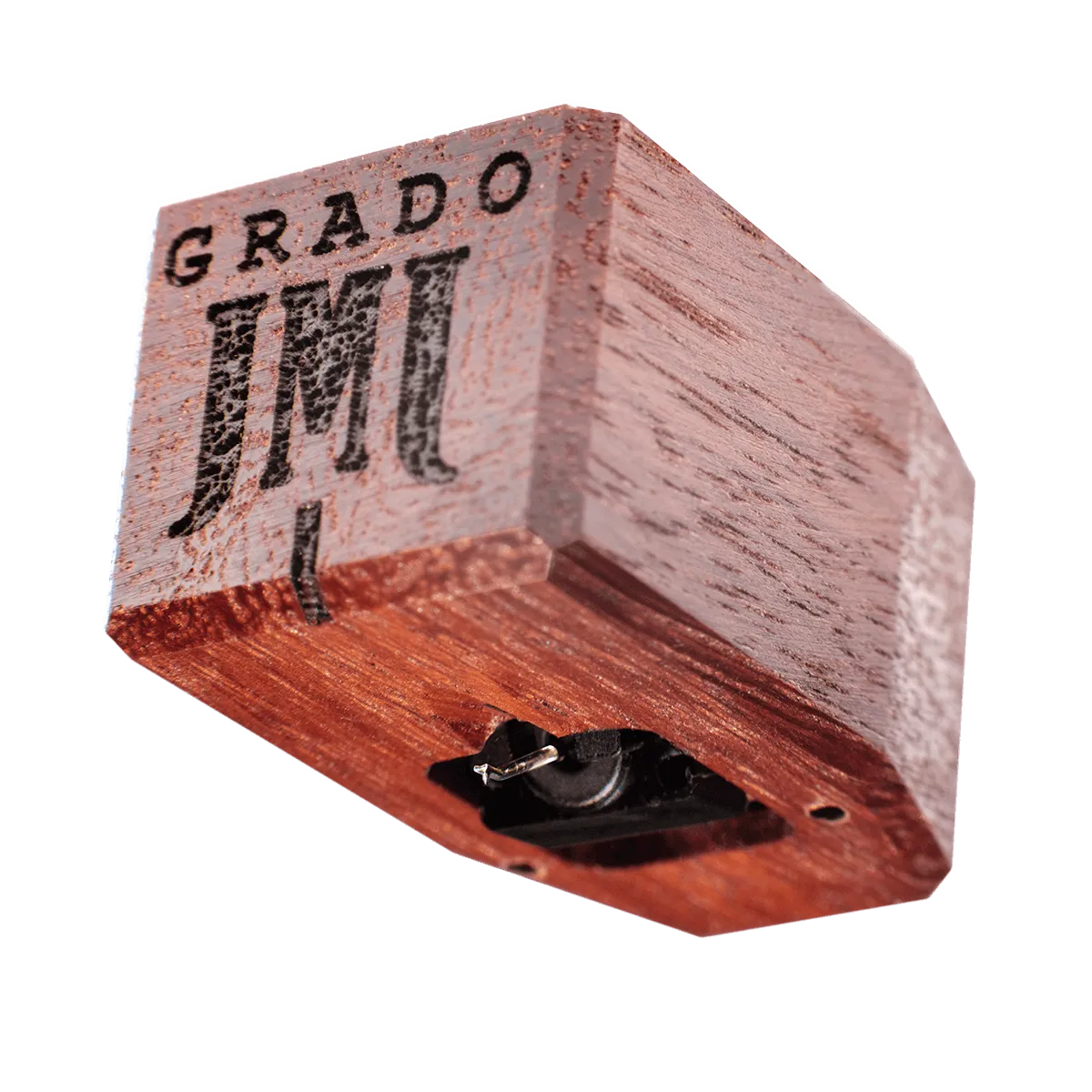

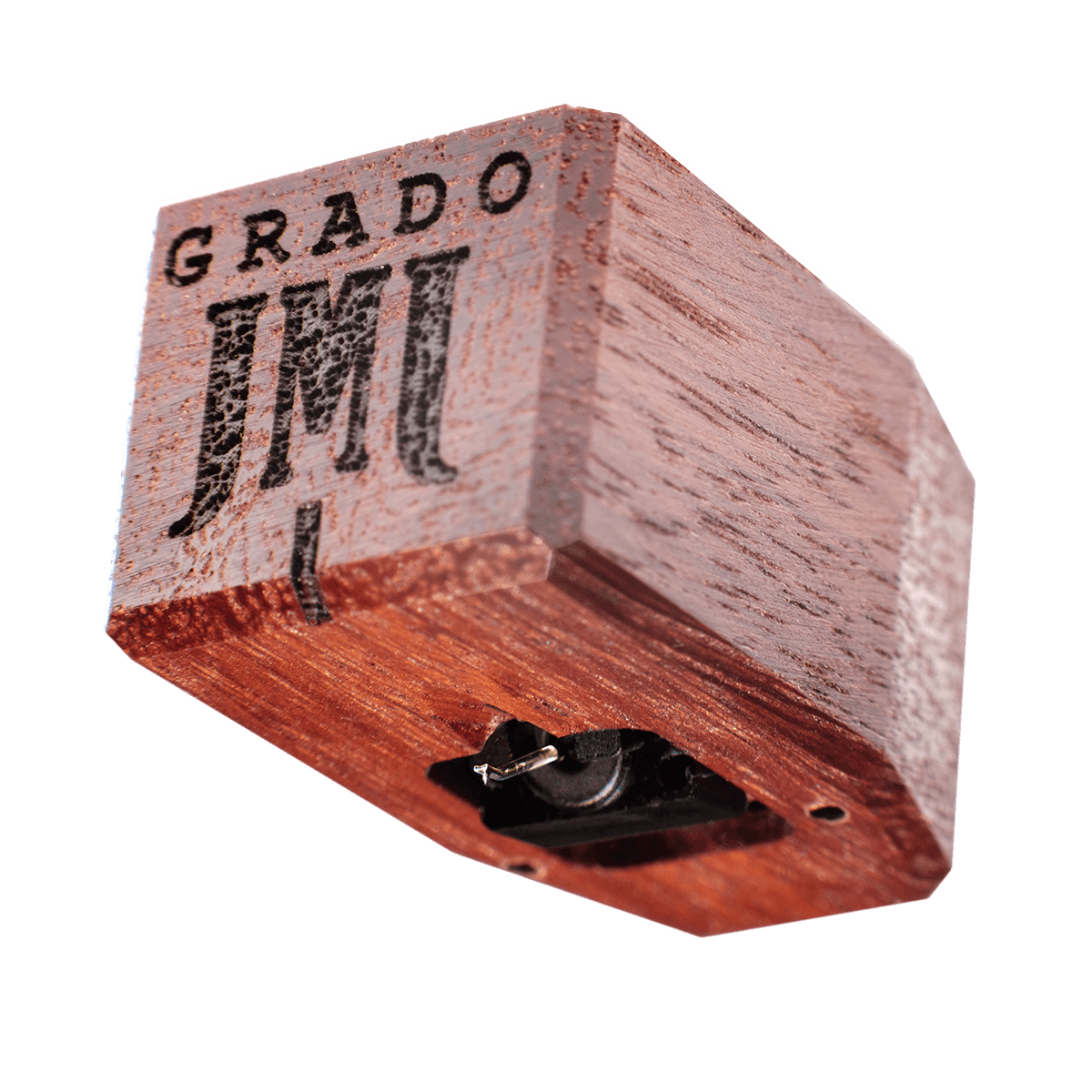

Grado Reference3, cartridge

Luxury cartridge from Grado with exceptional build quality (hand assembled).

€1,899.00 EUR

Grado Reference3, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. This is a true work of art worthy of a true enthusiast!

  • Only the most luxurious materials are used in the cartridge.
  • Body of Australian Jarrah wood.
  • Frequency band: 10-60 kHz.
  • Cantilever: Machined boron/ Diamond tip.

DESCRIPTION

Into the Woods

Achieving fantastic accuracy and control, the Reference3 does everything the Master3 can do - but does it better thanks to specialized intricate processes while being crafted.

Last Stop Before Lineage

Top of the Timbre

While similar to its younger sibling in a few aspects, the Reference3 has a much longer build time since it undergoes extremely unique processes only a few of our cartridges go through. This longer, more intricate practice produces a more colorful and deeper sound. When working in tandem with the special curing process and individual calibrations, we have the best cartridge in the Timbre Series.

Small Necessities.

The Materials

To make the Timbre Series work as a whole, we created a way for Jarrah, diamonds, and a twin magnet system to integrate with our Flux-Bridge™. We modified our four piece OTL cantilever technology to achieve a 5% tip mass reduction over the Prestige Series and use ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Reference3 uses a specially Grado designed true ellipsoid diamond.

In the Details.

Extreme Precision

Grado has combined newly developed coil winding techniques with decades-old disciplines. A new two-step shielding process brings not only exact unison between the four coils but an unobstructed path for a cleaner signal. The music is allowed to travel undistorted through the coils, greatly reducing mechanical noise while improving tracking. There is an extreme clarity over the full frequency range, with absolutely no stridency or shrillness. Precisely hand tipped with a diamond, a great amount of care goes into each cartridge we build.

The Sound of Wood.

Built from Jarrah

After the Reference3 cartridge is crafted, it is then placed inside an Australian Jarrah housing. Jarrah is necessary for the majority of Timbre Series with its ability to produce surgically precise clarity without losing any depth. Through a variation of thermal aging processes, the housing gains the ability to better dampen and control the resonant frequencies.

With Love.

Hand-Built in Brooklyn

Each Reference3 is hand-built by our team in Brooklyn, as it has been for decades. After a specialized process that brings it to life, they are fine tuned for everything from entry-level turntables up to the highest-end stereo systems, the solid mass of the wood helps keep the Sonata3 steady and producing the Grado signature sound. We started building cartridges on a kitchen table in 1953, and every experience since then has led to the creation of the Reference3.

The arrival of a cured mahogany cartridge identical to the one I already owned found me unprepared for the next vaulting leap in my listening education. Within a week of auditioning the 0.5 mv Statement Reference, I began to believe that both my new and vintage vinyl had received a rite of purification, cleansed and made better than new. It was also as though the tiny hairs in my inner ear had been degunked, and in a stroke my hearing was perfectly clear.

Lang Phipps, Audio Reviewer

TECHNICAL DATA

SPECIFICATIONS

  • Body: Australian Jarrah Wood
  • Cantilever: Machined Boron / Diamond Tip
  • output:
  • High 4.0mV @5 CMV (45)
  • Low 1.0mV @5 CMV (45)
  • Inductance:
  • High Output 55mH
  • Low Output 6mH
  • Resistance:
  • High Output 660 ohms
  • Low Output 70 ohms
  • Input Load: 10k-47k ohms
  • Cartridge Weight: 10 grams
  • Tracking Force: 1.6-1.9 grams
  • Compliance 20μm/mN
  • Channel Separation: Average 30db - 10-30k Hz
  • Controlled Frequency Response: 10-60 KHz
  • Non-Sensitive to Capacitive Load
  • Builds: High Output, Low Output, Mono
