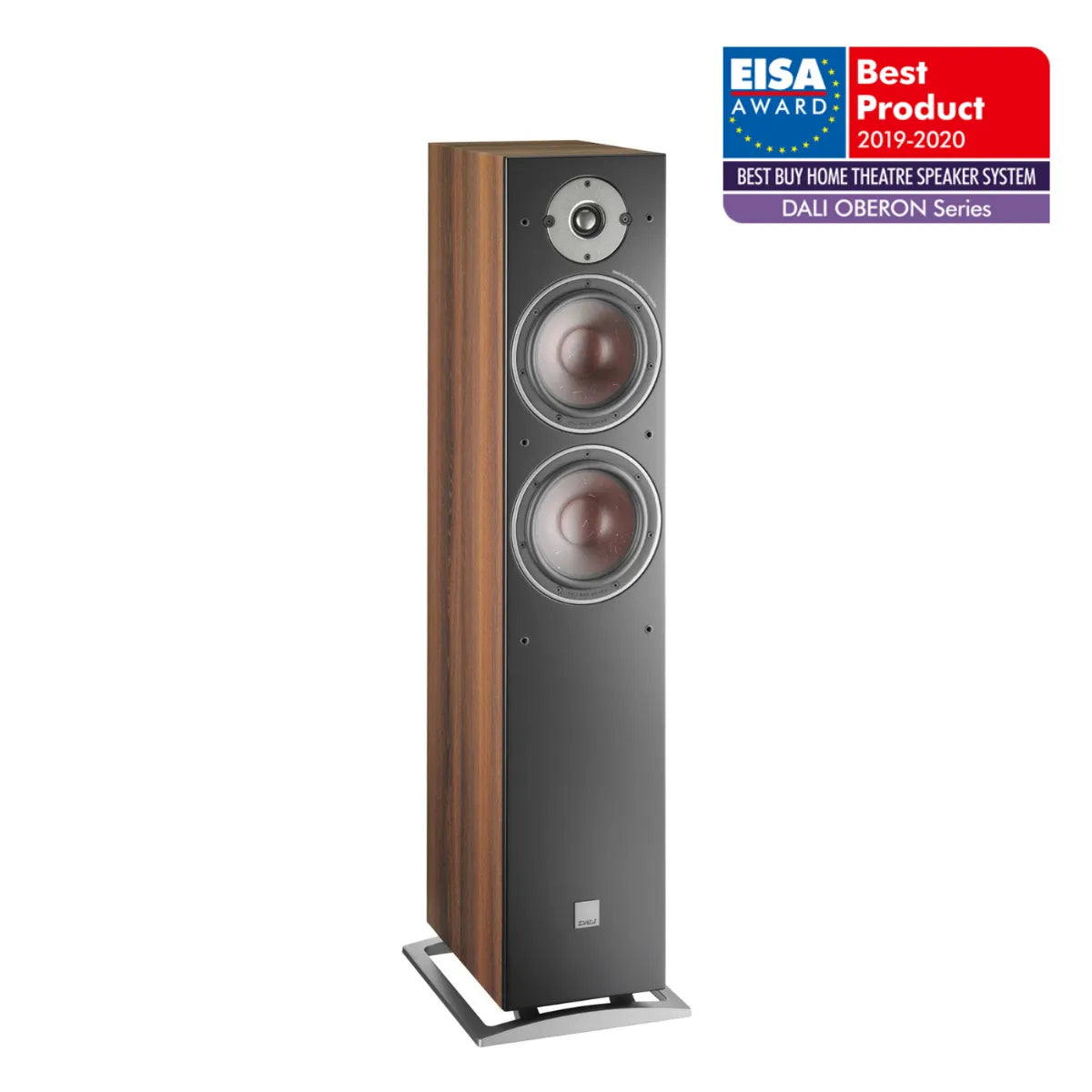

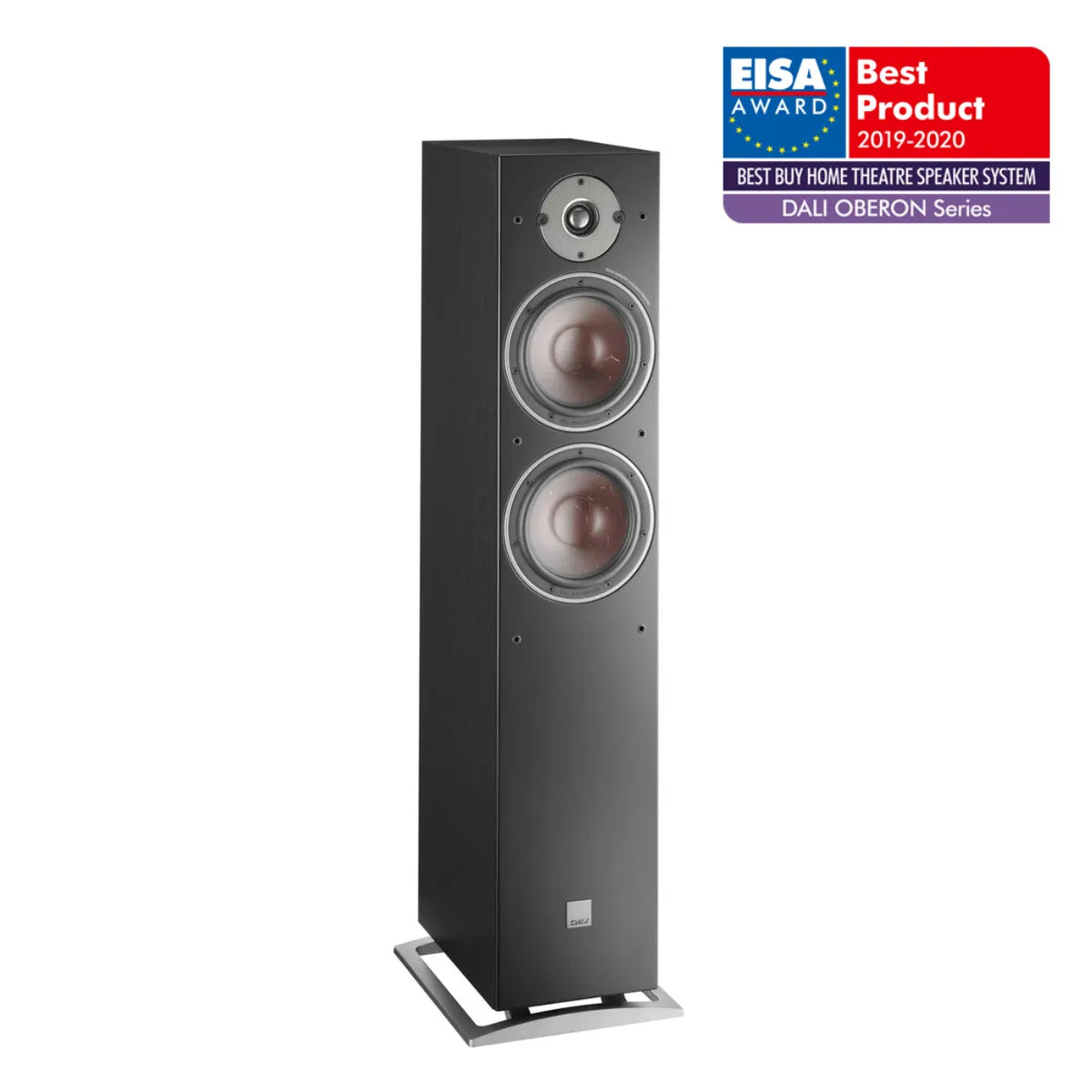

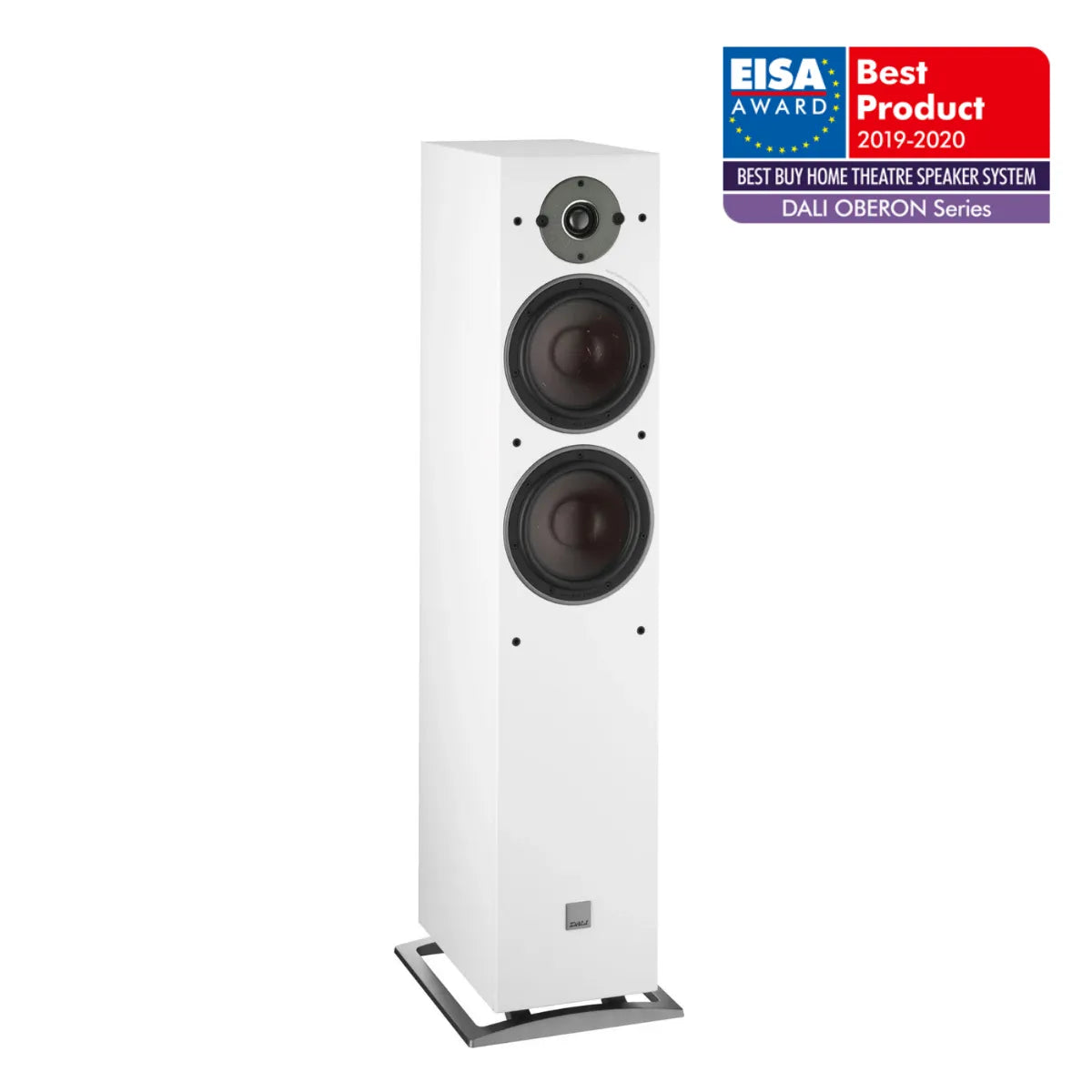

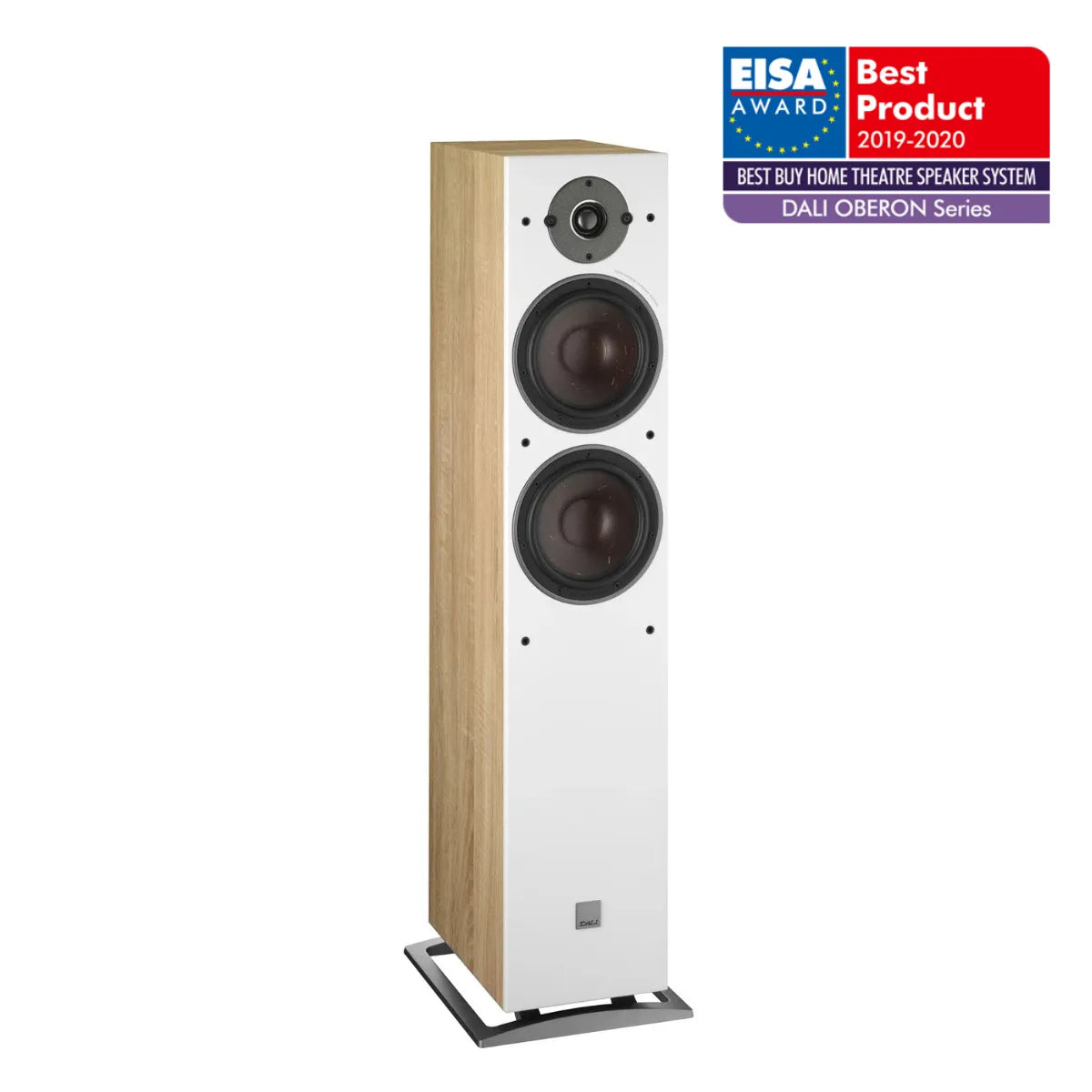

DALI OBERON 7, floor-standing speaker (various colors)

INFORMACIJA

A floorstanding speaker that delivers deep bass and great sound even in large rooms. Despite its physical size, it surprises with its subtle, natural and vibrant sound reproduction.

-Recommended amplifier power: 30-180 W
-Frequency range: (±3 dB): 36 - 26,000 Hz
-Sensitivity: (2.83V/1m): 88.5 dB
-Nominal impedance: 6 Ω
-Maximum SPL: 110 dB
-Filter frequency: 2,300 Hz
-Dimensions 200 x 1015 x 340 mm / Weight 14.80 kg.

Price for 1 piece
Minimum quantity 2pcs

DESCRIPTION

EASY INTEGRATION

Well-integrated sound, even off axis

With the OBERON 7, we've made it easy to integrate it into any room. The driver materials and geometry are purpose-designed to achieve a wide dispersion pattern. The same principles have been applied in the design of the crossover to deliver a well-integrated sound, even when listening at a significant off-axis angle. An added benefit of a wide dispersion pattern is that harmonic distortion and diffractions causing frequency distortion are significantly reduced, this is also the reason why DALI speakers are not designed to be toed in.

NEW WOOD FIBRE CONE

Optimized with new wood fiber structure

The OBERON 7 features two 7" low loss woofers optimized with a new wood fiber structured cone dedicated to reproducing the delicate midrange and bass frequency area. Constructed from a blend of fine-grain paper pulp reinforced with wood fibers, the woofer creates a stiff, yet lightweight structure. And when combined with the low loss surround and spider suspension, the OBERON 7 woofer reproduces the most minute details in the signal, unfiltered and with high accuracy.

REDUCING DISTORTION

Patented SMC (Soft Magnetic Composite)

The use of SMC (Soft Magnetic Composite) in the OBERON 7 greatly reduces mechanical distortion caused by hysteresis and eddy currents. The result is a magnet motor system with a drastic reduction in third-order distortion, allowing the OBERON 7 to deliver extended listening pleasure, a relaxed midrange and a surprising amount of detailing in its class.

OVERSIZED SOFT DOME

Combining proven technologies & features

The oversized 29 mm ultra-lightweight soft dome tweeter was specifically developed for the OBERON series, combining well-proven technologies from our existing DALI speakers with new features. The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice-coil motion to a controlled minimum. The tweeter front plate near the dome has been designed with similar geometry to the OPTICON and RUBICON tweeters to create the optimal working conditions for the soft dome. This results in extended frequency response, wide dispersion and low coloration.

OPTIMIZED CABINET

Cabinet design beyond 'just' good looks

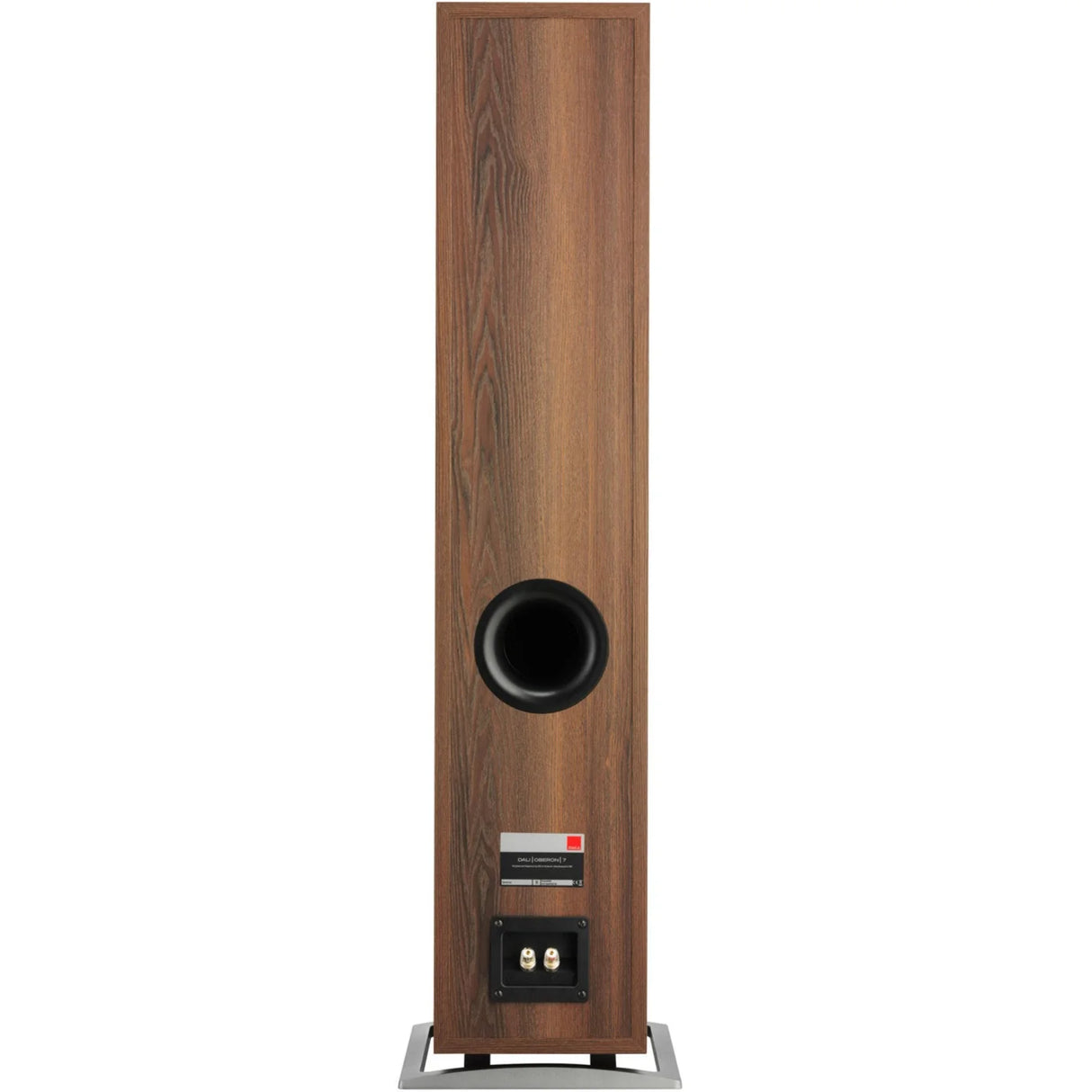

The OBERON 7 cabinet is constructed from a high density, CNC machined MDF board dressed in high-grade vinyl. The extremely rigid structure is achieved with solid bracing across the inside of the cabinet, which practically eliminates cabinet resonance. The bass ports at the rear of the cabinet optimize room integration by using a rear wall surface to improve bass performance. The elegantly shaped aluminum base also gives the floorstanding OBERON 7 a lighter, elevated look.

TECHNICAL DATA

Frequency Range [+/- 3] dB [Hz] 36 - 26,000

Sensitivity [2.83V/1m] [dB] 88.5

Maximum SPL [dB] 110

Recommended Amp. Power [Watts] 30 - 180

Crossover Frequencies [Hz] 2,300

Low Frequency/Midrange Driver(s) 2 x 7 inch

Nominal Impedance [ohms] 6

Crossover Principle 2-way

High Frequency Driver(s) 1 x 29mm soft dome

DOCUMENTS

User manual (EN)
