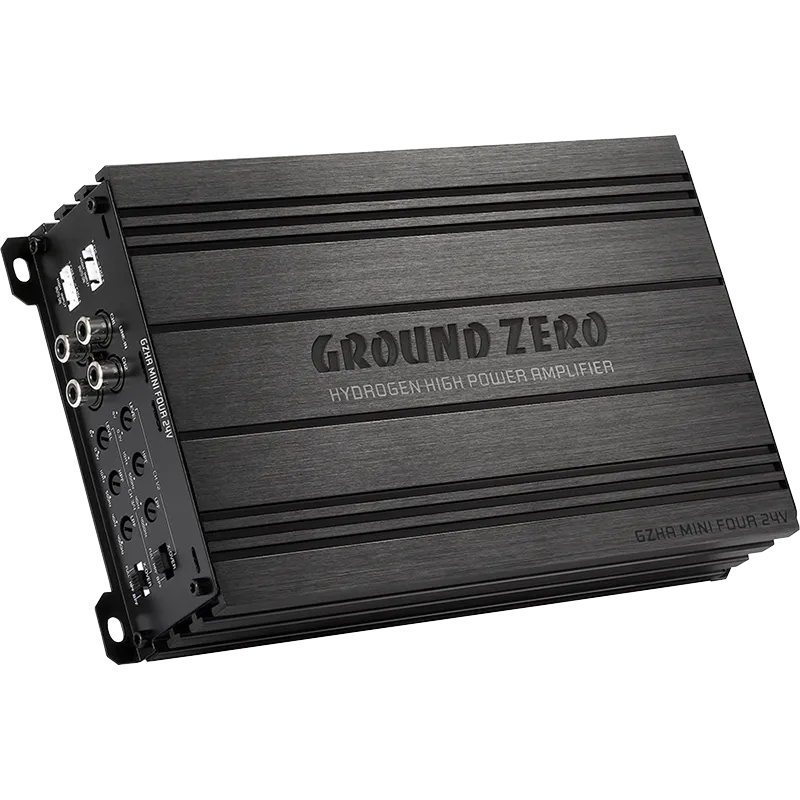

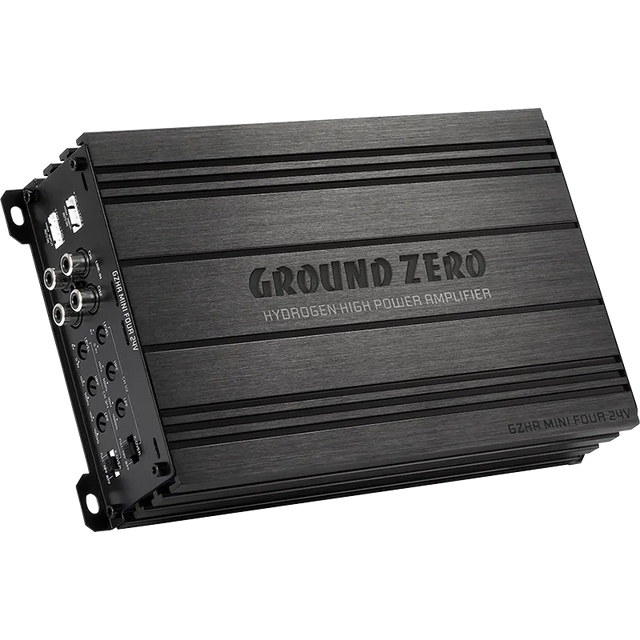

Ground Zero GZHA MINI FOUR 24V, car audio amplifier

4-channel car audio amplifier.
€349.00 EUR

Ground Zero GZHA MINI FOUR 24V, car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

4-channel car audio amplifier. The product is characterized by high performance and has an integrated active crossover and compact dimensions .

  • Power: 640W.
  • Frequency range: 5 Hz - 38 kHz.
  • Class D amplifier.
  • SMD components.

DESCRIPTION

4-channel amplifier with high efficiency class D circuit, integrated active crossover and compact dimensions

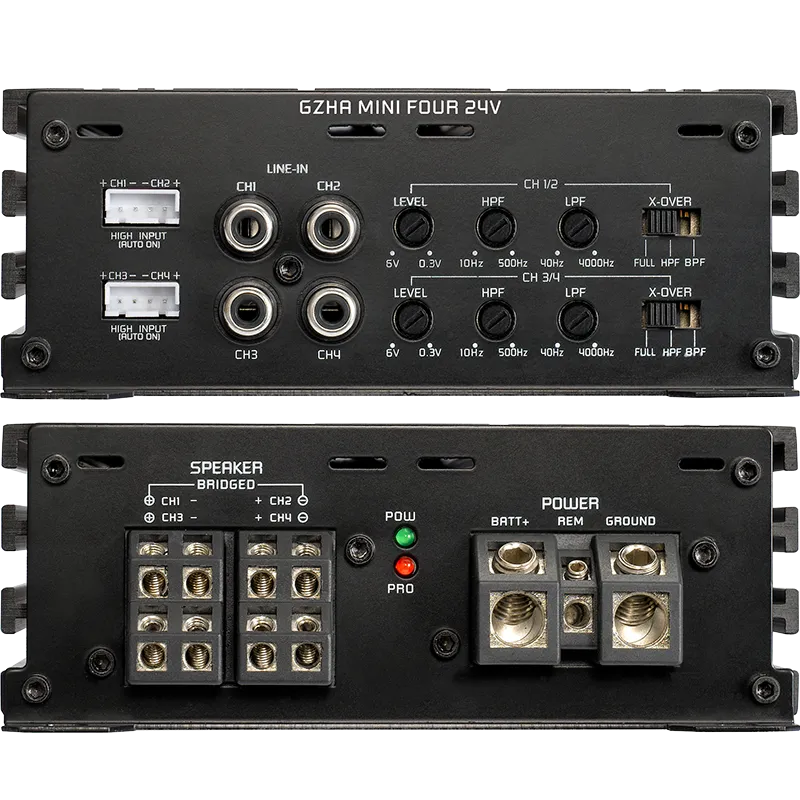

  • Compact sized 4-channel amplifier
  • SMD components
  • Class D technology
  • Variable active crossover and bass boost, phase shift
  • Stabilized power supply
  • Large terminals
  • Solid heatsink with engraved Ground Zero lettering
  • High-level input with auto-on function

        TECHNICAL DATA

        SPECIFICATIONS

        Model

        Compact class D amplifier

        Channels

        4

        Output Power (@ 2Ω)

        4x 130 Watts RMS

        max. Ausgangsleistung (CEA-2006A / 10%THD+N)

        640 Watts

        Frequency Response

        5 Hz - 38 kHz

        HPF / LPF / BPF

        ● / ● / ●

        Bass Boost / Phase Shift

        ○ / ○

        High-Level Input / Auto-on

        ● / ●

        Remote

        ○

        BIAS Setting

        ○

        Linkmode

        ○

        Dimensions (W x L x H)

        135 x 210 x 52 mm / 5.31 x 8.27 x 2.05"

        DOCUMENTS

        INSTRUCTIONS

        User Manual (EN).
