Ground Zero

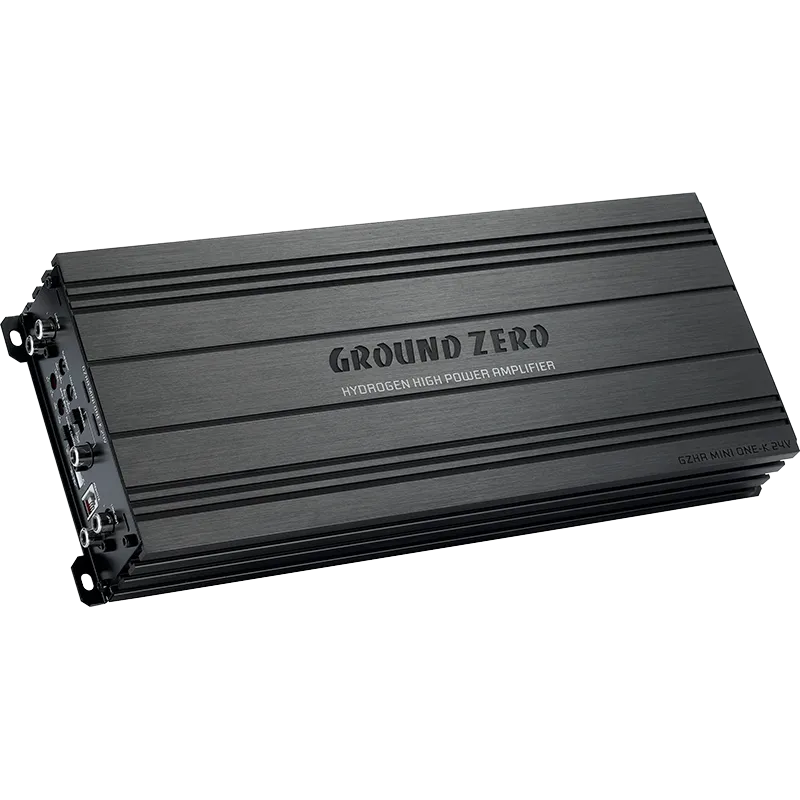

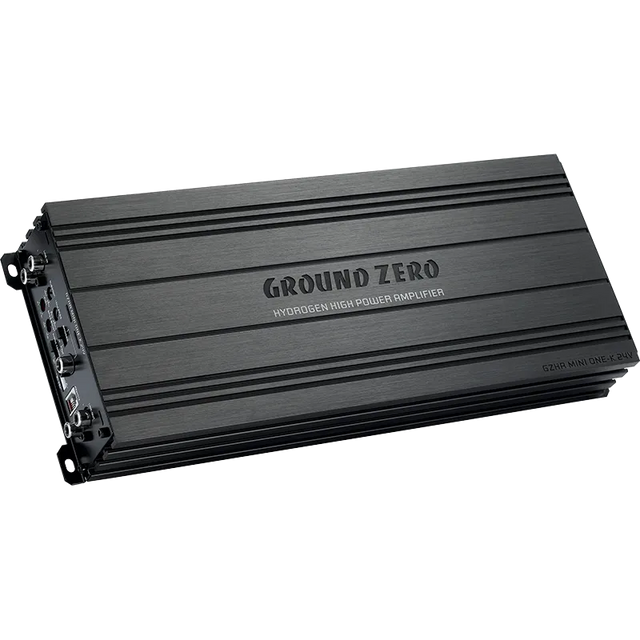

Ground Zero GZHA MINI ONE-K 24V, car audio amplifier

Single-channel car audio amplifier.
€349.00 EUR

Ground Zero GZHA MINI ONE-K 24V, car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. The product features high performance and has an integrated active crossover and compact dimensions .

  • Power: 1200W.
  • Frequency band: 10 Hz - 200 kHz.
  • Class D amplifier.
  • SMD components.

DESCRIPTION

1-channel subwoofer amplifier with high efficiency class D circuit, integrated active crossover and compact dimensions

  • Compact sized mono amplifier
  • SMD components
  • Class D technology
  • Variable active crossover and bass boost, phase shift
  • Link mode (for two amplifiers)
  • Stabilized power supply
  • Large terminals
  • Solid heatsink with engraved Ground Zero lettering
  • Bass remote control included
  • High-level input with auto-on function

          TECHNICAL DATA

          SPECIFICATIONS

          Model

          Compact class D amplifier

          Channels

          1

          Output Power (@ 4Ω)

          340 Watts RMS

          Output Power (@ 2Ω)

          600 Watts RMS

          Output Power (@ 1Ω)

          1000 Watts RMS

          max. Ausgangsleistung (CEA-2006A / 10%THD+N)

          1200 Watts

          Frequency Response

          10 – 200 Hz

          HPF / LPF / BPF

          ● / ● / ●

          Bass Boost / Phase Shift

          ● / ●

          High-Level Input / Auto-on

          ● / ●

          Remote

          ●

          BIAS Setting

          ○

          Linkmode

          ●

          Dimensions (W x L x H)

          135 x 322 x 52 mm


          DOCUMENTS

          INSTRUCTIONS

          User Manual (EN).
