Ground Zero  |  Bar code: 4037072025453

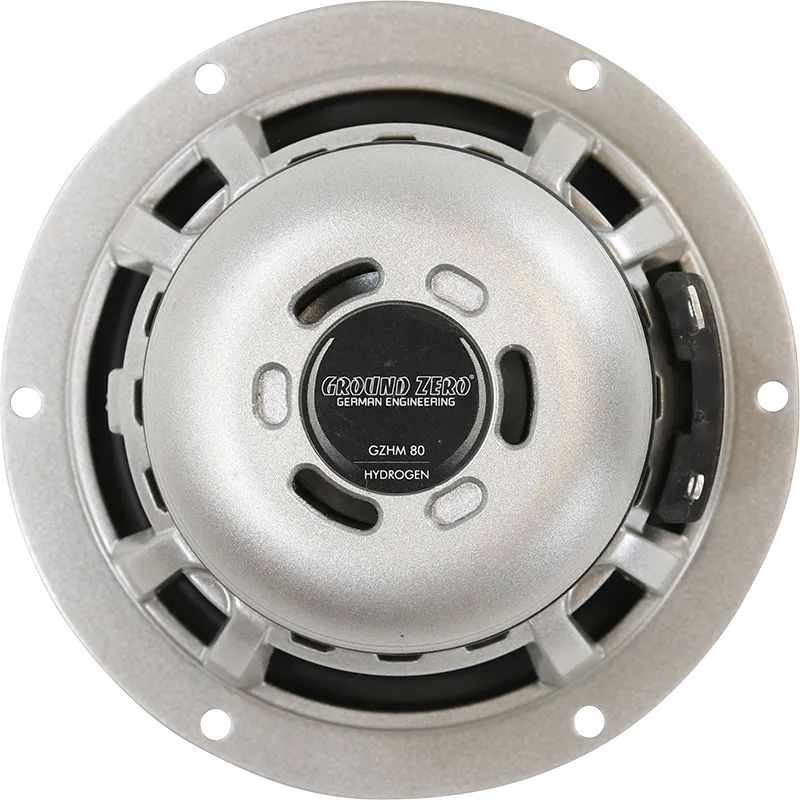

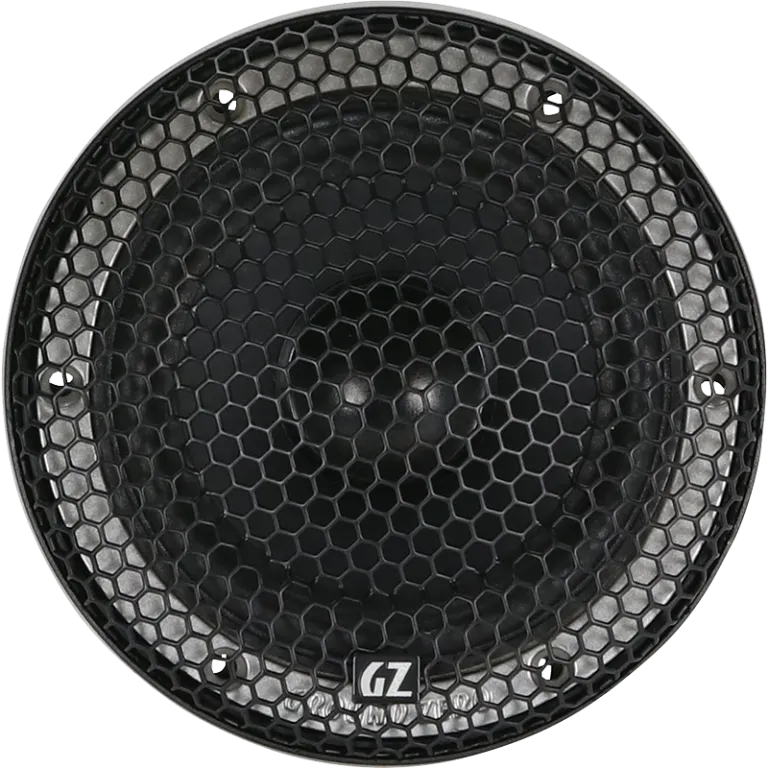

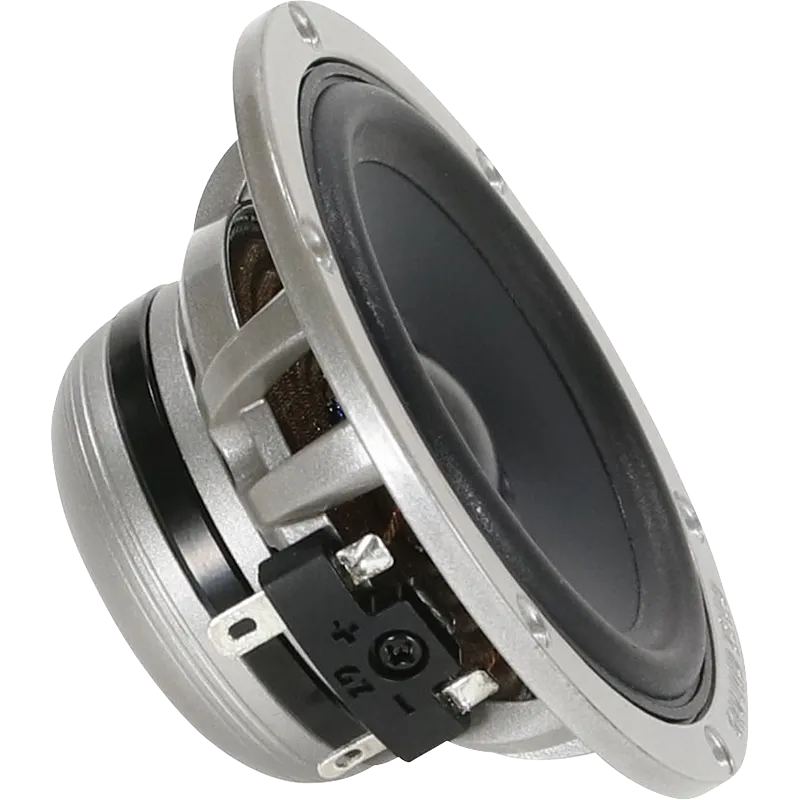

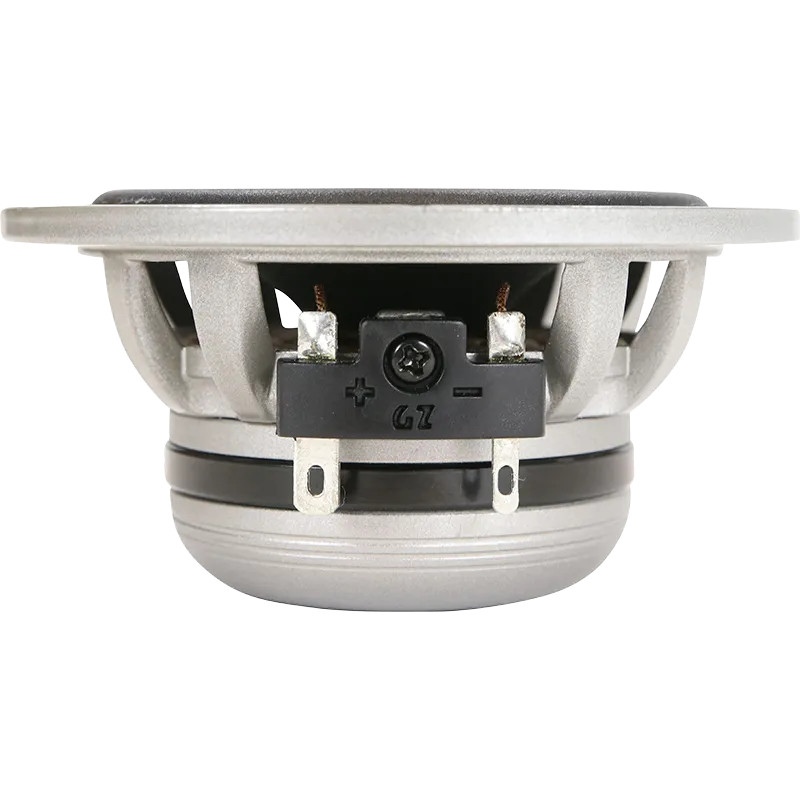

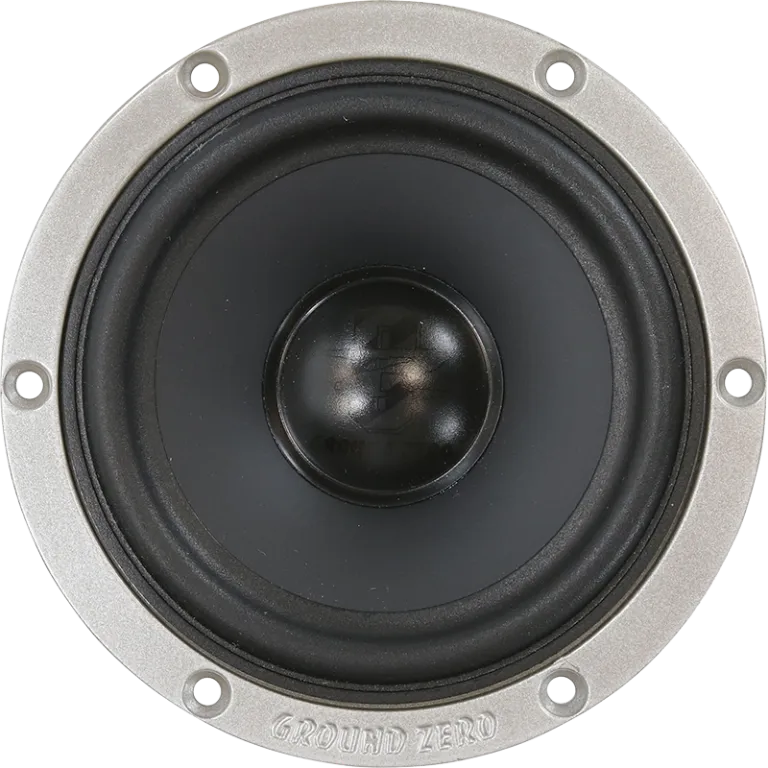

Ground Zero GZHM 80

High-quality midrange speaker with paper cone and neodymium motor ensures rich sound. Klippel® optimized design and cast aluminum basket guarantee durability and excellent sound reproduction.

€229.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

3.15″ Sound Quality Midrange with Paper Cone

80 mm / 3.15″ Sound Quality Midrange
Klippel® optimized
Paper cone
Neodymium motor
GZ design aluminum cast basket
25 mm / 0.79″ copper voice coil
Durable rubber surround
GZ design hexagonal NRG protection grille
1 pair / package

Technical data

Speaker type 80 mm / 3.15” SQ midrange loudspeaker
Impedance (nominal) 4 ohms
Frequency response 170 Hz – 5 kHz
Basket Aluminum cast
Cone Pressed paper
Motor Neodymium
Voice coil Ø 20 mm / 0.79“
Power handling (RMS) 50 Watts (with 12dB/oct HPF)
Power handling (max.) 80 Watts (with 12dB/oct HPF)
Technical Parameters (TSP)
Resonance frequency 106 Hz
Efficiency (SPL) 89 dB
Re 3.5 Ohm
Qms 5.58
Qes 0.32
Qts 0.30
Vas 1.50 L
Mms 2.90 g
BL 4.54 N/A
Rms 0.34 kg/s
Cms 0.79 mm/N
LE 0.11 mH
Xmax (excursion) 7 mm (gesamt)
