Ground Zero  |  Bar code: 4037072023824

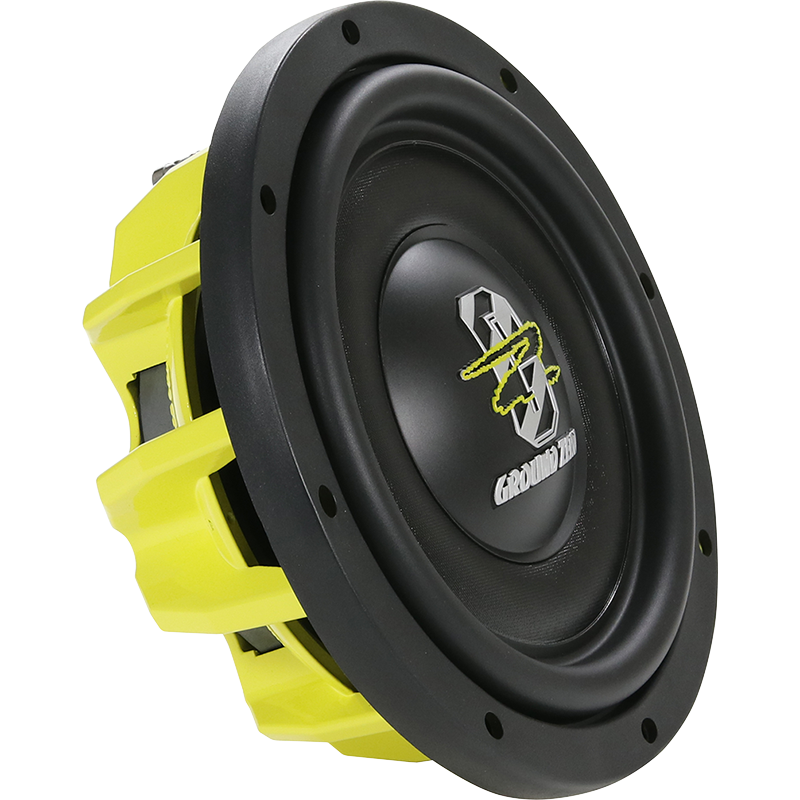

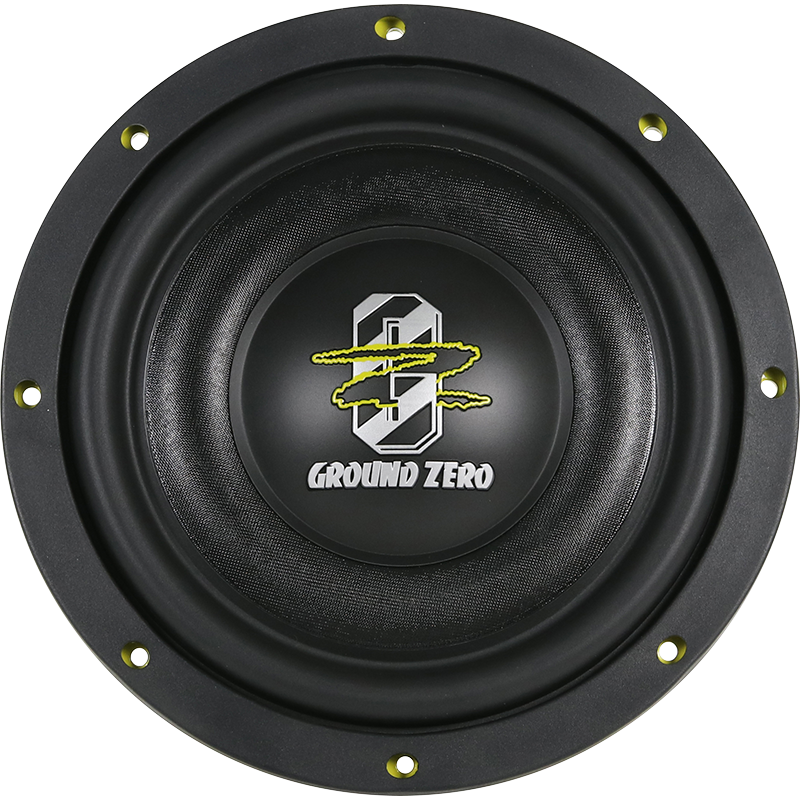

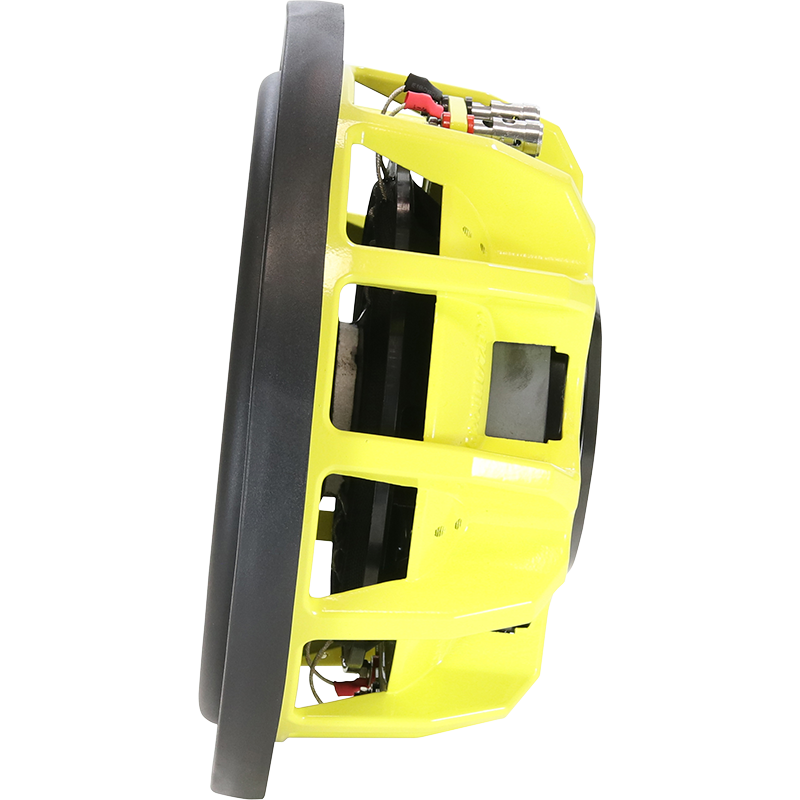

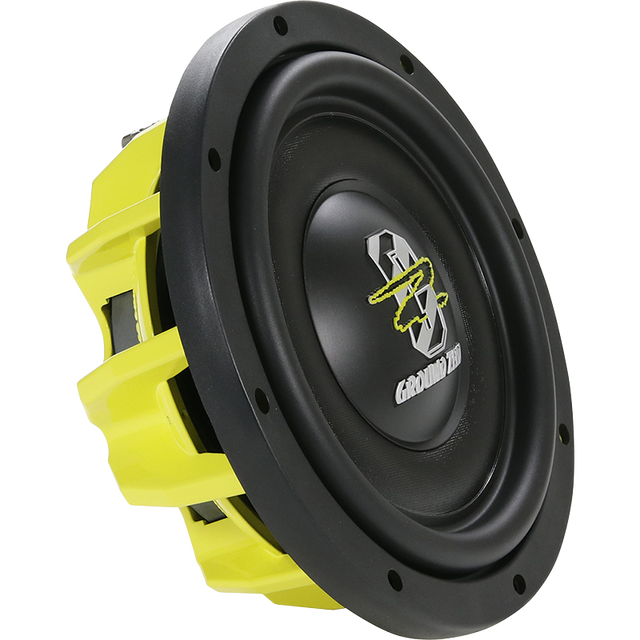

Ground Zero GZHW 10SPL-D2 FLAT

Naujas "Hydrogen" serijos plokščias subwooferis puikiai tinka ribotos erdvės automobiliams, suteikdamas galingą garsą. Jo konstrukcija užtikrina aukštą kokybę ir ilgaamžiškumą

€299.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The new HYDROGEN series GZHW 10SPL-D2 FLAT subwoofer solves the problem of cramped mounting space, which requires a shallow box for the subwoofer. Equipped with a powerful motor and high voice, known from existing Hydrogen SPL series subwoofers, this model can handle power up to 1000 Watt SPL


10″ high-quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shaped rubber surround
Solid cast aluminum basket
63 mm / 2.5″ copper voice coil
4-layer copper voice coil
Push terminal

Box recommendation:

Vented: 17 liters net / 0.60 cu.ft. net
Port 1 x 70 mm / 1 x 2.76”
Port length* 300 mm / 11.81”
Frequency 39 Hz


Sealed (minimum)
15 liters net / 0.53 cu.ft. net

NOTE! Works from 9 liters in a sealed box!

Technical specifications

Model
High-Quality Flat SPL Subwoofer

Diameter
25 cm / 10″

Power Handling (RMS/SPL.)
600 / 1000 Watts

Impedance
2x 2 Ohms

Efficiency
85 dB

Power Recommendation
400 – 1000 Watts

Voice Coil
63 mm / 2.5″ Copper

Max. Excursion (Xmax)
29 mm / 1.14″

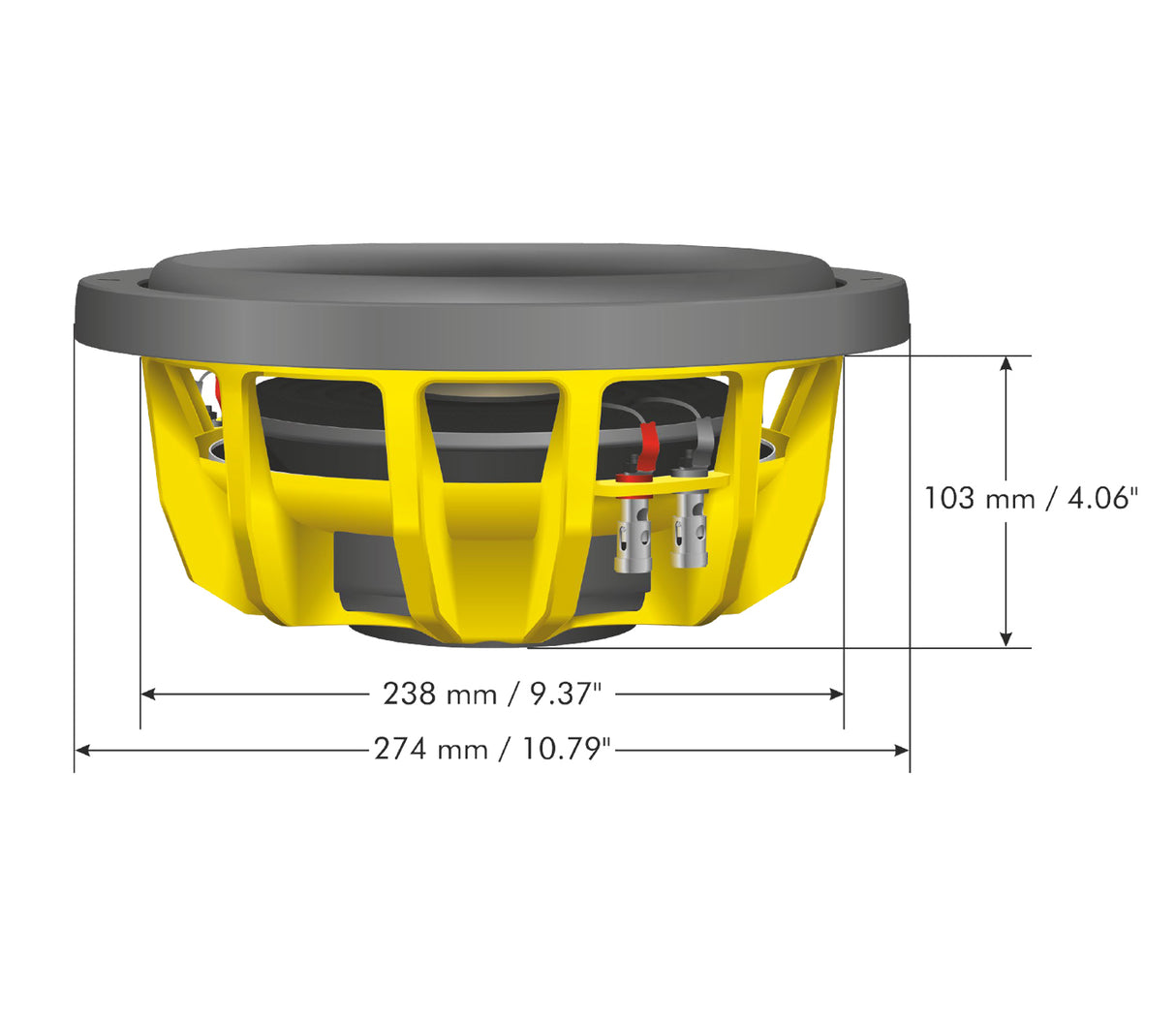

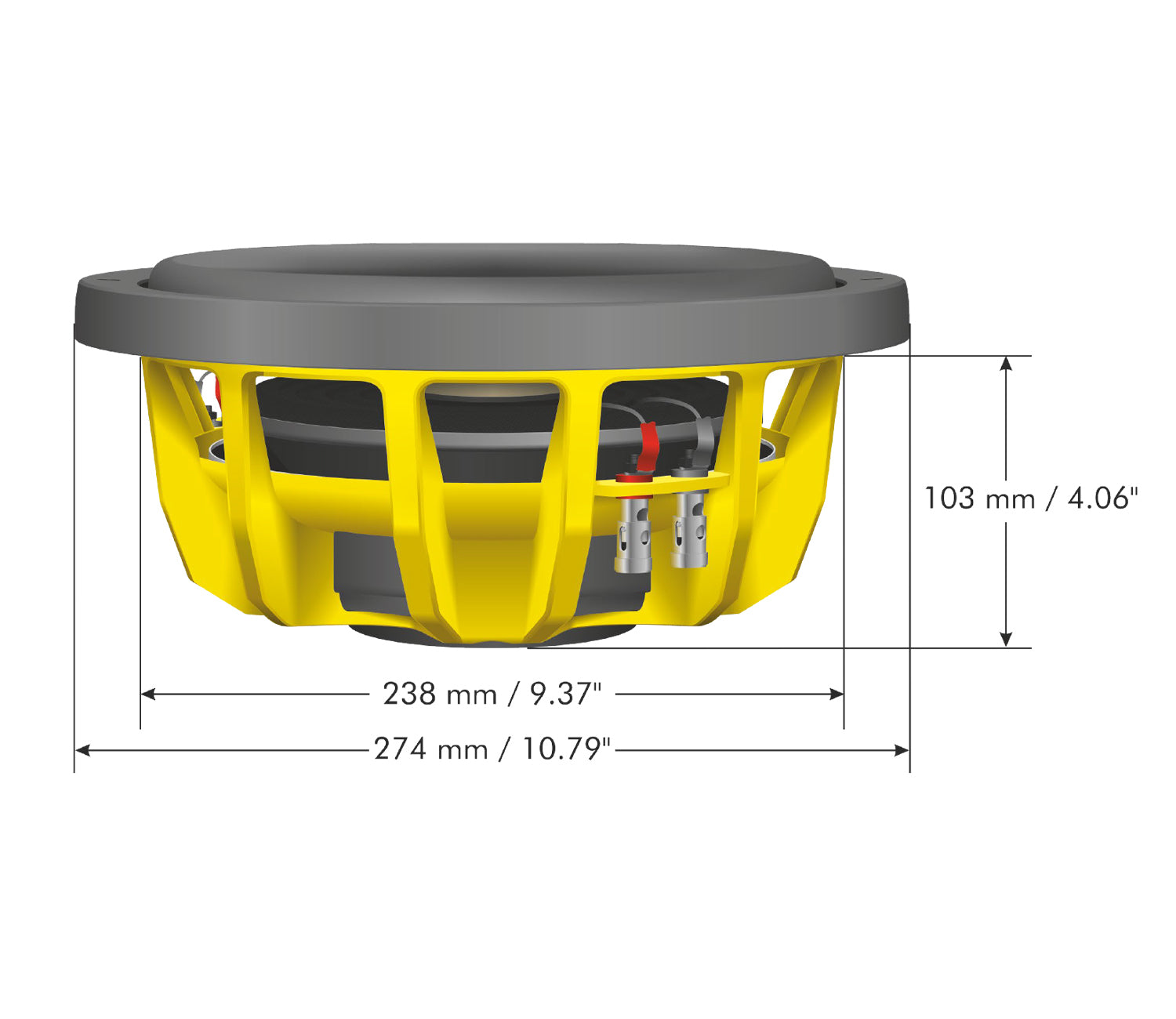

Mounting Ø
238 mm / 9.37″

Mounting Depth
103 mm / 4.06″

Resonance Frequency (Fs)
35.5 Hz

Overall Quality (Qts)
0.434

Equiv. Air Volume (Vas)
19.7 L / 0.70 cu.ft..
