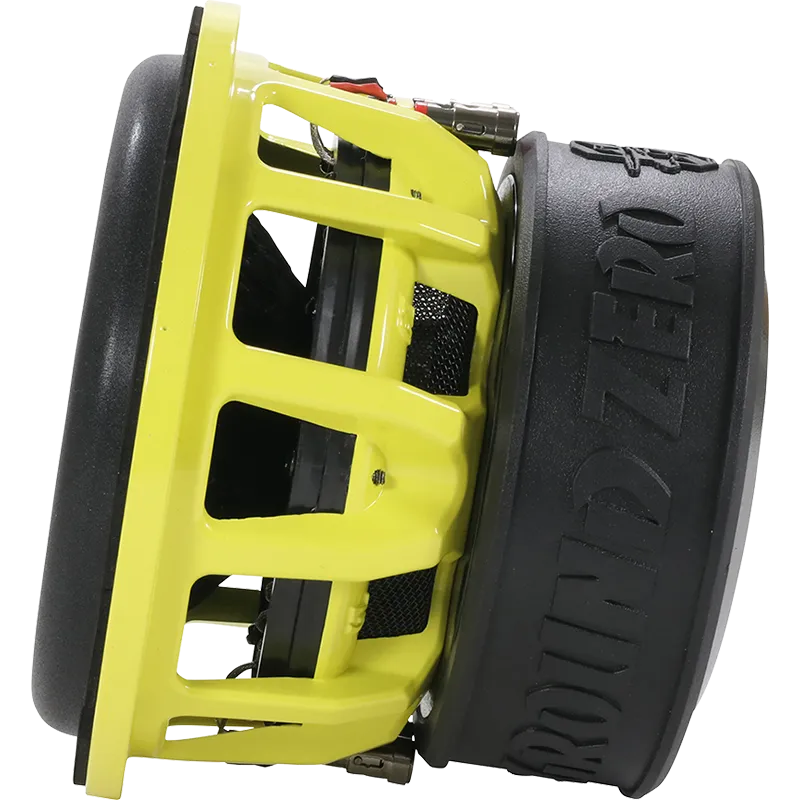

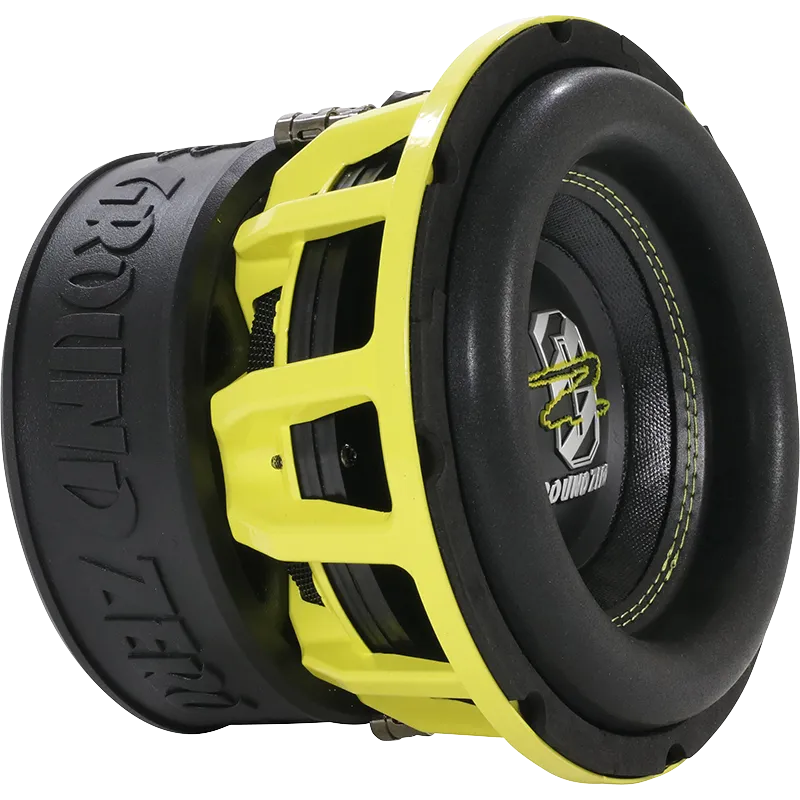

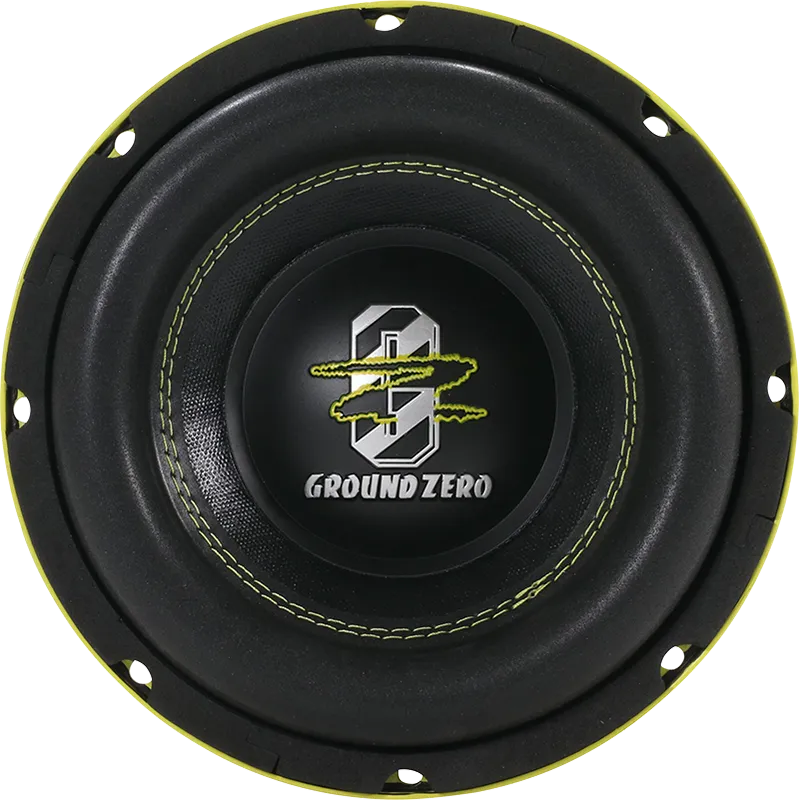

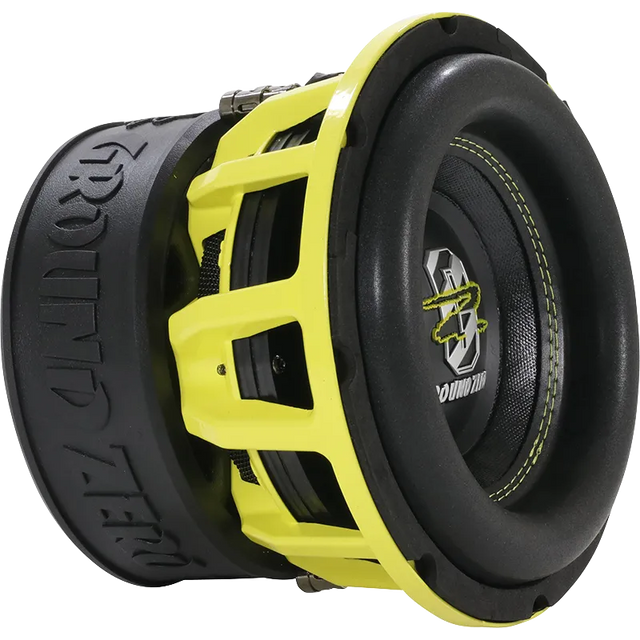

Ground Zero GZHW 20XSPL-D1 Car Subwoofer

8″ inch high-end SPL car subwoofer.
€229.00 EUR

Ground Zero GZHW 20XSPL-D1 Car Subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

8″ inch high-end SPL car subwoofer.

  • Klippel® technology.
  • Aluminum body.
  • Reinforced speaker elements.
  • IMPP dust protection.

DESCRIPTION

Properties

  • 8″ high quality SPL subwoofer
  • Klippel® optimized
  • Reinforced paper cone
  • Long stroke compound surround
  • Solid aluminum cast basket
  • 63 mm / 2.5″ copper voice coil
  • 2-layer Polycot spider
  • IMPP dust cap with 3D structure logo

TECHNICAL DATA

SPECIFICATIONS

Model

High-Quality SPL subwoofer

Diameter

20 cm / 8"

Power Handling (RMS/SPL.)

700 / 1500 Watts

Impedance

2x 1 Ohms

Efficiency

80 dB

Power Recommendation

50 - 1500 Watts

Voice Coil

63 mm / 2.5" Copper

Membrane Layout

Reinforced paper

Max. Excursion (Xmax)

40mm / 1.57"

Mounting Ø

187mm / 7.36"

Mounting Depth

145mm / 5.71"

Resonance Frequency (Fs)

38.3 Hz

Overall Qaulity (Qts)

0.381

Equiv. Air Volume (Vas)

4.77 L / 0.17 cu.ft.
