Ground Zero

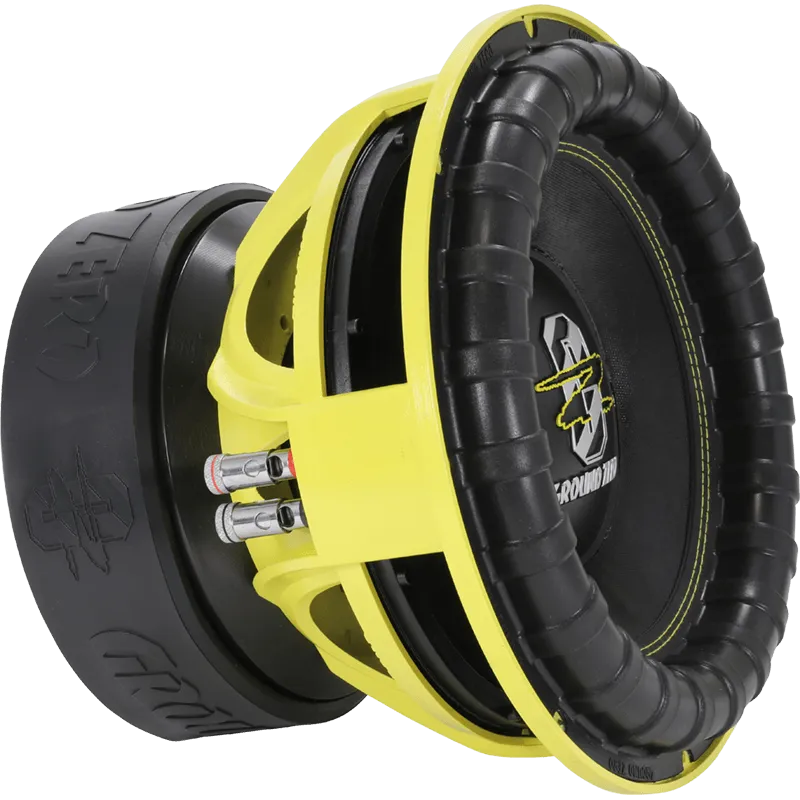

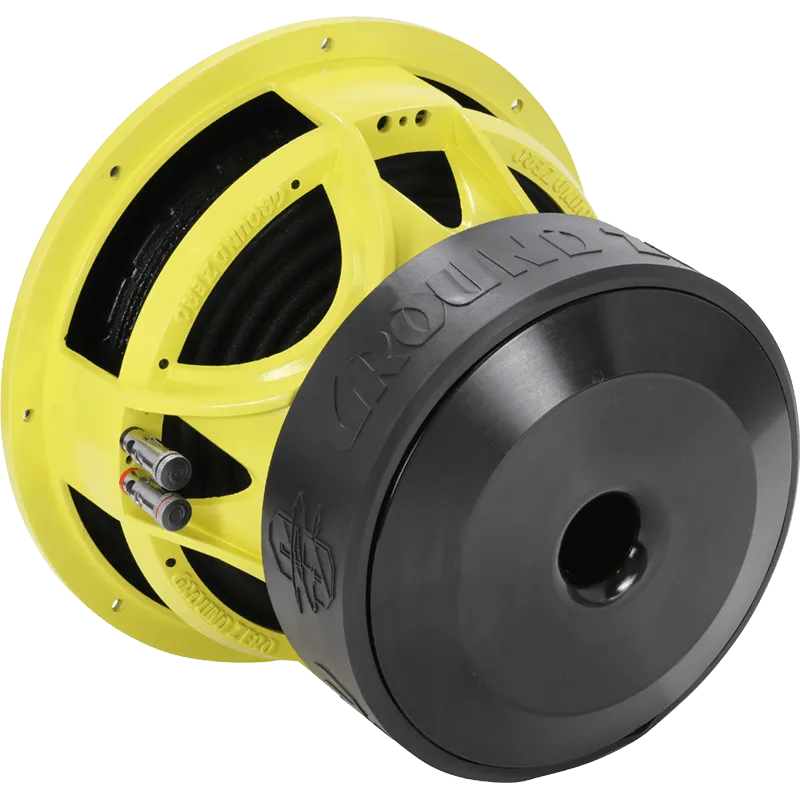

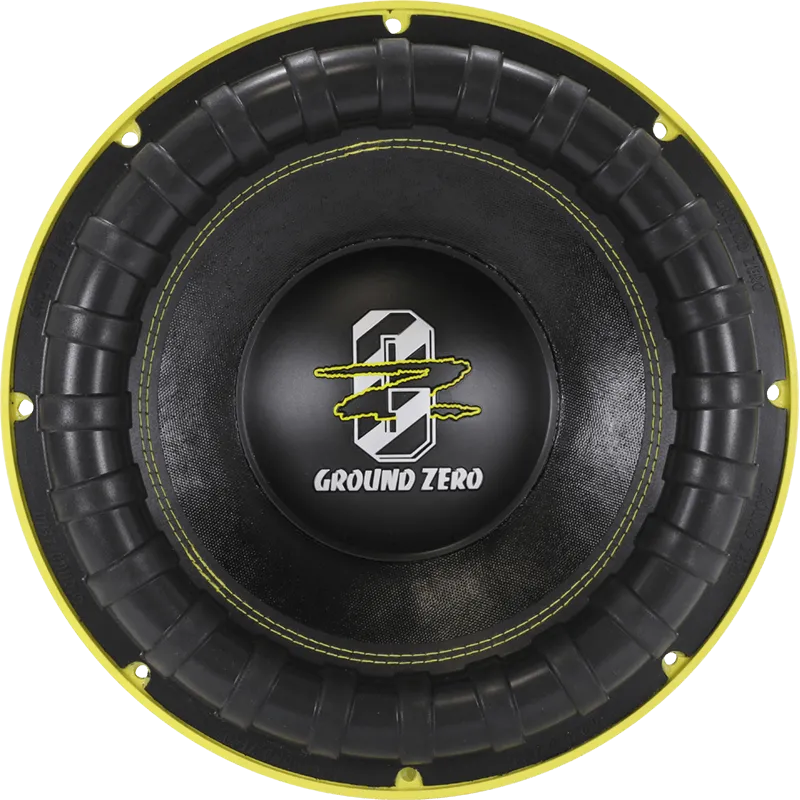

Ground Zero GZNW 12SPL-Xflex, car subwoofer

High performance SPL woofer with aluminum housing.
€599.00 EUR

Ground Zero GZNW 12SPL-Xflex, car subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

High performance SPL woofer with aluminum housing.

  • 12″ SPL woofer
  • Klippel® technology.
  • IMPP dust protection.
  • SPL Xflex surround technology.

DESCRIPTION

PROPERTIES

  • 12″ SPL subwoofer
  • Klippel® optimized
  • Reinforced paper cone
  • SPL Xflex surround
  • Solid aluminum cast basket
  • 75 mm / 3″ CCA round wire voice coil
  • 4-layer progressive spider
  • IMPP dust cap with 3D structure logo

TECHNICAL DATA

SPECIFICATIONS

Model

High-Performance SPL Subwoofer

Diameter

30 cm / 12"

Power handling (RMS/SPL)

2500 / 4500 Watts

impedance

2x 1 Ohms

Efficiency

87 dB

Power recommendation

1500 - 4500 Watts

Voice coil

75mm / 3" CCA

Cone

Fiber reinforced paper

Max. Excursion (Xmax)

60 mm

Einbautiefe

226 mm

Resonance frequency (Fs)

33.9 Hz

Dampfungsgrad (Qts)

0.361

Equiv. Luftvolumen (Vas)

27.3 L


User manual / User manual.
