Ground Zero  |  Bar code: 4037072026856

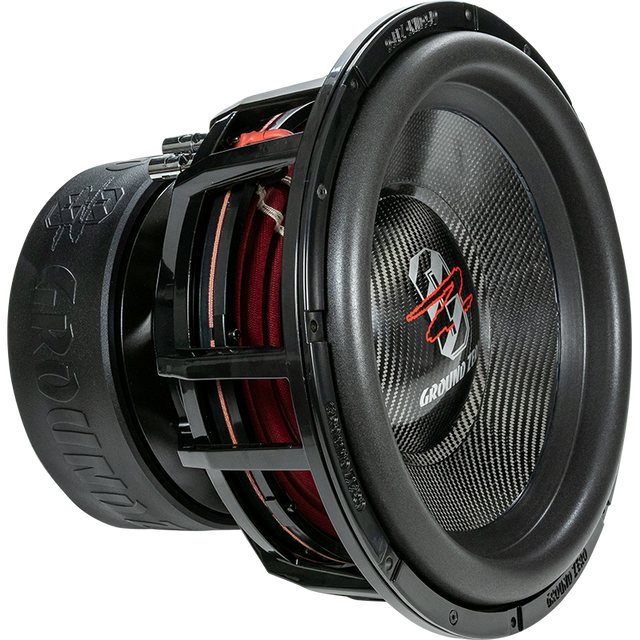

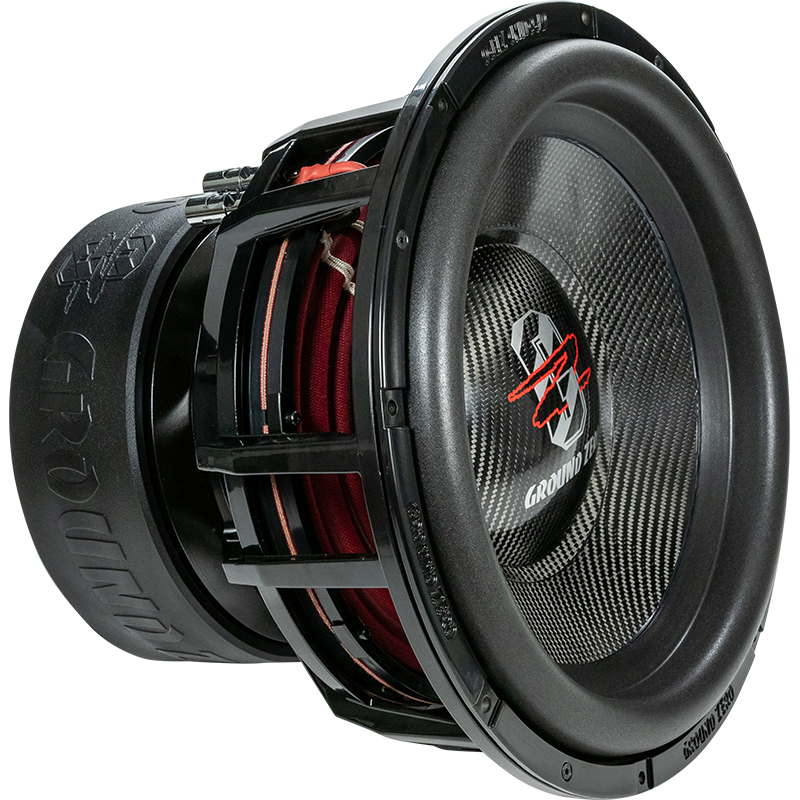

Ground Zero GZNW 38C

The new 15-inch Ground Zero subwoofer from the Nuclear series features a completely redesigned architecture and optimized airflow. A robust carbon fiber cone and reinforced spider ensure increased power and endurance.

€999.00 EUR
Pristatymas per 4–8 darbo dienas

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The GZNW 38C is a new 15″ subwoofer from the Nuclear series that will leave no one indifferent!

This subwoofer has been completely redesigned:

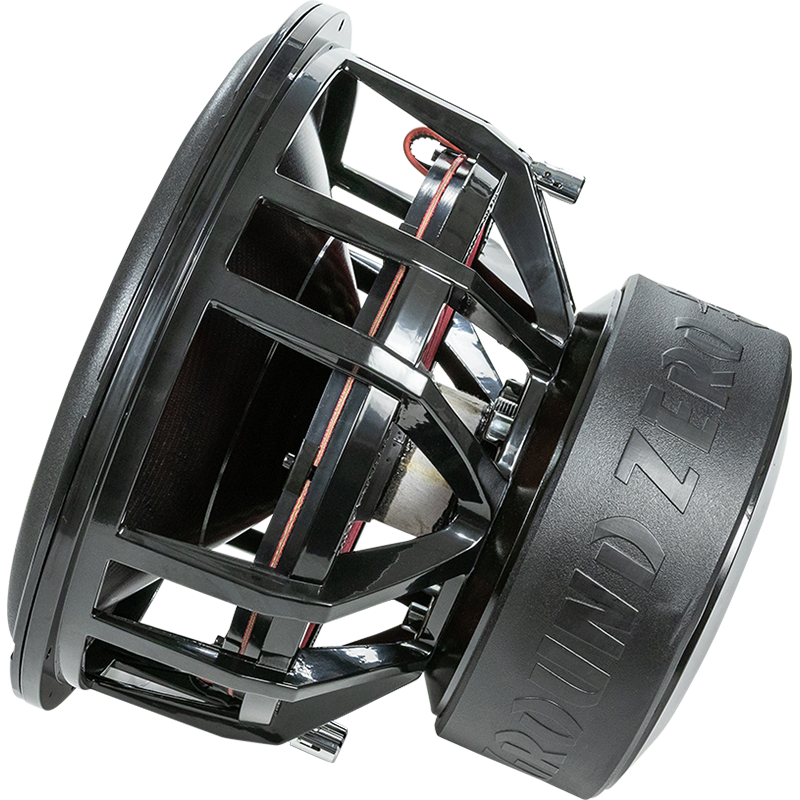

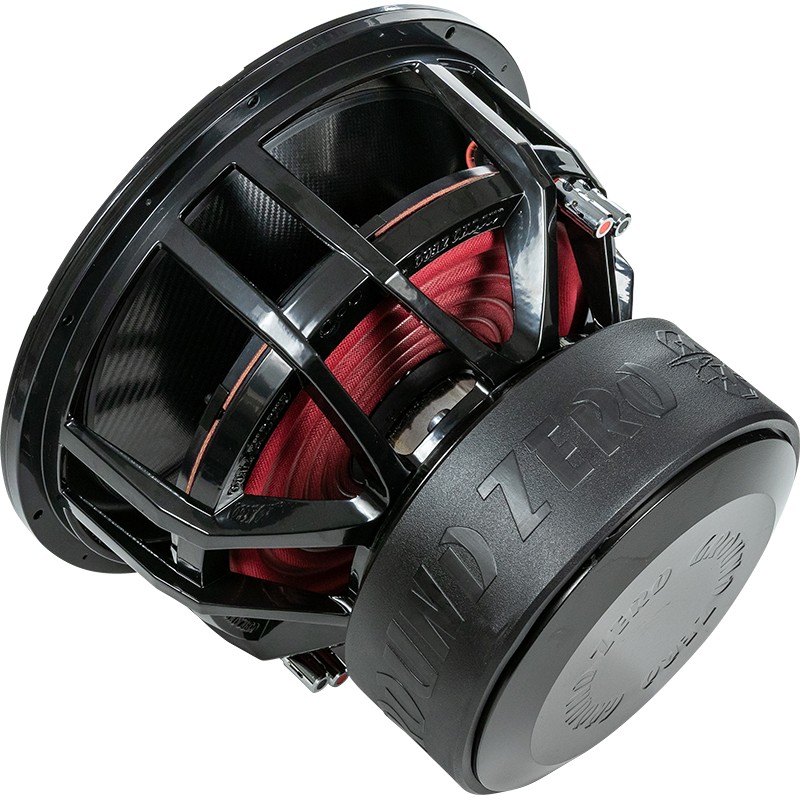

Redesigned, airflow-optimized cast aluminum basket.
Thanks to the airflow-optimized basket, this subwoofer breathes better than previous models = more SPL!

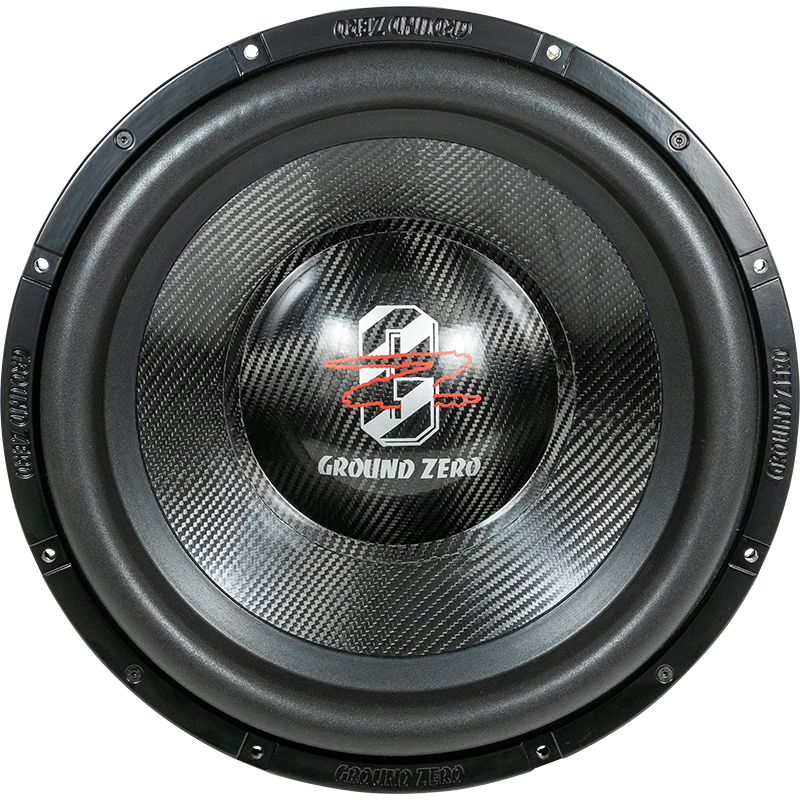

Extremely rigid and lightweight carbon fiber cone = can withstand even higher pressures and movements without problems.

Stronger 7-layer 12″ spider (4 layers in previous models).

New 75 mm / 3″, 8-layer flat wire CCA voice coil (4 layers in previous models) = the continuous power handling of this generation of GZNW subwoofers has increased from 3500 W in the previous model to 6000 W!

These subwoofers were developed using Klippel optimization. Testing periods last 10 hours, during which the power endurance of the element is exceeded fourfold, and its behavior is examined through numerous different measurements. This allows weaknesses to be eliminated already at the planning stage.

Technical data

Type High-Performance SPL Subwoofer
Diameter 38 cm / 15″
Power handling (RMS/SPL) 6000 / 25000* Watts
Impedance 2x 1 Ohm
Efficiency 86 dB
Power recommendation 3000 – 6000 Watts
Voice coil 75 mm / 3″ CCA
Cone Carbon-fiber
Max. excursion (Xmax) 80 mm / 3.15″
Mounting Ø 360 mm / 14.17″
Mounting depth 290 mm / 11.42″
Resonance frequency (Fs) 33 Hz
Damping ratio (Qts) 0.38
Equiv. air volume (Vas) 23 L / 0.81 cu.ft.

Enclosure recommendation:
Bass reflex 116 Liter net
Port (dimensions): 242 x 130 mm
Port length: 400 mm
F3 (-3 dB): 33 Hz
