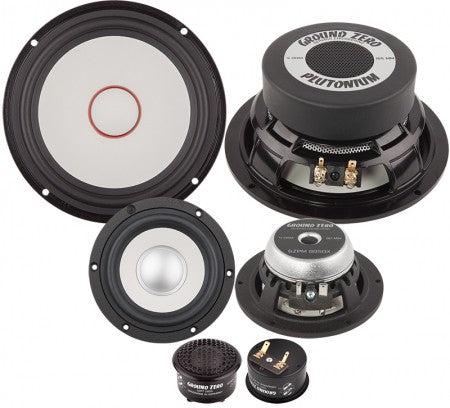

Ground Zero GZPC 16.3SQ-ACT
Ground Zero GZPC 16.3SQ-ACT - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- 6.5” Woofer with aluminium-ceramic cone and linear ferrite motor (GZPK 16SQ)
- 3.15” Midrange with magnesium cone and compact neodymium motor (GZPM 80SQX)
- Resonance-free cast basket
- Rubber surround and connex spiders
- 1.1” tweeter with coupled chamber and 2-layer coated silk dome (GZPT 28SX)
- Speakers validated with Ground Zero’s proprietary Klippel system.
Specifications
3 Way compo
Diameter of midwoofer or midrange165 mm / 6.5″ (Woofer) - 80 mm / 3.15″ (Mid)
Mounting diameter of midwoofer or midrange 143,5 mm / 5.65″ (Woofer) - 94 mm / 3.7″ (Mid)
Mounting depth of midwoofer or midrange 68 mm / 2.68” (Woofer) - 34 mm / 1.34″ (Mid)
Voice coil of midwoofer or midrange 36 mm / 1.42″ (Woofer) - 25 mm / 1″ (Mid)
Cone of midwoofer or midrange Alu-ceramic (Woofer) - Magnesium (Mid)
Dustcap / Phaseplug of midwoofer or midrange Alu-ceramic (Woofer) - IMPP (Mid)
Basket of midwoofer or midrange Aluminum cast
Magnet of midwoofer or midrange Ferrit (Woofer) - Neodym (Mid)
Diameter of tweeter 54 mm / 2.1”
Mounting diameter of tweeter 48 mm / 1.89″
Mounting depth of tweeter 48 mm / 1.89”
Voice coil of tweeter 28 mm / 1.1″
Cone of tweeter Hand coated silk
Housing of tweeter Black matt anodized
Magnet of tweeter Dual Neodym
Power handling W RMS 130 (Woofer) / 70 (Mid) / 100 (TW)
Power handling W peak 210 (Woofer) / 110 (Mid) / 150 (TW)
Impedance4 Ohm
SPL 90 (Woofer) / 87 (Mid) / 90 (TW).
