Ground Zero

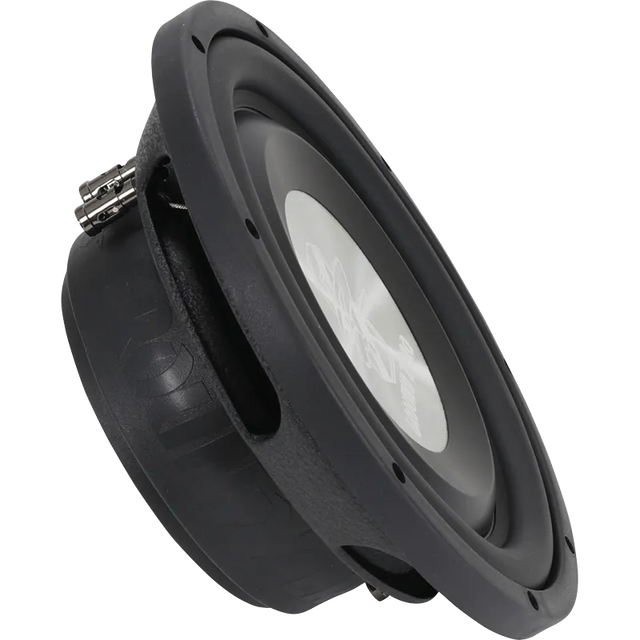

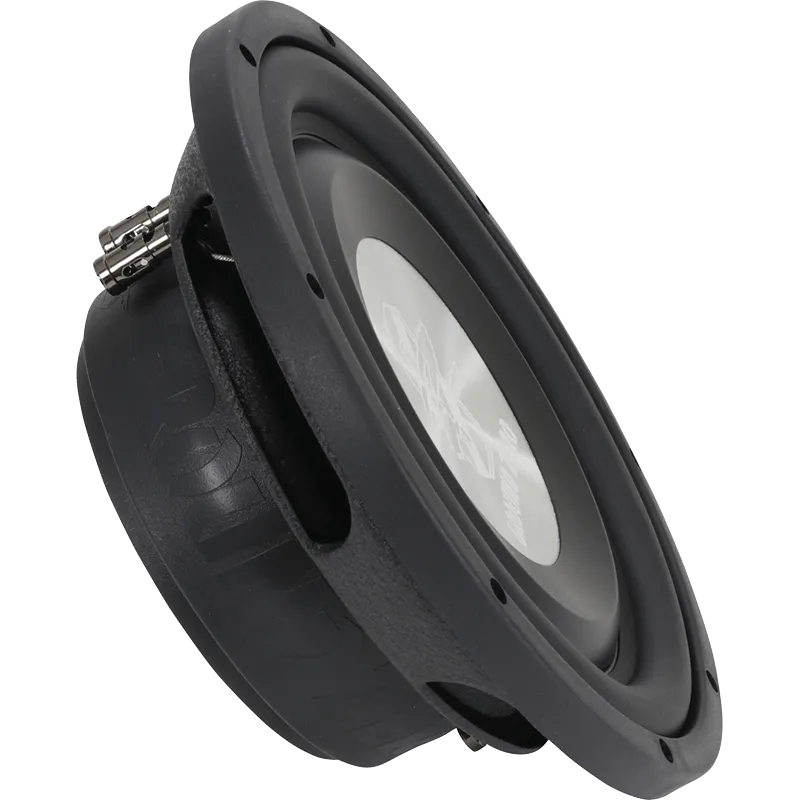

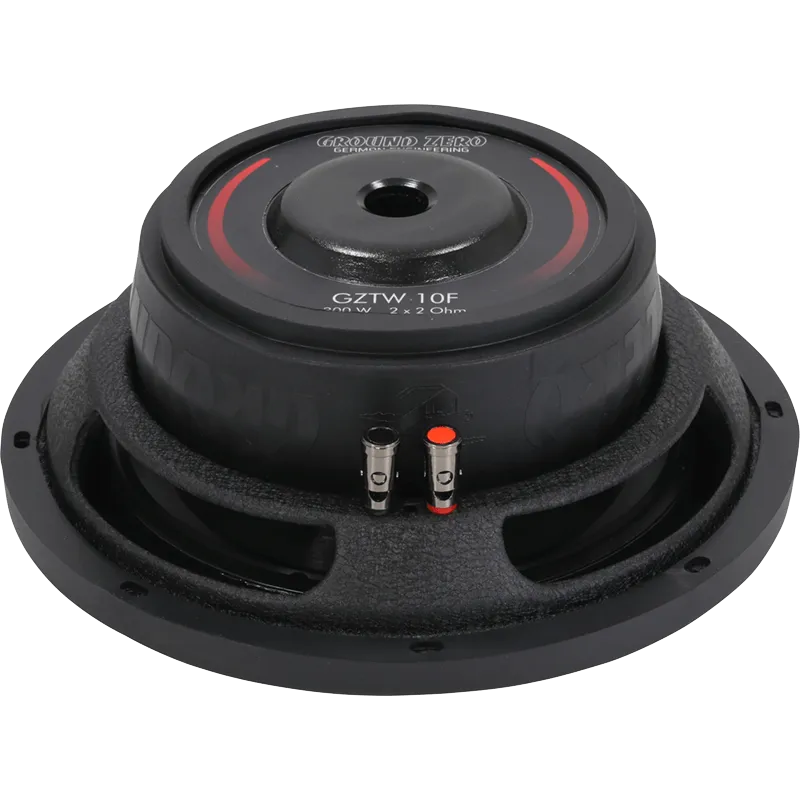

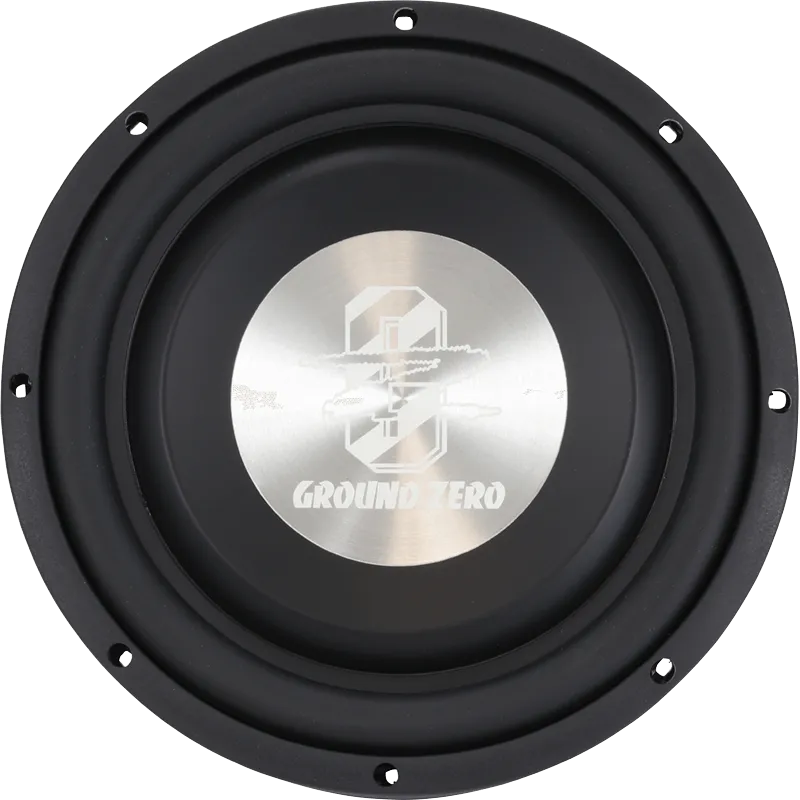

Ground Zero GZTW 10F, car (flat) subwoofer

25 cm / 10" high-end, flat design car subwoofer.
€129.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

25 cm / 10" high-end, flat design car subwoofer.

  • Power: 300W (2x 2 ohms).
  • Performance: 87.5 dB.
  • Klippel® technology.
  • Made in Germany.

DESCRIPTION

10″ high quality subwoofer with high-strength, extremely flat IMPP cone

  • 10″ high quality flat subwoofer
  • Klippel® optimized
  • IMPP cone
  • Rubber surround
  • Resonance free steel basket
  • 50 mm / 2″ copper voice coil
  • Shallow installation depth
  • Push terminal

                                      TECHNICAL DATA

                                      SPECIFICATIONS

                                      Model

                                      High-Quality Flat Subwoofer

                                      Diameter

                                      25 cm / 10"

                                      Power Handling (RMS)

                                      300 Watts

                                      Impedance

                                      2x 2 Ohms

                                      Efficiency

                                      87.5 dB

                                      Power Recommendation

                                      150 - 450 Watts

                                      Voice Coil

                                      50 mm / 2" copper

                                      Membrane Layout

                                      IMPP

                                      Max. Excursion (Xmax)

                                      30mm / 1.18"

                                      Mounting Ø

                                      232mm / 9.13"

                                      Mounting Depth

                                      88mm / 3.46"

                                      Resonance Frequency (Fs)

                                      45.1 Hz

                                      Overall Qaulity (Qts)

                                      0.564

                                      Equiv. Air Volume (Vas)

                                      24.1 L / 0.85 cu.ft.

                                      DOCUMENTS

                                      INSTRUCTIONS

                                      User Manual (EN).
