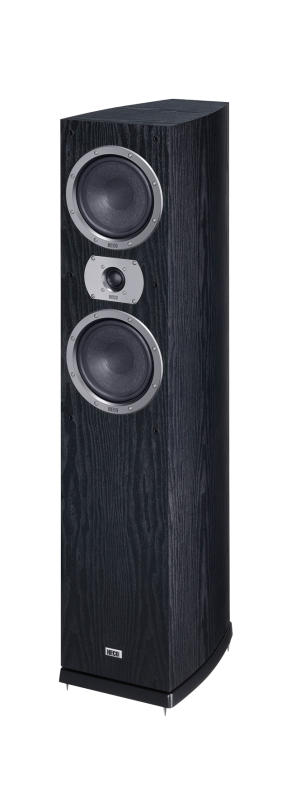

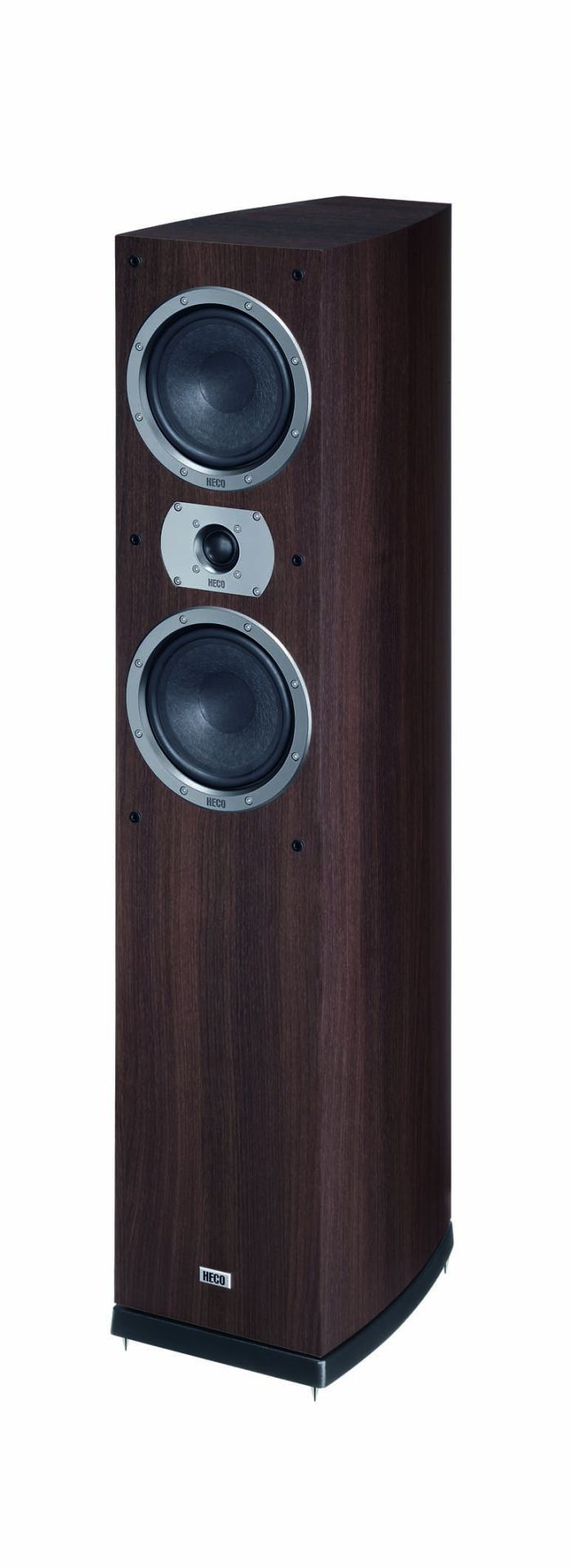

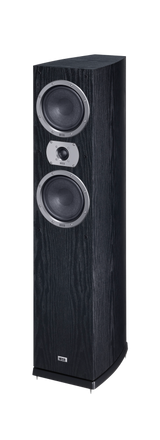

Heco Victa Prime 502, floorstanding speakers (various colors)

INFORMACIJA

HECO's Victa Prime 302 is the larger of the two bookshelf speakers in this series. Thanks to HECO's tested long fiber kraft paper, the 170 mm woofer always provides sufficient stability and does not distort the critical frequency ranges. This compact speaker also uses a 25mm silk dome with ferrofluid cooling.

• Recommended amplifier power: 30-265W.
• Frequency band: 35 - 40,000 Hz.
• Sensitivity: 91 dB.

DESCRIPTION

HECO's Victa Prime 502 is the smallest floorstanding speaker in the series. Thanks to HECO´s tried and tested long-fibre kraft paper, the two 170 mm bass-midrange drivers always ensure sufficient stability and freedom from distortion in the critical frequency ranges. The 25 mm silk dome used for this model, which also features ferrofluid cooling for improved power handling, is equipped with a short horn attachment for enhanced transition to the midrange. Lightly rounded sides, which have been meticulously manufactured from layers of glued and molded MDF panels, provide the speaker with a modern appearance. The extremely low-resonance structure offers optimum conditions for the chassis and bass reflex coordination.

TECHNICAL DATA

SPECIFICATIONS

• PRINCIPLE
  2½-Wege Standlautsprecher, Bassreflex
• SENSITIVITY (2.8V/1M)
  91 dB
• IMPEDANCE
  4 - 8 Ohms
• CROSSOVER FREQUENCIES
  380 Hz, 3.250 Hz
• POWER HANDLING (RMS/MAX)
  145/265 Watts
• FREQUENCY RESPONSE
  35 - 40,000 Hz
• RECOMMENDED AMPLIFIER OUTPUT
  30 - 265 Watts
• DIMENSIONS (WXHXD)
  203 x 977 x 315 mm

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
