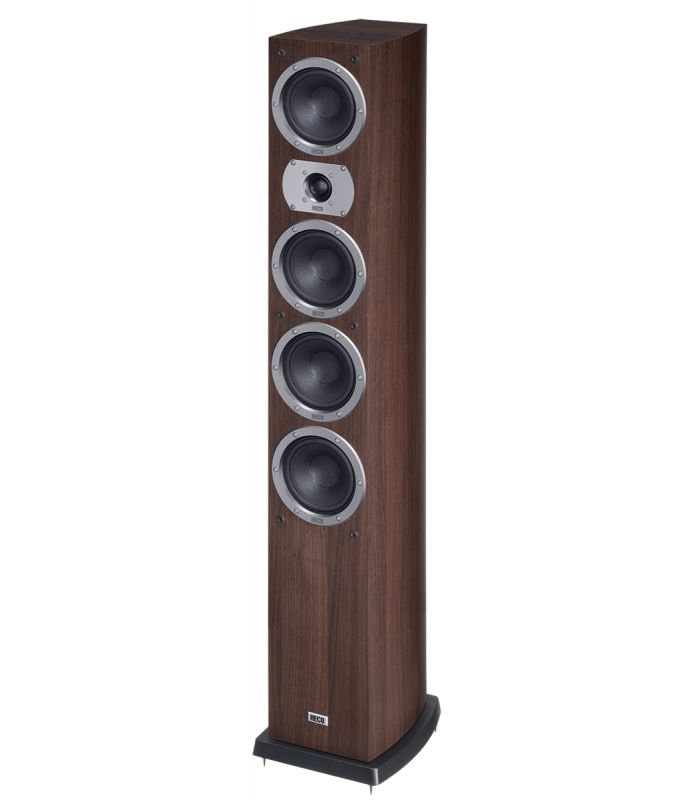

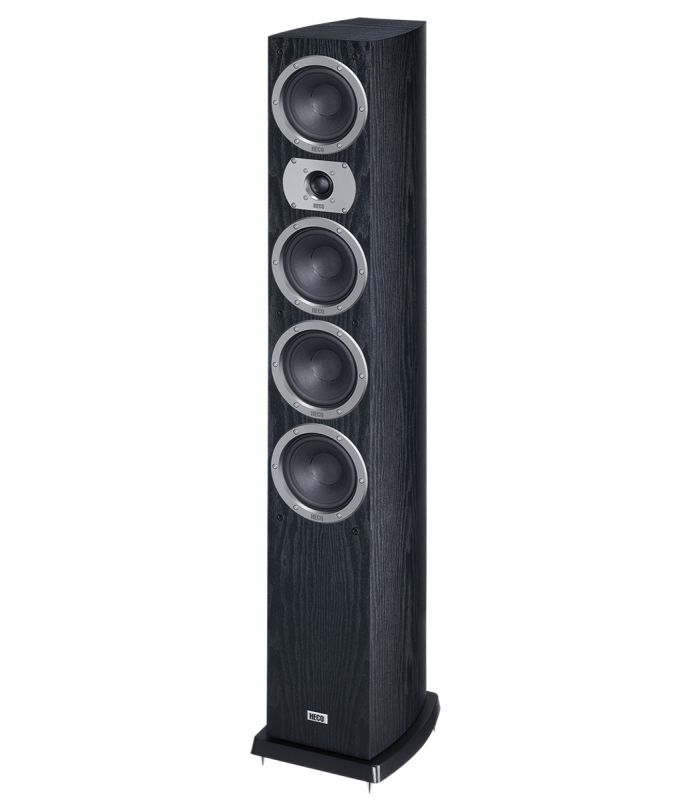

Heco Victa Prime 602, floorstanding speakers (various colors)

INFORMACIJA

HECO's ultra-slim Victa Prime 602 is equipped with four 120mm woofers and mid-woofers, two of which operate in a dual-bass configuration to deliver the required level of deep bass.

• Recommended amplifier power: 160-280W.
• Frequency band: 26 - 40,000 Hz.
• Sensitivity: 91 dB.

DESCRIPTION

HECO's very slim Victa Prime 602 is equipped with four 120 mm bass/midrange chassis, two of which operate in a double bass configuration to ensure the necessary deep bass levels. These smaller drivers enable a particularly elegant and slim-line speaker construction. The cones used for the woofer and midrange drivers have been manufactured from HECO´s long-fibre kraft paper. A 25 mm silk dome, which features ferrofluid cooling for improved power handling, is equipped with a short horn attachment for enhanced transition to the midrange. Lightly rounded sides, which have been meticulously manufactured from layers of glued and molded MDF panels, provide the speaker with a modern appearance. The extremely low-resonance structure offers optimum conditions for the chassis and bass reflex coordination.

TECHNICAL DATA

SPECIFICATIONS

PRINCIPLE

• 3 way bass reflex

SENSITIVITY (2.8V/1M)

• 91 dB

EQUIPMENT

• 25 mm tweeter
• 2mt120
• 2tt120

IMPEDANCE

• 4 - 8 Ohms

CROSSOVER FREQUENCIES

• 450 Hz, 3.250 Hz

POWER HANDLING (RMS/MAX)

• 160 / 280 watts

FREQUENCY RESPONSE

• 26 - 40,000 Hz

RECOMMENDED AMPLIFIER OUTPUT

• 30 - 280 Watts

DIMENSIONS (WXHXD)

• 167 x 1035 x 235 mm
